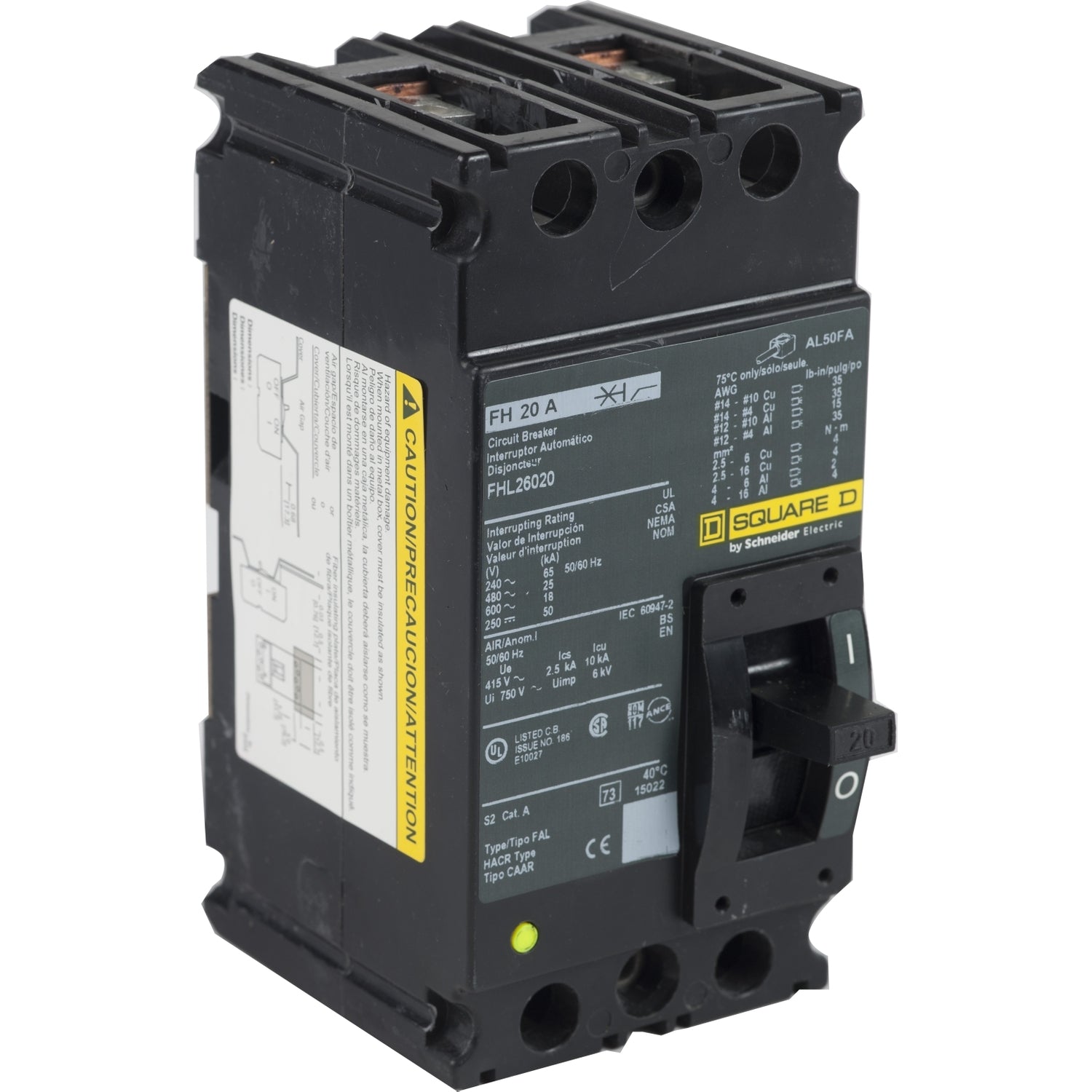

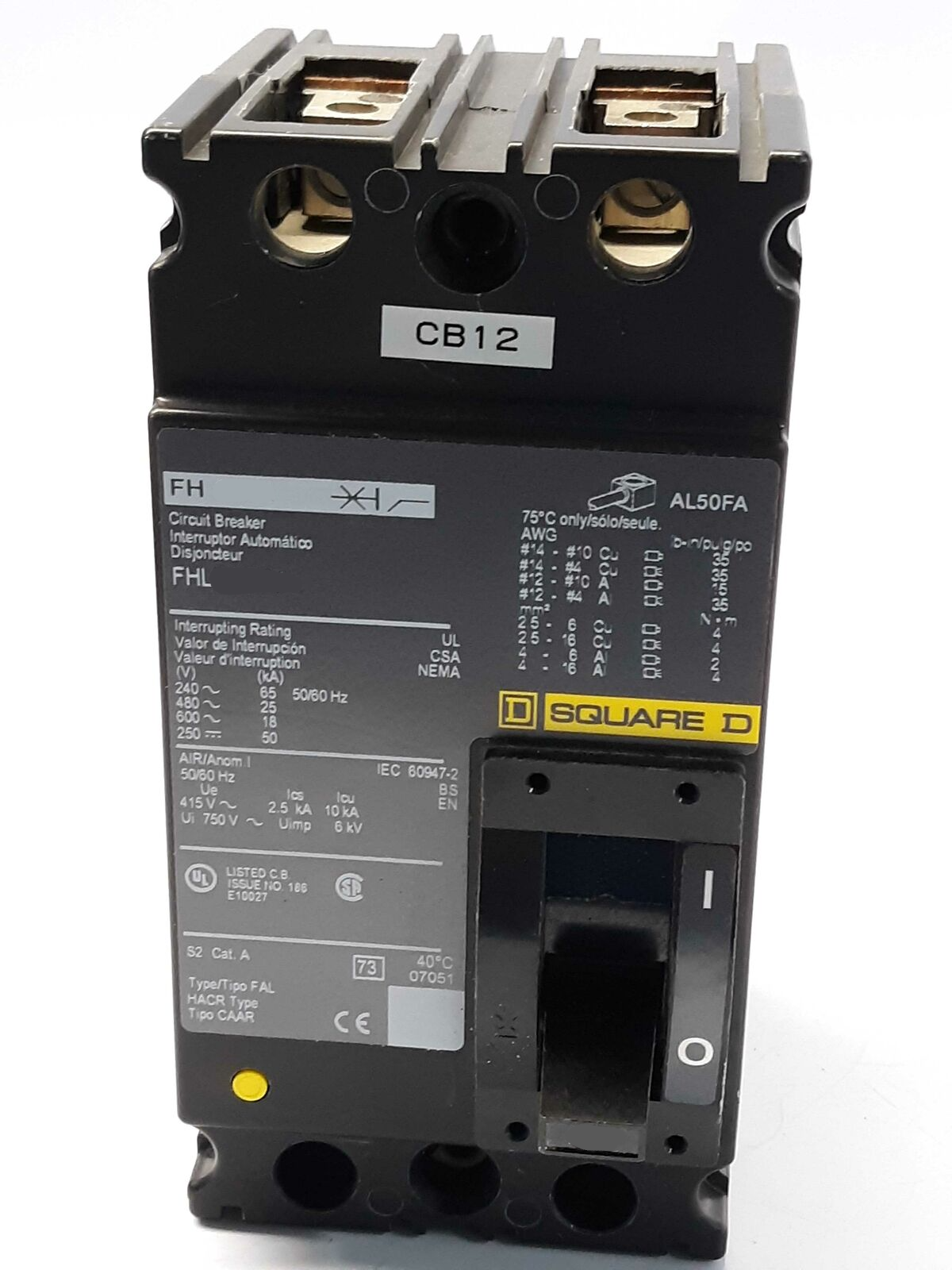

Square D FHL26020 Circuit Breaker | 600V 20A 2P 25kA@480V Feed-Thru FHL Series
Square D FHL26020 Circuit Breaker | 600V 20A 2P 25kA@480V Feed-Thru FHL Series
Price:
Sale
Sold out
Regular price
$376.68 USD
Regular price
$2,093.40 USD
Sale price
$376.68 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
Product Description:
The Square D FHL26020 is a Molded Case Circuit Breaker from the FHL Series. It features 2 poles, 600V voltage, and a 20 amp rating with a 25kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: FHL26020
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FHL Series
✔ Type: FHL
✔ Voltage: 600
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 25kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901368540
✔ GTIN: 00785901368540
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 3 in (76.20 mm) Height 6.4 in (162.56 mm)
✔ Weight: 3
✔ Certification: UL LISTED-CSA
✔ Wire Size: AWG 14, AWG 4 Copper)1, AWG 12, AWG 4 Aluminium)1
