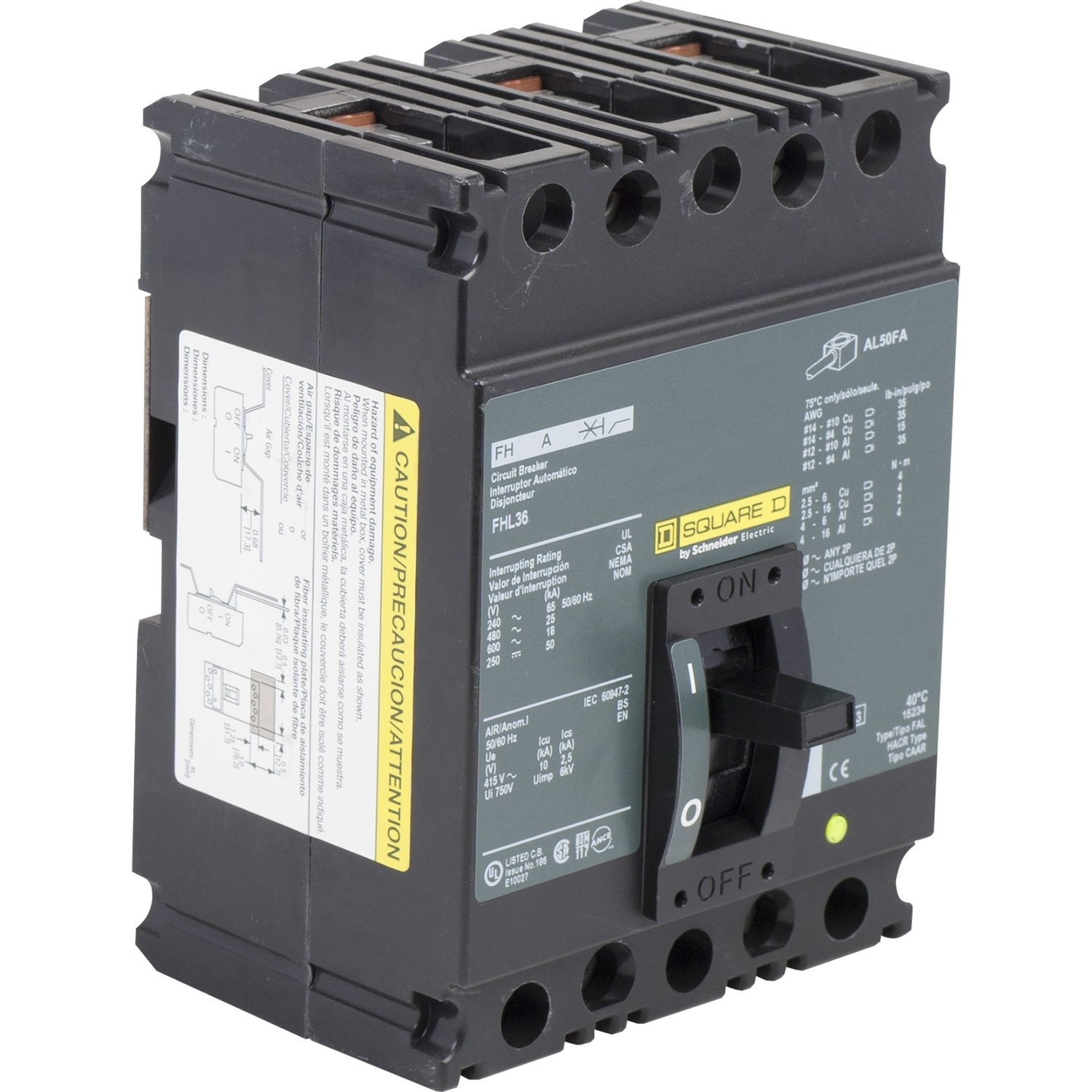

Square D FHL36000M Molded Case Circuit Breaker | 600V 100A 3P 25kA@480V Feed-Thru FHL Series

Product Description:
The Square D FHL36000M is a Molded Case Circuit Breaker from the FHL Series, designed for industrial and commercial electrical systems. It is a 3-pole, 600 Volt, 100 amp breaker with a 25kA@480V AIC rating and uses a Feed-Thru connection. This model features Magnetic Only protection for reliable performance in demanding applications.

Key Features:
✔ Part Number: FHL36000M
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FHL Series
✔ Type: FHL
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 25kA@480V
✔ Connection: Feed-Thru
✔ Functions: I - Instantaneous
✔ Frame Size: F Frame
✔ Protection: Magnetic Only
✔ GTIN: 00785901255581
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
✔ Weight: 5
✔ Certification: UL, CSA
✔ Wire Size: AWG 14 to AWG 1/0 Copper, AWG 12 to AWG 1/0, Aluminum
