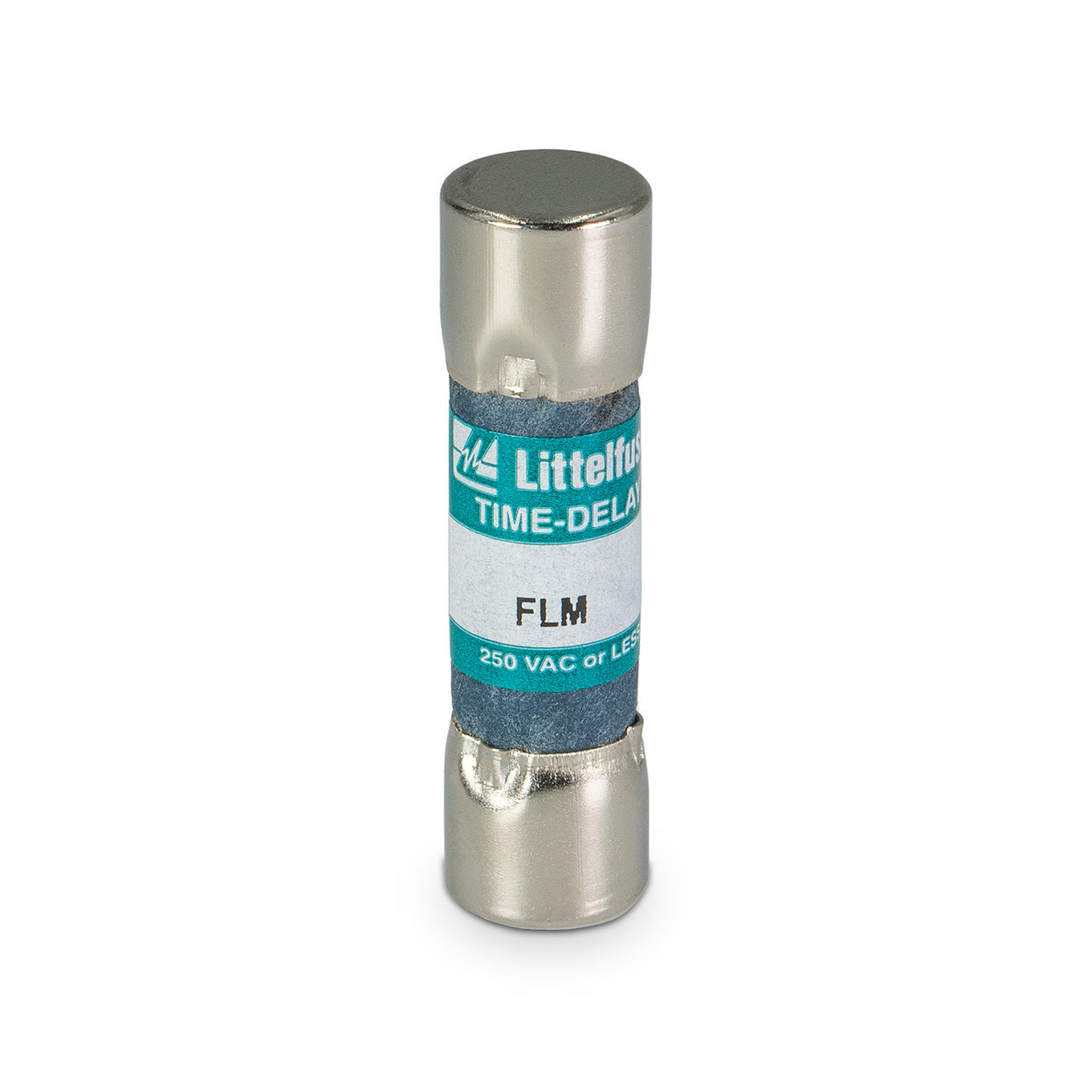

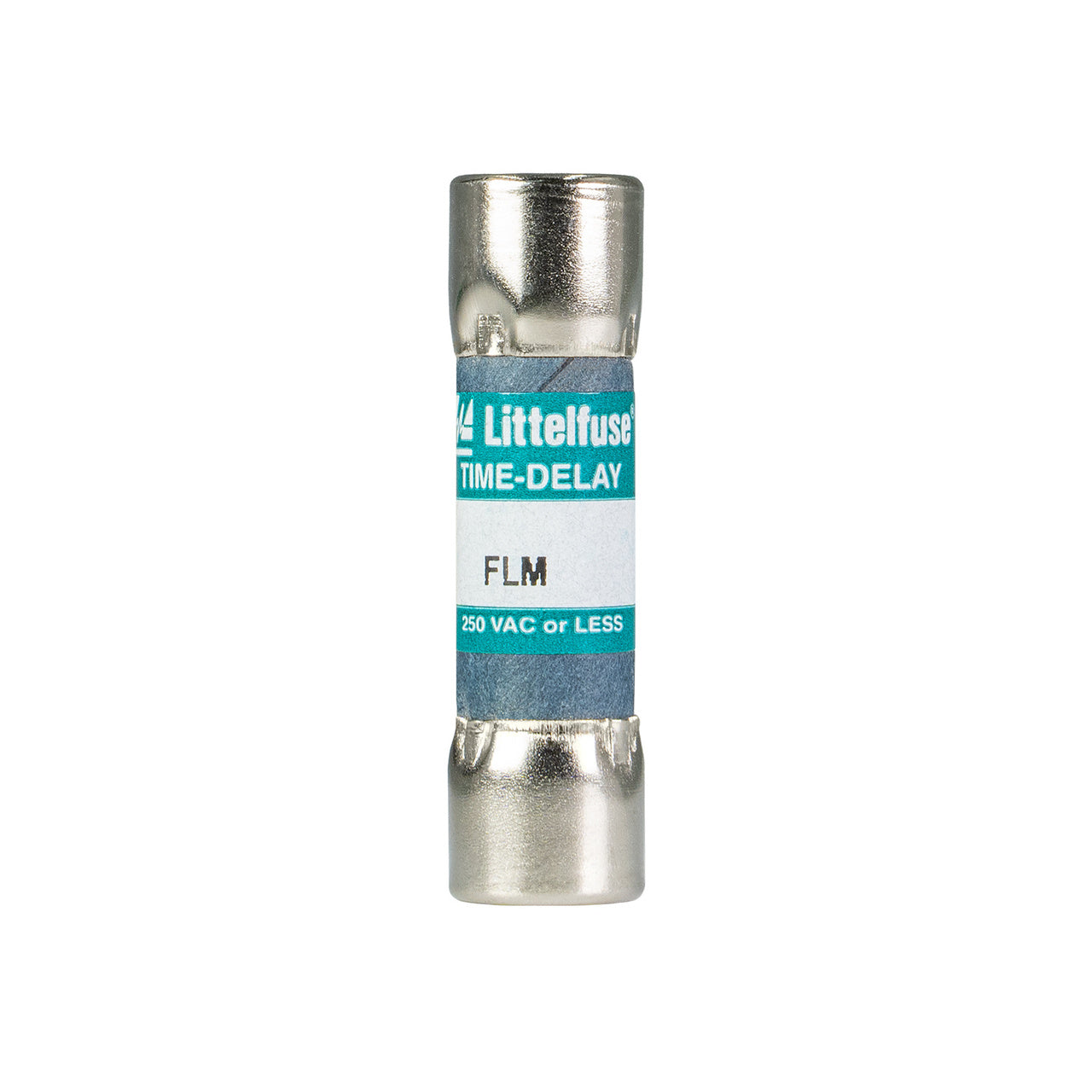

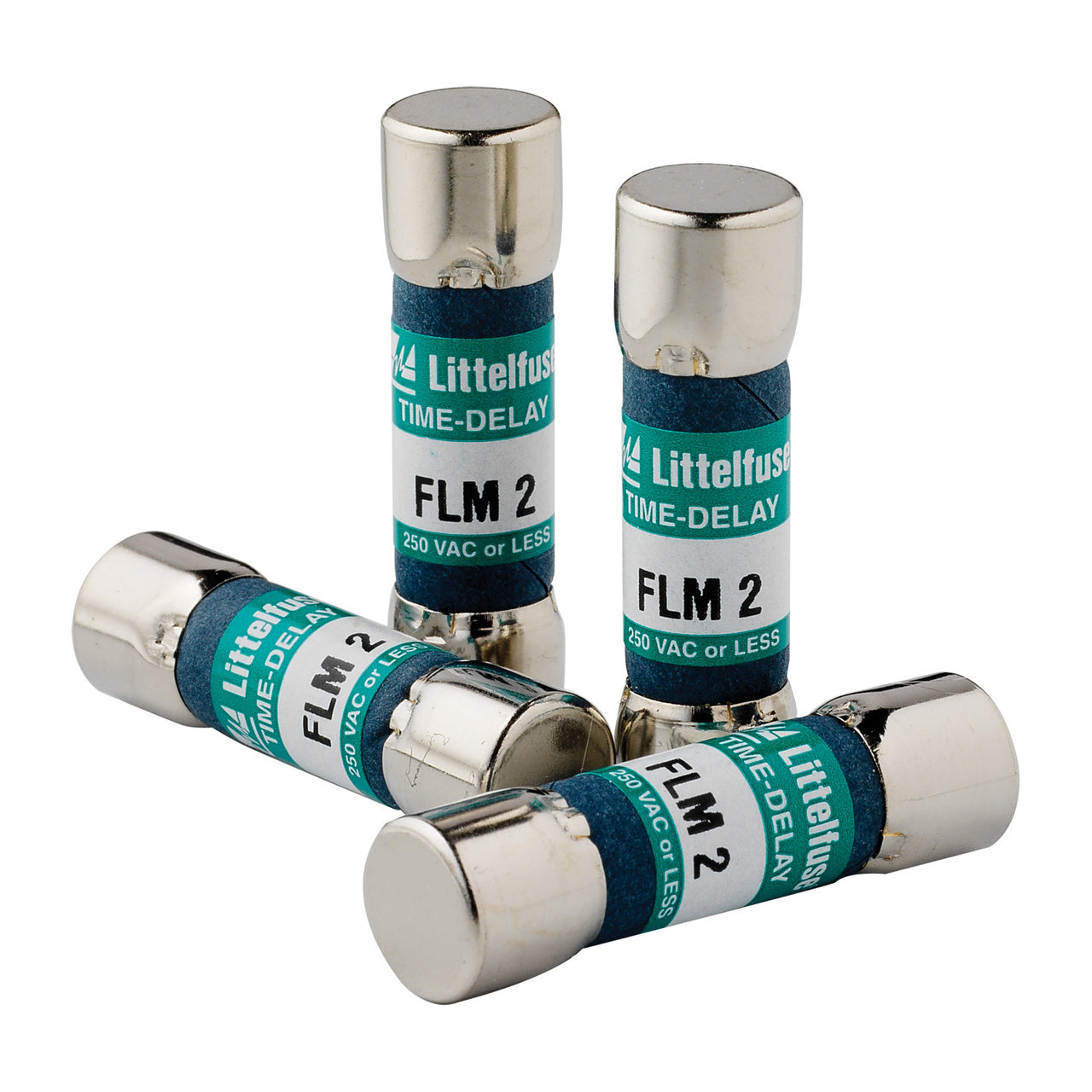

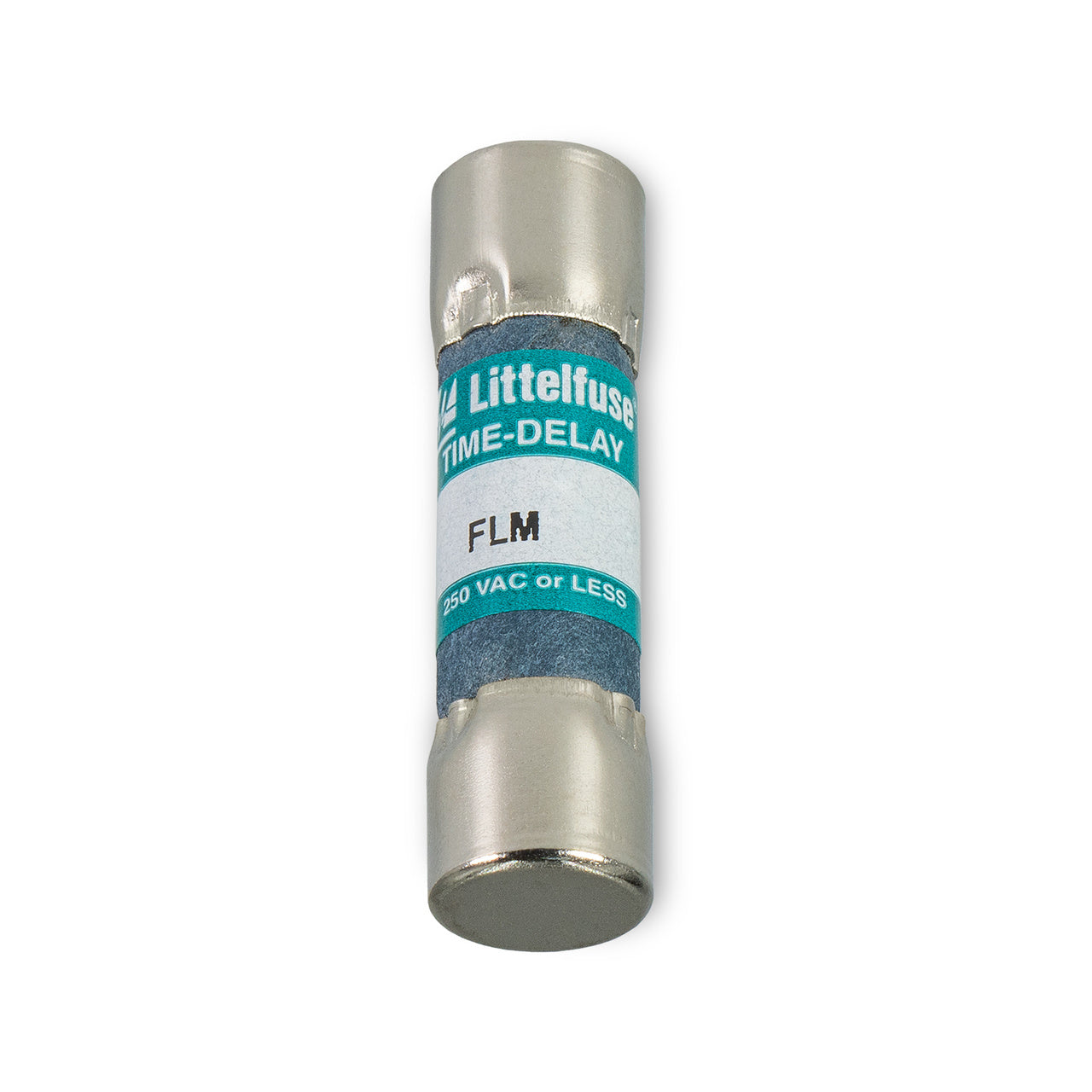

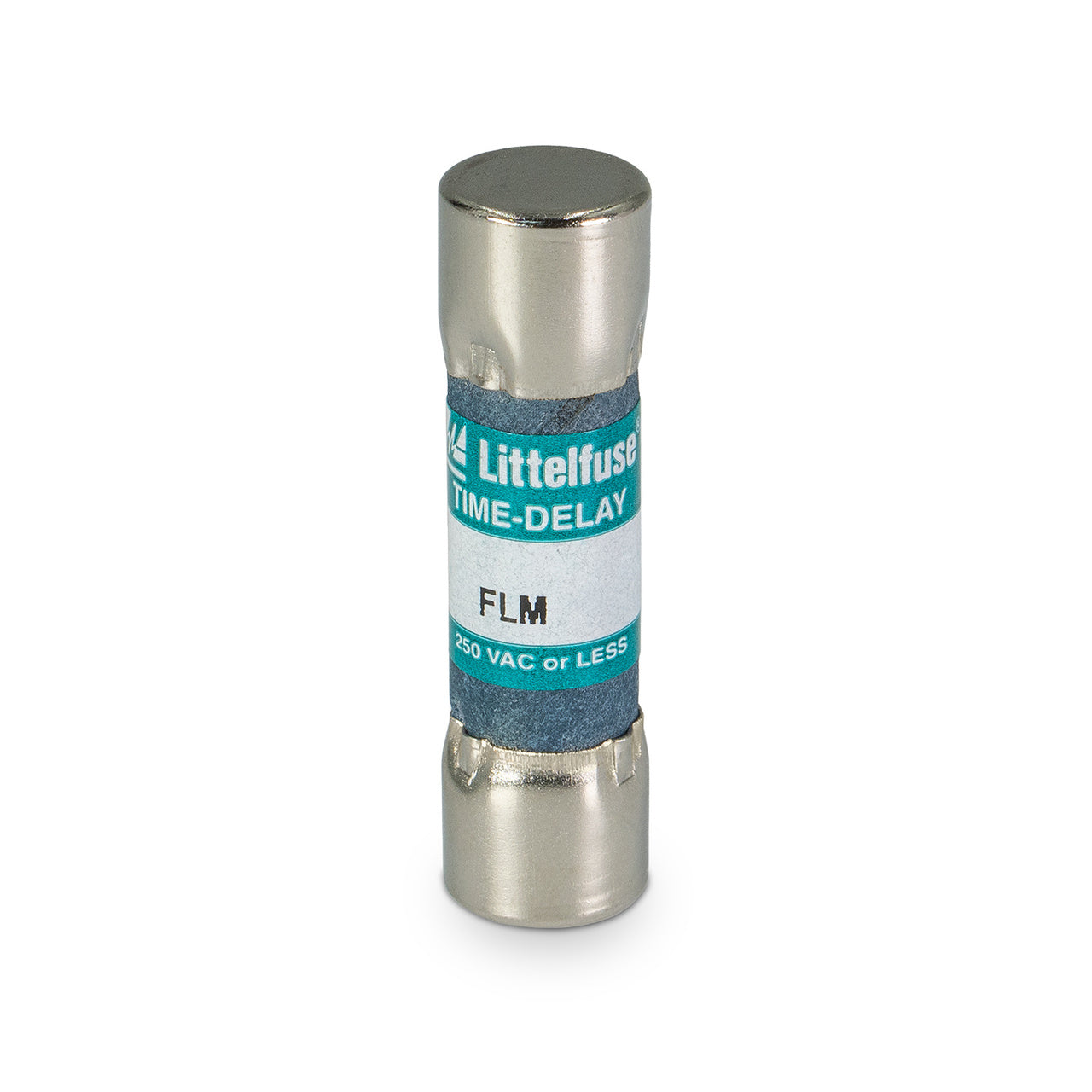

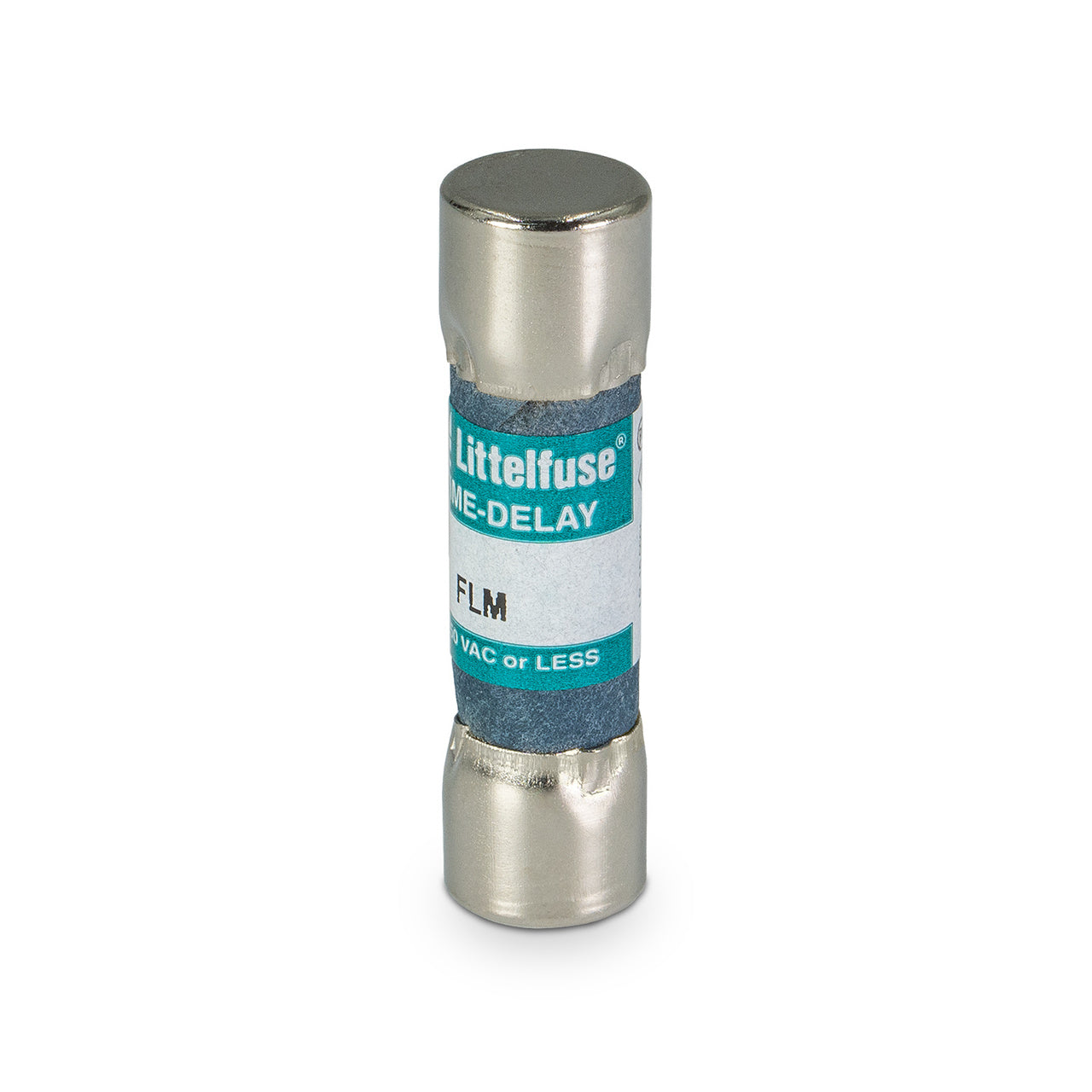

Littelfuse FLM002 2A Midget Time-Delay Fuse - Direct Replacement

Littelfuse FLM002 2A Midget Time-Delay Fuse - Direct Replacement

Need a direct replacement midget fuse for a control transformer or solenoid circuit? The FLM002 drops into any standard 10x38mm midget fuse block and handles 2A at 250VAC/125VDC without nuisance tripping on inrush. It is UL Listed to UL 248-14 and CSA Certified, so you are covered on both sides of the border.

This is a time-delay fuse, not fast-acting, so it rides through the momentary surge on transformers and solenoids instead of opening every time the equipment starts up.

Common Applications

• Swapping out a blown control transformer fuse in a panel
• Protecting solenoids and other inductive loads on the jobsite
• Supplemental protection on small motor circuits
• General midget fuse replacement work in control panels and equipment

Key Features

• Drop-in midget fit: Standard 10x38mm body fits the fuse blocks and holders already in the equipment.
• 10 kA interrupt rating: Rated 10,000A AC and 10,000A DC, solid headroom for control circuit work.
• Time-delay element: Built to handle transformer and solenoid inrush without opening on you unnecessarily.
• Paper body construction: Cost-effective and reliable for supplemental circuit protection.
• UL and CSA covered: Listed to UL 248-14 and CSA Certified, so it satisfies inspection on jobs in the US and Canada.

Specifications

• Manufacturer: Littelfuse
• Catalog Number: FLM002
• Series: FLM POWR-GARD
• Fuse Type: UL Supplemental (Midget), Time-Delay
• Amperage Rating: 2A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupting Rating: 10,000A AC / 10,000A DC (DC self-certified)
• Nominal Cold Resistance: 0.2191 ohms
• Body Material: Paper
• End Caps: Nickel-plated bronze
• Applicable Standard: UL 248-14
• Approvals: UL Listed (File E10480); CSA Certified (File LR29862); CE; QPL to MIL-F-15160/9
• Environmental: RoHS 2 Directive 2011/65/EU and Directive (EU) 2015/863; REACH

Product Identification

• Country of Origin: Mexico
• Dimensions: 1.50 in L x 0.406 in Dia (38.1 mm x 10.31 mm)
• Weight: 0.010 lb (4.54 g)
• UPC: 07945814041

FAQ

Will the FLM002 fit my existing midget fuse block?
Yes, it is built to the standard 10x38mm midget size, so it fits any block or holder speced for that size.

Is this a fast-acting or time-delay fuse?
Time-delay. It is designed to ride through transformer and solenoid inrush current instead of opening right away.

What is the interrupt rating on the FLM002?
10,000A AC and 10,000A DC, solid headroom for most control circuit work.

Is the FLM002 a Class CC fuse?
No, it is a UL Supplemental fuse for internal wiring protection, not a UL Class fuse rated for branch circuits.

Does the FLM002 show when it has blown?
No, it is non-indicating. Use an indicating fuse block if you want a visual sign of a blown fuse.
