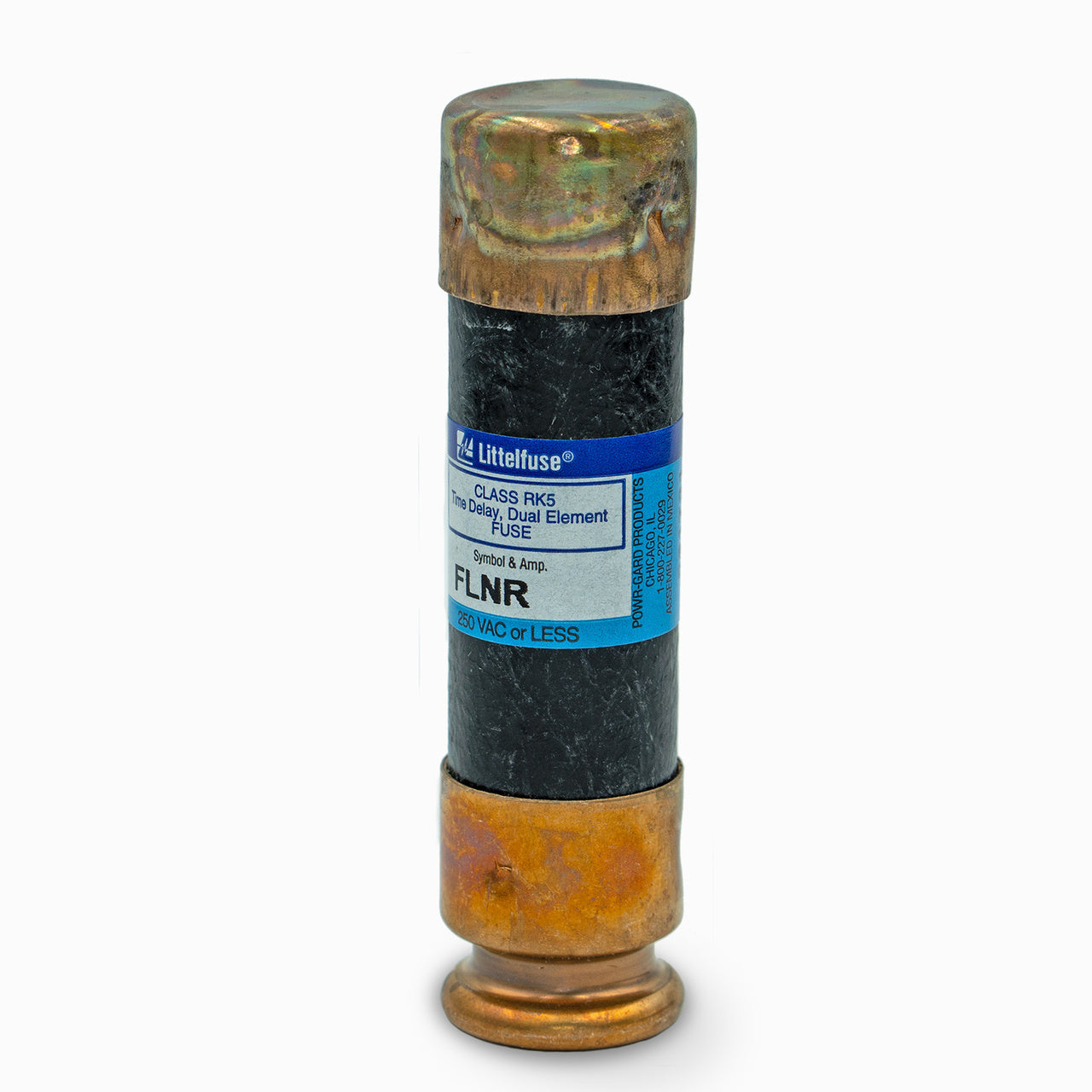

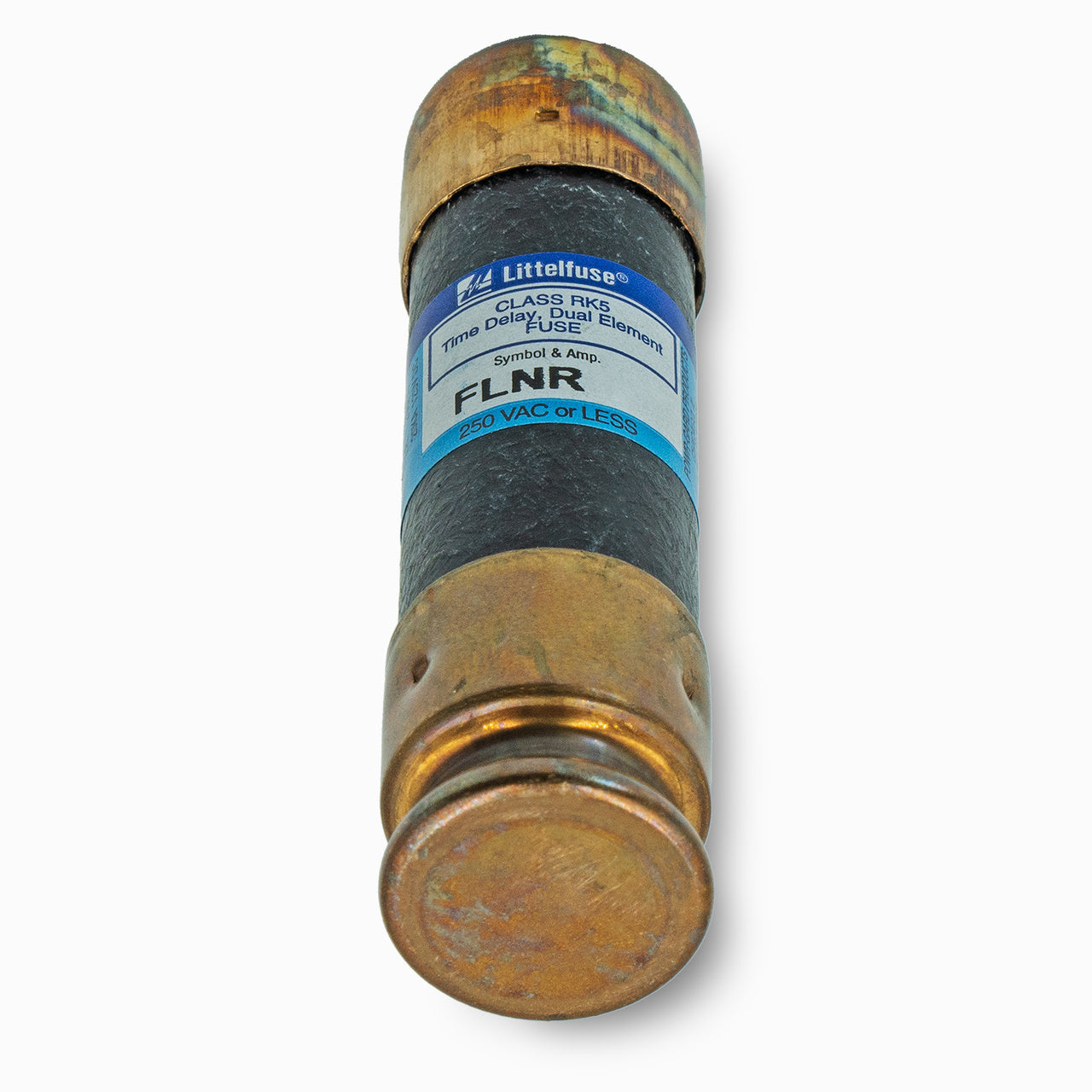

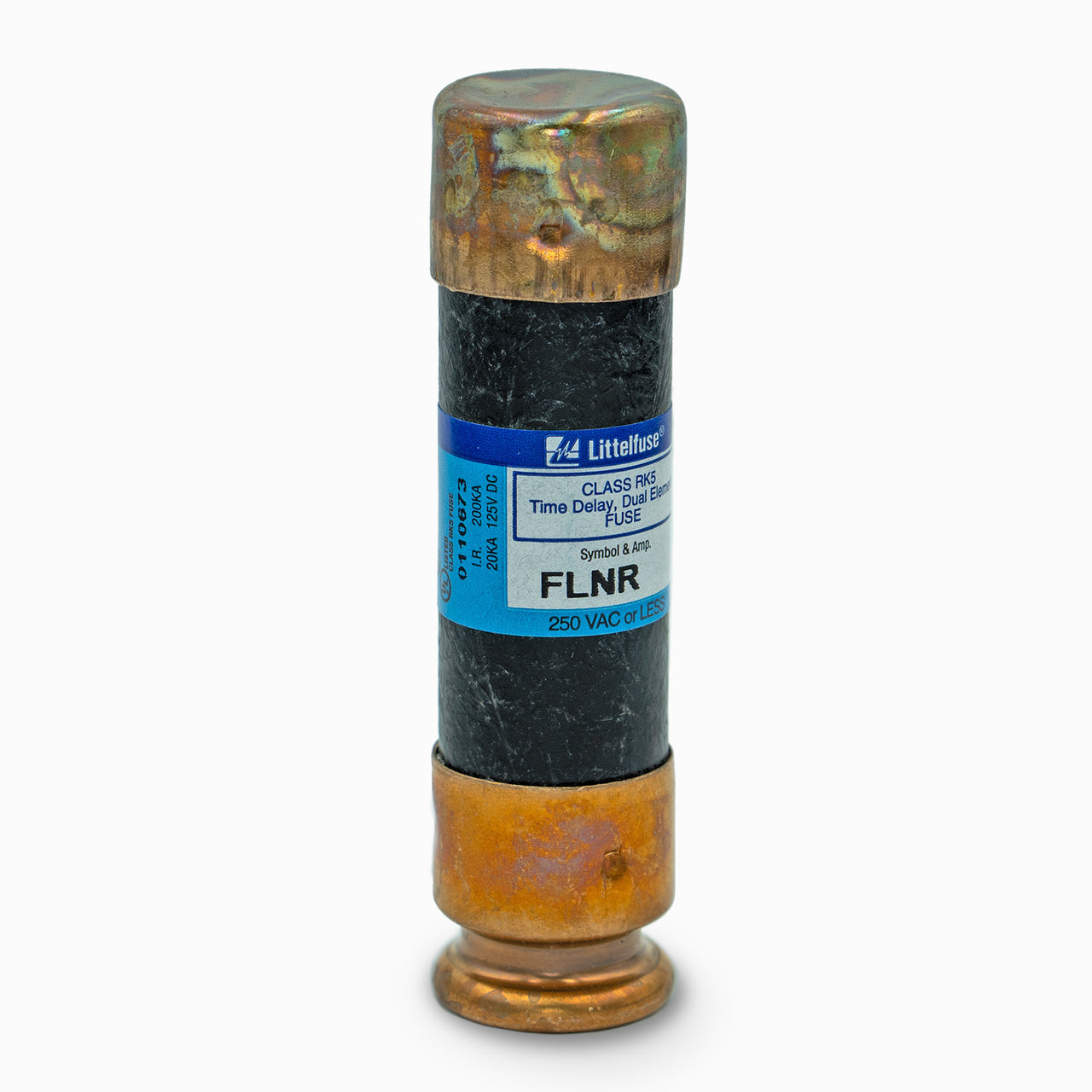

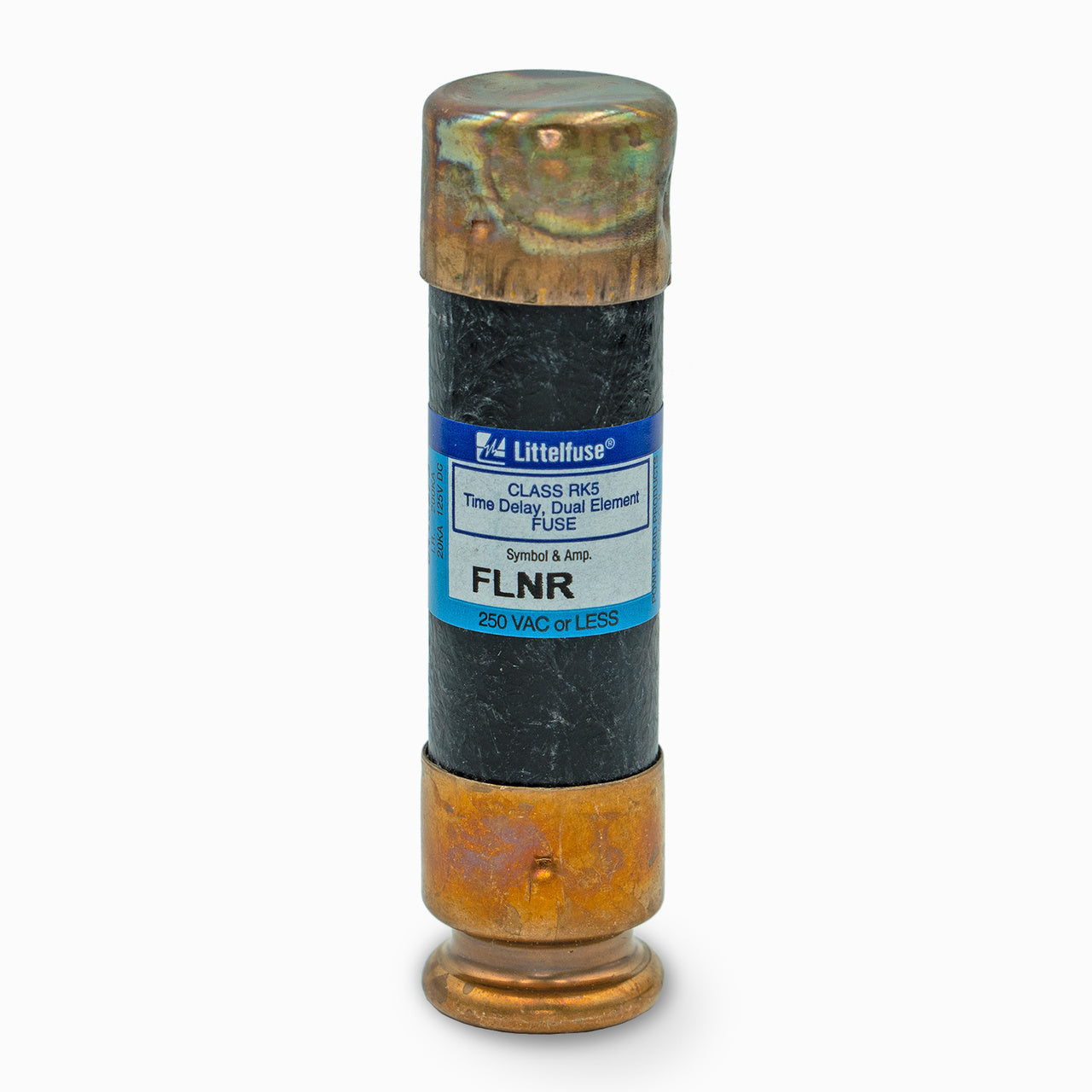

Littelfuse FLNR050 Fuse | 250V 50A 200kA@250V FLNR Series

Product Description:
The Littelfuse FLNR050 is a 250V 50A low voltage fuse from the FLNR Series, designed for UL Class RK5 applications. It features a dual-element time-delay design for reliable circuit protection. With a 200kA@250V AIC rating and ferrule rejection connection, it ensures safety and performance. The fuse has a compact 0.81-inch diameter and is ideal for industrial and commercial use.

Key Features:
✔ Part Number: FLNR050
✔ Manufacturer: Littelfuse
✔ Category: Fuse
✔ Subcategory: Low Voltage Fuse
✔ Family: FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
✔ Type: FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
✔ Voltage: 250
✔ Amperage: 50
✔ AIC Rating: 200kA@250V
✔ Connection: Ferrule Rejection
✔ Diameter: 0.81
✔ Class Rating: RK5
✔ Barrels: 1
✔ Velocity: TD - Time Delay
✔ UPC: 07945815077
✔ GTIN: 00079458150773
✔ Country of Origin: Mexico
✔ Weight: 0.44
✔ Certification: CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
