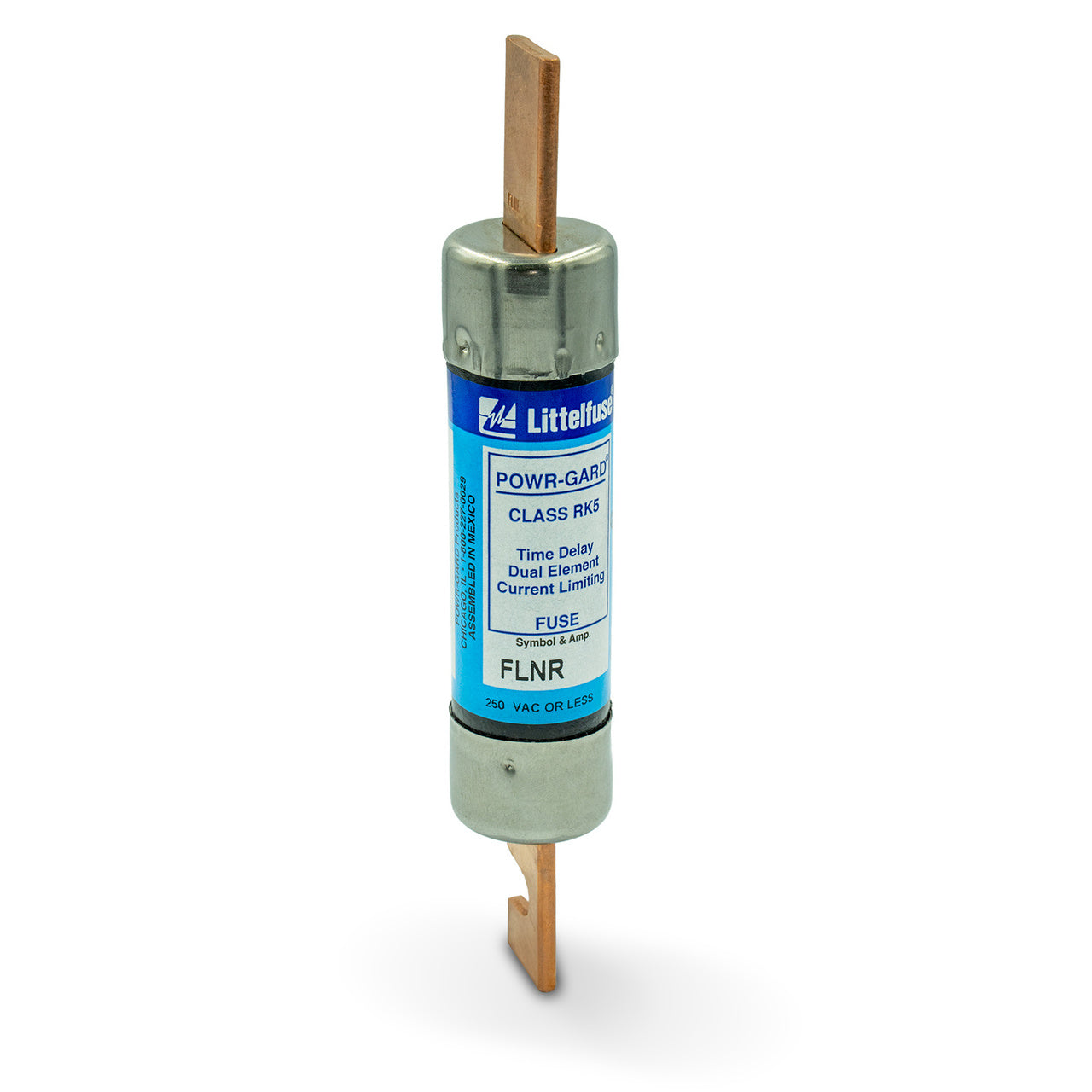

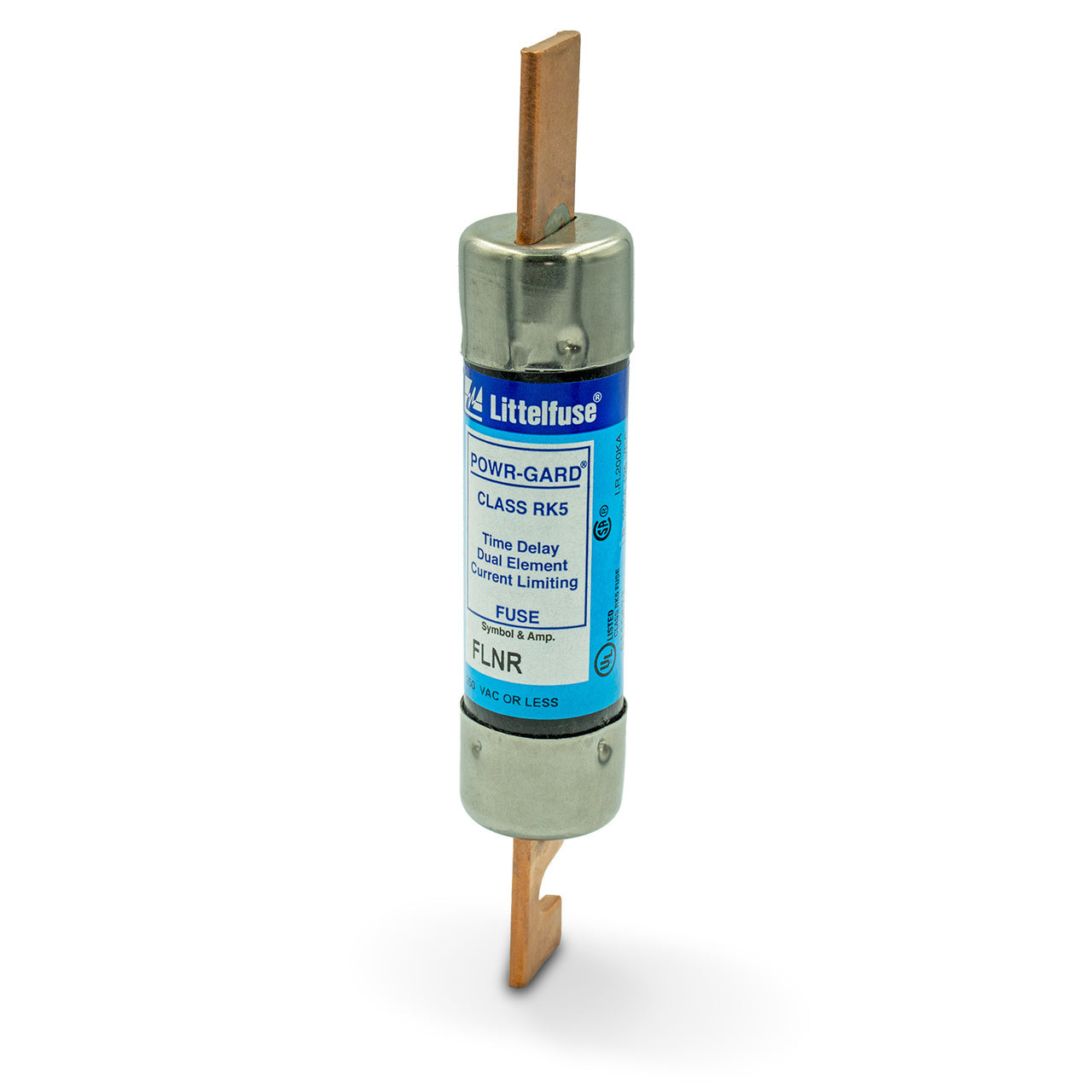

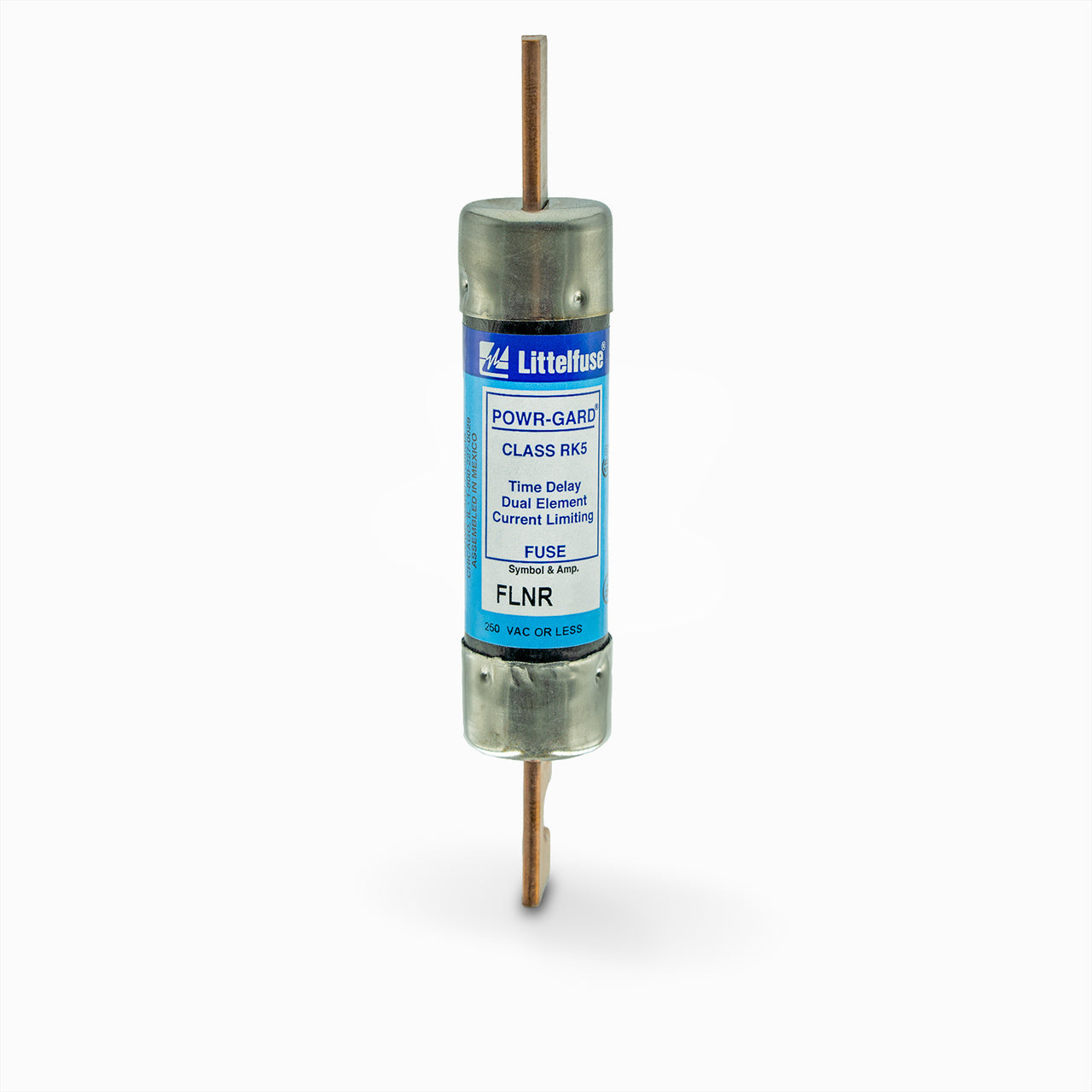

Littelfuse FLNR100 Fuse | FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses 250V 100A

Product Description:
The Littelfuse FLNR100 is a 250V 100A low voltage fuse from the FLNR Series. It features a UL Class RK5 dual-element time-delay design with a 200kA@250V AIC rating. The fuse has a rejection blade connection and a 2.59 diameter. It is a single-barrel fuse with time-delay characteristics.

Key Features:
✔ Part Number: FLNR100
✔ Manufacturer: Littelfuse
✔ Category: Fuse
✔ Subcategory: Low Voltage Fuse
✔ Family: FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
✔ Type: FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
✔ Voltage: 250V
✔ Amperage: 100A
✔ AIC Rating: 200kA@250V
✔ Connection: Rejection Blade
✔ Diameter: 2.59
✔ Class Rating: RK5
✔ Barrels: 1
✔ Velocity: TD - Time Delay
✔ Certification: CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
✔ UPC: 007945815082
✔ GTIN: 00079458150827
✔ Country of Origin: Mexico
✔ Dimensions: 5-7/8 in
