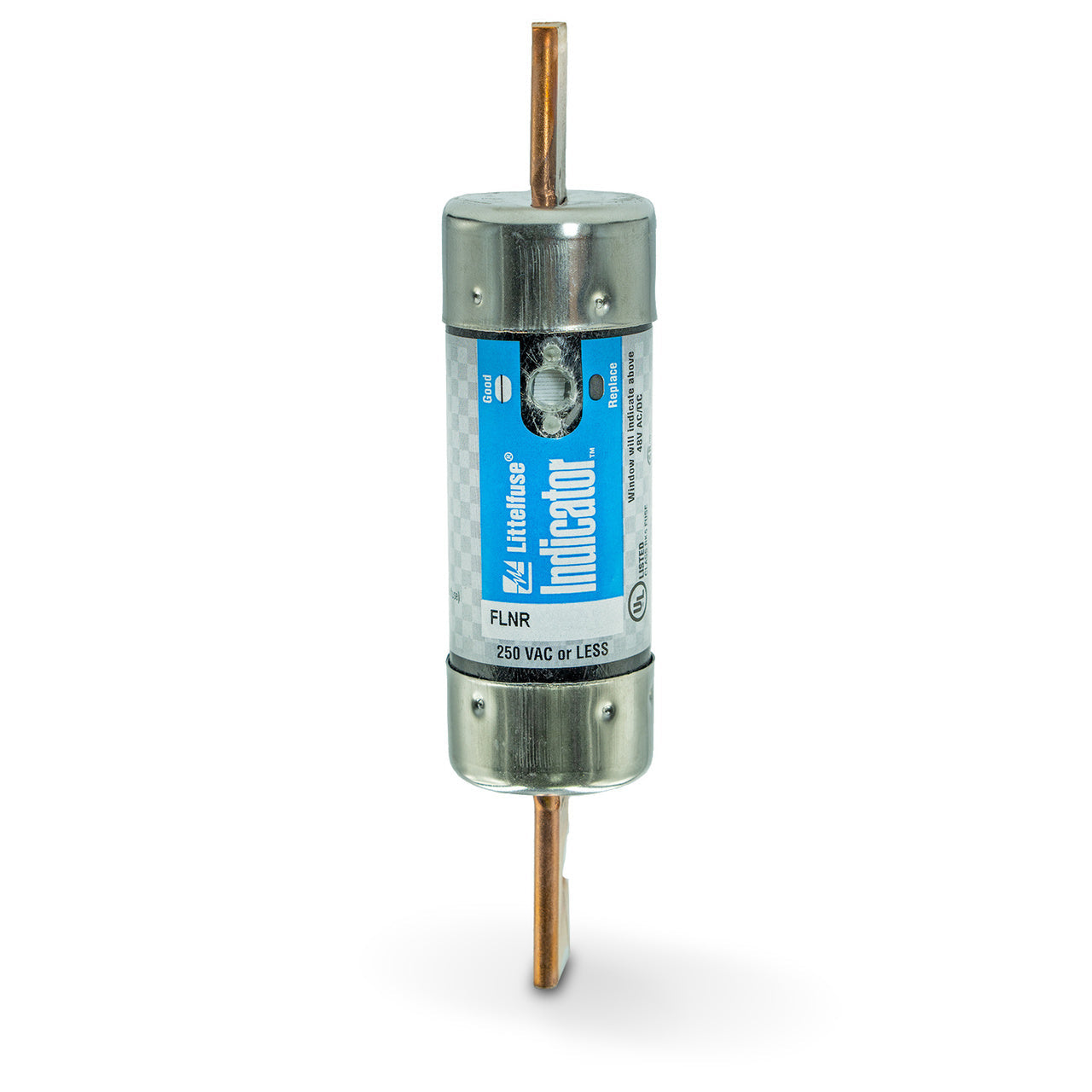

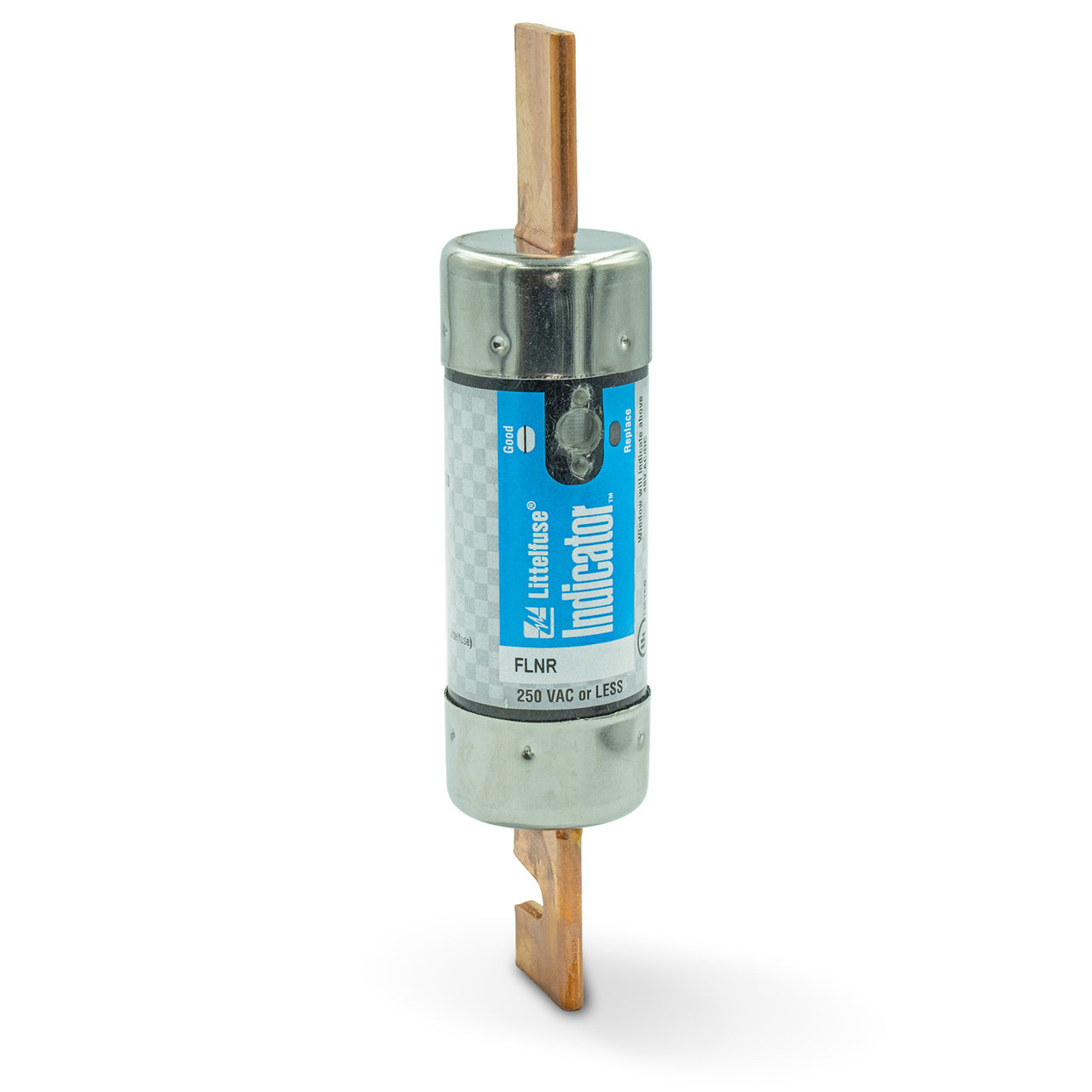

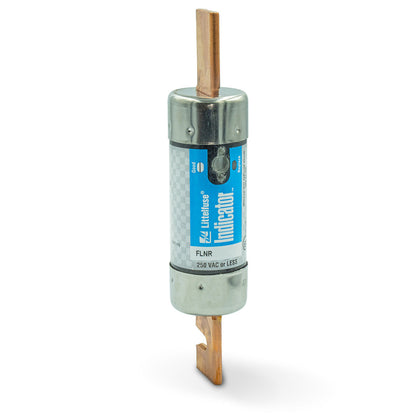

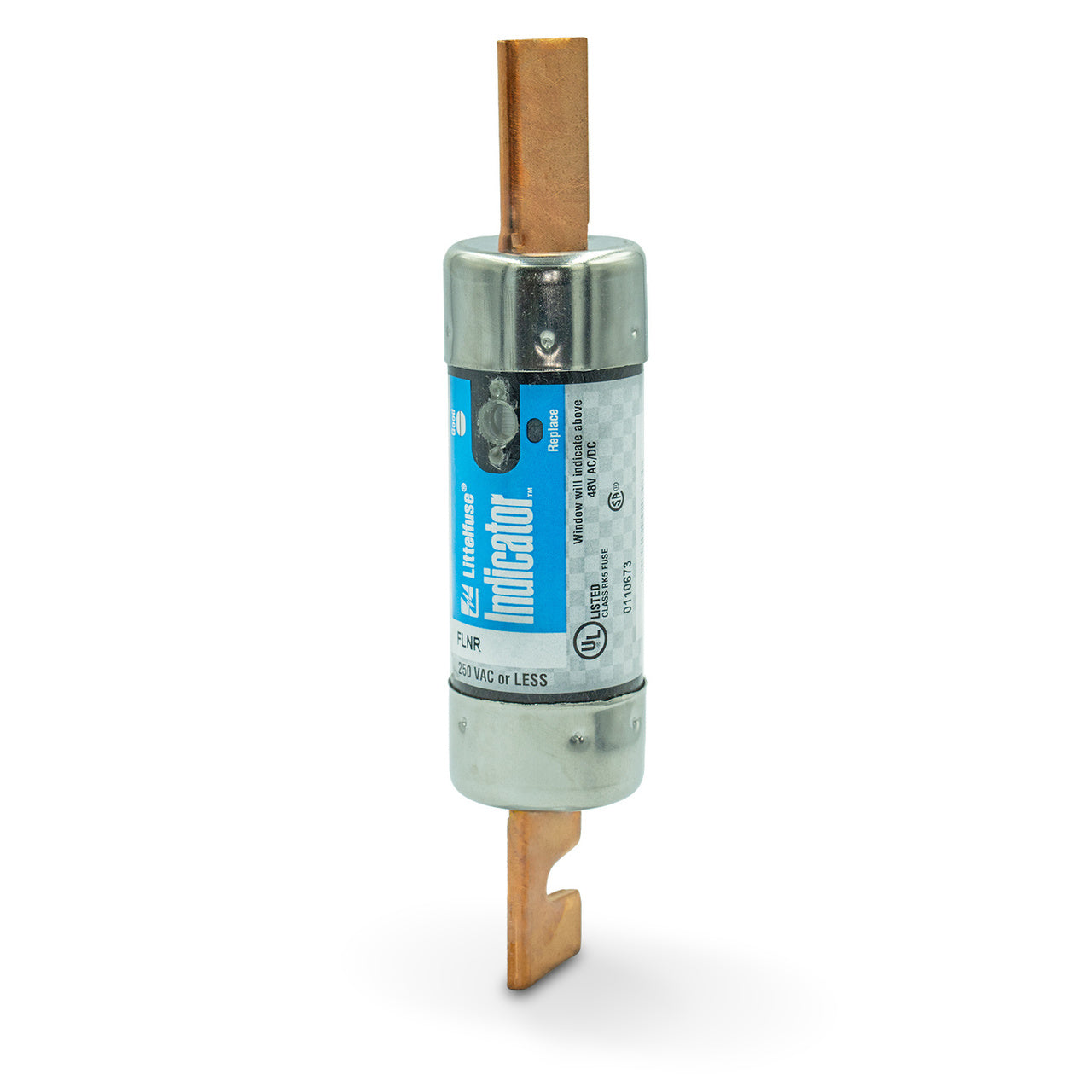

Littelfuse FLNR110ID Fuse | FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication 250V 110A

Product Description:
The Littelfuse FLNR110ID is a 250V 110A low voltage fuse from the FLNR_ID Series. It features a UL Class RK5 dual-element time-delay design with indication and a 200kA@250V AIC rating. The fuse has a rejection blade connection and a 1.59 diameter in a single-barrel configuration. It is suitable for time-delay applications and meets CSA, cUL, and UL certifications.

Key Features:
✔ Part Number: FLNR110ID
✔ Manufacturer: Littelfuse
✔ Category: Fuse
✔ Subcategory: Low Voltage Fuse
✔ Family: FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
✔ Type: FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
✔ Voltage: 250V
✔ Amperage: 110A
✔ AIC Rating: 200kA@250V
✔ Connection: Rejection Blade
✔ Diameter: 1.59
✔ Class Rating: RK5
✔ Barrels: 1
✔ Velocity: TD - Time Delay
✔ Certification: CSA, cUL, UL
✔ UPC: 079458023893
✔ GTIN: 00079458023893
✔ Country of Origin: Mexico
✔ Dimensions: 7 1/8 in
✔ Weight: 1
