Product Description:

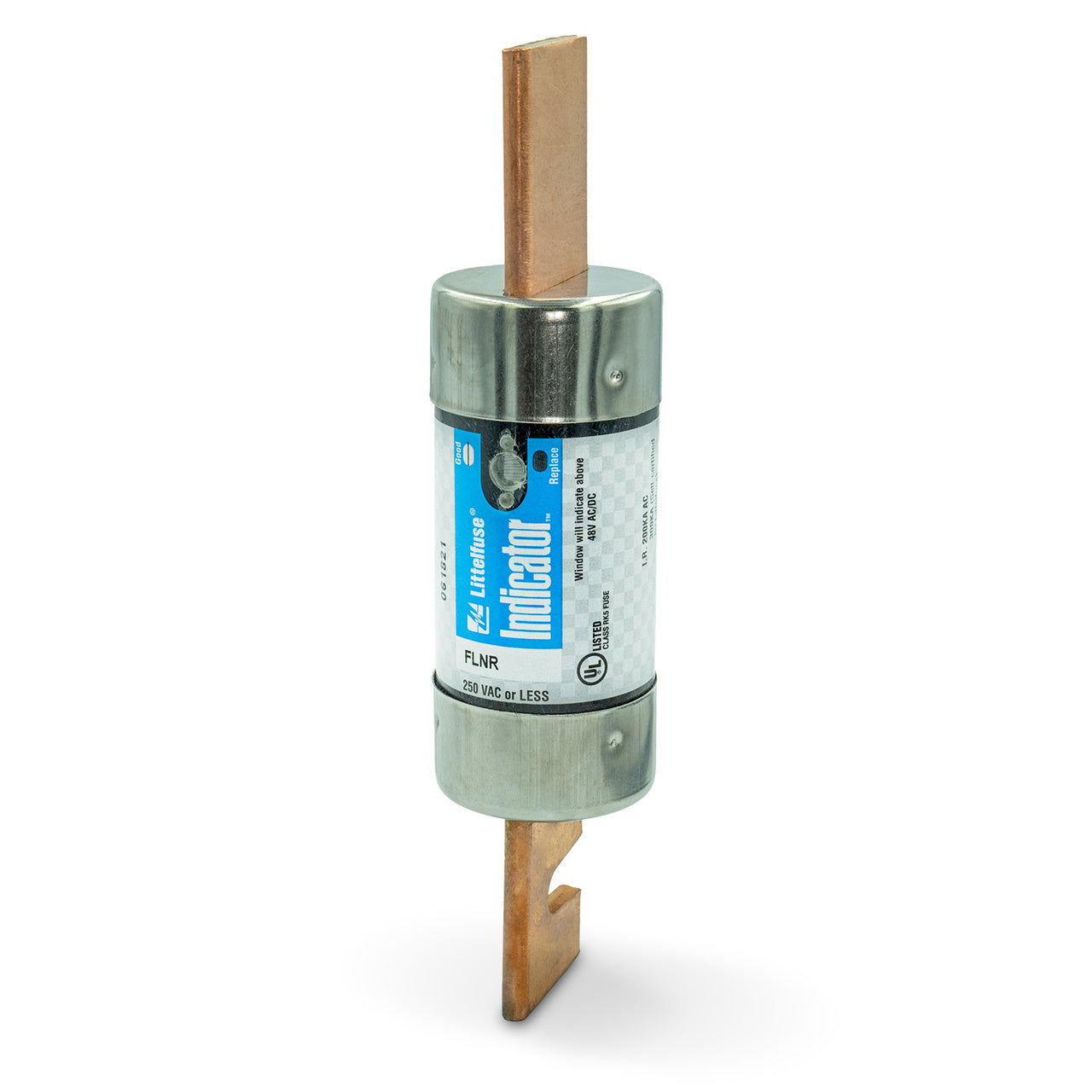

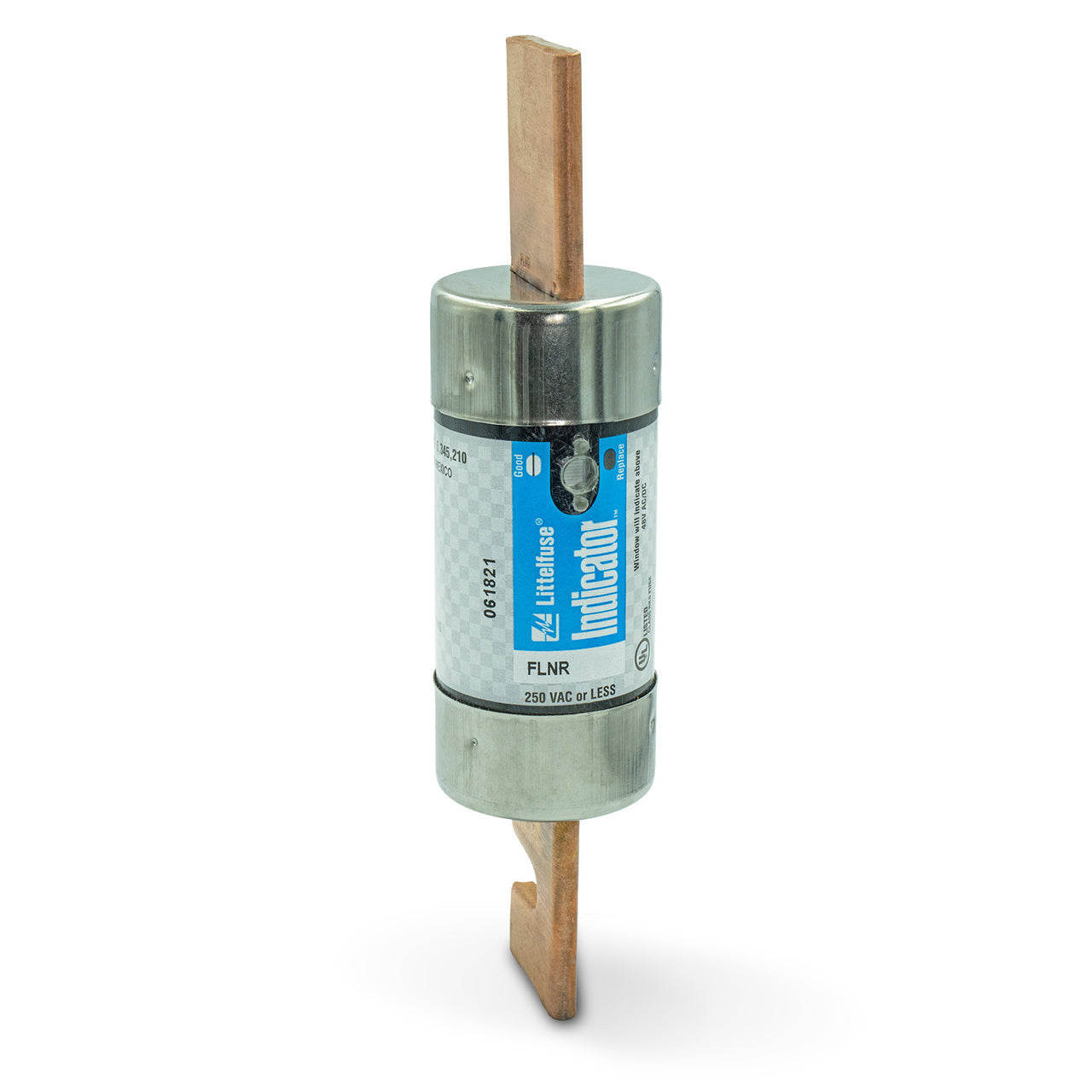

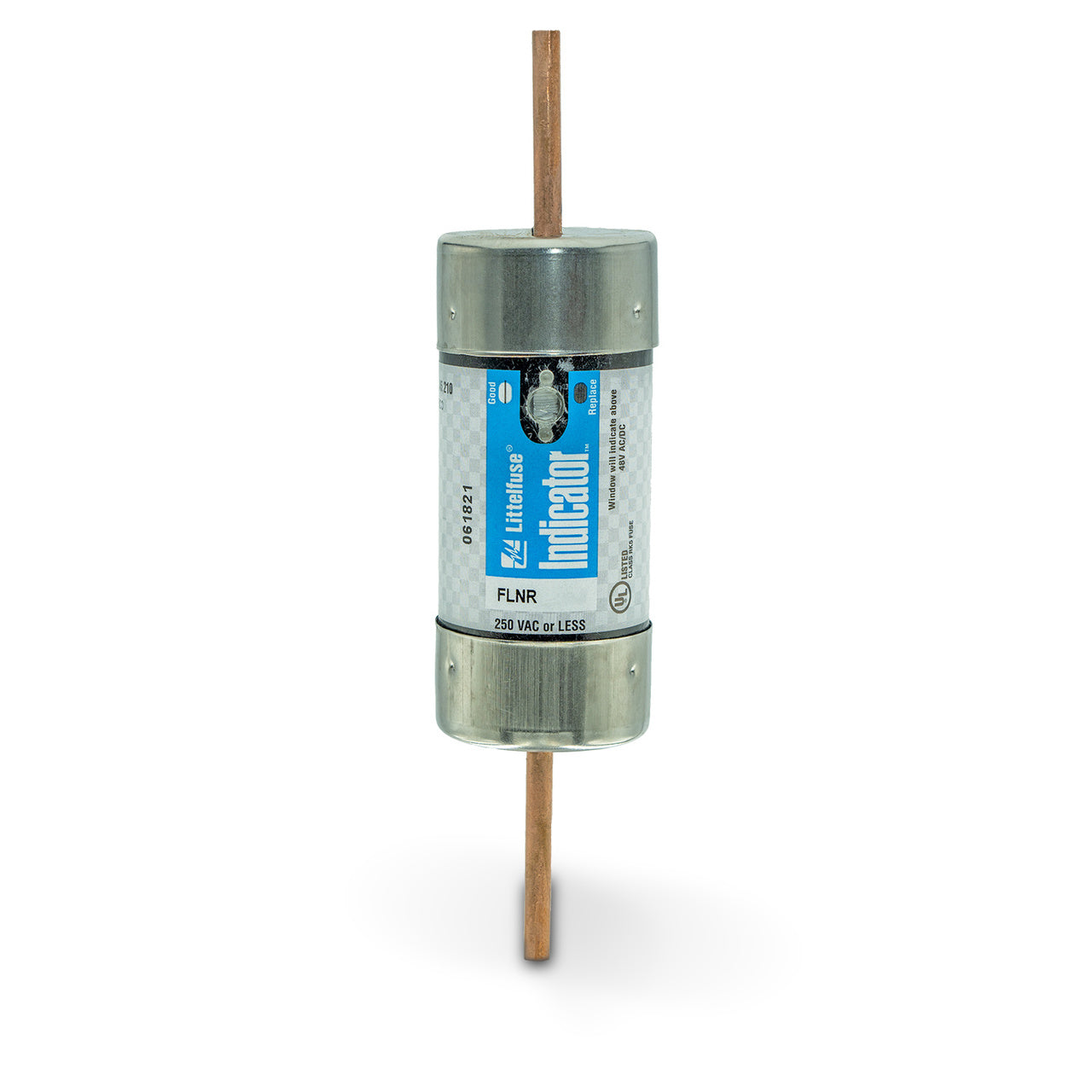

The Littelfuse FLNR225ID is a 250V 225A low voltage fuse from the FLNR_ID Series. It features UL Class RK5 dual-element time-delay protection with an indication function. This 1-barrel fuse has a rejection blade connection and a high AIC rating of 200kA@250V for reliable circuit protection.
Key Features:
✔ Part Number: FLNR225ID
✔ Manufacturer: Littelfuse
✔ Category: Fuse
✔ Subcategory: Low Voltage Fuse
✔ Family: FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
✔ Type: FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
✔ Voltage: 250
✔ Amperage: 225
✔ AIC rating: 200kA@250V
✔ Connection: Rejection Blade
✔ Diameter: 2.09
✔ Class Rating: RK5
✔ Barrels: 1
✔ Velocity: TD - Time Delay
✔ UPC: 079458023947
✔ GTIN: 00079458023947
✔ Country of Origin: Mexico
✔ Dimensions: x 8 5/8 in x
✔ Weight: 1.65
✔ Certification: CSA, cUL, UL
