Product Description:

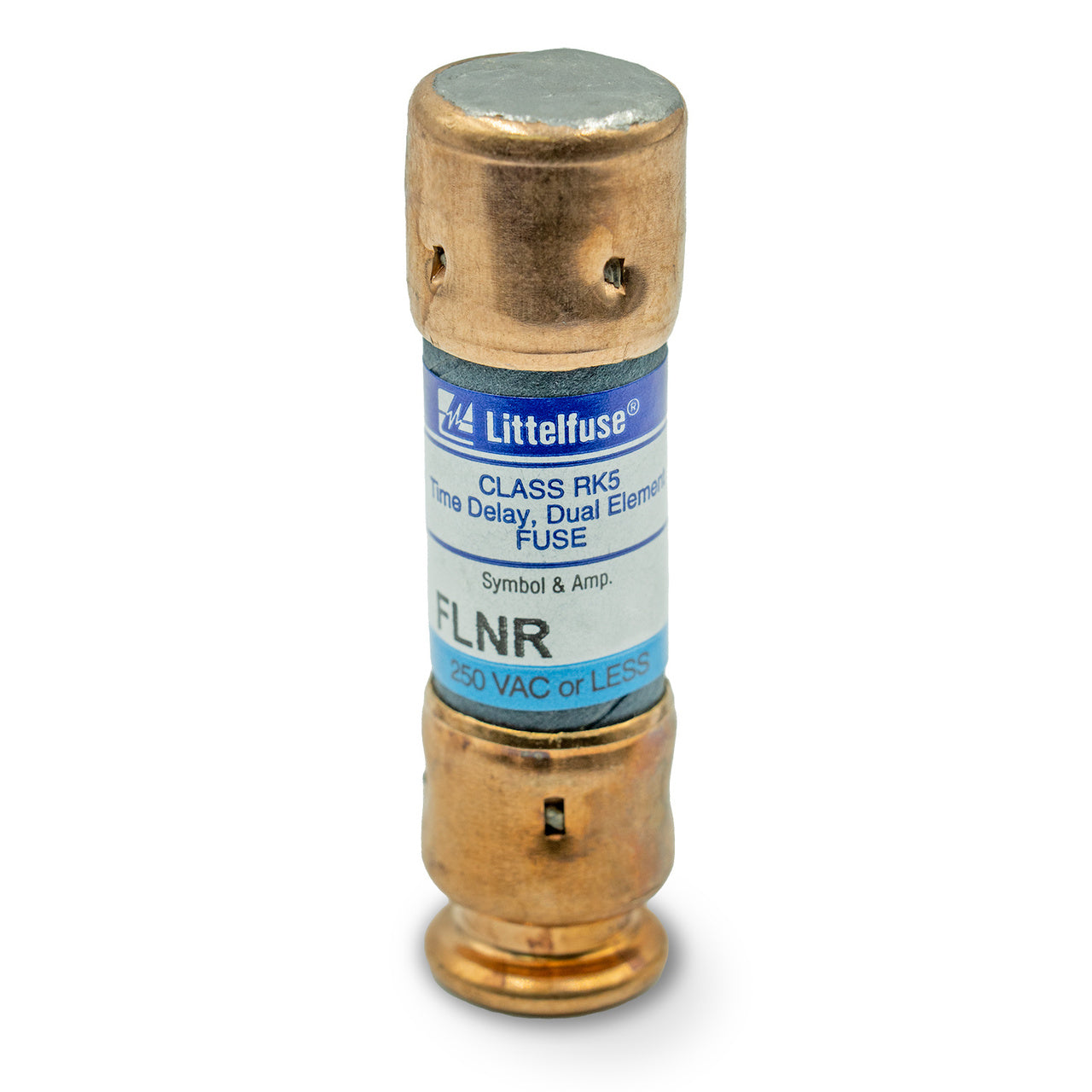

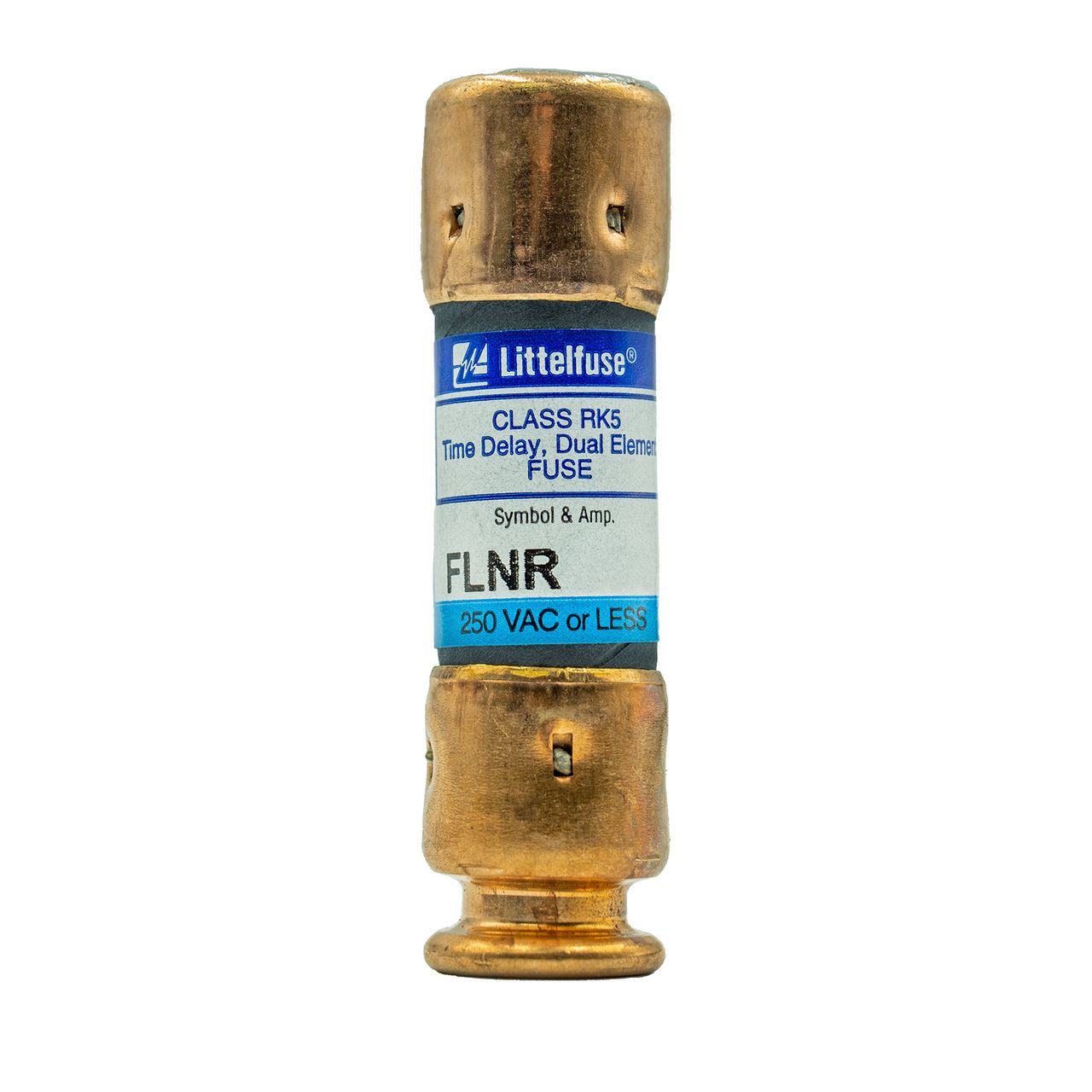

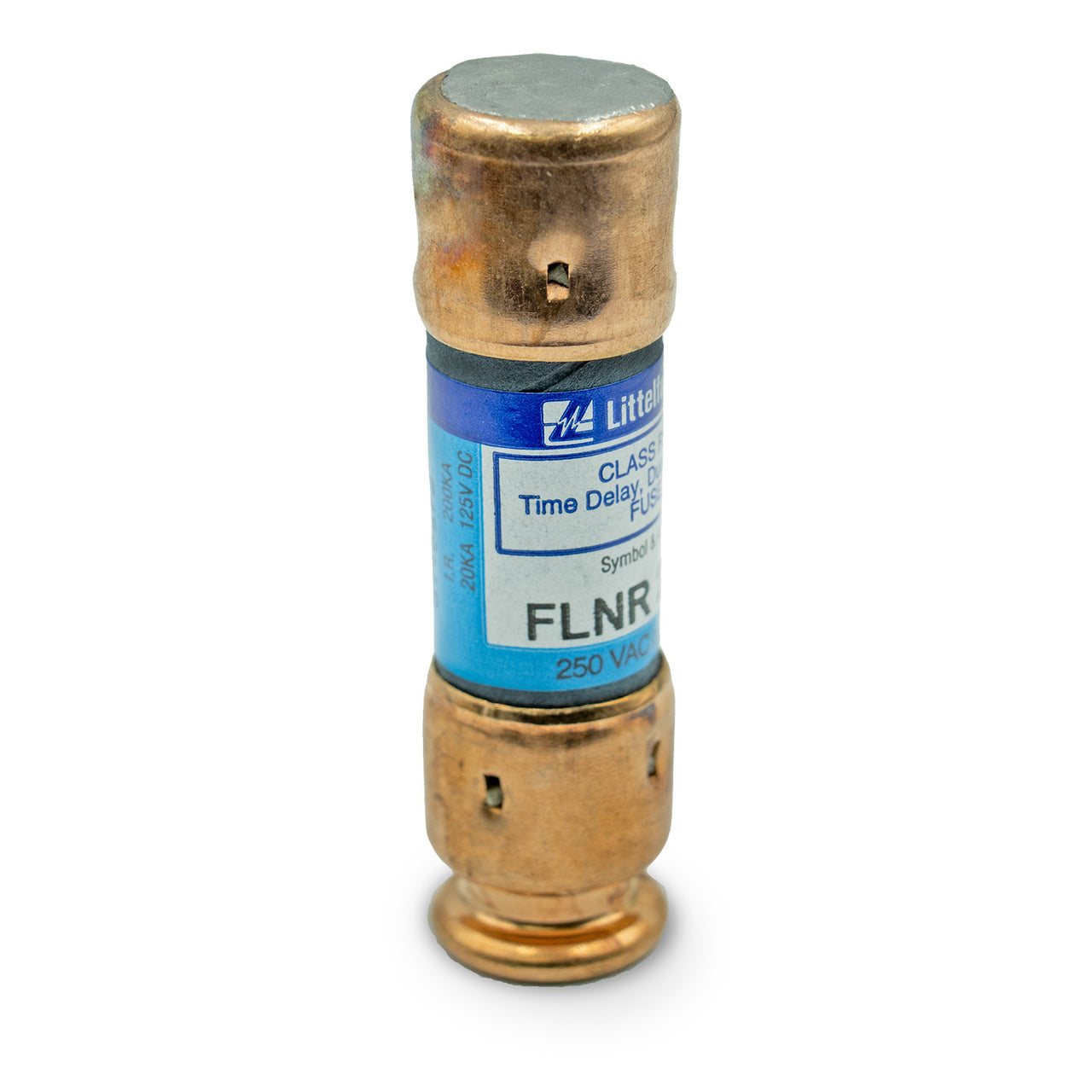

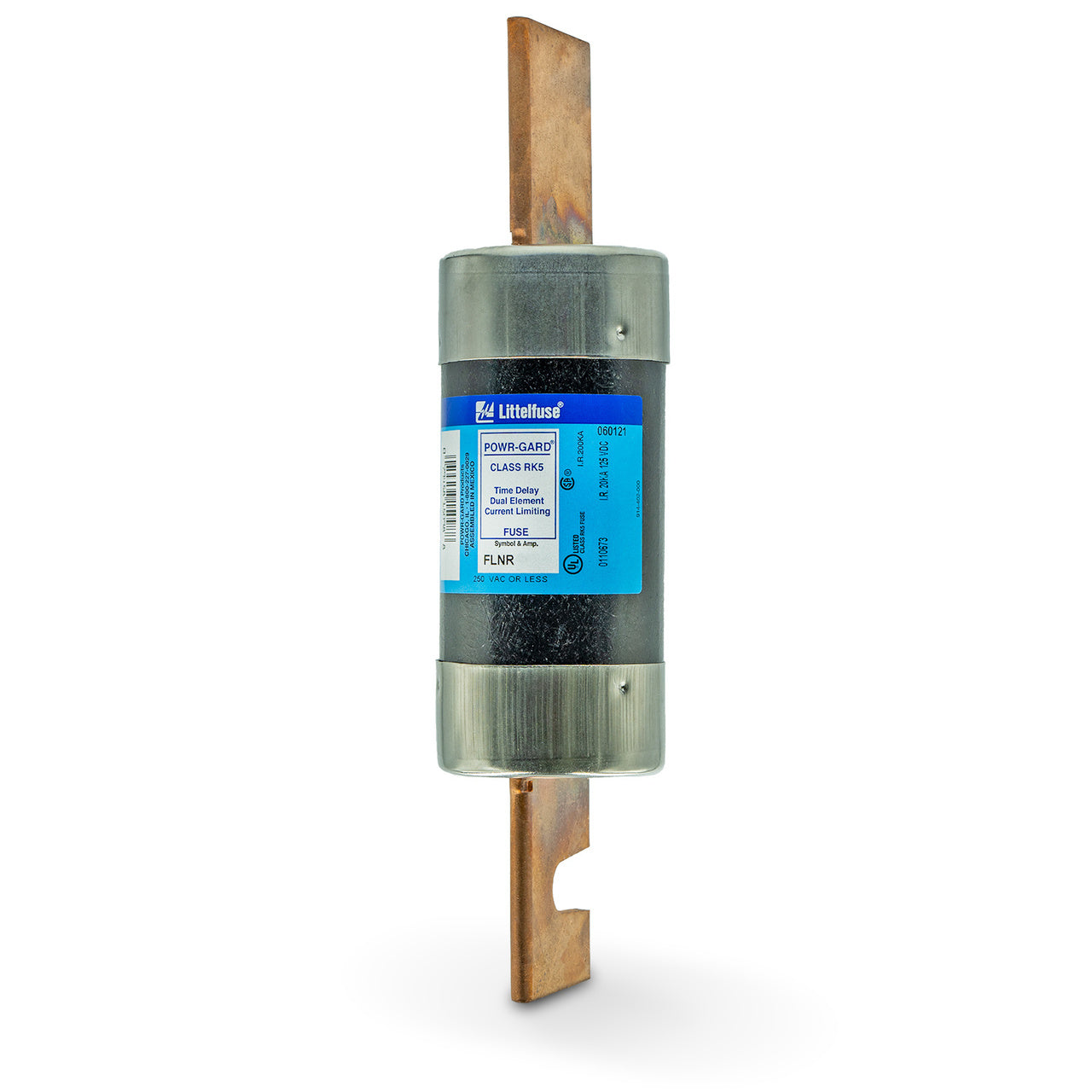

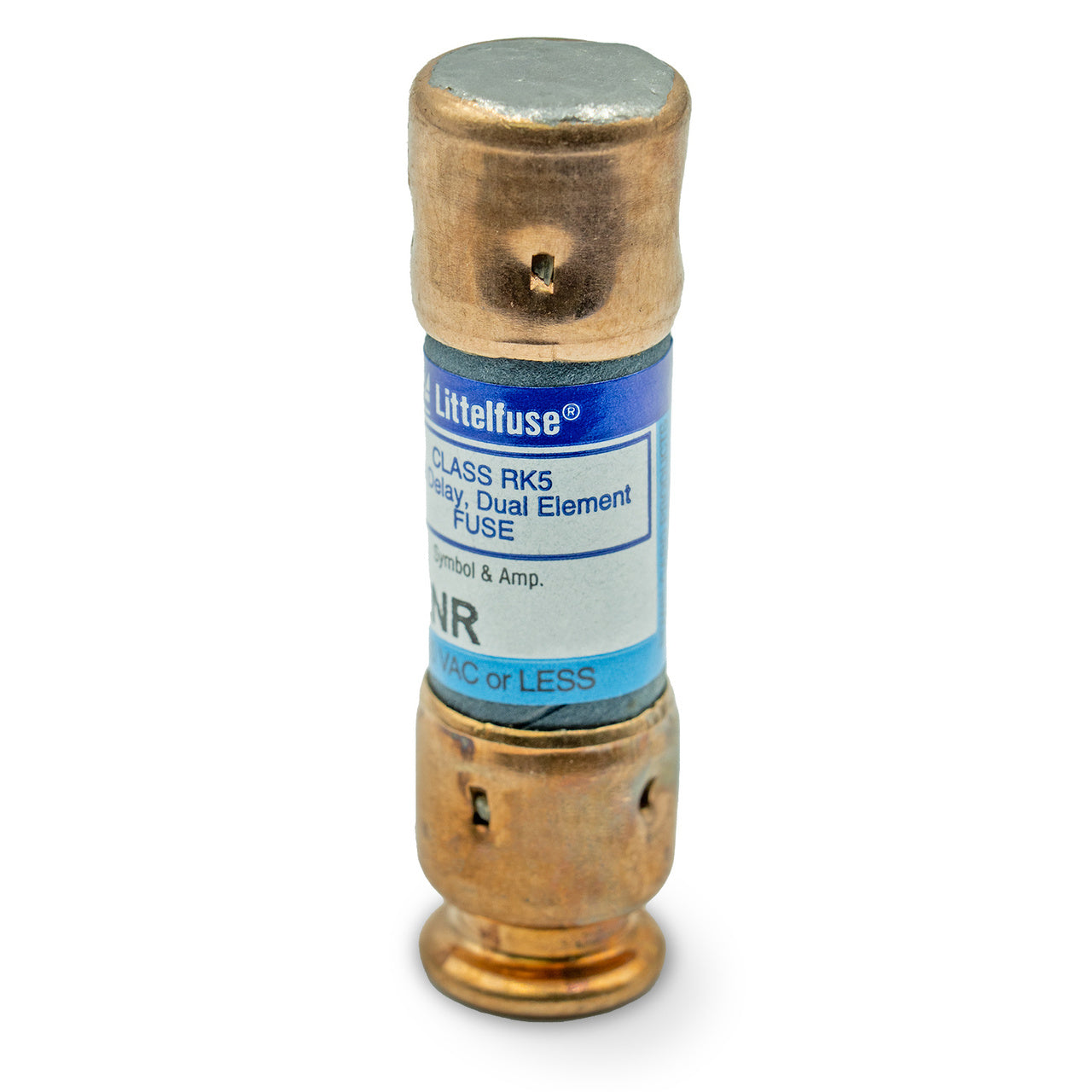

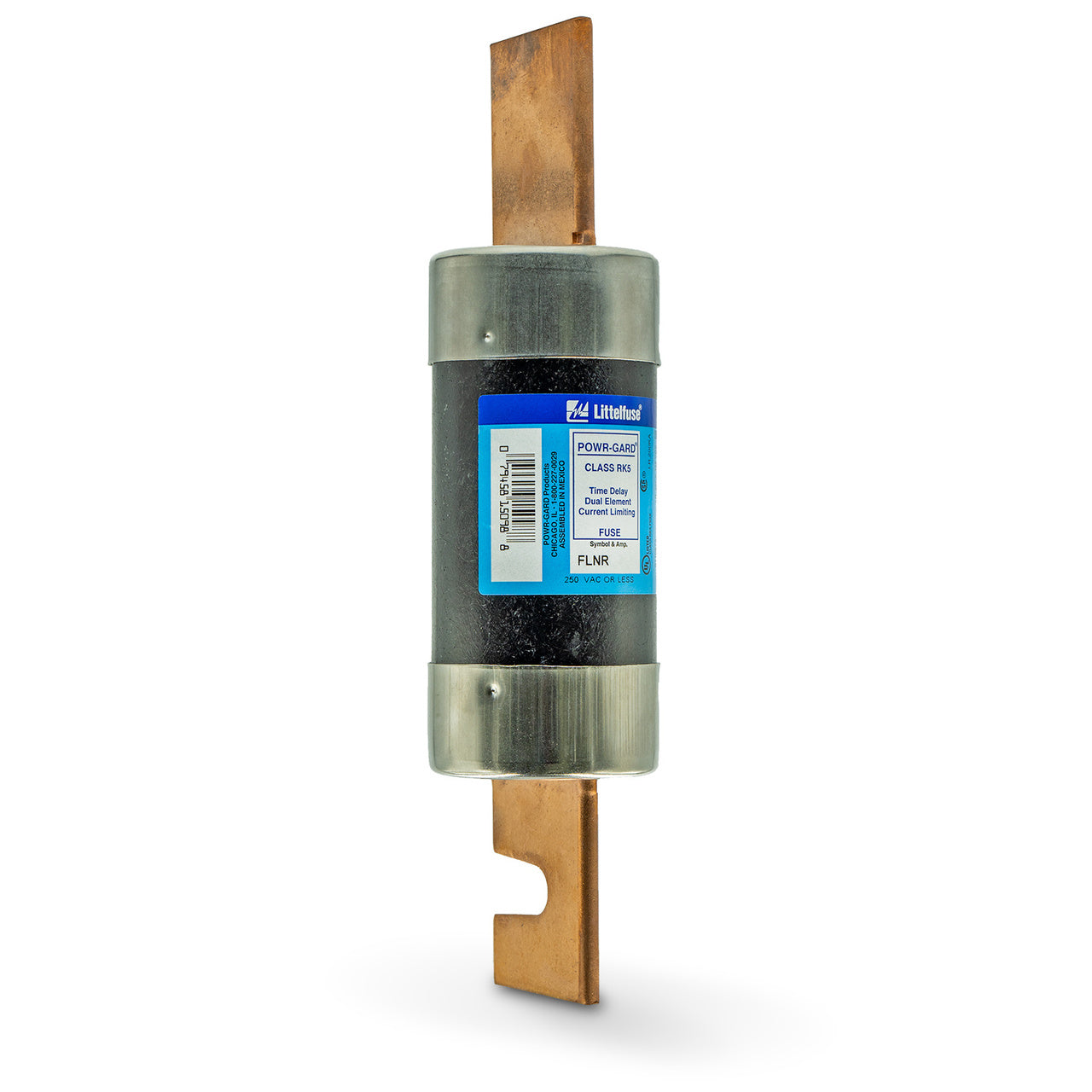

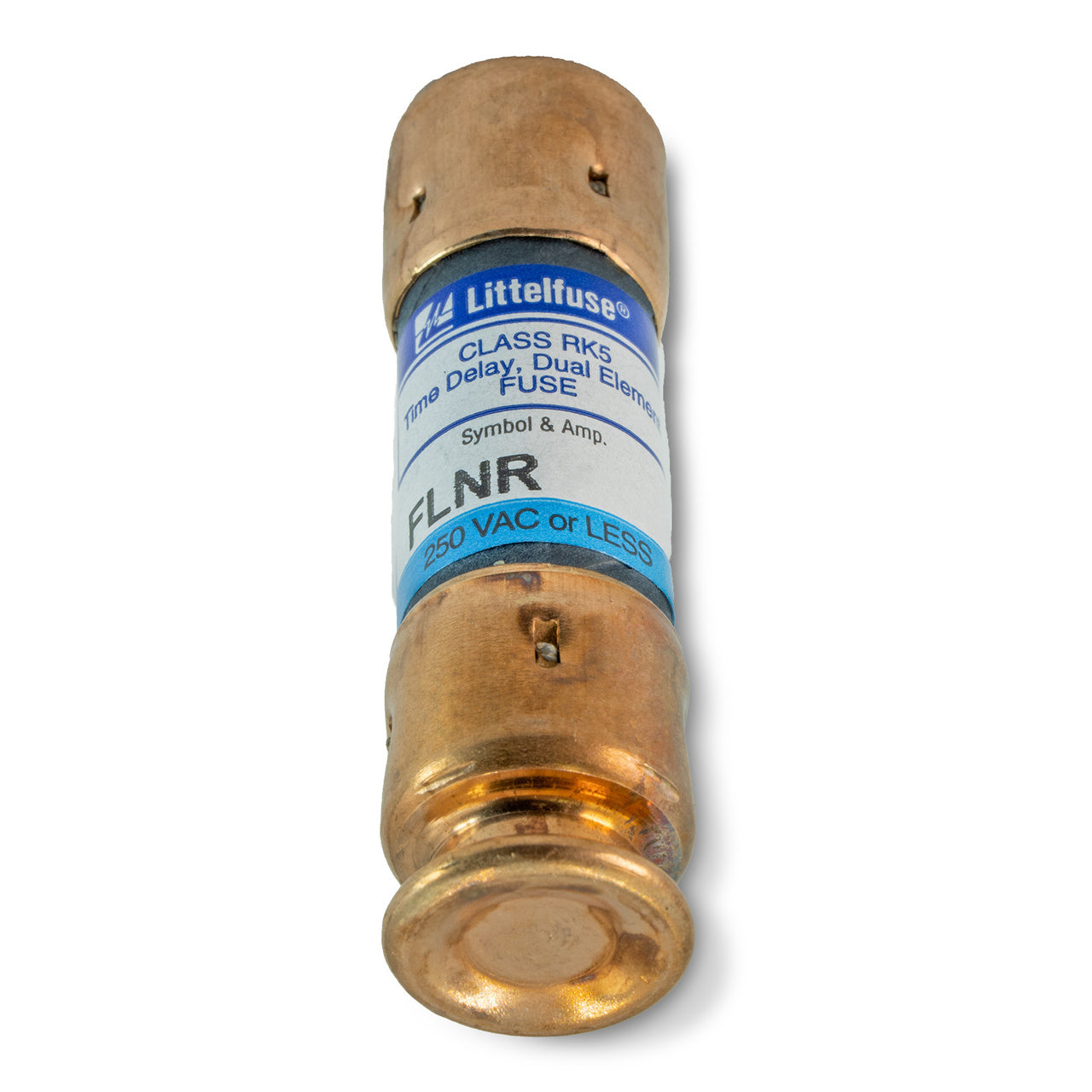

The Littelfuse FLNR500 is a 250V 500A low voltage fuse from the FLNR Series, designed for UL Class RK5 applications. It features a dual-element time-delay design with a 200kA@250V AIC rating. The fuse has a rejection blade connection and a compact 1-barrel construction with a diameter of 2.59.
Key Features:
✔ Part Number: FLNR500
✔ Manufacturer: Littelfuse
✔ Category: Fuse
✔ Subcategory: Low Voltage Fuse
✔ Family: FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
✔ Type: FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
✔ Voltage: 250
✔ Amperage: 500
✔ AIC rating: 200kA@250V
✔ Connection: Rejection Blade
✔ Diameter: 2.59
✔ Class Rating: RK5
✔ Barrels: 1
✔ Velocity: TD - Time Delay
✔ UPC: 079458150964
✔ GTIN: 00079458150964
✔ Country of Origin: Mexico
✔ Dimensions: x 10-3/8 in x
✔ Weight: 3
✔ Certification: CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
