Littelfuse FLNR600ID Fuse | FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication 250V 600A

Product Description:

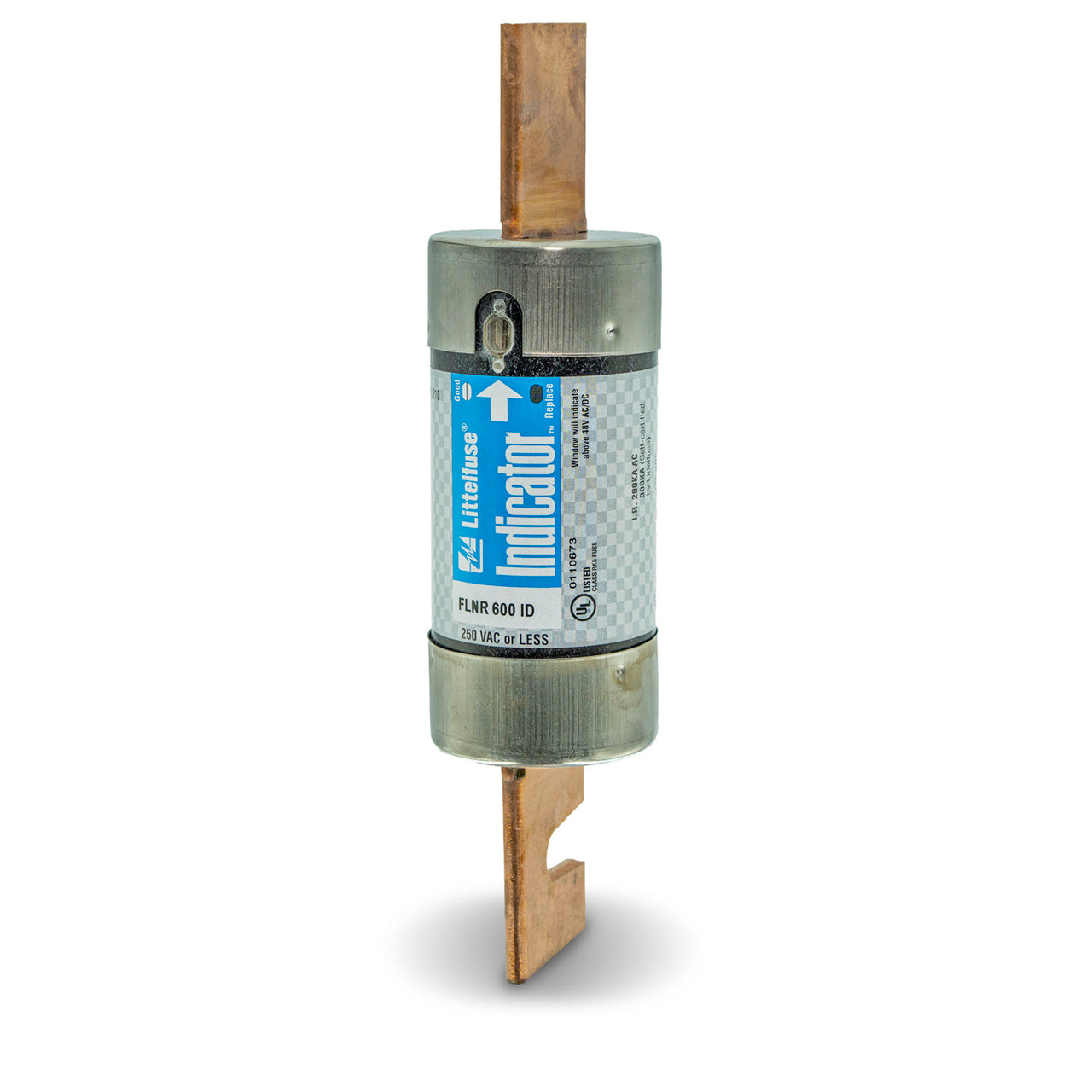

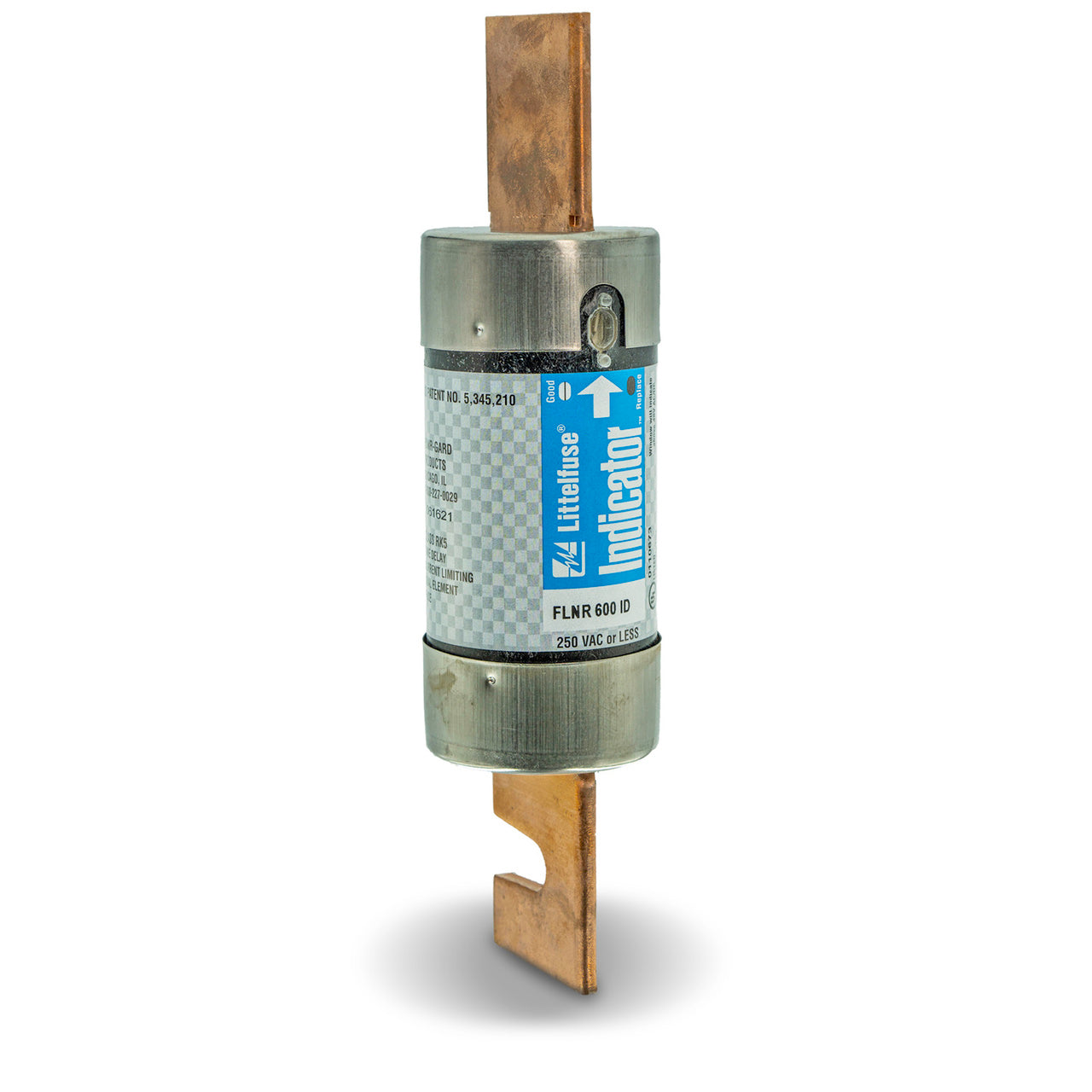

The Littelfuse FLNR600ID is a UL Class RK5 dual-element time-delay fuse with indication. It operates at 250V and 600A, featuring a 200kA@250V AIC rating. This 1-barrel fuse has a rejection blade connection and a diameter of 2.59. It is designed for low-voltage applications with time-delay functionality.

Key Features:
✔ Part Number: FLNR600ID
✔ Manufacturer: Littelfuse
✔ Category: Fuse
✔ Subcategory: Low Voltage Fuse
✔ Family: FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
✔ Type: FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
✔ Voltage: 250V
✔ Amperage: 600A
✔ AIC Rating: 200kA@250V
✔ Connection: Rejection Blade
✔ Diameter: 2.59
✔ Class Rating: RK5
✔ Barrels: 1
✔ Velocity: TD - Time Delay
✔ Certification: CSA, cUL, UL
✔ UPC: 079458024012
✔ GTIN: 00079458024012
✔ Country of Origin: Mexico
✔ Dimensions: 10 3/8 in
✔ Weight: 2.98
