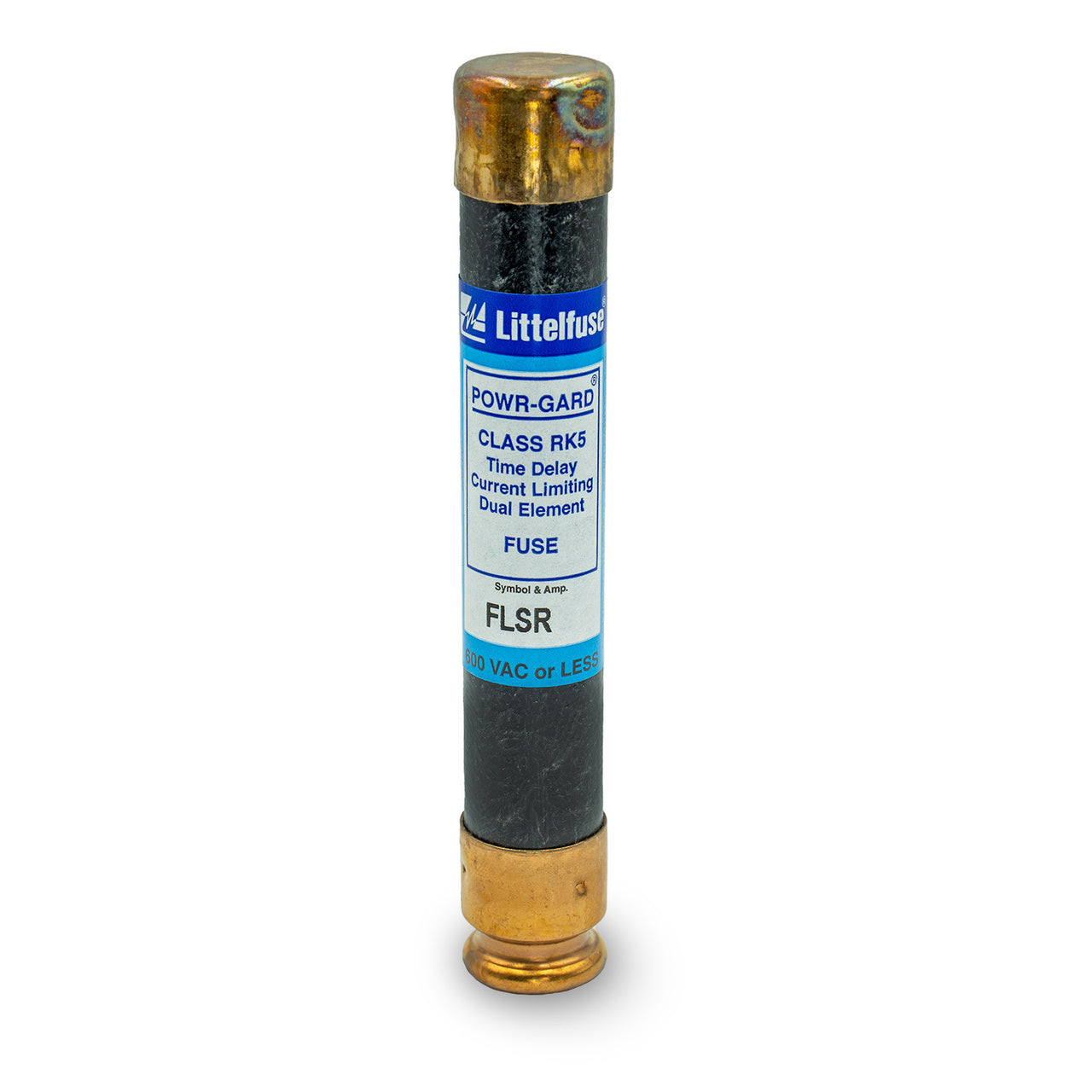

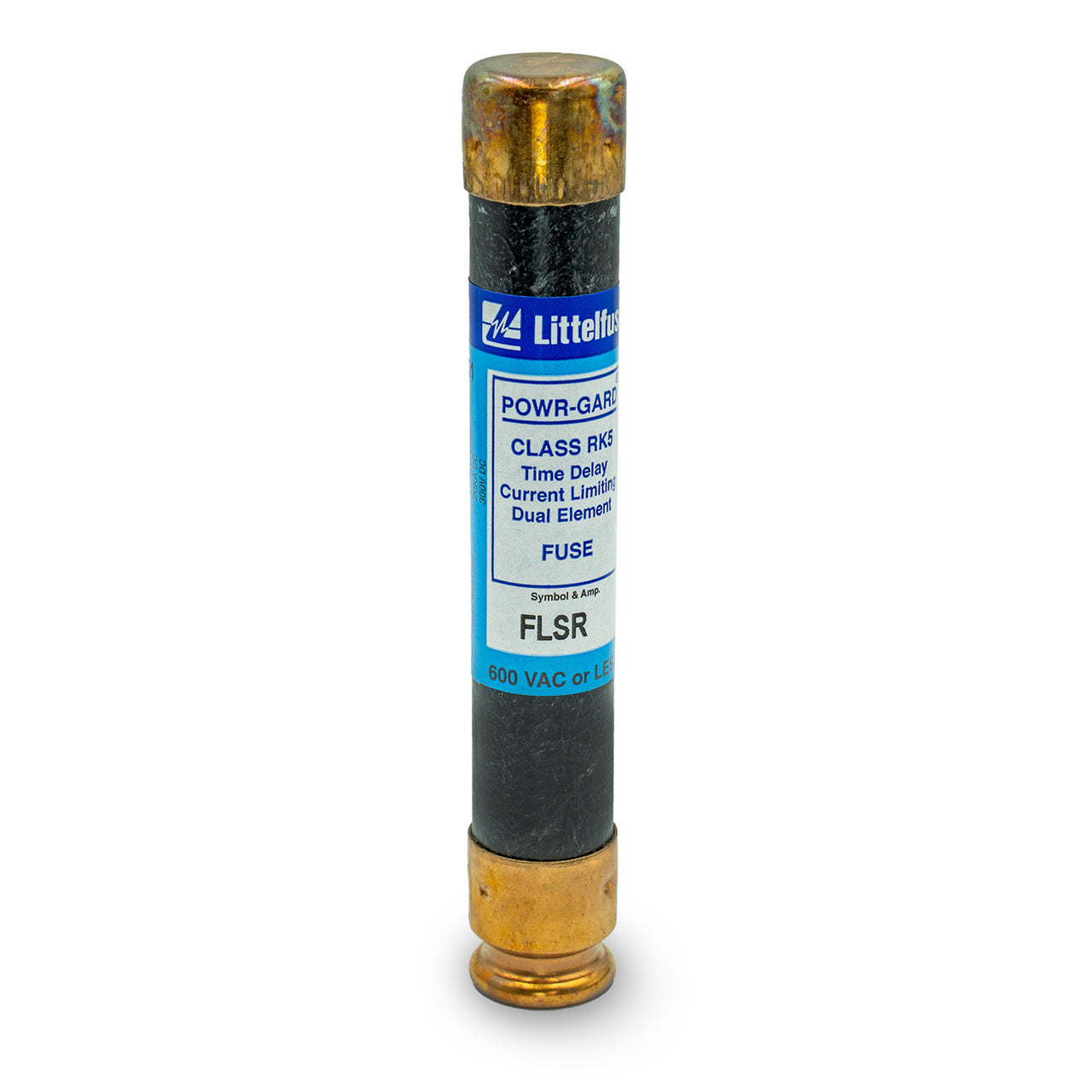

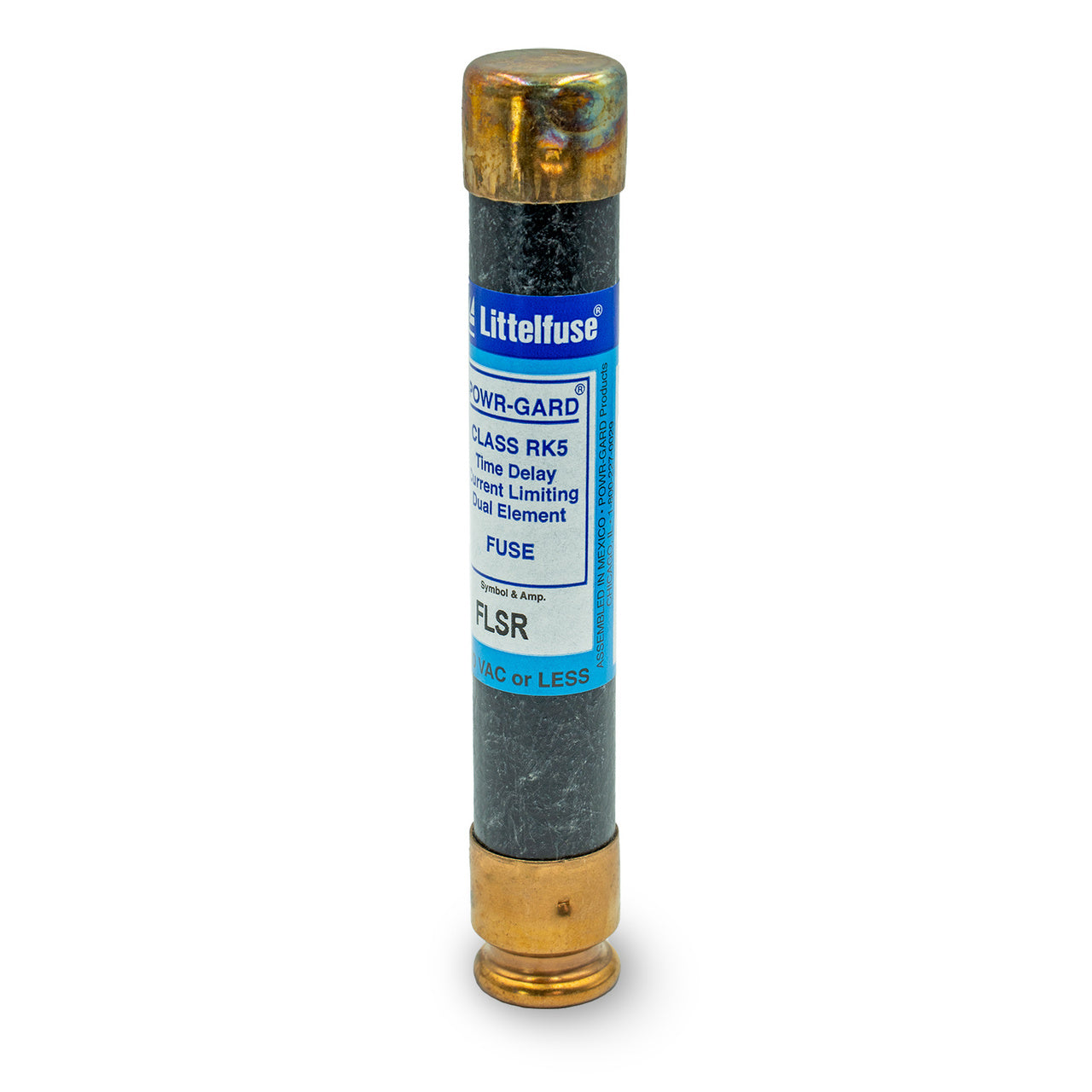

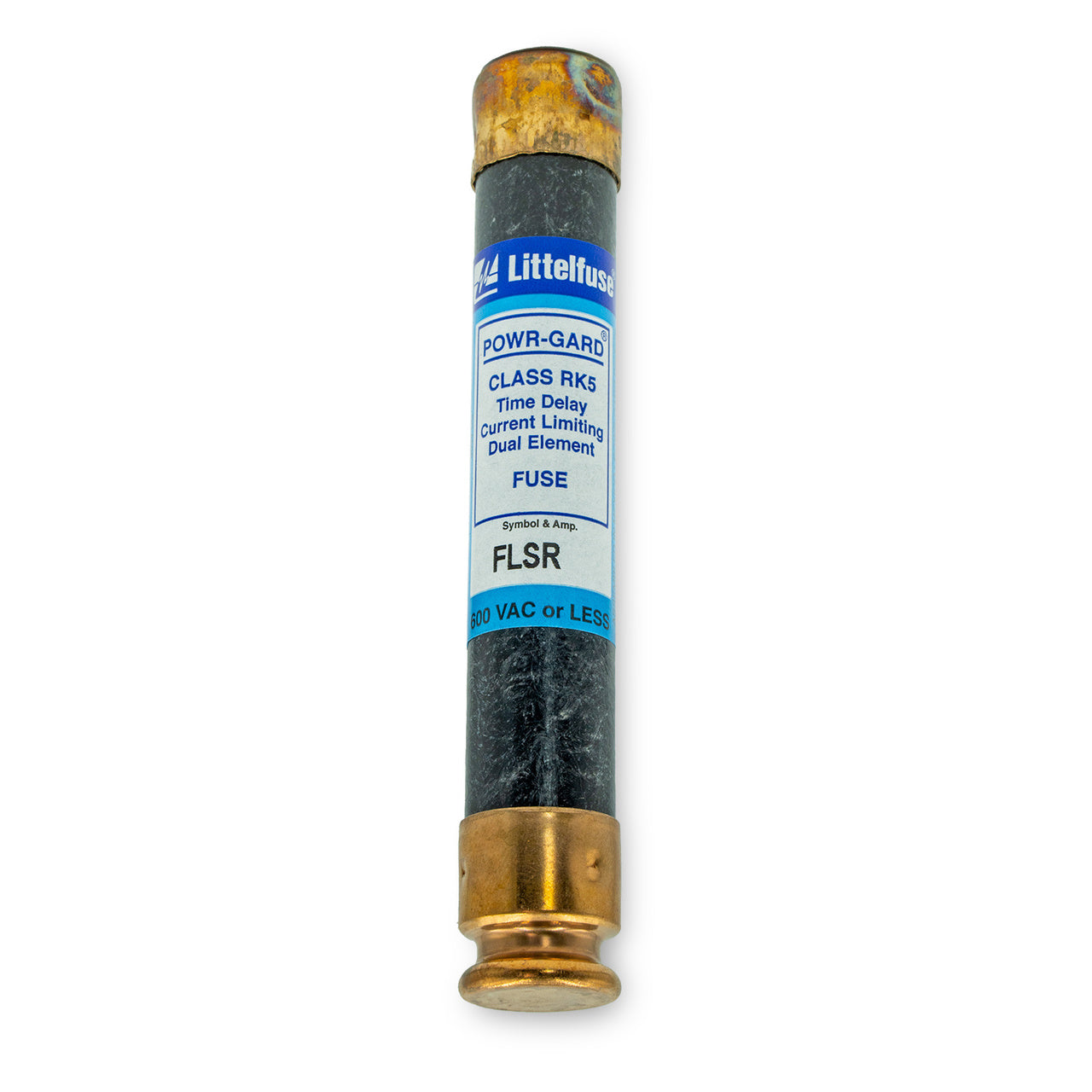

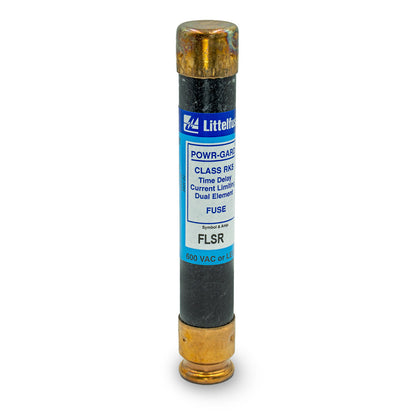

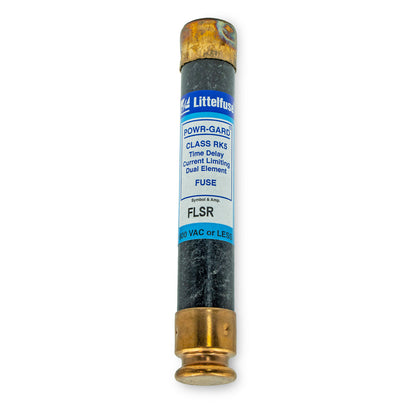

Littelfuse FLSR003 Fuse | FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses 600V 3A

Product Description:
The Littelfuse FLSR003 is a 600V, 3A low voltage fuse from the FLSR Series. It features a UL Class RK5 dual-element time-delay design with a 200kA@600V AIC rating. The fuse has a diameter of 0.81 and comes in a single-barrel configuration. It is suitable for industrial and electrical applications requiring reliable overcurrent protection.

Key Features:
✔ Part Number: FLSR003
✔ Manufacturer: Littelfuse
✔ Category: Fuse
✔ Subcategory: Low Voltage Fuse
✔ Family: FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
✔ Type: FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
✔ Voltage: 600V
✔ Amperage: 3A
✔ AIC Rating: 200kA@600V
✔ Diameter: 0.81
✔ Class Rating: RK5
✔ Barrels: 1
✔ Certification: CE, CSA Certification, QPL-W-F-1814, UL 248-12 Class RK5
✔ UPC: 07945817047
✔ GTIN: 00079458170474
✔ Country of Origin: Mexico
✔ Dimensions: 5 in
✔ Weight: 1.83
