Siemens FXD63B090L Molded Case Circuit Breaker | 600V 90A 3P 35kA@480V Feed-Thru Sentron Series

Product Description:

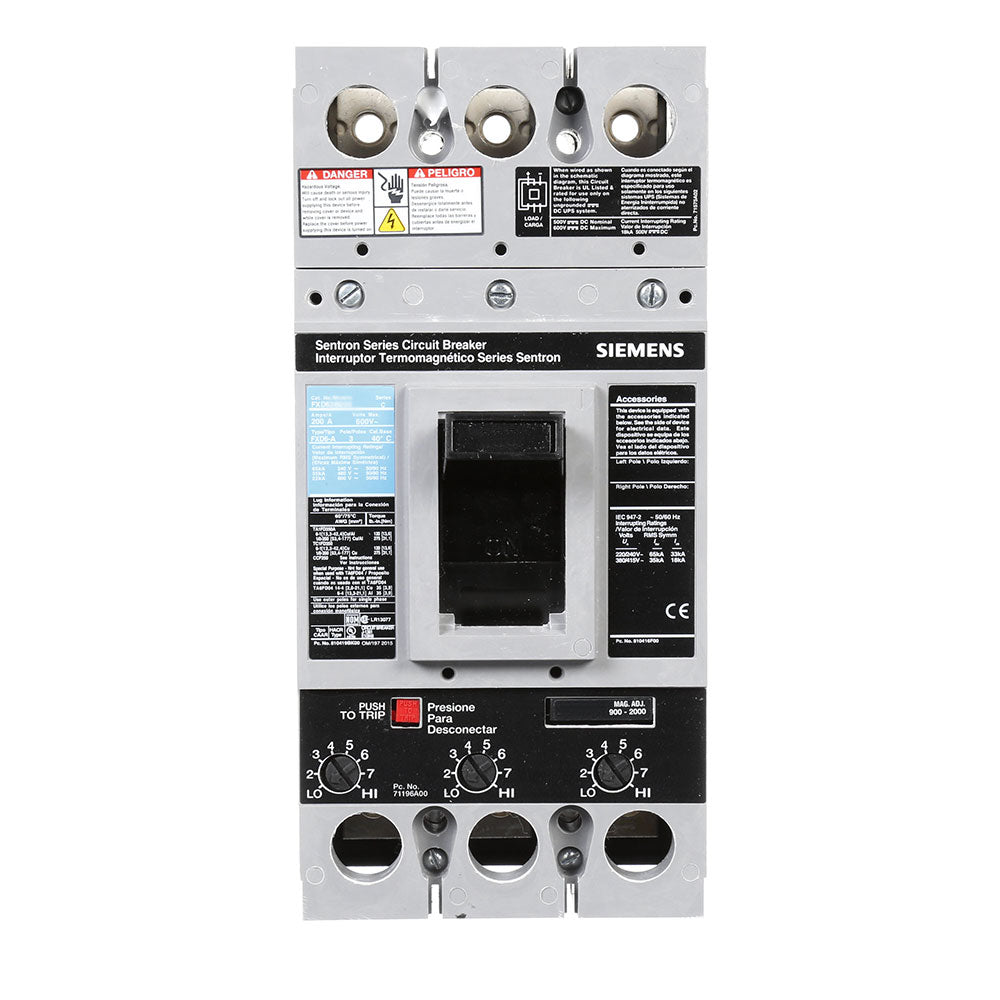

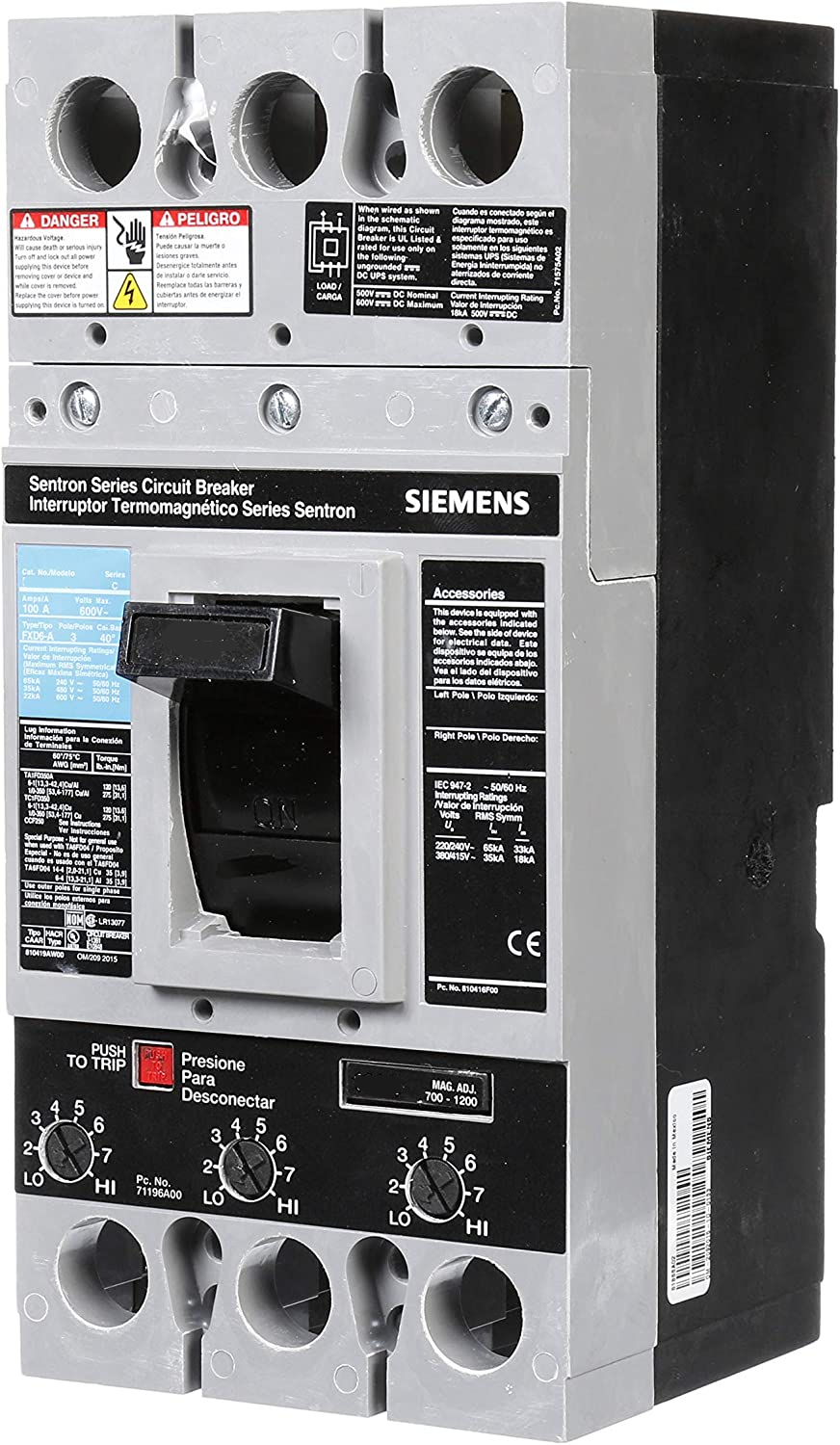

The Siemens FXD63B090L is a Molded Case Circuit Breaker from the Sentron Series family. It is a 3-pole, 90 amp breaker rated for 600 Volts with an AIC rating of 35kA at 480V. This model features a Feed-Thru connection and provides Thermal Magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: FXD63B090L
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: FXD
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: FD Frame
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643005792
✔ GTIN: 00783643005792
✔ Country of Origin: Mexico
✔ Dimensions: 5.906 x 9.843 x 6.693 (W x H x D) Inches
✔ Weight: 12
✔ Panel Type: S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
✔ Wire Size: 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
