Siemens FXD63B225 Molded Case Circuit Breaker | 600V 225A 3P 35kA@480V Bolt-On Sentron Series

Product Description:

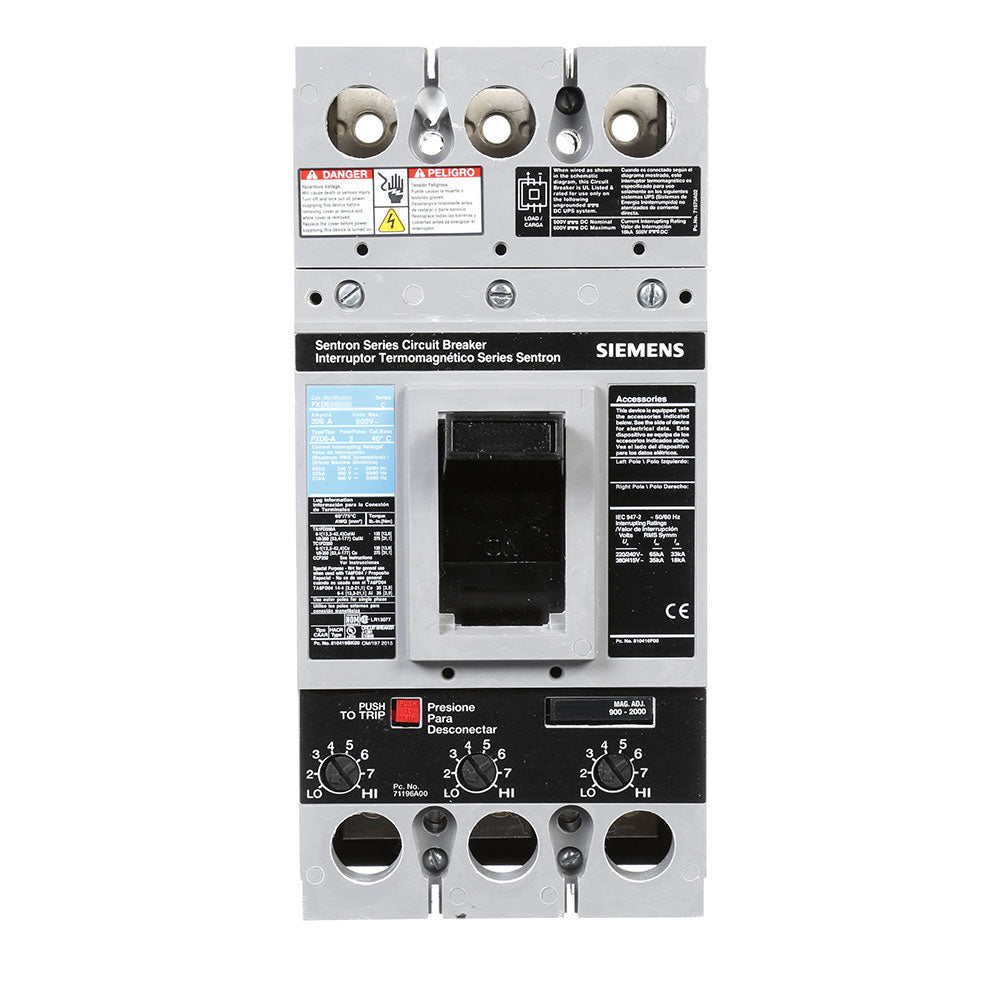

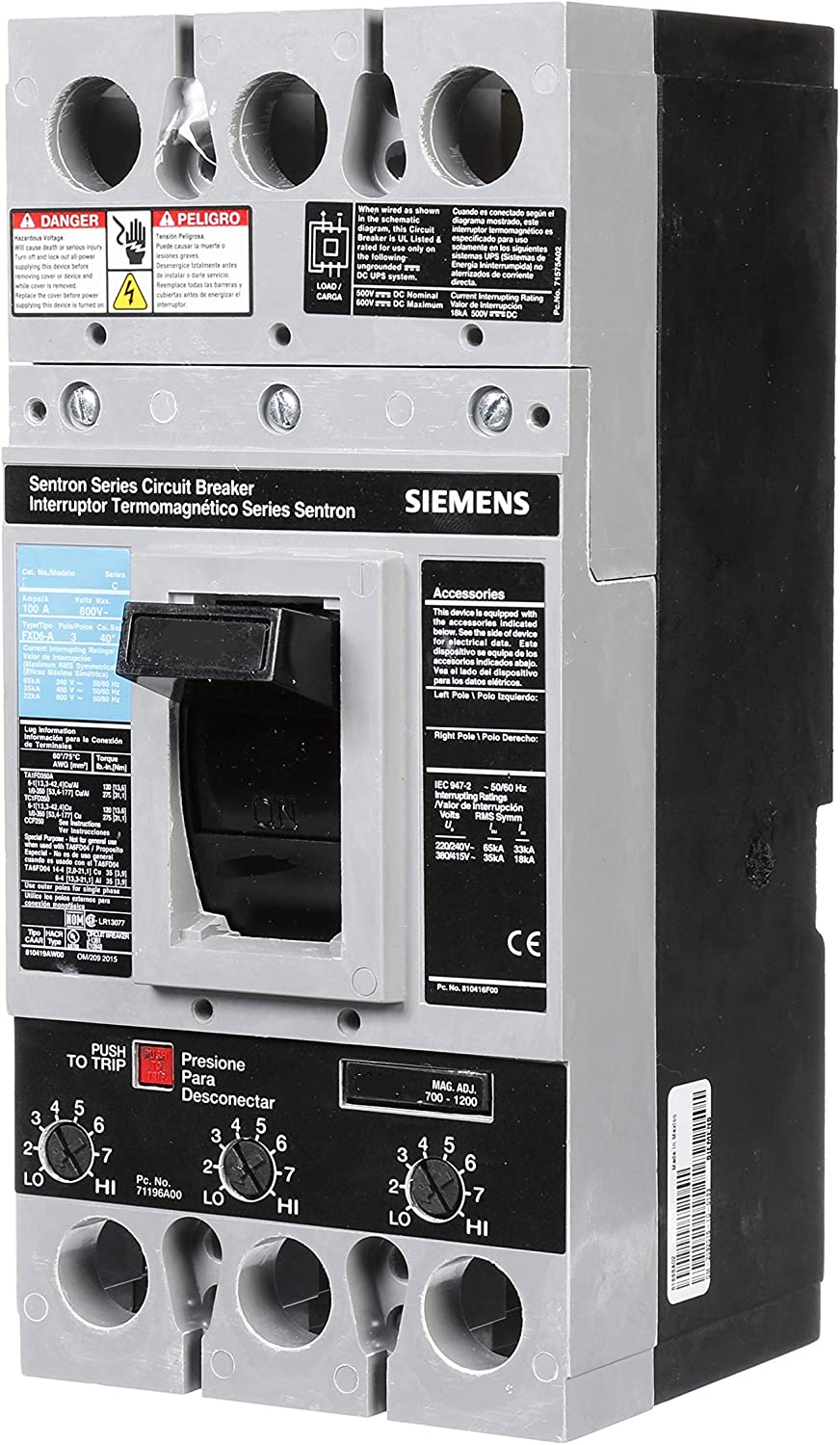

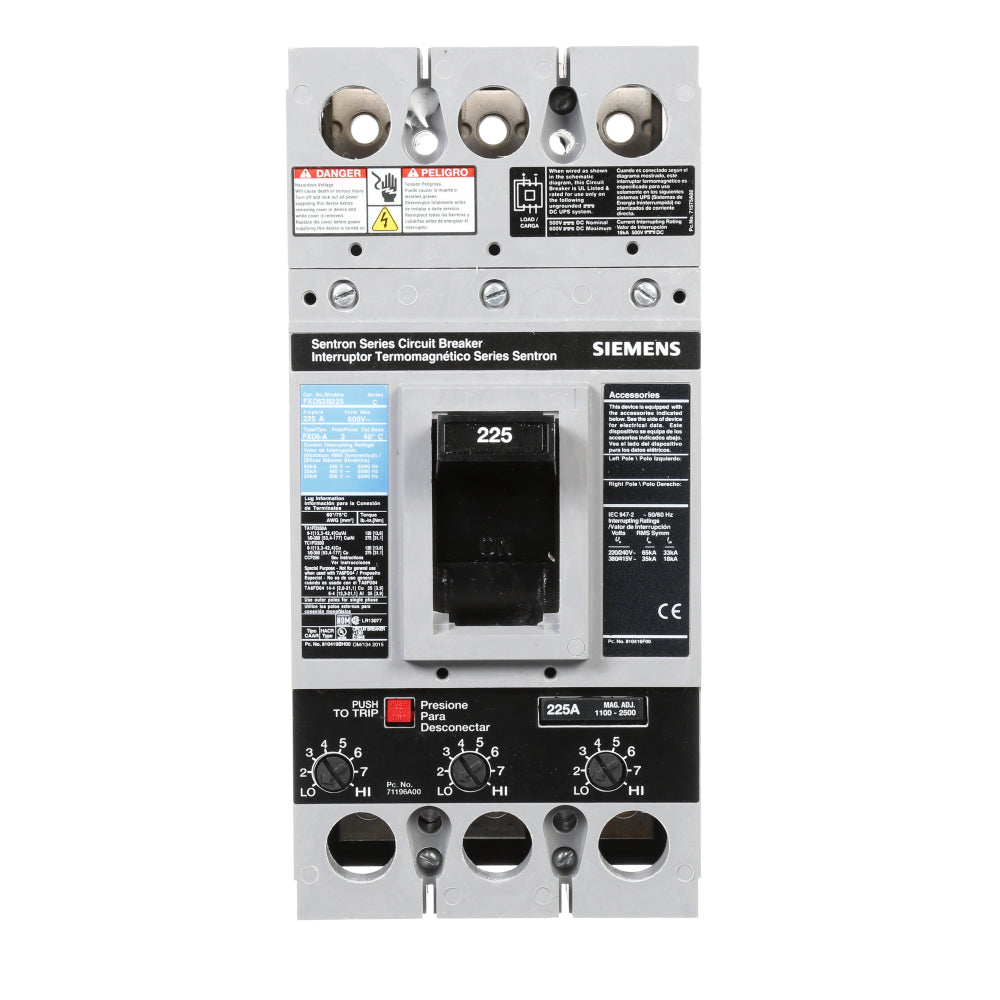

The Siemens FXD63B225 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 3-pole, 225 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This model features a bolt-on connection and provides thermal magnetic protection. Lugs are not included and must be purchased separately.

Key Features:
✔ Part Number: FXD63B225
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: FXD
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: FD Frame
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643211285
✔ GTIN: 00783643211285
✔ Country of Origin: Mexico
✔ Dimensions: 5.906 x 9.843 x 6.693 (W x H x D) Inches
✔ Weight: 9
✔ Panel Type: S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
