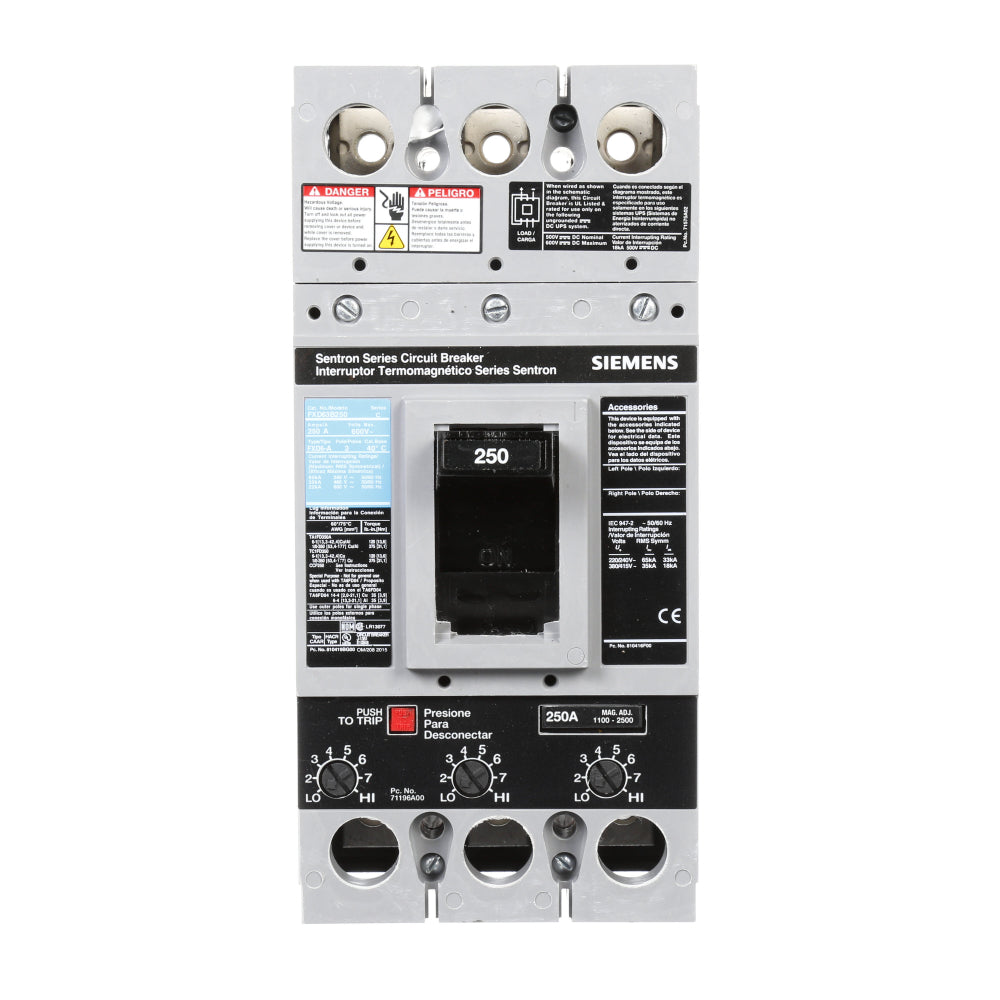

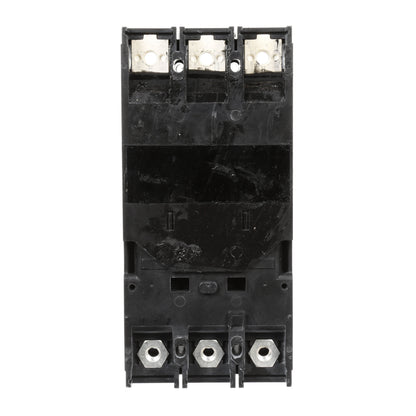

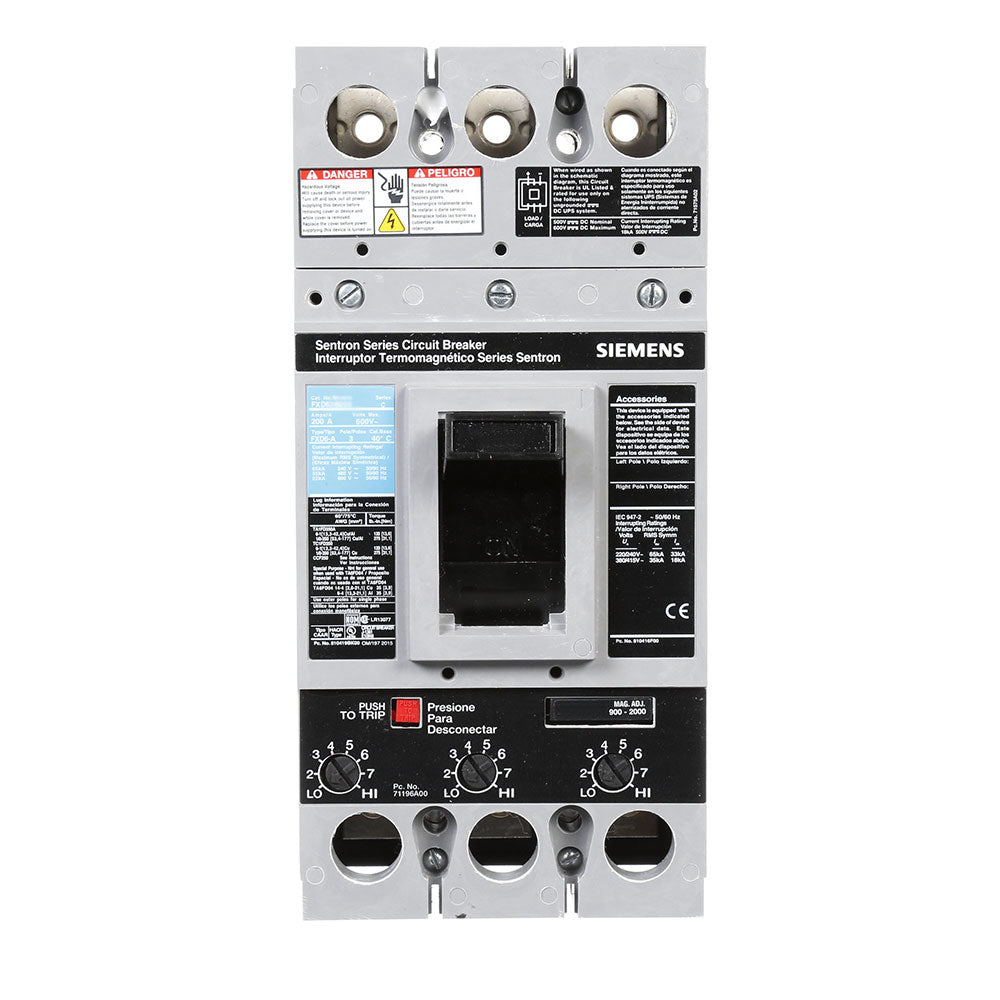

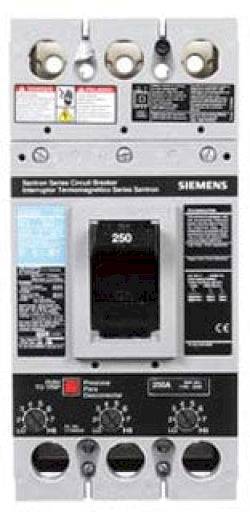

Siemens FXD63B250 Molded Case Circuit Breaker | 600V 250A 3P 35kA@480V Bolt-On Sentron Series

Product Description:
The Siemens FXD63B250 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 3-pole, 250 amp breaker rated for 600 volts with a 35kA interrupting capacity at 480V. This thermal magnetic circuit breaker features a bolt-on connection for secure installation. Lugs are not included and must be purchased separately.

Key Features:
✔ Part Number: FXD63B250
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: FXD
✔ Voltage: 600
✔ Amperage: 250
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Lug
✔ Frame Size: 250A/FD
✔ Breaker Type: Standard
✔ Phase Connection: ABC
✔ UPC: 783643211292
✔ GTIN: 00783643211292
✔ Country of Origin: United States
✔ Dimensions: 5.906 x 9.843 x 6.693 (W x H x D) Inches
✔ Weight: 9 lb
✔ Panel Type: S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
✔ Certification: UL Listed
