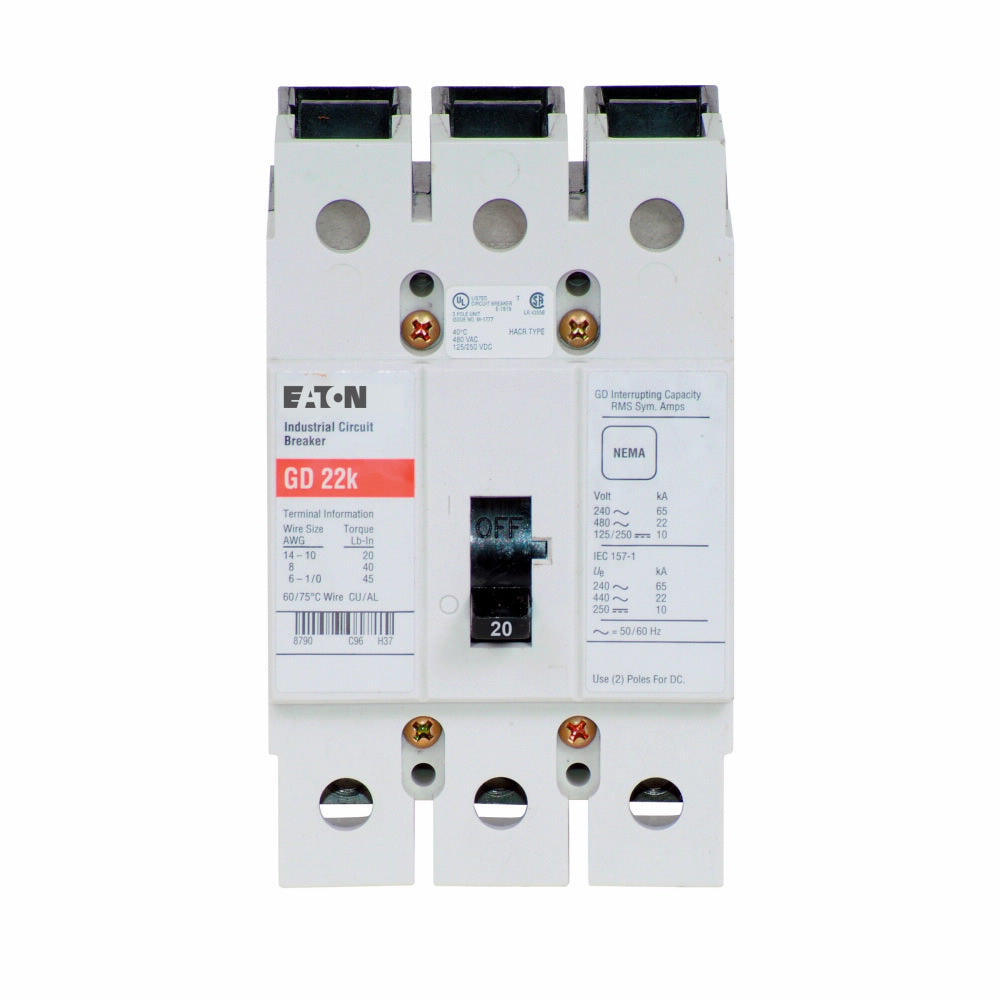

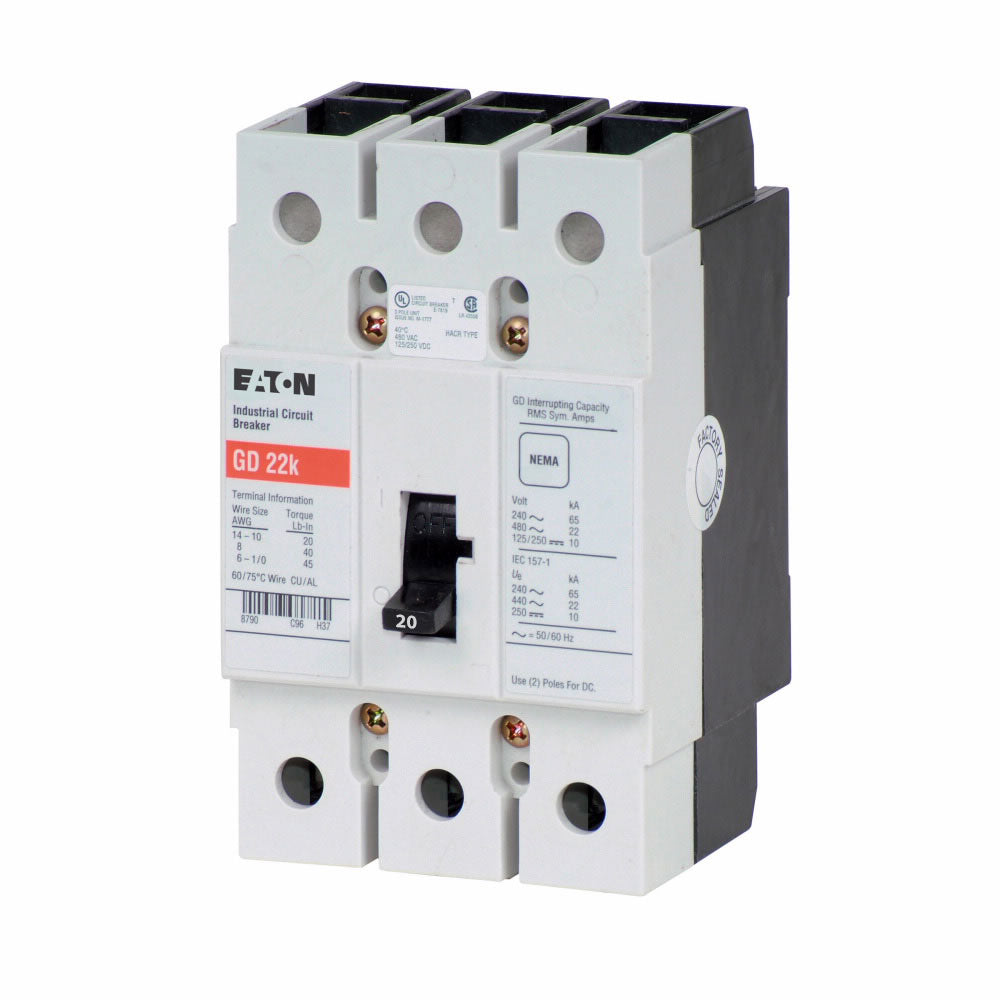

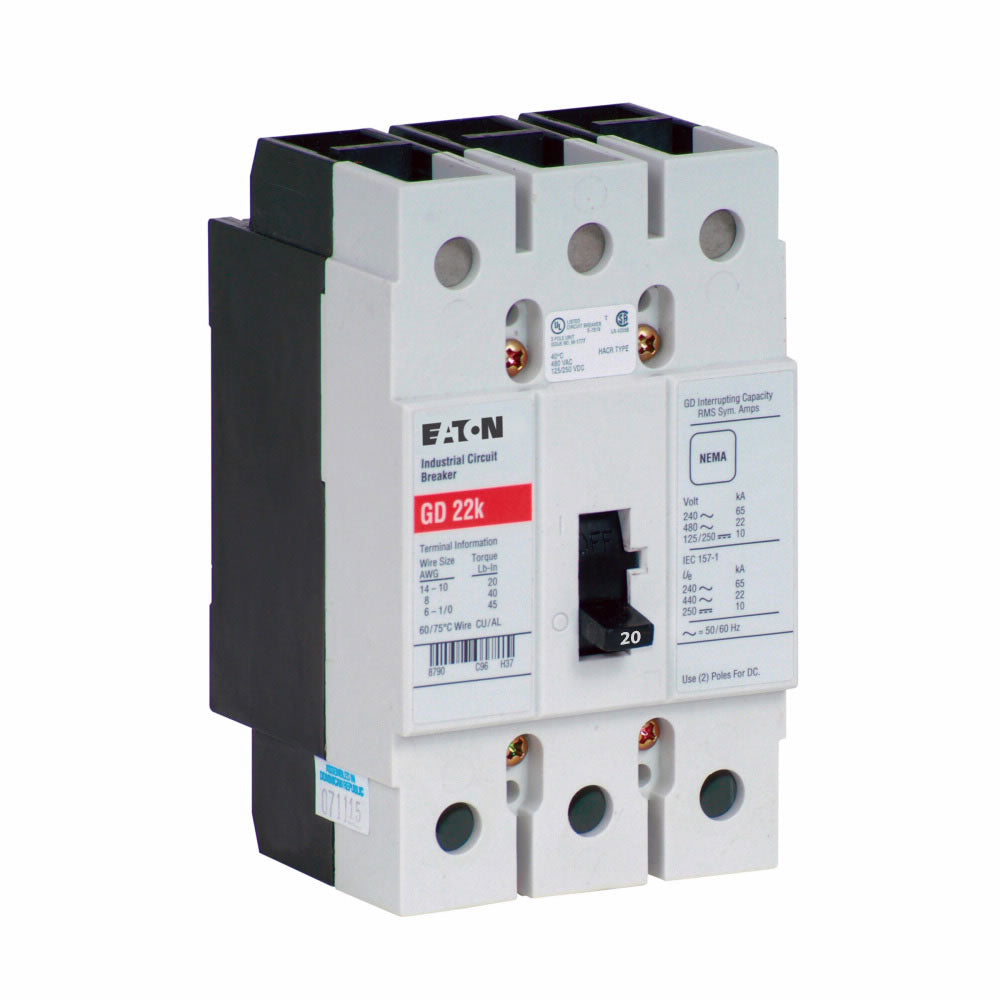

Eaton GD3020 Molded Case Circuit Breaker | 480V 20A 3P 22kA@480V Feed-Thru Series C

Product Description:
The Eaton GD3020 is a Molded Case Circuit Breaker from the Series C family. It is a 3-pole, 20 amp breaker rated for 480 volts with an AIC rating of 22kA@480V. This model uses a Feed-Thru connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: GD3020
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GD
✔ Voltage: 480
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: G Frame
✔ Protection: Thermal Magnetic
✔ UPC: 786679231029
✔ GTIN: 00786679231029
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 2.63in Height 4.88in Width 3in
✔ Weight: 2
✔ Certification: UL Listed
