Product Description:

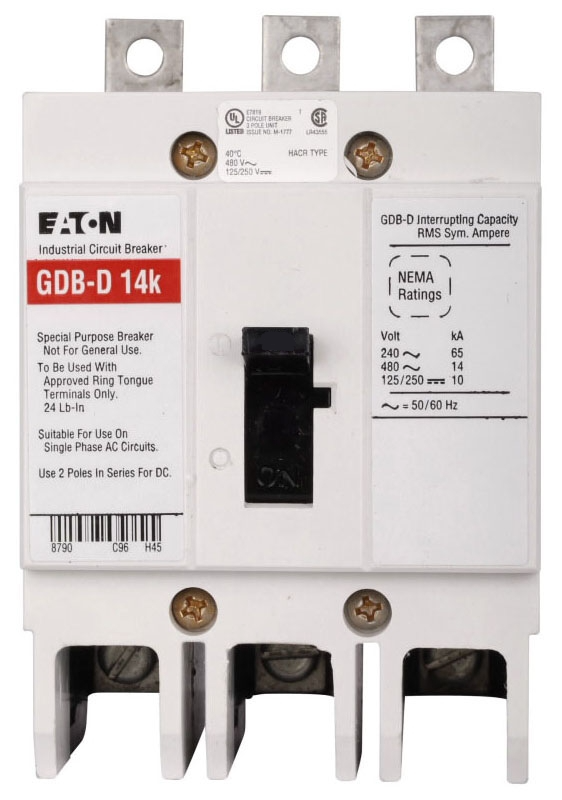

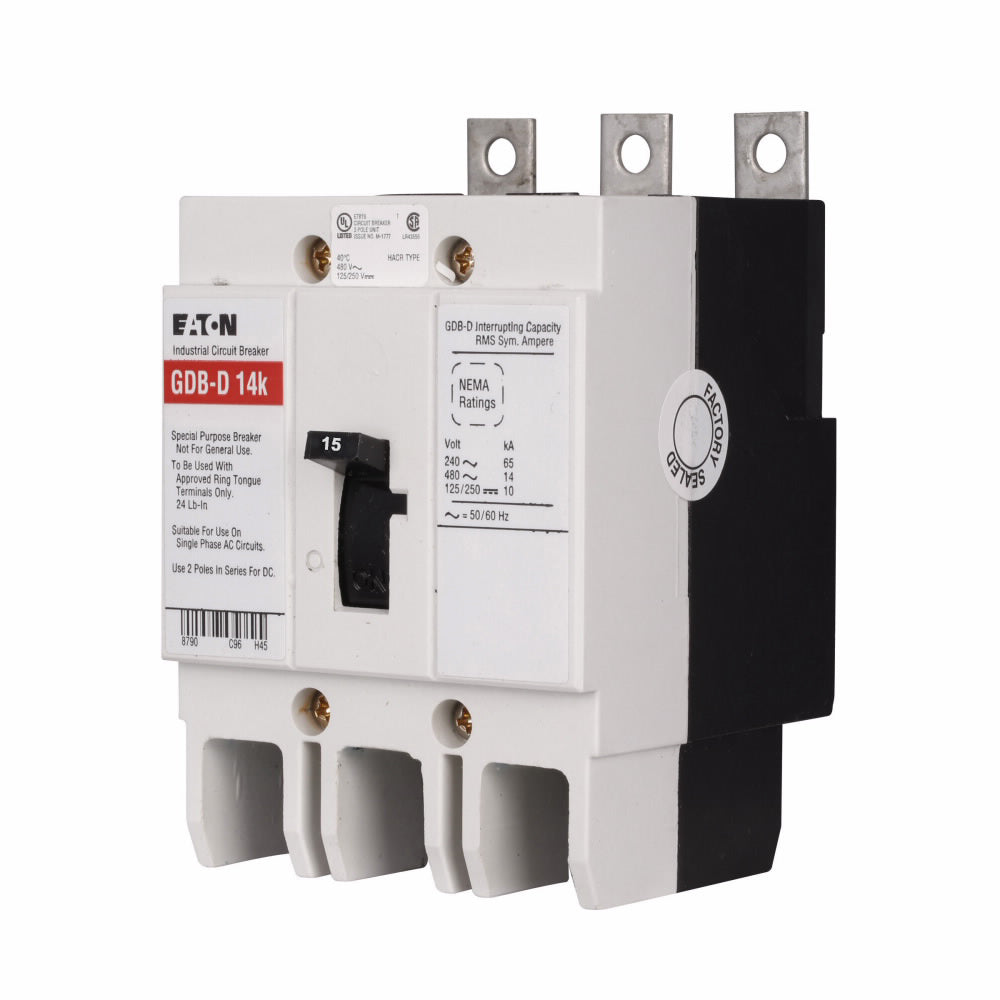

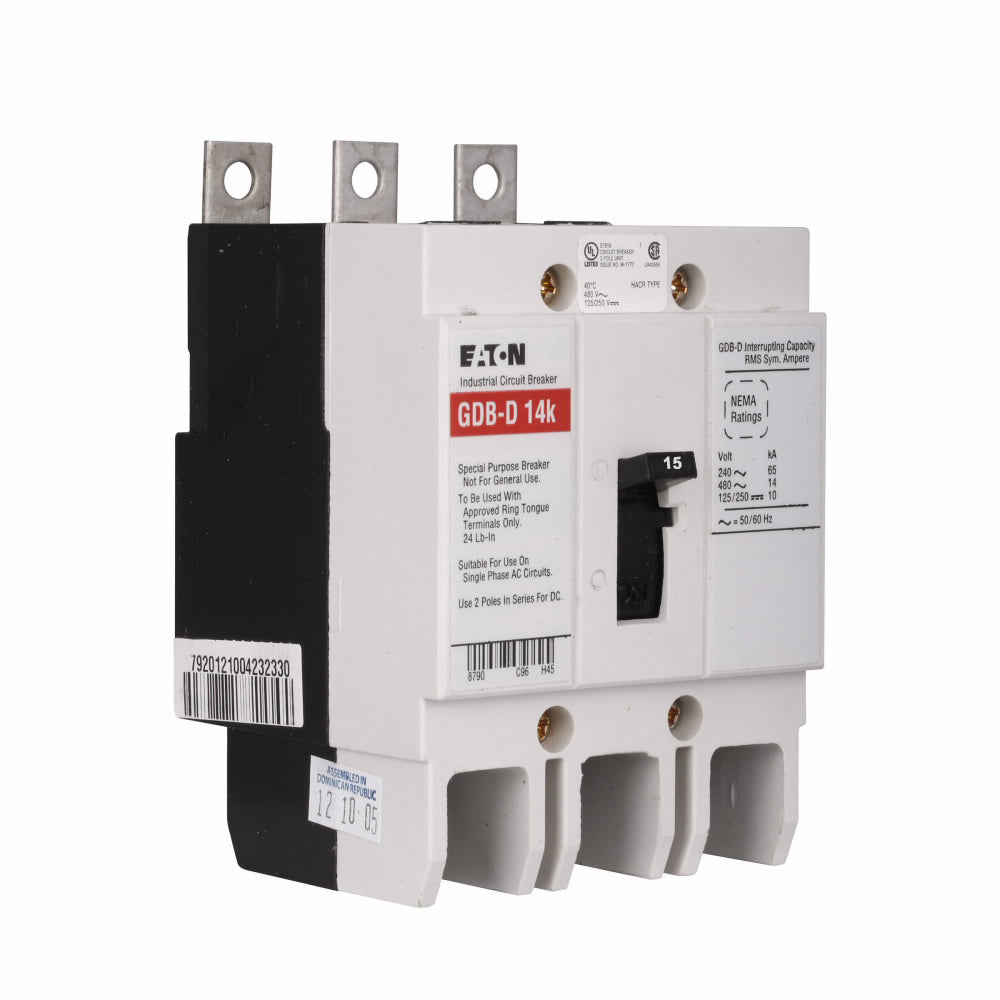

The Cutler Hammer GDB3015D is a Molded Case Circuit Breaker from the Series C family. It features a 3-pole design with a 480V, 15A rating and a 14kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. It is UL Listed and designed for reliable performance.
Key Features:
✔ Part Number: GDB3015D
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GDB
✔ Voltage: 480V
✔ Amperage: 15A
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ Frame Size: G Frame
✔ UPC: 786679048337
✔ GTIN: 00786679048337
✔ Country of Origin: Dominican Republic
✔ Dimensions: 2.63in (L) x 4.88in (H) x 3in (W)
✔ Weight: 1.75 lbs
✔ Certification: UL Listed
