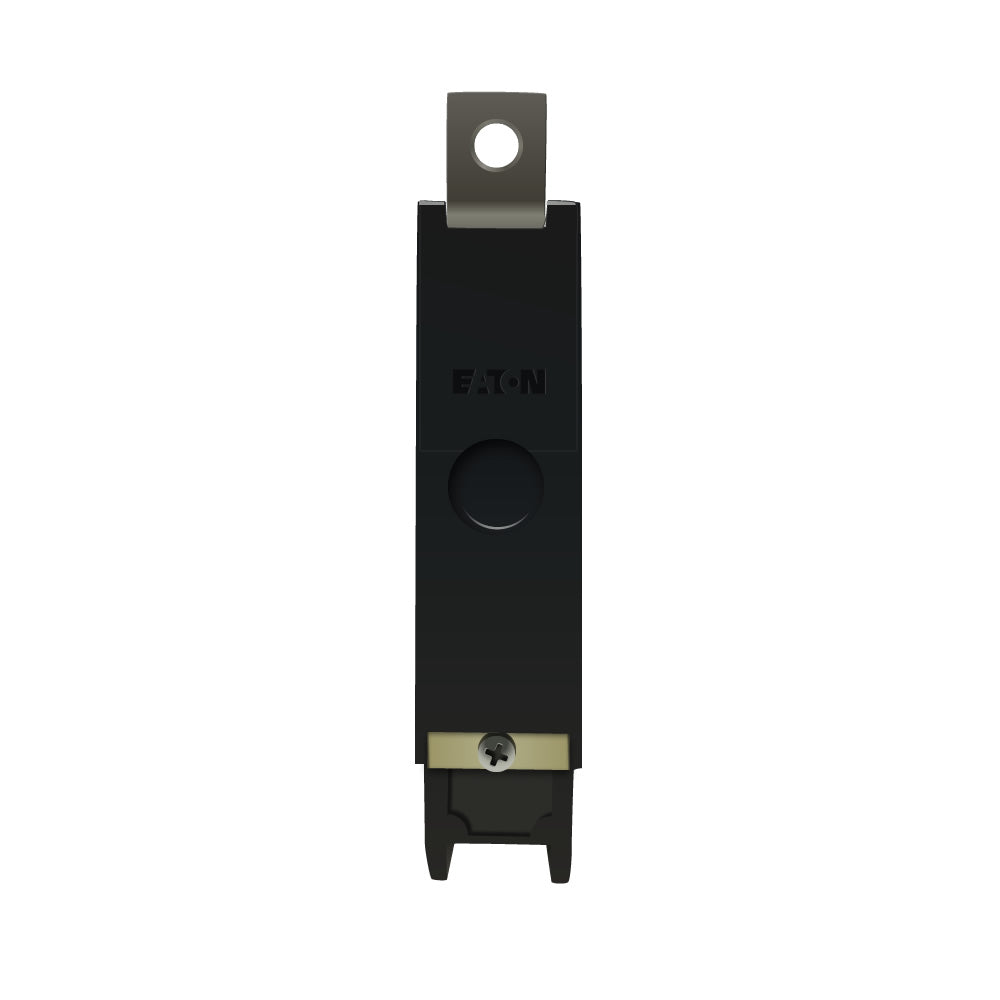

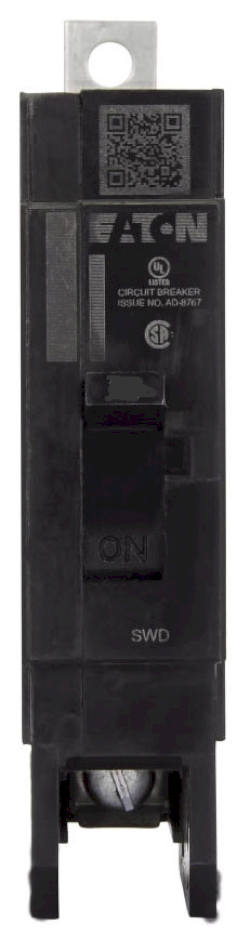

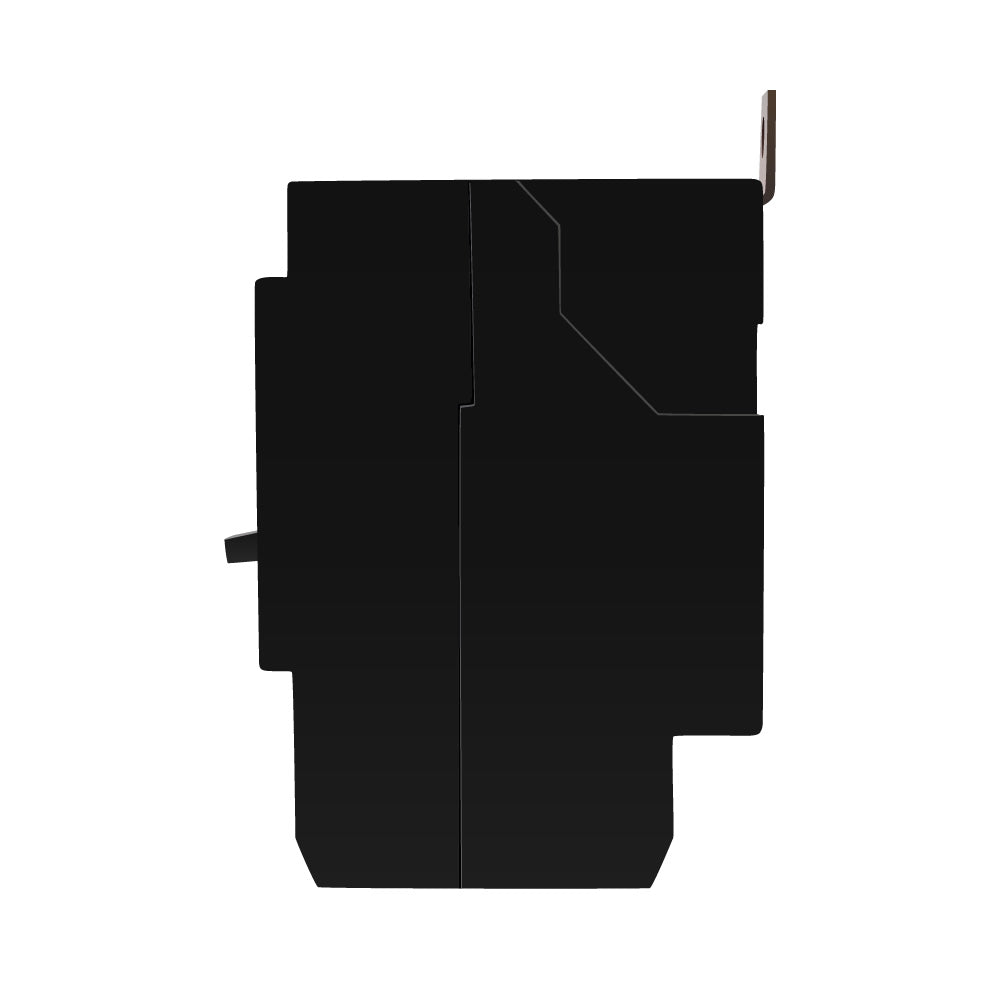

Cutler Hammer GHB1020 Circuit Breaker | 480V 20A 1P 14kA@277V Bolt-on Series C

Product Description:
The Cutler Hammer GHB1020 is a Molded Case Circuit Breaker from the Series C family. It features a 1-pole design with a 480V, 20A rating and a 14kA@277V AIC rating. This breaker uses a bolt-on connection and offers thermal magnetic protection for reliable performance.

Key Features:
✔ Part Number: GHB1020
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 14kA@277V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 786679023624
✔ GTIN: 00786679023624
✔ Country of Origin: Dominican Republic
✔ Dimensions: 1 in x 4 in x 4 in
✔ Weight: 0.75 lb
✔ Panel Type: Eaton Powerline Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: CSA Certified, UL Listed
