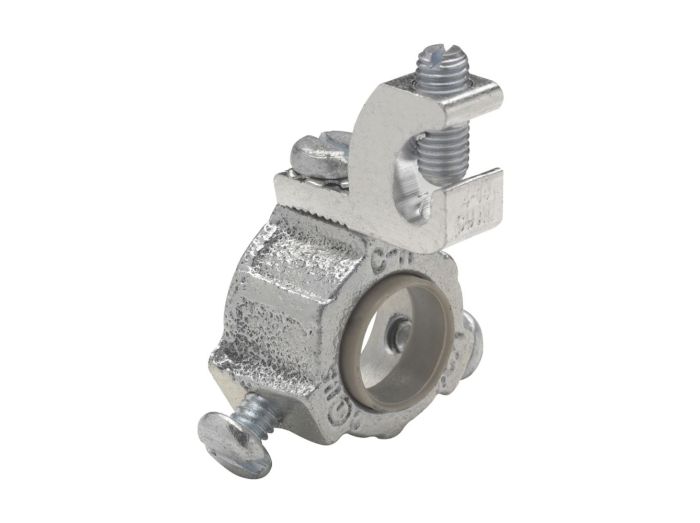

GLS11 Crouse-Hinds 5" Grounding Bushing — Threadless, Aluminum Lug #3/0–6 AWG

GLS11 Crouse-Hinds 5" Grounding Bushing — Threadless, Aluminum Lug #3/0–6 AWG

Need to bond and ground a 5" rigid or IMC run? The Crouse-Hinds GLS11 slips onto threadless conduit and locks down with a single set screw, so you get a clean grounding termination without fighting threads in tight gear. The aluminum lug lands a copper or aluminum ground conductor anywhere from #3/0 down to #6 AWG, and the insulated plastic throat keeps your conductor insulation off the metal edge on the way through.

It's a malleable iron body with a zinc-plated finish and external stainless hardware, rated 105°C, UL listed and cUL/CSA marked under File E6225 — built to hold up where you're installing it.

Common Applications

• Grounding 5" RMC and IMC at panels, switchgear, and service entrances
• Bonding conduit to ground bars and enclosures
• Commercial, institutional, and industrial conduit runs
• Anywhere you need an insulated-throat ground bushing on threadless 5" conduit

Key Features

• Drops onto threadless conduit: One set screw locks it in any position — no threading the bushing on.
• Lands #3/0–6 AWG: Aluminum lug takes copper or aluminum ground wire across the range.
• Insulated throat: Plastic liner protects conductor insulation at the entry.
• Malleable iron + stainless hardware: Holds up in the field, resists wear.
• 105°C rated: Covers standard code grounding work.
• UL File E6225: UL listed and CSA/cUL marked for Canada.

Specifications

• Conduit type: Rigid / IMC
• Trade size: 5"
• Mounting: Threadless (set-screw type)
• Lug material: Aluminum
• Lug size: #3/0–6 AWG
• Body material: Malleable iron
• Temperature rating: 105°C
• Finish: Zinc plated
• Hardware: One set screw, external stainless steel
• Certifications: UL listed, cUL/CSA for Canada — UL File E6225

Product Identification

• Manufacturer: Eaton Crouse-Hinds series
• Catalog number: GLS11
• UPC: 784564112507
• Dimensions: 5.7" L × 5.6" W × 7.8" H
• Weight: 1.4 lb
• Trade size: 5"

FAQ

Does the GLS11 fit threaded or threadless conduit? Threadless. It's the set-screw type and ships with one set screw to lock it onto 5" rigid/IMC.

What ground wire can I land in it? The aluminum lug takes copper or aluminum from #3/0 to #6 AWG.

Is the lug rated for aluminum conductors? Yes — the aluminum lug is rated for both copper and aluminum grounding conductors.

Will it stand up to a rough install? The body is malleable iron with zinc plating and external stainless hardware, rated 105°C.

Is it code-listed? Yes, UL listed and cUL/CSA certified for Canada under File E6225, for NEC/CEC grounding in ordinary locations.

Need a bigger conductor range? Step up to the GLS11 250 (250 kcmil–6 AWG aluminum lug) or GLS11 250C (copper lug). This GLS11 is the #3/0–6 AWG aluminum-lug version.
