Product Description:

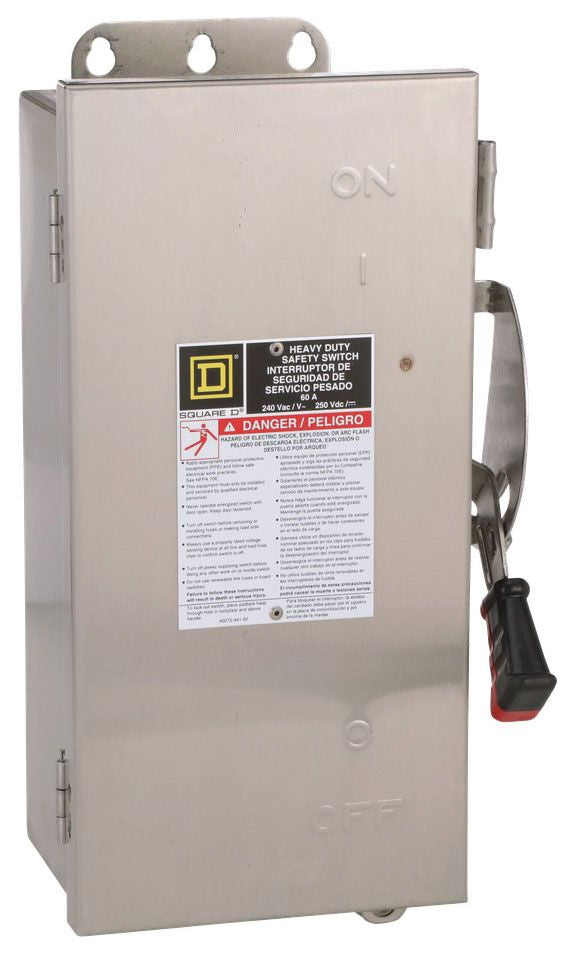

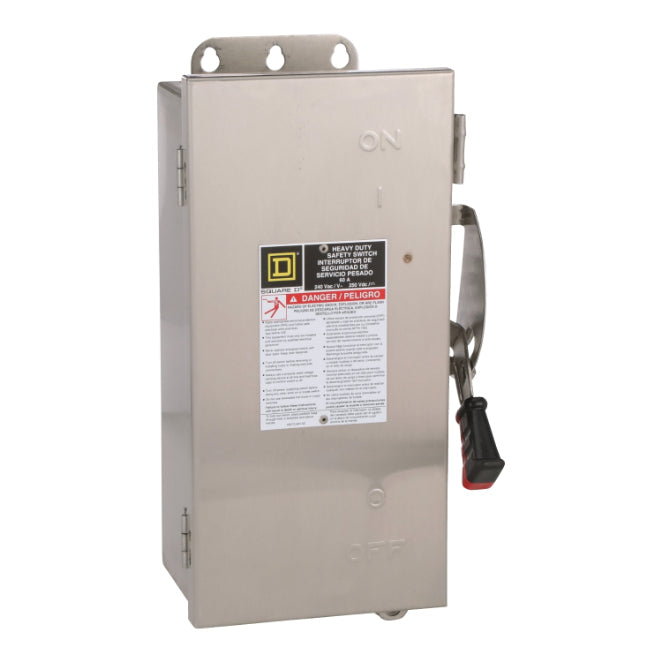

The Square D H222DS is a 1-phase, 2-pole disconnect switch rated for 240V and 60A. It features a NEMA 4/4X rating and a high AIC rating of 200kA@240V, making it suitable for robust electrical applications. This fusible switch is part of the Series F family and is designed for single-switch configurations.
Key Features:
✔ Part Number: H222DS
✔ Manufacturer: Schneider Electric
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series F
✔ Type: H
✔ Voltage: 240
✔ Amperage: 60
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 200kA@240V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: 4/4X
✔ Compatible Frames: NSE
✔ UPC: 785901023647
✔ GTIN: 00785901023647
✔ Dimensions: Depth 5.11 in (129.79 mm) Width 7.22 in (183.39 mm) Height 14.93 in (379.22 mm)
✔ Weight: 23
✔ Certification: UL Listed
