Product Description:

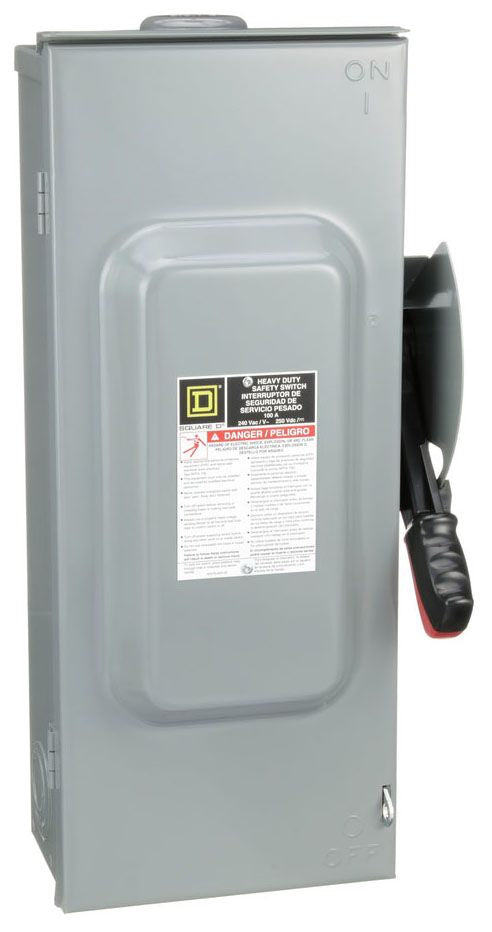

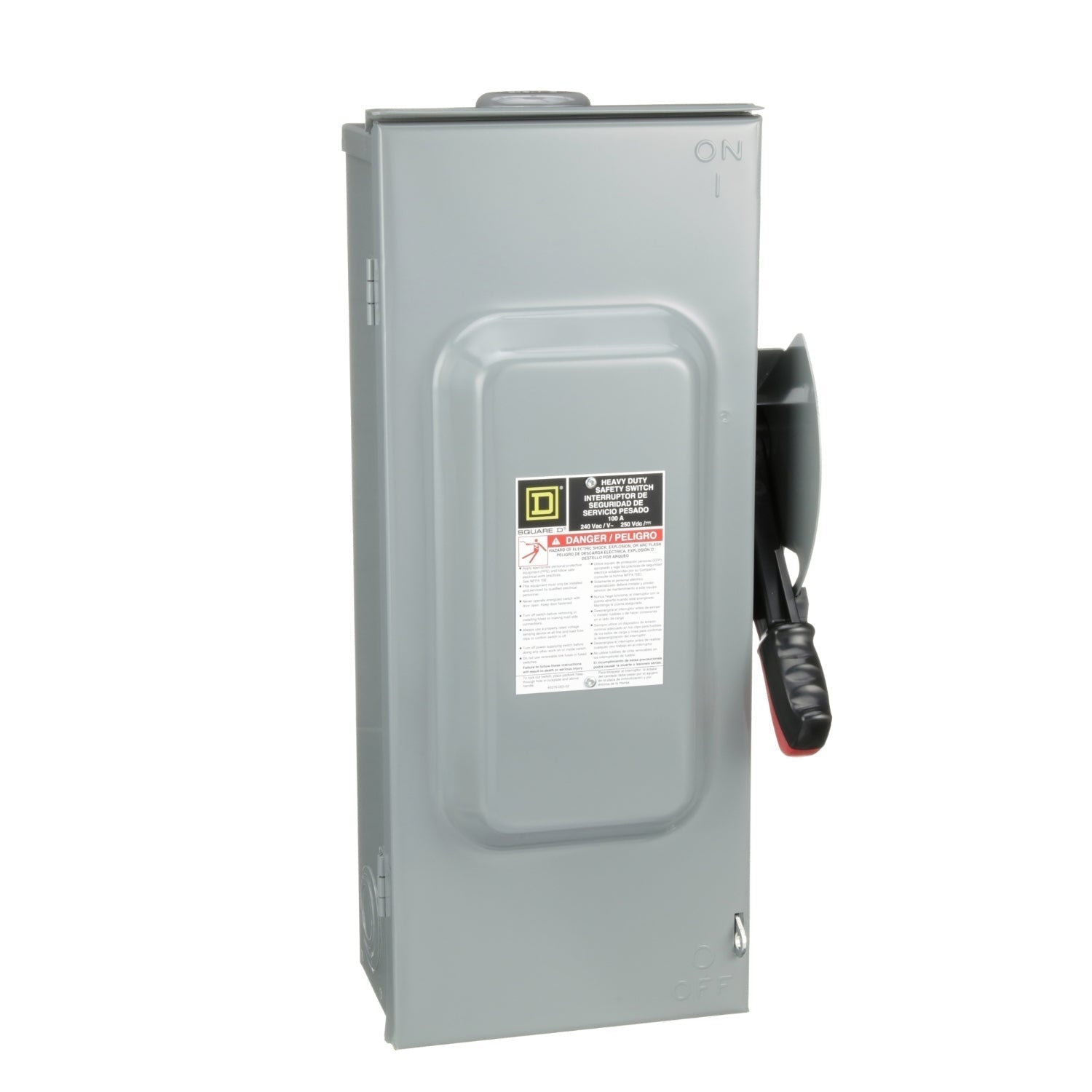

The Square D H323NRB is a 3-phase, 3-pole disconnect switch rated for 240V and 100A. It features a NEMA 3R enclosure rating and a high AIC rating of 200kA@240V for reliable performance. This fusible switch is part of the Series F family and is designed for industrial and commercial applications.
Key Features:
✔ Part Number: H323NRB
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series F
✔ Type: H
✔ Voltage: 240
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@240V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ NEMA Rating: 3R
✔ UPC: 785901480297
✔ GTIN: 00785901480297
✔ Dimensions: Depth 6.38 in (162.05 mm) Width 8.5 in (215.90 mm) Height 21.25 in (539.75 mm)
✔ Weight: 8.29
✔ Certification: UL
