Product Description:

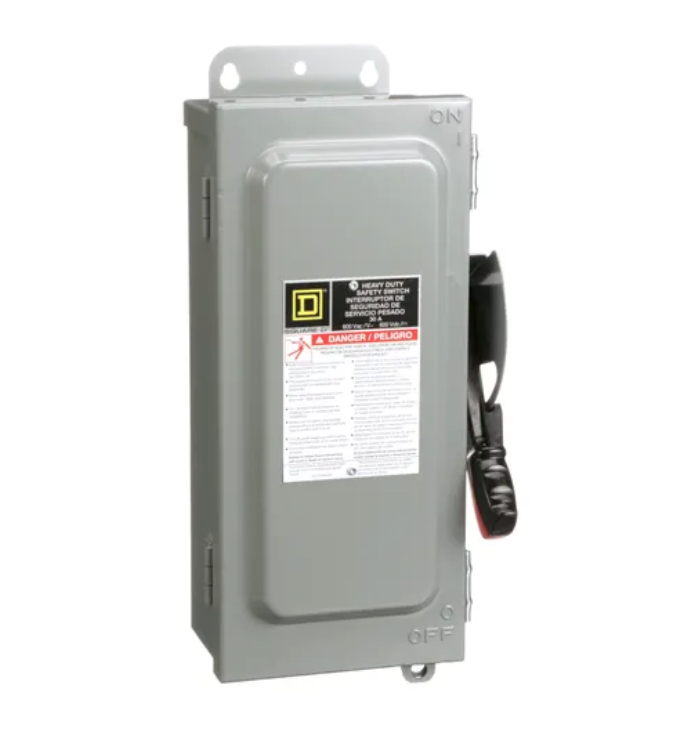

The Square D™ Heavy Duty Safety Switch is built for reliability in demanding commercial and industrial environments. Its F Series design exceeds NEMA KS-1 and UL98 standards with three times the mechanical endurance. The switch features robust copper current paths for lower temperature rise and extended service life. This 30A, 600V fusible disconnect has a 200kA short circuit rating and NEMA 12K protection. It includes a galvannealed steel enclosure and supports H, K, R, J, or L fuses.
Key Features:
✔ Part Number: H361A
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series F
✔ Type: H
✔ Voltage: 600V
✔ Amperage: 30A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 200kA@600V
✔ Fuse Class: H, K, R, J, L
✔ Configuration: Single Switch
✔ Style: Fusible
✔ NEMA Rating: 12K
✔ Acceptable AWG: 12 / 6 (Aluminum)
✔ Tightening Torque: 45-45 lbf.in
✔ Certification: UL Listed (File E2875)
✔ UPC: 078590148185
✔ GTIN: 00785901481850
✔ Dimensions: 14.6" H x 7.55" W x 4.96" D
✔ Weight: 10.57 lb
