Product Description:

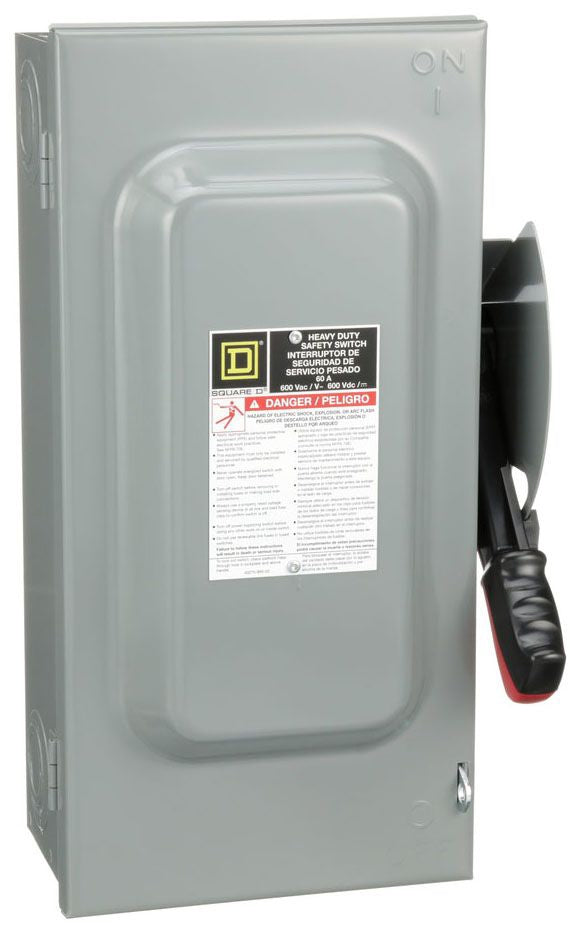

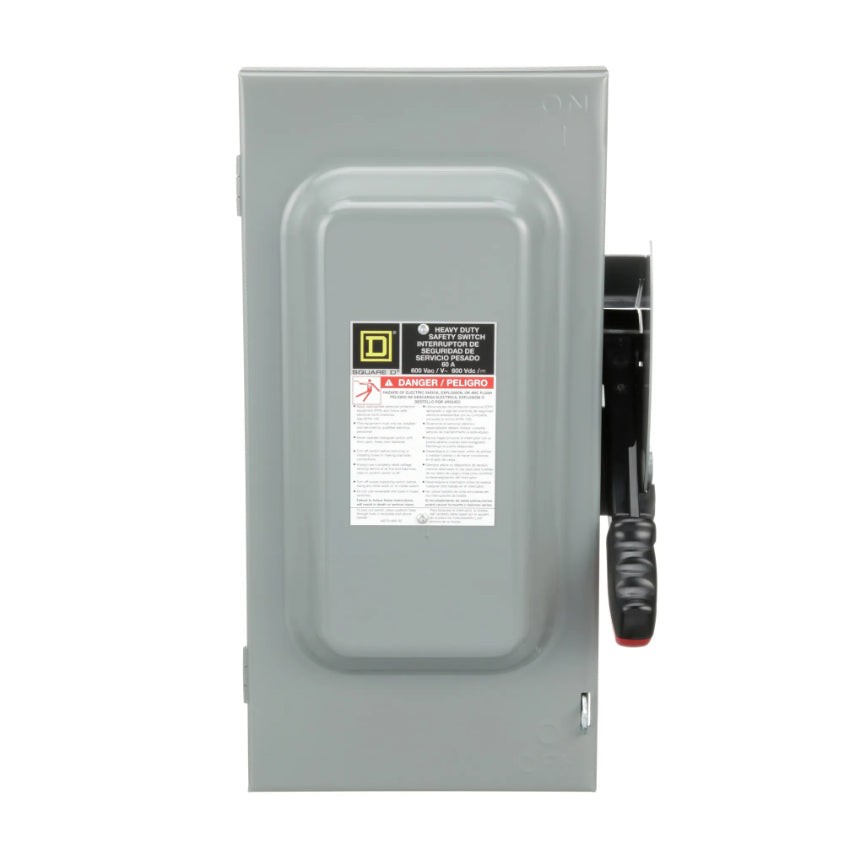

The Square D H362 is a heavy-duty 3 phase disconnect switch rated for 600 volts and 60 amps. It features a NEMA 1 enclosure rating and a high interrupting capacity of 200kA at 600V. This fusible switch is compatible with class R, J, H, and K fuses and is designed for reliable circuit protection in industrial applications.
Key Features:
✔ Part Number: H362
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series F
✔ Type: H
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@600V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: 1
✔ Compatible Frames: ED
✔ UPC: 785901482147
✔ GTIN: 00785901482147
✔ Dimensions: Depth 6.38 in (162.05 mm) Width 10.5 in (266.70 mm) Height 17.5 in (444.50 mm)
✔ Weight: 6.85 lb
✔ Certification: UL Listed
