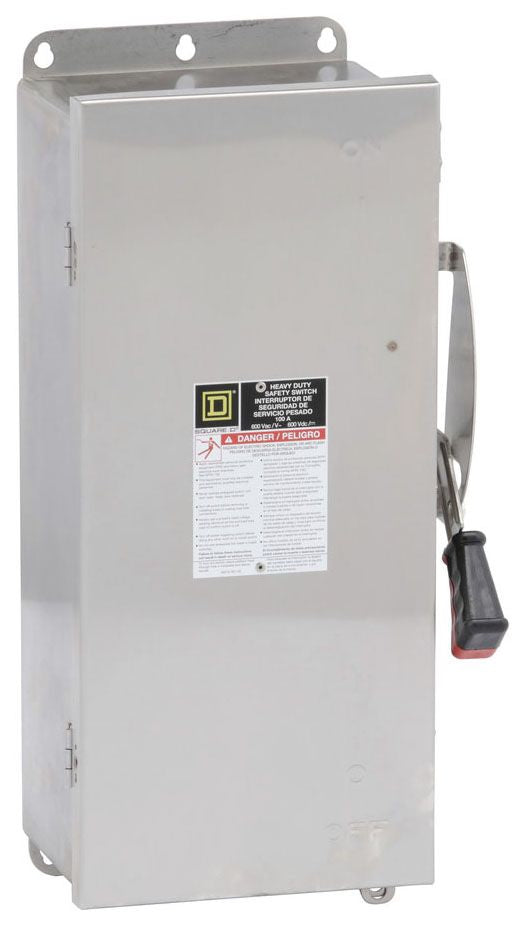

Square D H363DS Disconnect | 600V 100A Fusible Switch Series F

Product Description:
The Square D H363DS is a 3-phase, 3-pole disconnect switch rated for 600 Volts and 100 Amps. It features a NEMA 4/4X/5 rating with a 304 stainless steel enclosure, making it watertight, dust-tight, and corrosion resistant for both indoor and outdoor use. Suitable for service entrance applications, it supports class R, J, H, and K fuses and has an AIC rating of 200kA at 600V.

Key Features:
✔ Part Number: H363DS
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series F
✔ Type: H
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@600V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: 4/4X/5
✔ Compatible Frames: FD
✔ UPC: 785901023708
✔ GTIN: 00785901023708
✔ Dimensions: Height 28 in (711.20 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 10.39 lb
