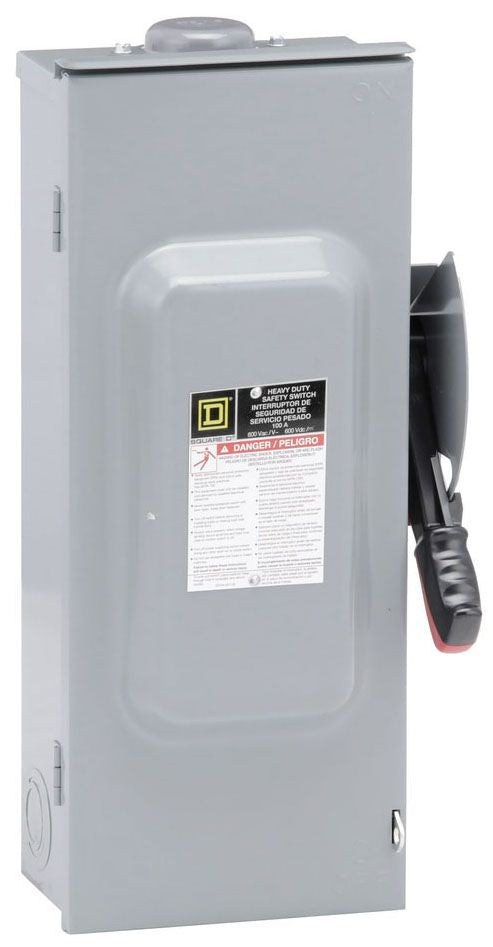

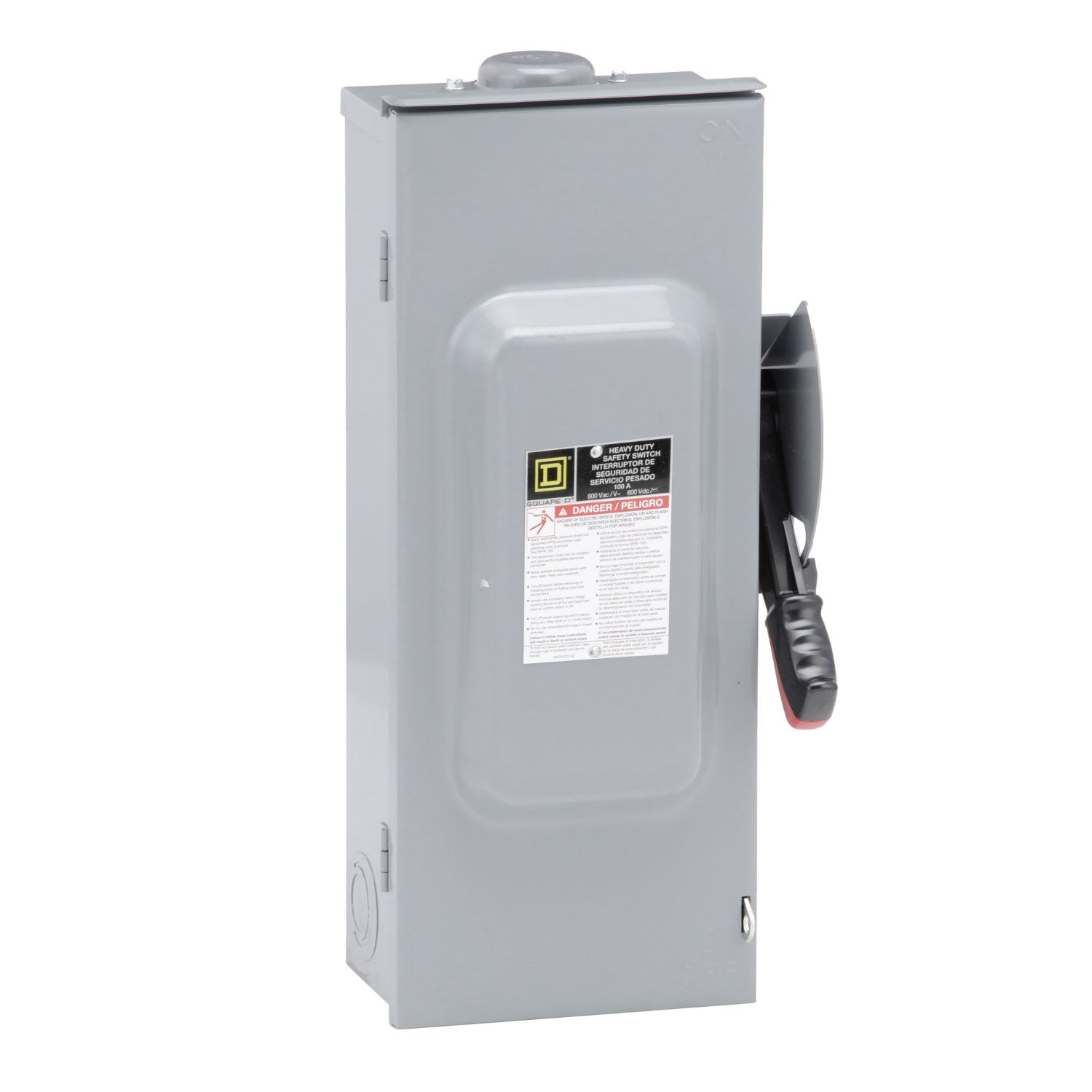

Square D H363NRB Disconnect Switch | 600V 100A Fusible 3 Phase Series F

Product Description:
The Square D H363NRB is a 3-phase, 3-pole disconnect switch rated for 600V and 100A. It features a NEMA 3R enclosure and a high AIC rating of 200kA@600V, making it suitable for service entrance applications. This fusible switch supports class R, J, H, and K fuses and includes a neutral and bolt-on hub provision.

Key Features:
✔ Part Number: H363NRB
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series F
✔ Type: H
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@600V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: 3R
✔ Compatible Frames: FD
✔ UPC: 785901011576
✔ GTIN: 00785901011576
✔ Dimensions: Depth 6.38 in (162.05 mm) Width 10.25 in (260.35 mm) Height 21.25 in (539.75 mm)
✔ Weight: 8.02 lb
