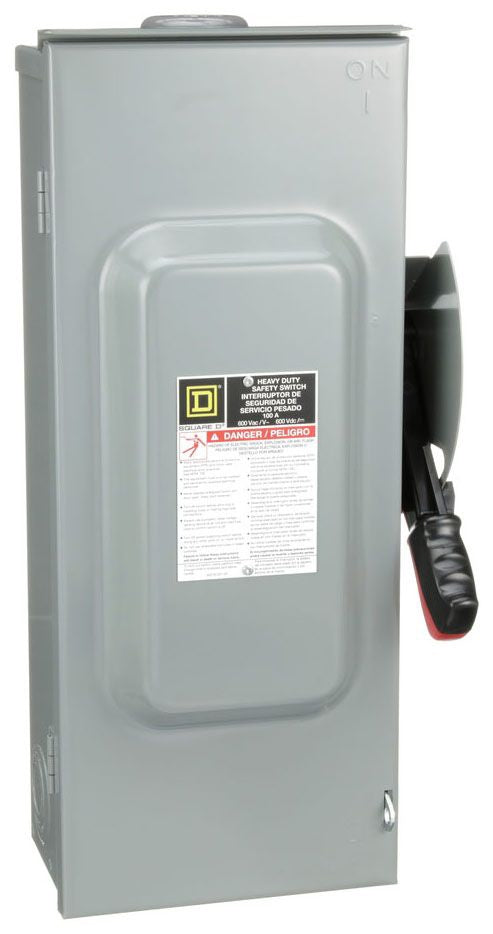

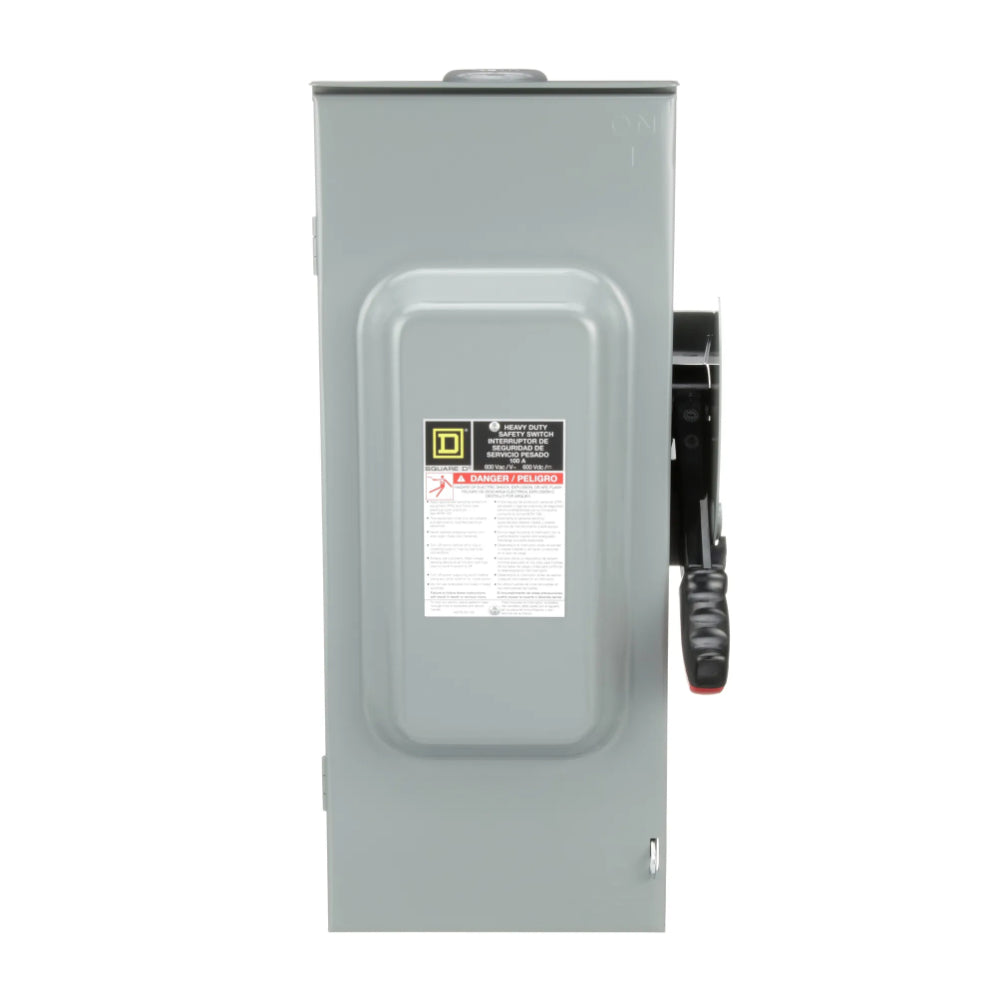

Square D H363RB Switch | Series F H 600V 100A

Product Description:

The Square D H363RB is a robust 3-phase, 3-pole disconnect switch designed for 600 Volt and 100 Amp applications. It features a NEMA 3R rating and an AIC rating of 200kA at 600V, making it suitable for service entrance equipment. This model supports class R, J, H, and K fuses and includes a bolt-on hub provision.

Key Features:
✔ Part Number: H363RB
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series F
✔ Type: H
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@600V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: 3R
✔ Compatible Frames: JD
✔ UPC: 785901482666
✔ GTIN: 00785901482666
✔ Dimensions: Depth 6.38 in (162.05 mm) Width 10.25 in (260.35 mm) Height 21.25 in (539.75 mm)
✔ Weight: 21.84 lb
✔ Certification: UL Listed
