Square D

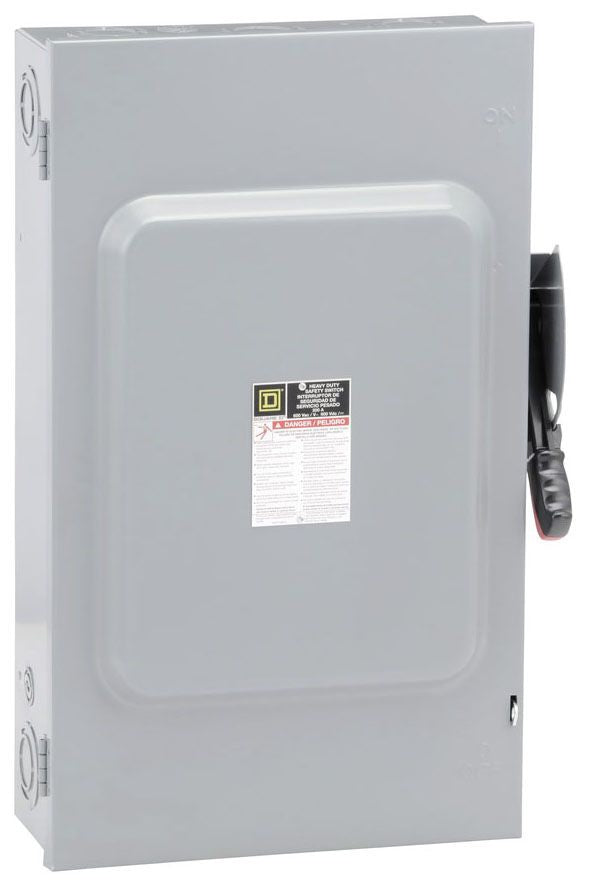

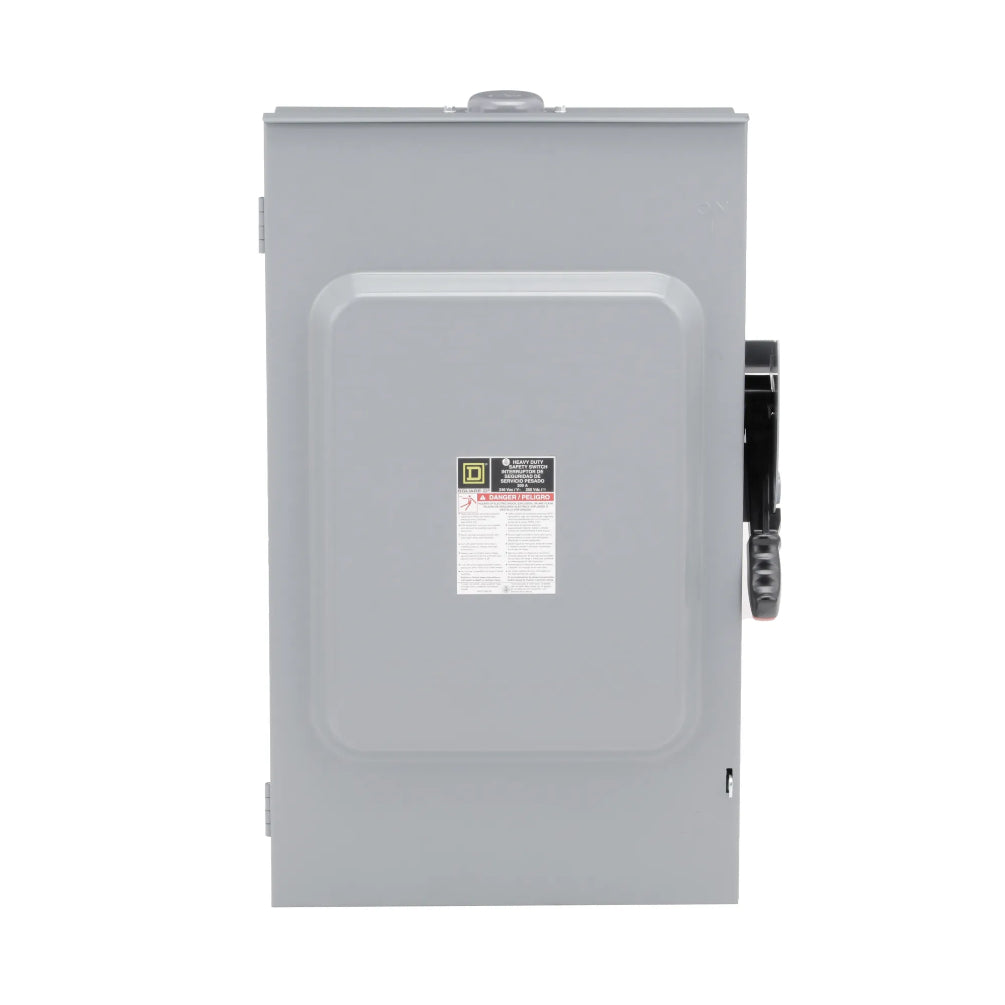

Square D H364 Disconnect | 600V 200A Fusible 3P Series F
Square D H364 Disconnect | 600V 200A Fusible 3P Series F
Price:
Sale
Sold out
Regular price
$1,609.76 USD
Regular price
$1,707.00 USD
Sale price
$1,609.76 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 2 left
Couldn't load pickup availability
Product Description:
The Square D H364 is a heavy-duty 3-phase disconnect switch rated for 600V and 200A. It features a NEMA 1 enclosure and a high 200kA@600V AIC rating for reliable protection. This fusible switch supports class R, J, H, and K fuses and is suitable for service entrance applications.
Key Features:
✔ Part Number: H364
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series F
✔ Type: H
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@600V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: 1
✔ Compatible Frames: LD
✔ UPC: 785901482314
✔ GTIN: 00785901482314
✔ Dimensions: Depth 8.25 in (209.55 mm) Width 18.5 in (469.90 mm) Height 29 in (736.60 mm)
✔ Weight: 20.32 lb
✔ Certification: UL Listed
The Square D H364 is a heavy-duty 3-phase disconnect switch rated for 600V and 200A. It features a NEMA 1 enclosure and a high 200kA@600V AIC rating for reliable protection. This fusible switch supports class R, J, H, and K fuses and is suitable for service entrance applications.
Key Features:
✔ Part Number: H364
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series F
✔ Type: H
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@600V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: 1
✔ Compatible Frames: LD
✔ UPC: 785901482314
✔ GTIN: 00785901482314
✔ Dimensions: Depth 8.25 in (209.55 mm) Width 18.5 in (469.90 mm) Height 29 in (736.60 mm)
✔ Weight: 20.32 lb
✔ Certification: UL Listed
