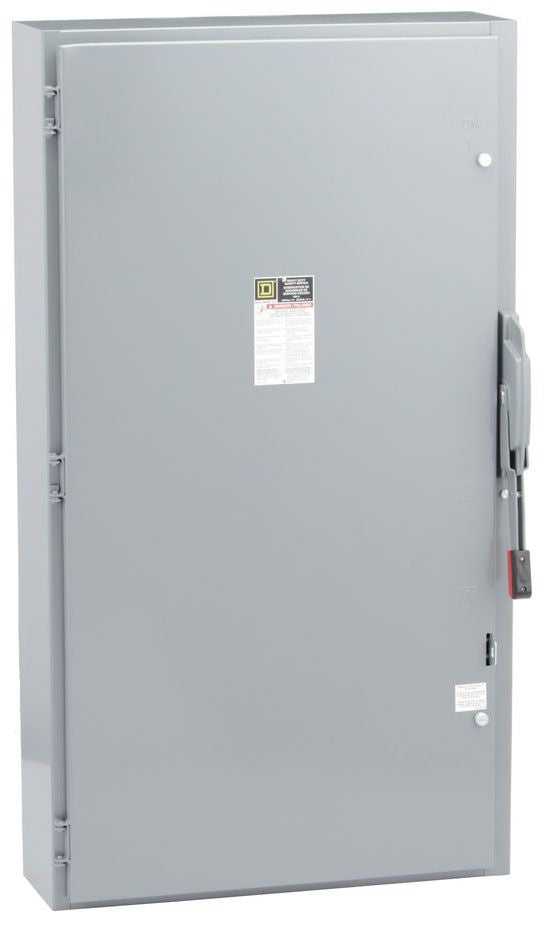

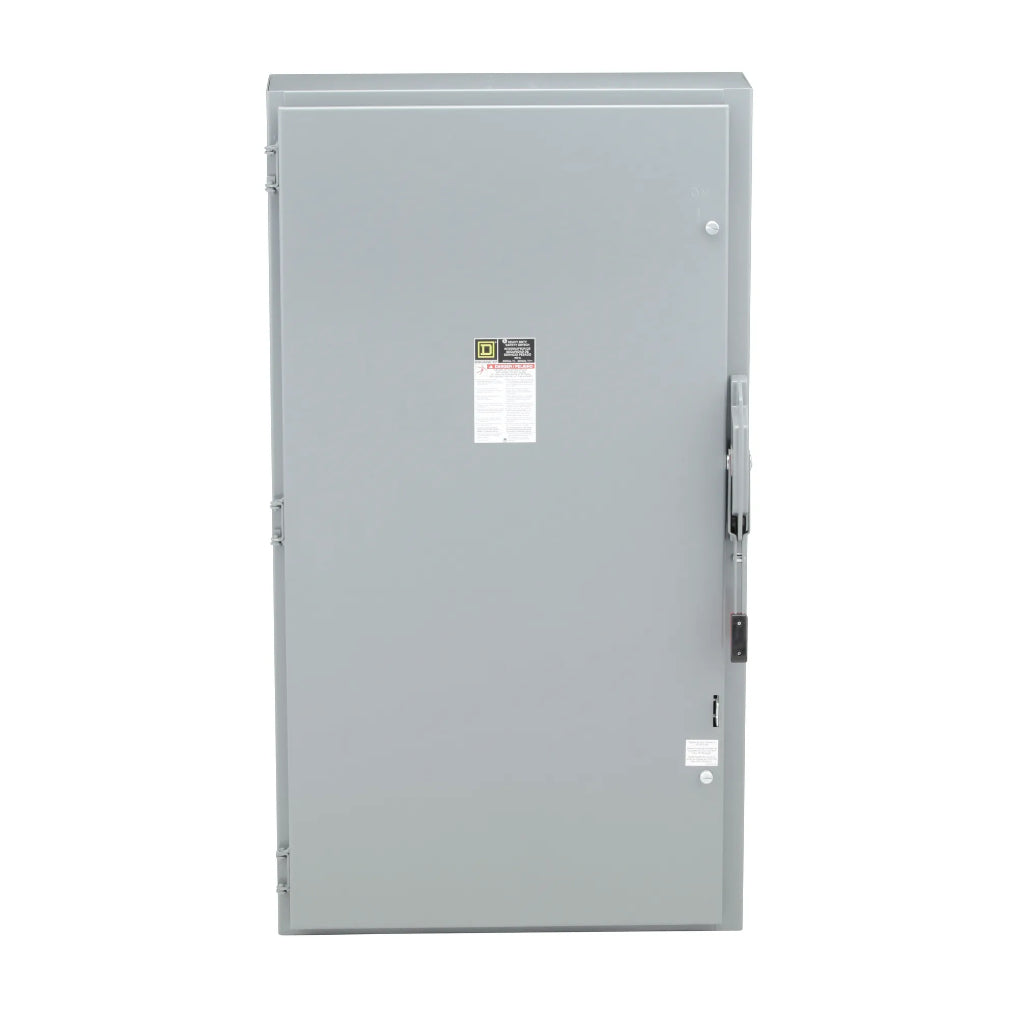

Square D H365 Disconnect | 600V AC 400A Fusible 3P Series E
Square D H365 Disconnect | 600V AC 400A Fusible 3P Series E
Price:
Sale
Sold out
Regular price
$2,885.45 USD
Regular price
$4,551.00 USD
Sale price
$2,885.45 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 8 left
Couldn't load pickup availability
Product Description:
The Square D H365 is a heavy-duty 3-phase, 3-pole disconnect switch rated for 600 volts and 400 amps. It features a NEMA 1 rating and a high interrupting capacity of 200kA at 600V. This fusible switch is designed for use with class R, J, H, and K fuses and is suitable for service entrance applications.
Key Features:
✔ Part Number: H365
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series E
✔ Type: H
✔ Voltage: 600 AC
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@600V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: NEMA 1
✔ UPC: 785901482192
✔ GTIN: 00785901482192
✔ Country of Origin: Mexico
✔ Dimensions: 27.63 in x 10.13 in x 50.25 in (WxDxH)
✔ Weight: 76.2 lb
✔ Certification: UL listed
The Square D H365 is a heavy-duty 3-phase, 3-pole disconnect switch rated for 600 volts and 400 amps. It features a NEMA 1 rating and a high interrupting capacity of 200kA at 600V. This fusible switch is designed for use with class R, J, H, and K fuses and is suitable for service entrance applications.
Key Features:
✔ Part Number: H365
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series E
✔ Type: H
✔ Voltage: 600 AC
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@600V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: NEMA 1
✔ UPC: 785901482192
✔ GTIN: 00785901482192
✔ Country of Origin: Mexico
✔ Dimensions: 27.63 in x 10.13 in x 50.25 in (WxDxH)
✔ Weight: 76.2 lb
✔ Certification: UL listed
