Product Description:

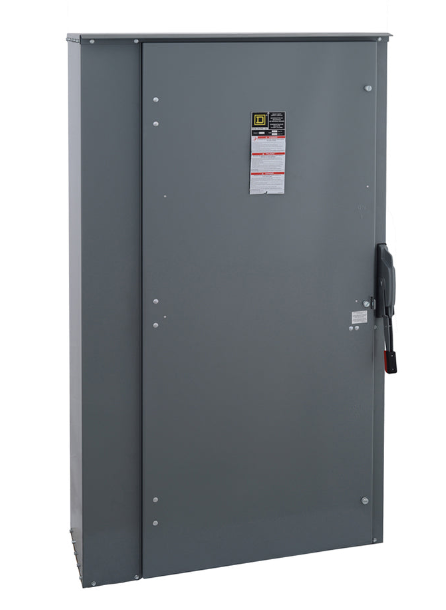

The H368N is a heavy-duty safety disconnect switch from Square D, designed for industrial and commercial applications. It features a fusible type design, accepting class R and L fuses, and is suitable for indoor use. This 3-phase, 3-pole switch operates at 600V with a 1200A rating and a high 200kA interrupting capacity. Its NEMA 1 enclosure ensures protection against dust and light debris.
Key Features:
✔ Part Number: H368N
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Voltage: 600V AC/DC
✔ Amperage: 1200
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@600V
✔ Fuse Class: R,L
✔ Wire: 4
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: NEMA 1
✔ UPC: 78590144246
✔ GTIN: 00785901442462
✔ Country of Origin: Mexico
✔ Dimensions: 36.62 in x 17.75 in x 69.13 in (WxDxH)
✔ Weight: 164.2
✔ Certification: UL Listed
