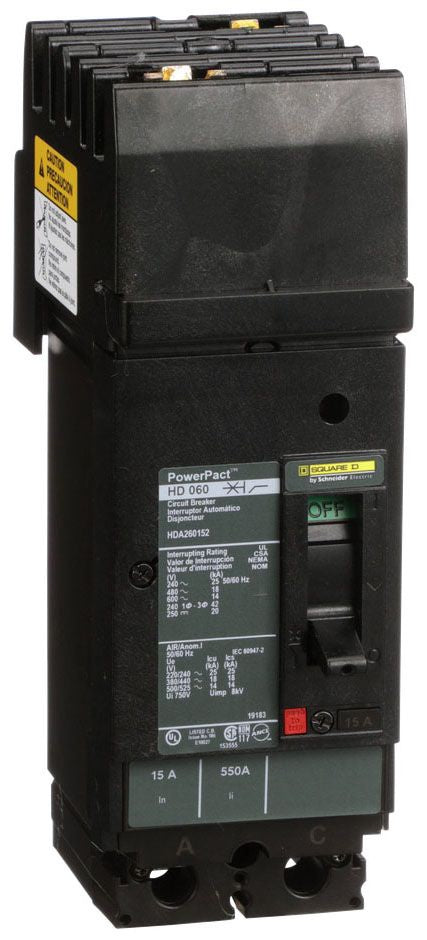

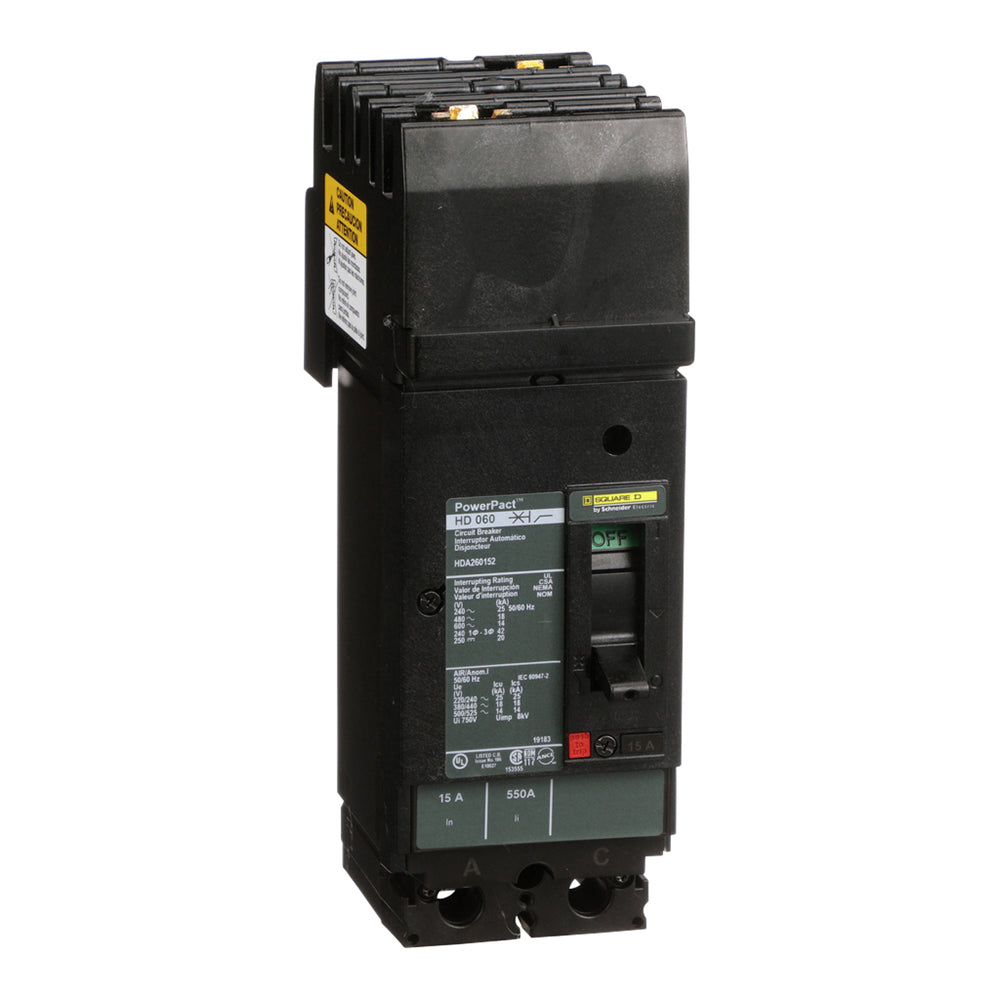

Square D HDA260152 Circuit Breaker | 600V 15A 2P 18kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D HDA260152 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 15A rating and an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection. It is suitable for various electrical applications.

Key Features:
✔ Part Number: HDA260152
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
✔ Protection: Thermal Magnetic
✔ Phase Connection: AC
✔ UPC: 785901412939
✔ GTIN: 00785901412939
✔ Country of Origin: Mexico
✔ Dimensions: 2.74 in x 6.4 in
✔ Weight: 1.89
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
