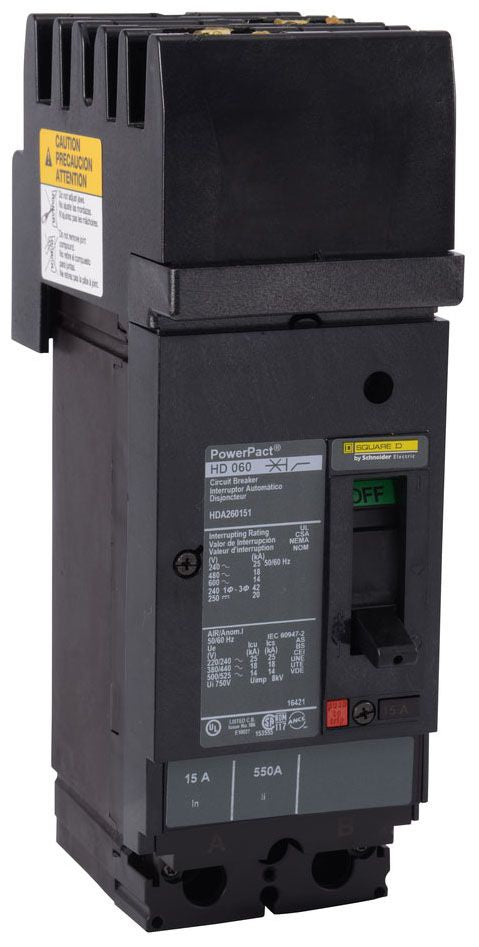

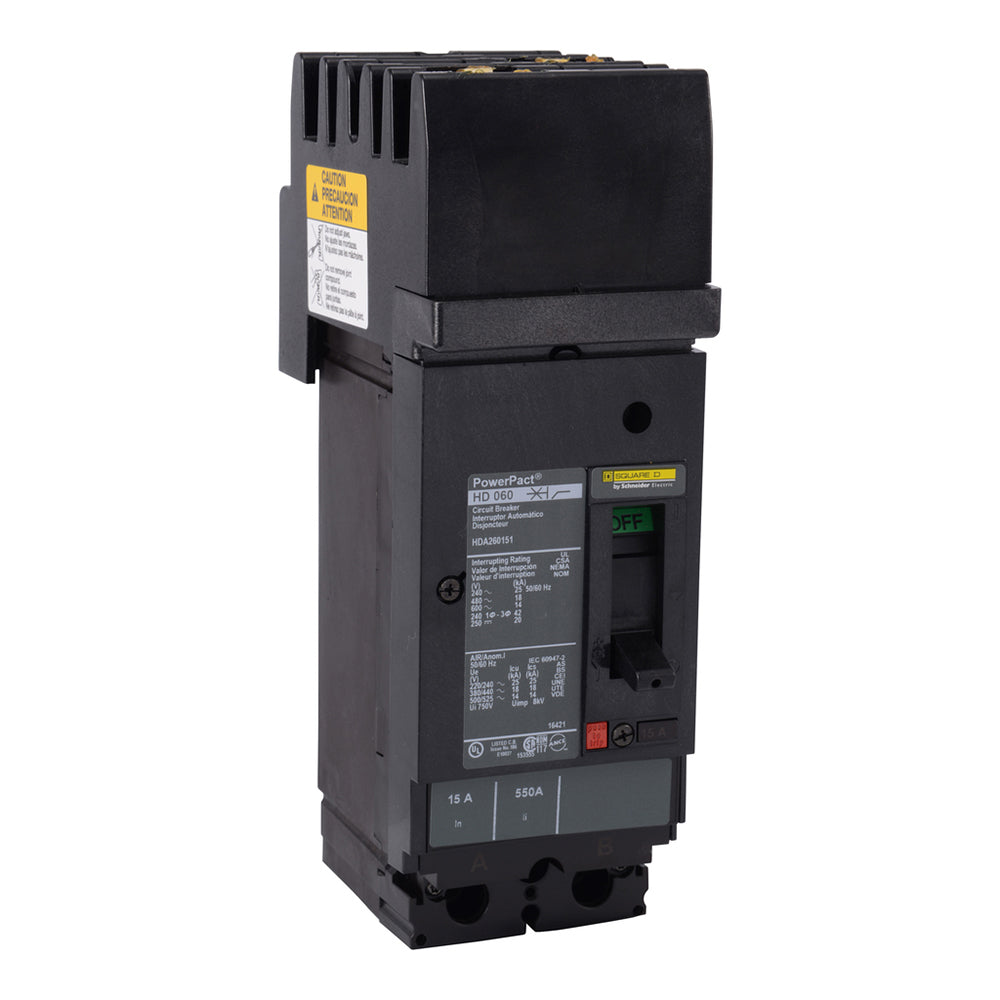

Square D HDA260204 Circuit Breaker | 600V 20A 2P 18kA@480V I-Line Plug-In Powerpact HDA
Square D HDA260204 Circuit Breaker | 600V 20A 2P 18kA@480V I-Line Plug-In Powerpact HDA
Price:
Sale
Sold out
Regular price
$710.86 USD
Regular price
$899.00 USD
Sale price
$710.86 USD
Unit price
per
Shipping calculated at checkout.
Stock:
4 in stock
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Couldn't load pickup availability
Product Description:
The Square D HDA260204 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 600 Volt, 20 amp rated breaker with an 18kA@480V AIC rating. This model uses an I-Line Style Plug-In connection and provides Thermal Magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: HDA260204
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: BC
✔ UPC: 785901416388
✔ GTIN: 00785901416388
✔ Country of Origin: United States
✔ Dimensions: 2.74 in x 6.4 in
✔ Weight: 1.36
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
