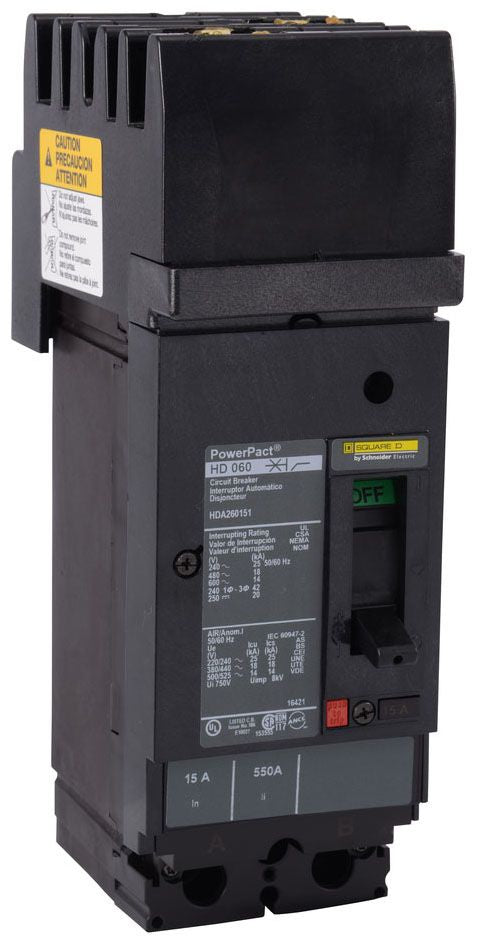

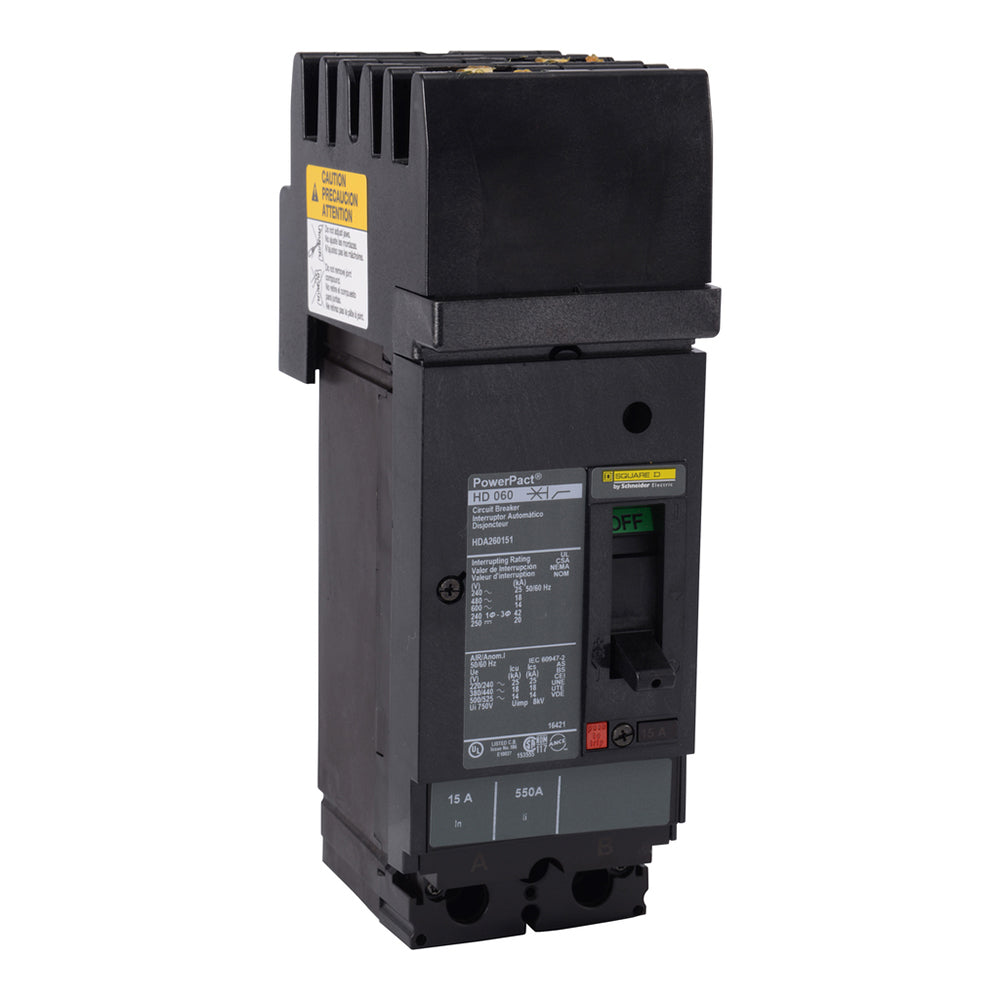

Square D HDA260305 Circuit Breaker | 600V 30A 2P 18kA@480V I-Line Plug-In Powerpact HDA

Product Description:
The Square D HDA260305 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 30 amp breaker rated for 600 volts with an AIC rating of 18kA@480V. This model features an I-Line Style Plug-In connection and provides Thermal Magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: HDA260305
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 30
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Thermal Magnetic
✔ Frame Size: H
✔ Wire Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ UPC: 785901416555
✔ GTIN: 00785901416555
✔ Country of Origin: United States
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
