Square D

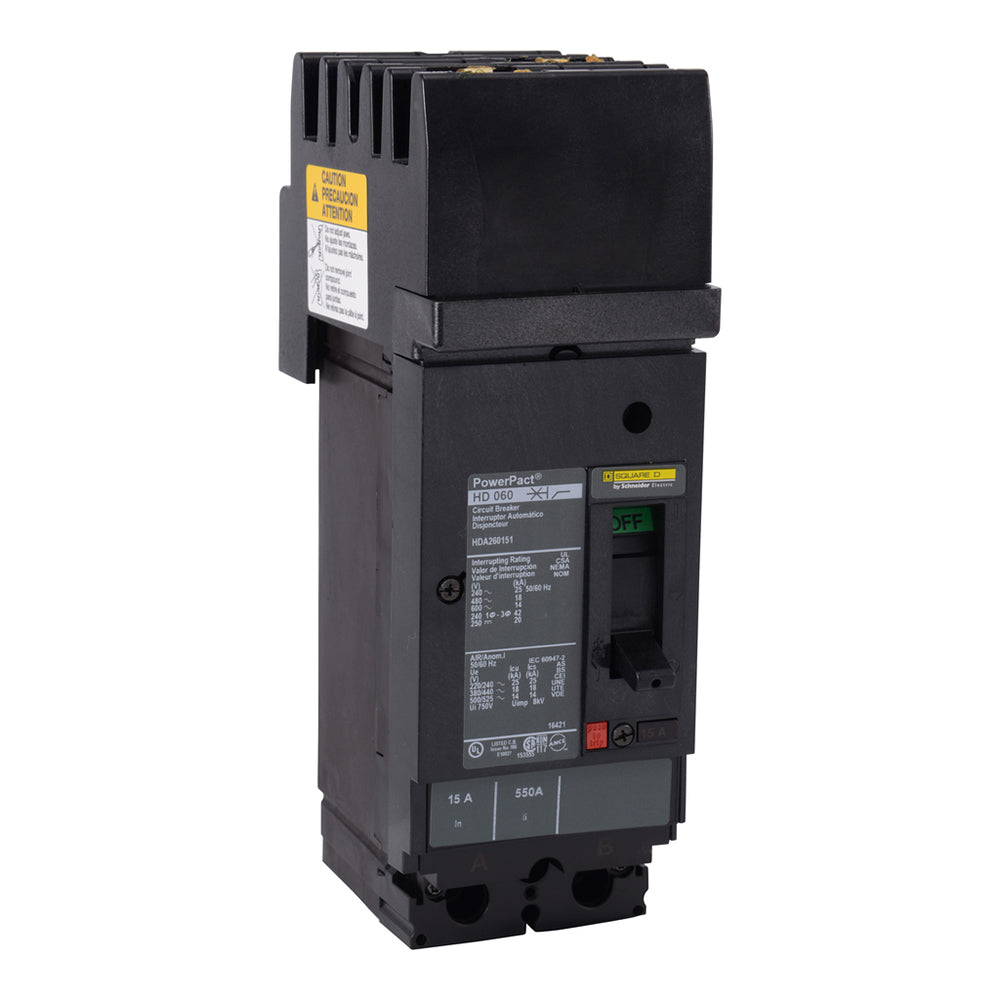

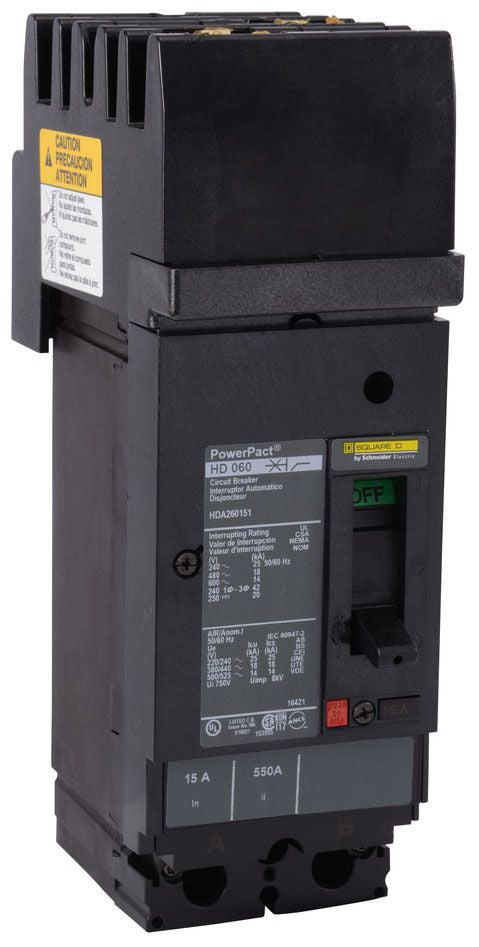

Square D HDA260804 Circuit Breaker | 600V 80A 2P 18kA@480V I-Line Style Plug-In Powerpact
Square D HDA260804 Circuit Breaker | 600V 80A 2P 18kA@480V I-Line Style Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$786.04 USD
Regular price
$1,632.00 USD
Sale price
$786.04 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D HDA260804 is a Molded Case Circuit Breaker from the Powerpact family. This 2-pole breaker is rated for 600V and 80 amps, with an AIC rating of 18kA@480V. It features Thermal Magnetic protection and uses an I-Line Style Plug-In connection for easy installation.
Key Features:
✔ Part Number: HDA260804
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 80
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901416425
✔ GTIN: 00785901416425
✔ Country of Origin: United States
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.36
✔ Certification: Ul Listed
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
