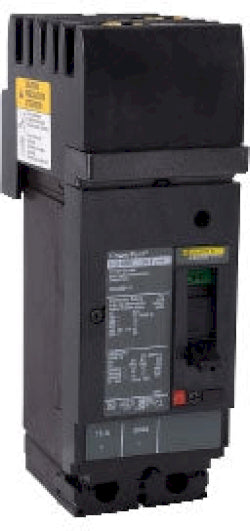

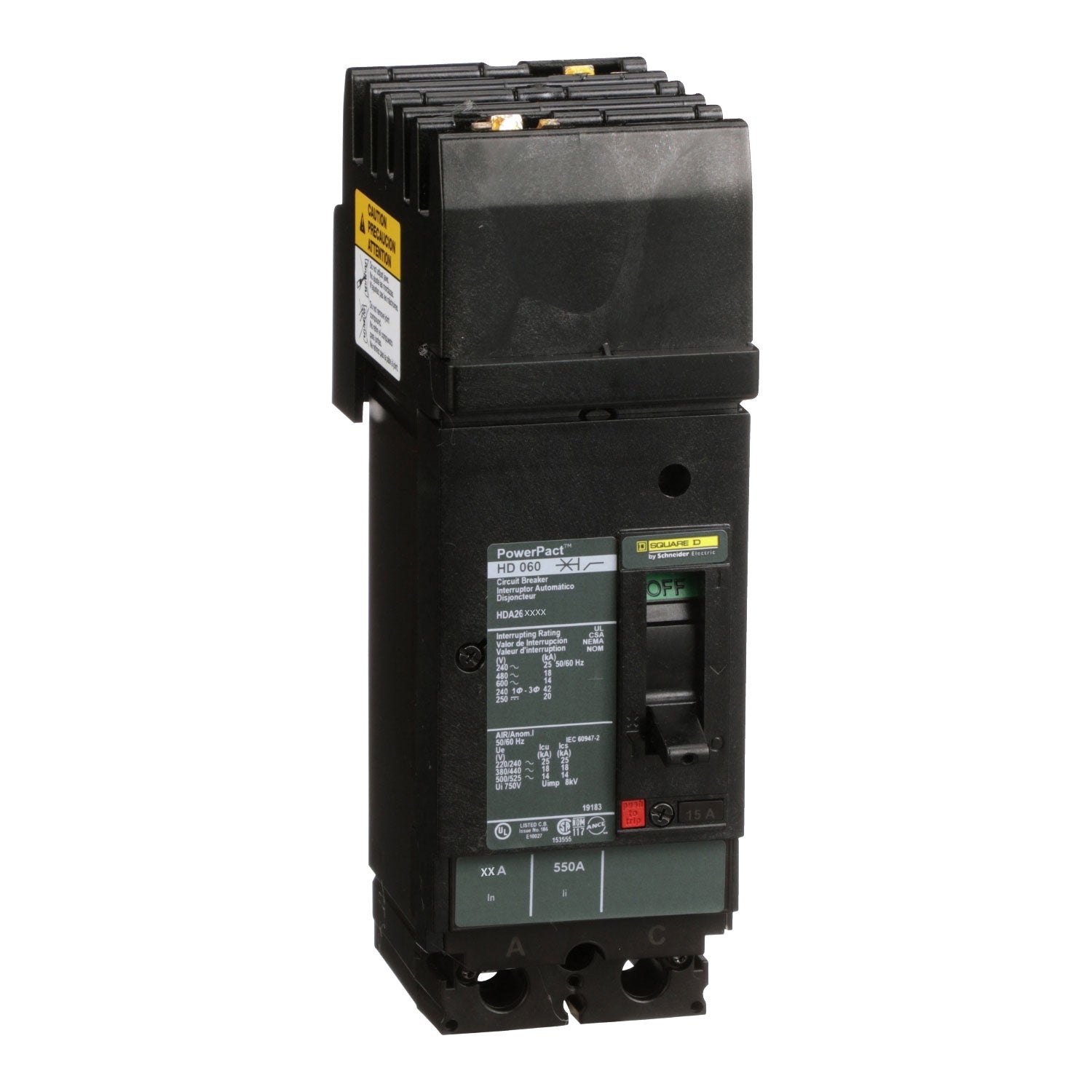

Square D HDA260902 Circuit Breaker | 600V 90A 2P 18kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D HDA260902 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 90A rating and an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: HDA260902
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901049548
✔ GTIN: 00785901049548
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.36
✔ Certification: UL Listed
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
