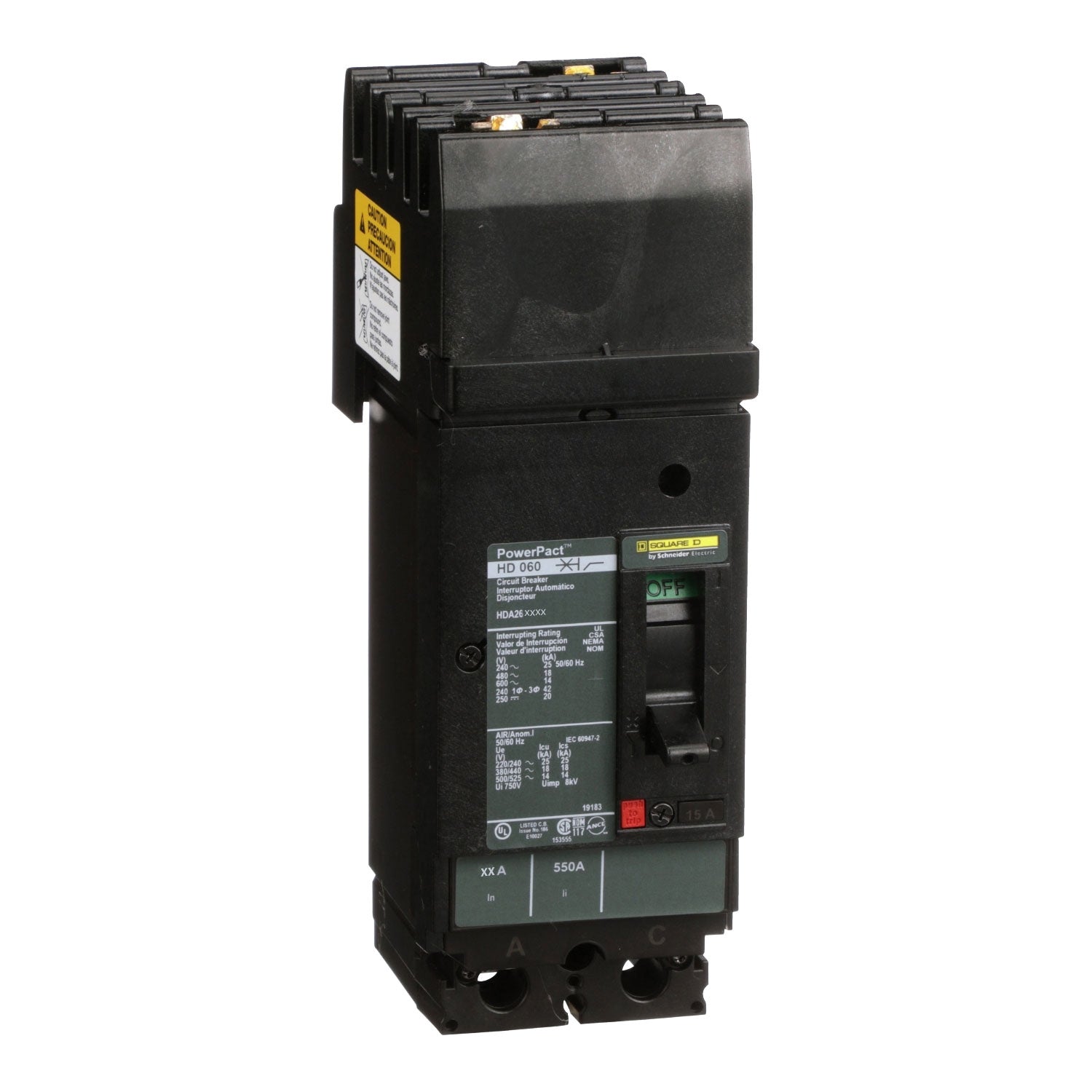

Images are for reference only
Square D

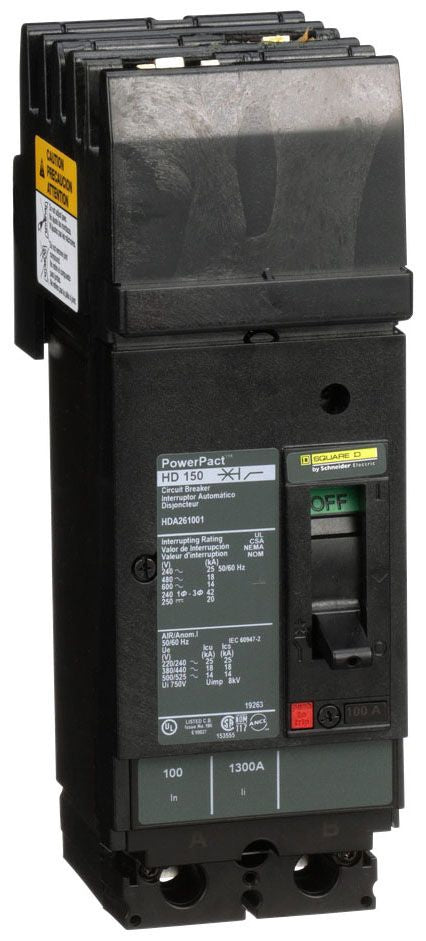

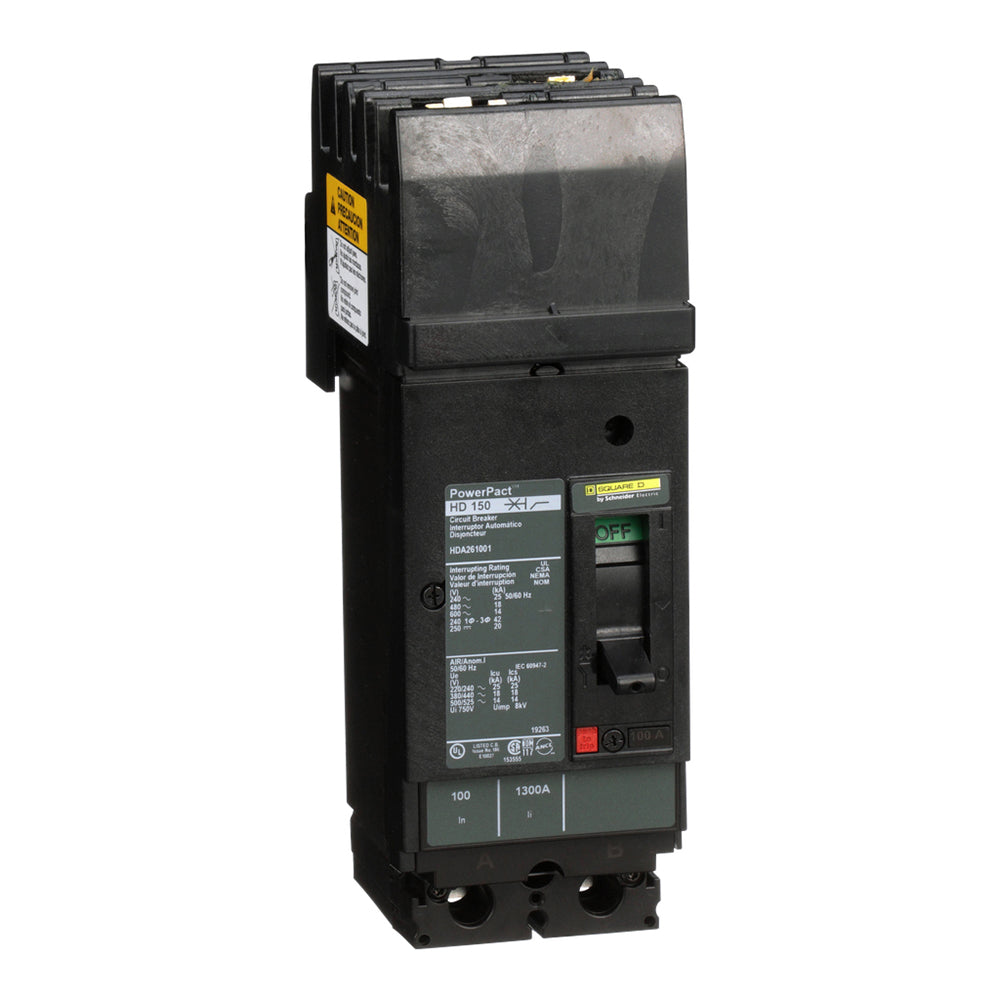

Square D HDA261001 Circuit Breaker | 600V 100A 2P 18kA@480V I-Line Plug-In Powerpact HDA
Square D HDA261001 Circuit Breaker | 600V 100A 2P 18kA@480V I-Line Plug-In Powerpact HDA
Price:
Sale
Sold out
Regular price
$920.12 USD
Regular price
$1,088.00 USD
Sale price
$920.12 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low inventory, please call (855) 875-5050 for stock check
Couldn't load pickup availability
Product Description:
The Square D HDA261001 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 100 amp breaker rated for 600 volts with an 18kA@480V AIC rating. This thermal magnetic circuit breaker uses an I-Line Style Plug-In connection for easy installation.
Key Features:
✔ Part Number: HDA261001
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 100
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: AB
✔ UPC: 785901419051
✔ GTIN: 00785901419051
✔ Country of Origin: United States
✔ Dimensions: 2.74 in x 6.4 in
✔ Weight: 1.89
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
