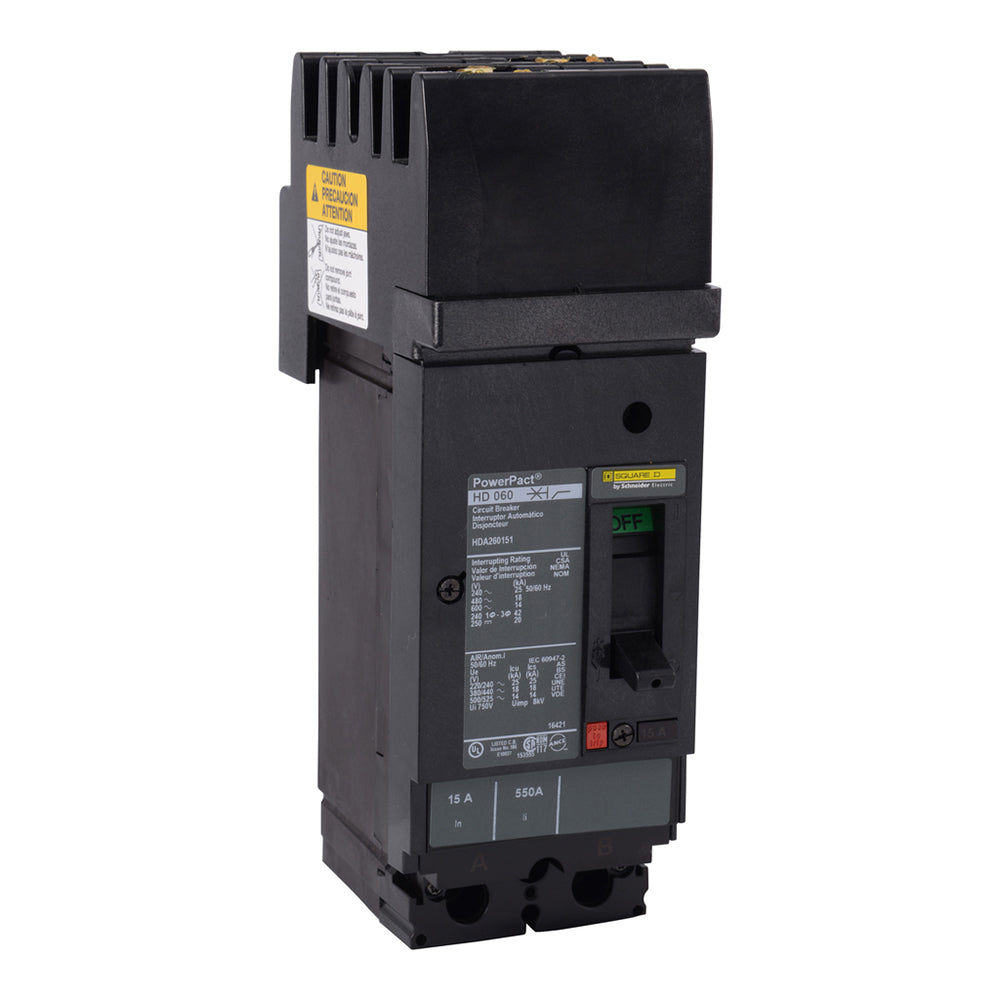

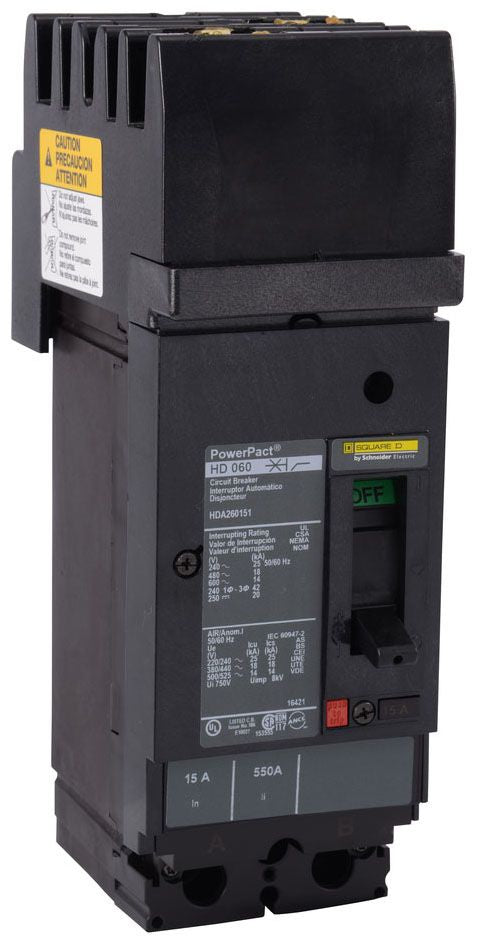

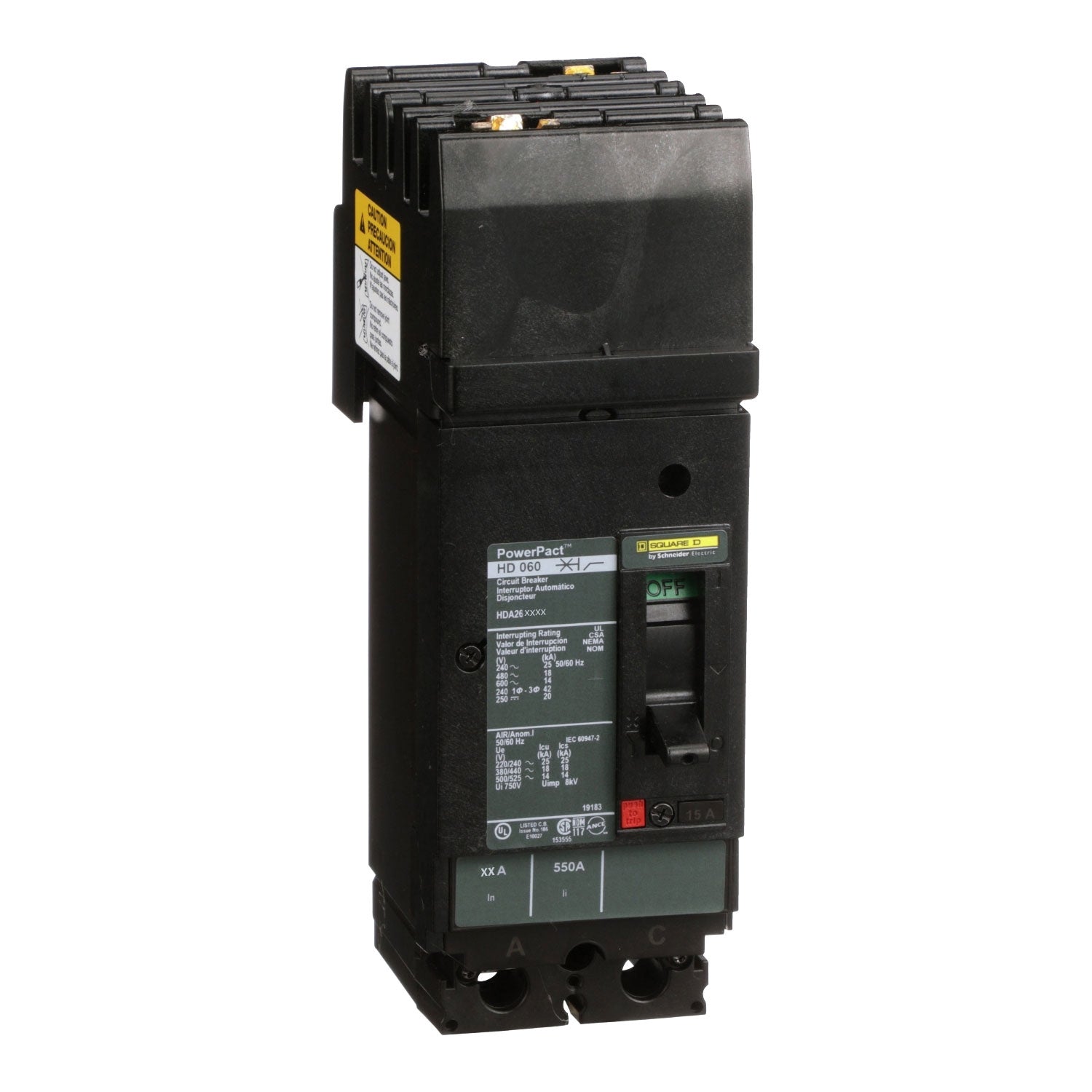

Square D HDA261502 Molded Case Circuit Breaker | 600V 150A 2P 18kA@480V I-Line Plug-In Powerpact HDA

Product Description:
The Square D HDA261502 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 150 amp breaker rated for 600 volts with an 18kA@480V AIC rating. This unit features an I-Line Style Plug-In connection and provides Thermal Magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: HDA261502
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 150
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: AC
✔ UPC: 785901754459
✔ GTIN: 00785901754459
✔ Country of Origin: United States
✔ Dimensions: 2.74 in x 6.4 in
✔ Weight: 2.25
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
