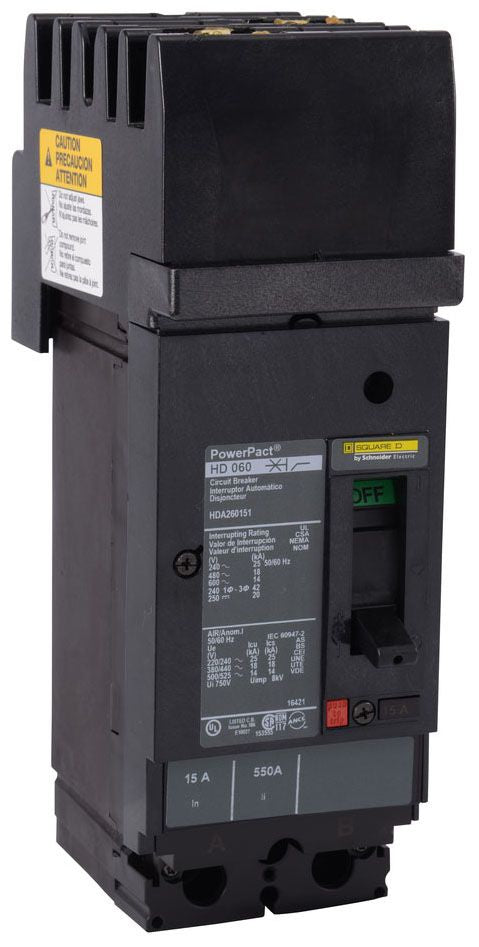

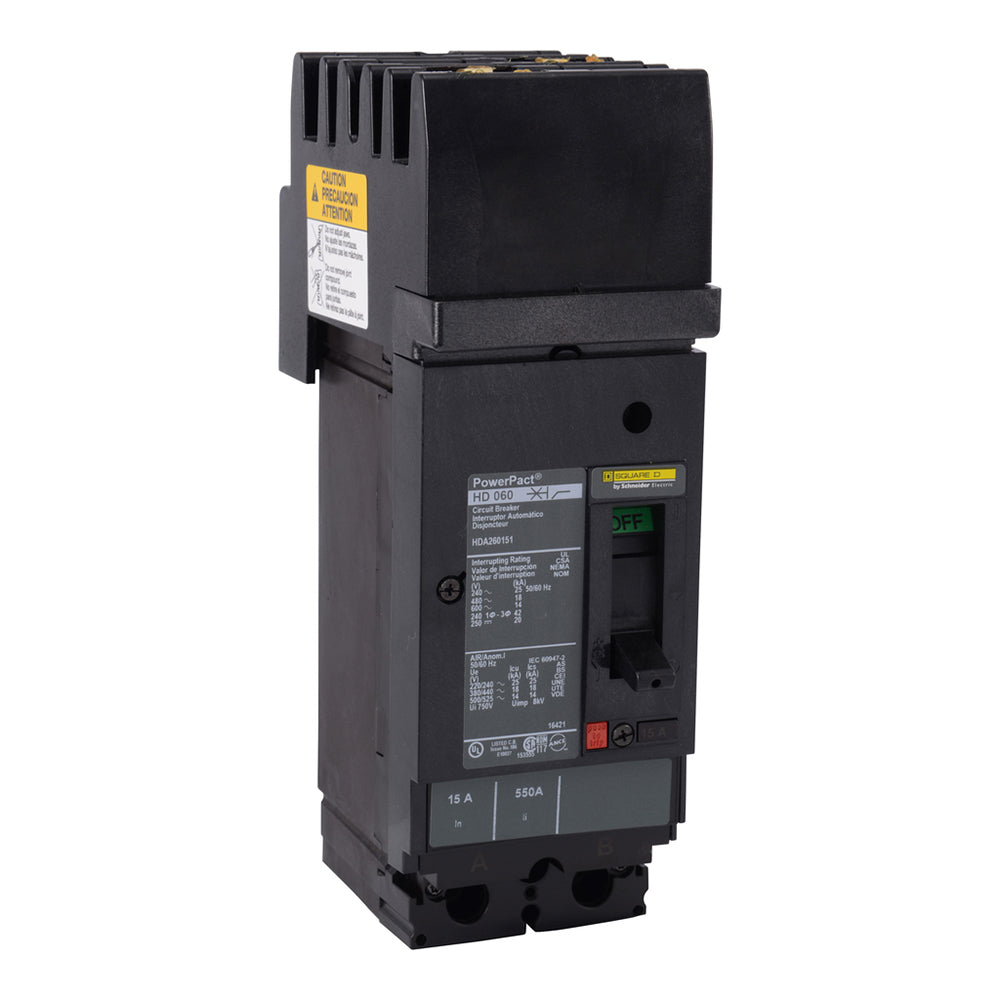

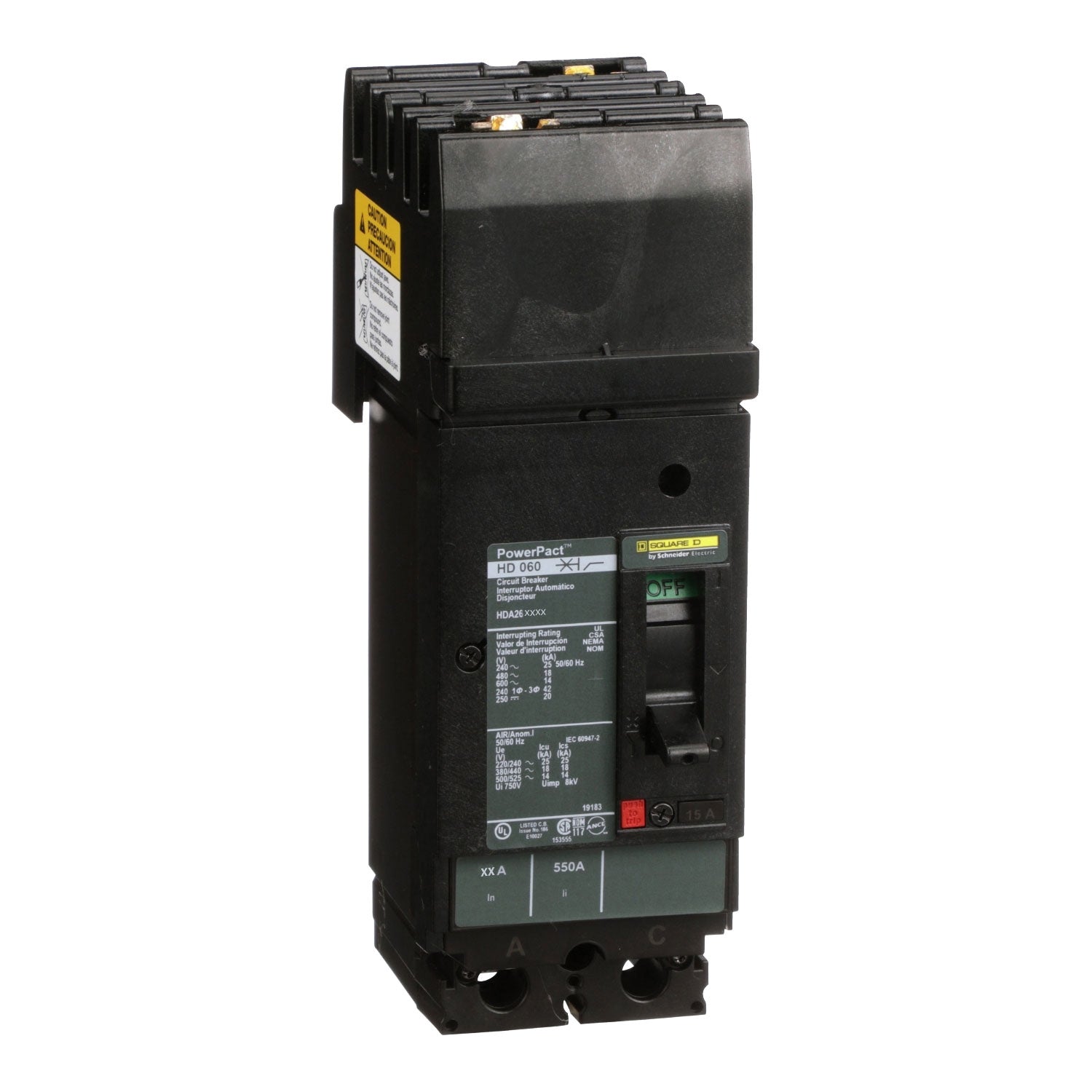

Square D HDA261504 Circuit Breaker | Powerpact HDA 600V 150A
Square D HDA261504 Circuit Breaker | Powerpact HDA 600V 150A
Price:
Sale
Sold out
Regular price
$894.08 USD
Regular price
$2,195.00 USD
Sale price
$894.08 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 3 left
Couldn't load pickup availability
Product Description:
The Square D HDA261504 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 150A rating and an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: HDA261504
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600V
✔ Amperage: 150A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al), Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: BC
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ UPC: 785
