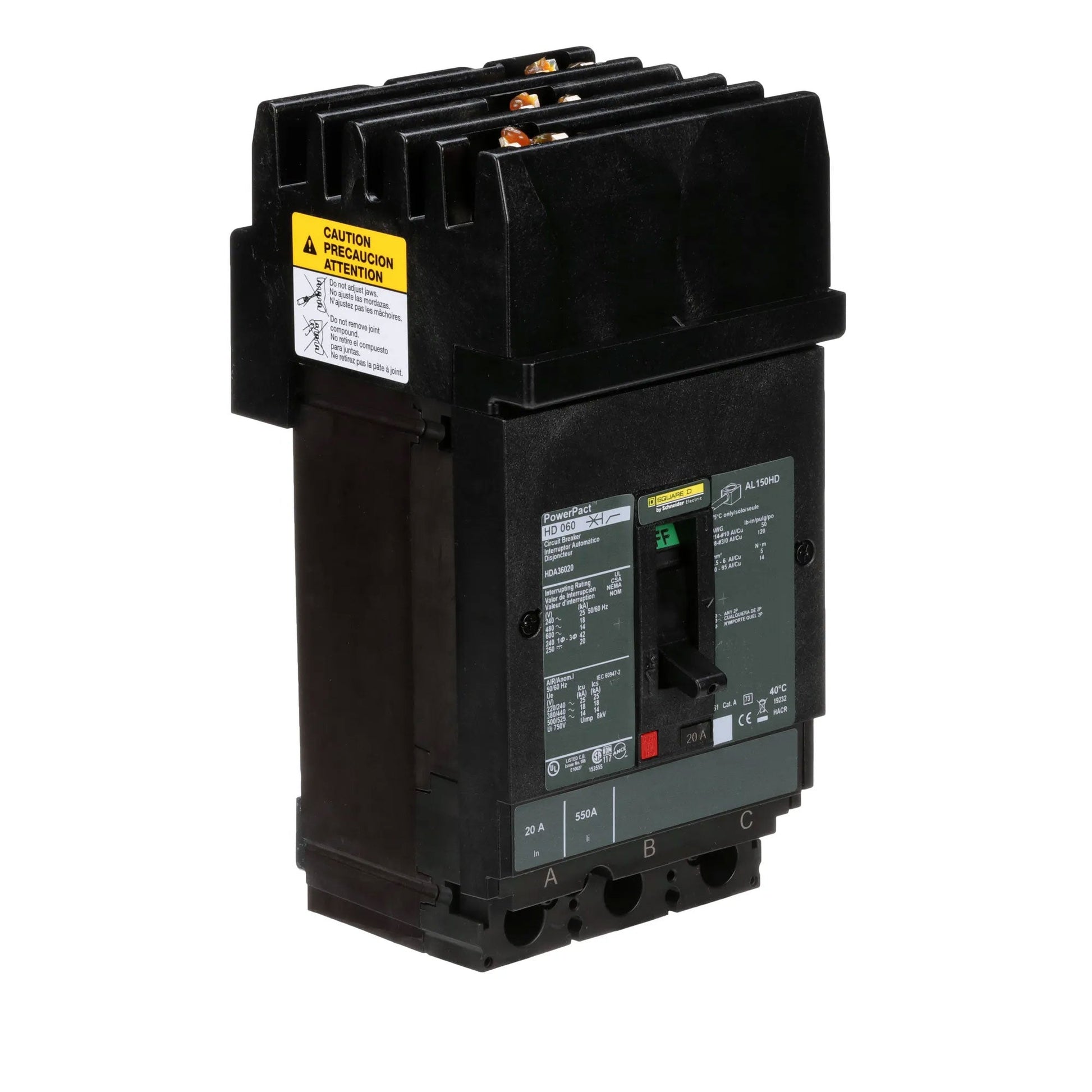

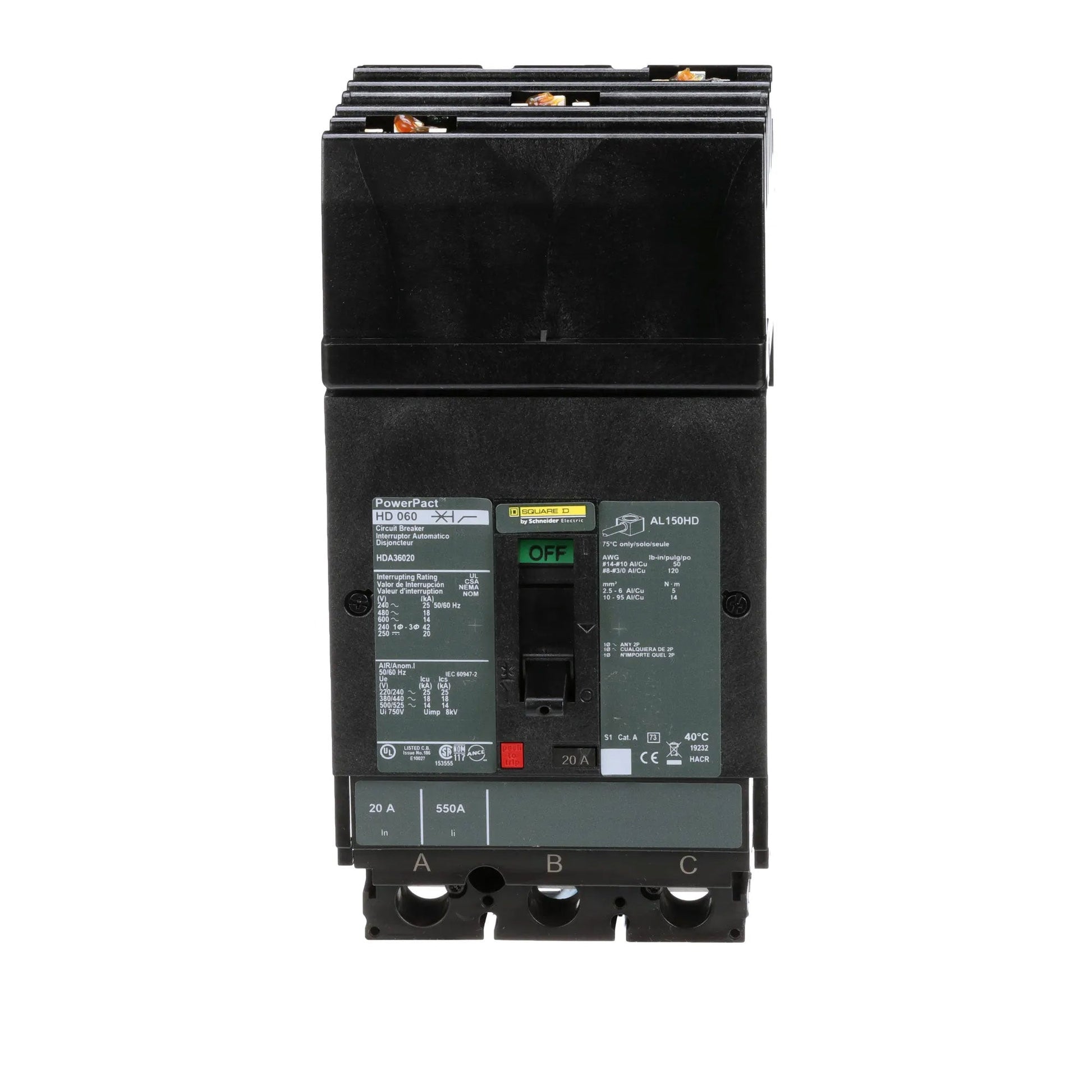

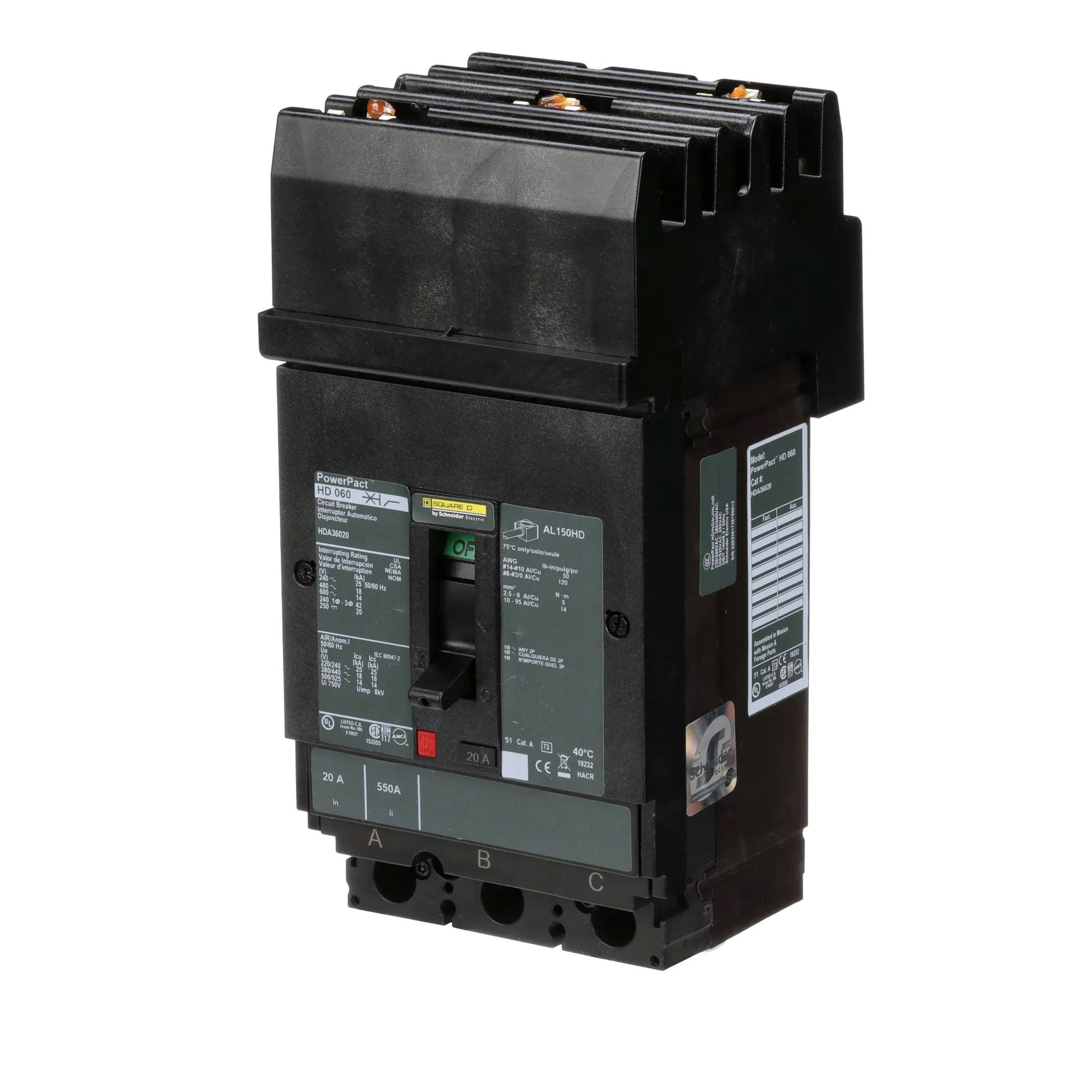

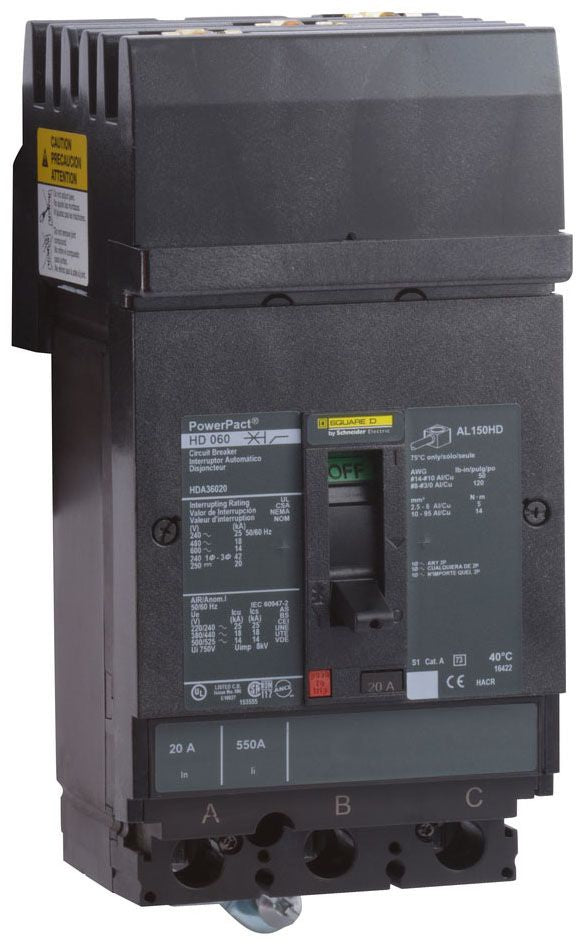

Square D HDA36020 Circuit Breaker | 600V 20A 3P 18kA@480V I-Line Plug-In Powerpact HDA
Square D HDA36020 Circuit Breaker | 600V 20A 3P 18kA@480V I-Line Plug-In Powerpact HDA
Price:
Sale
Sold out
Regular price
$524.17 USD
Regular price
$1,124.00 USD
Sale price
$524.17 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Square D HDA36020 is a Powerpact HDA molded case circuit breaker designed for robust electrical protection. It is a 3-pole, 20 amp breaker rated for 600 volts with an 18kA interrupting capacity at 480V. This unit features a plug-in I-Line style connection and provides thermal magnetic protection for reliable operation.
Key Features:
✔ Part Number: HDA36020
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901405245
✔ GTIN: 00785901405245
✔ Country of Origin: Mexico

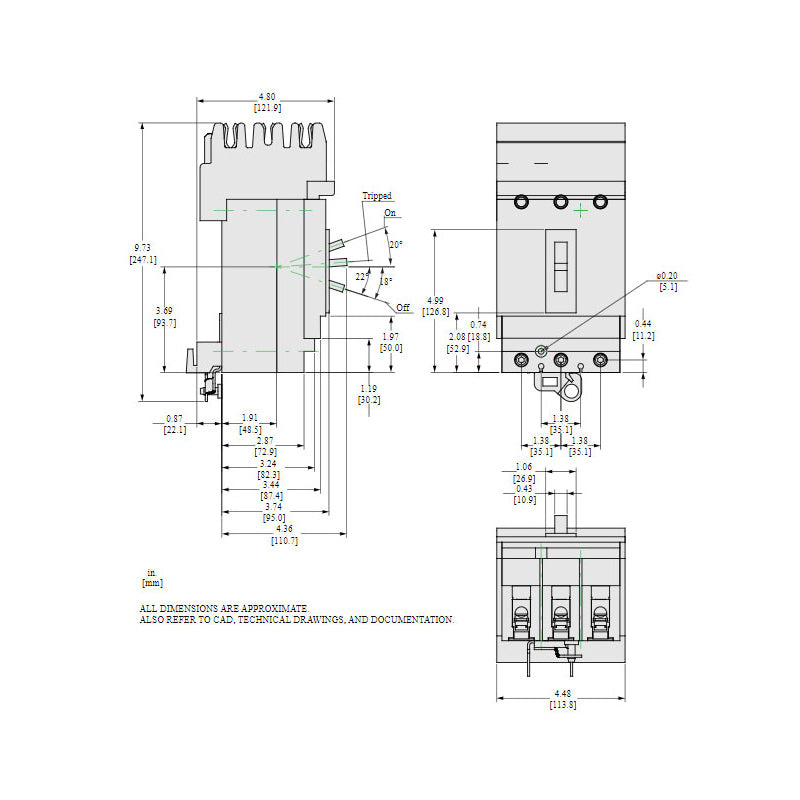

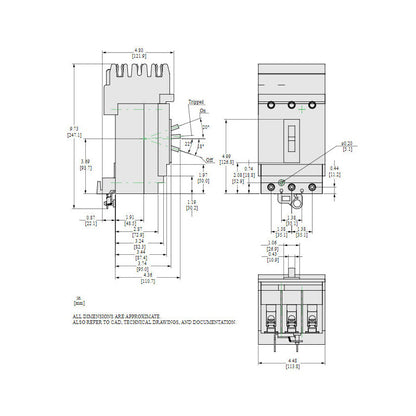

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.48 lb
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
