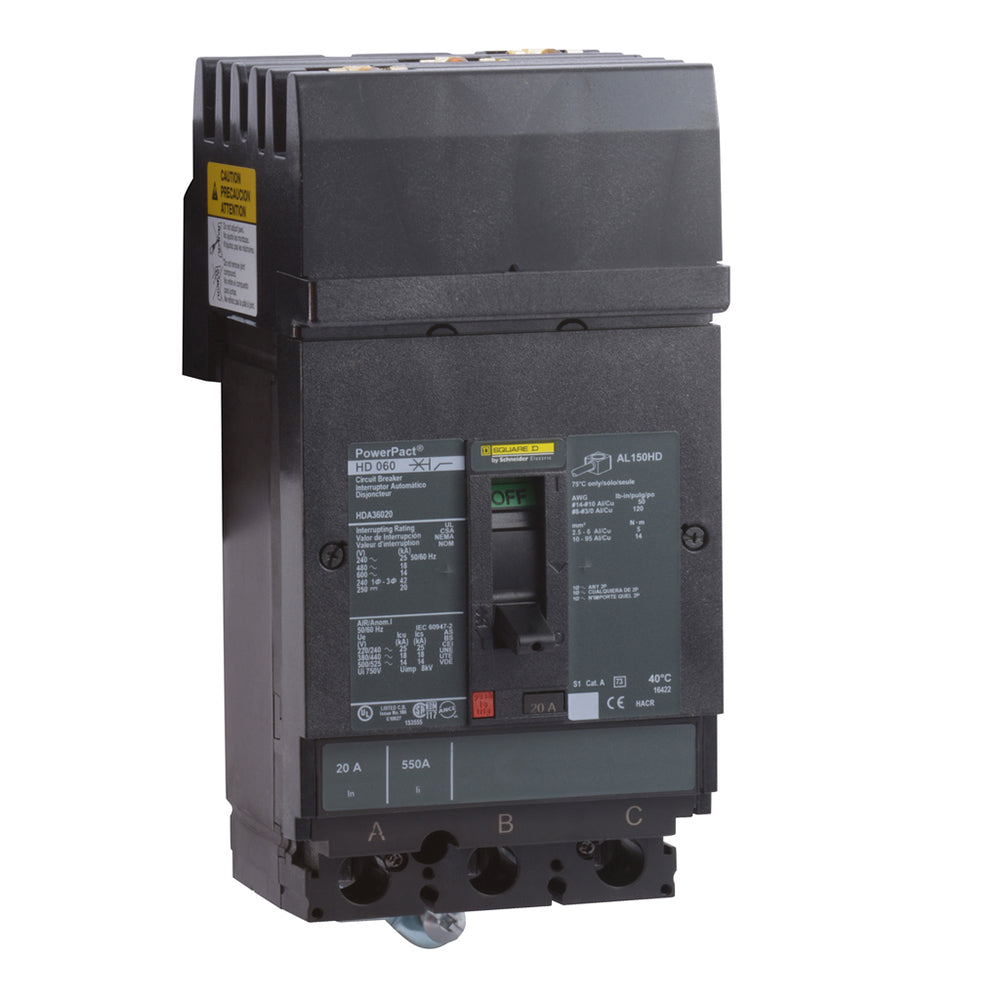

Square D HDA36035 Circuit Breaker | 600V 35A 3P 18kA@480V I-Line Plug-In Powerpact
Square D HDA36035 Circuit Breaker | 600V 35A 3P 18kA@480V I-Line Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$650.27 USD
Regular price
$1,124.00 USD
Sale price
$650.27 USD
Unit price
per
Shipping calculated at checkout.
Stock:
46 in stock
Couldn't load pickup availability
Product Description:
The Square D HDA36035 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 35 amp breaker rated for 600 volts with an 18kA AIC rating at 480V. This unit features I-Line Style Plug-In connections and provides thermal magnetic protection for reliable circuit management.
Key Features:
✔ Part Number: HDA36035
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 35
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG (Cu/Al) Max. 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901422235
✔ GTIN: 00785901422235
✔ Country of Origin: United States

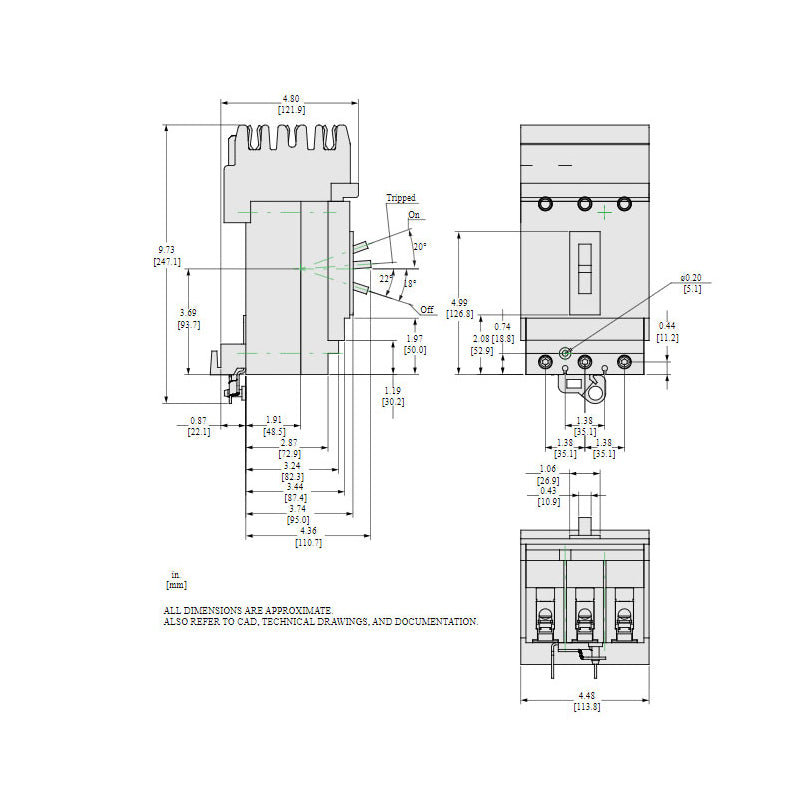

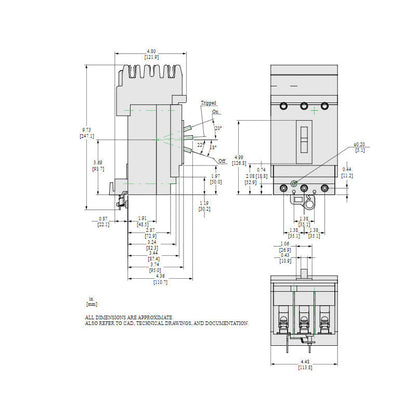

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.81
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
