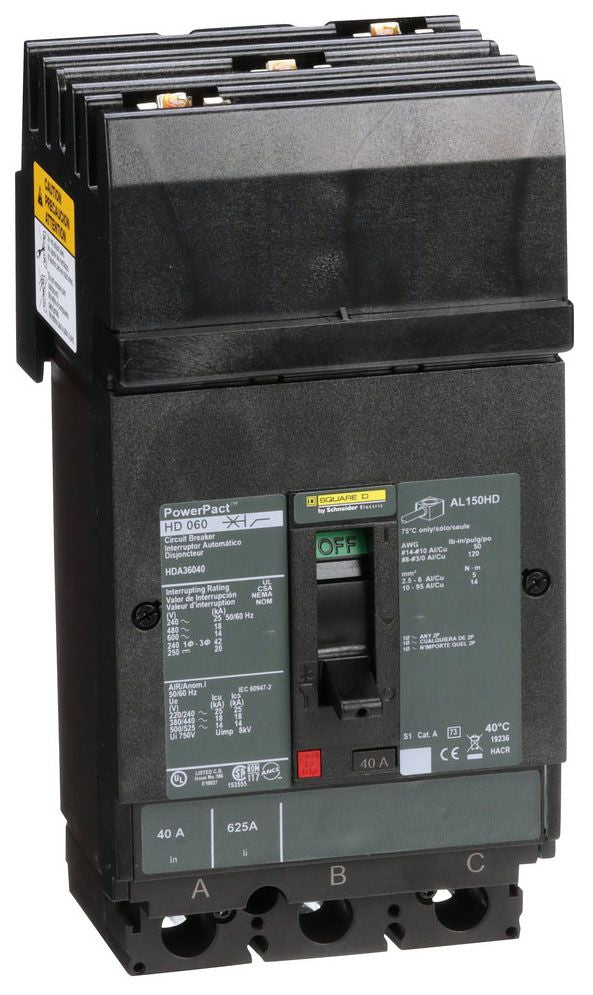

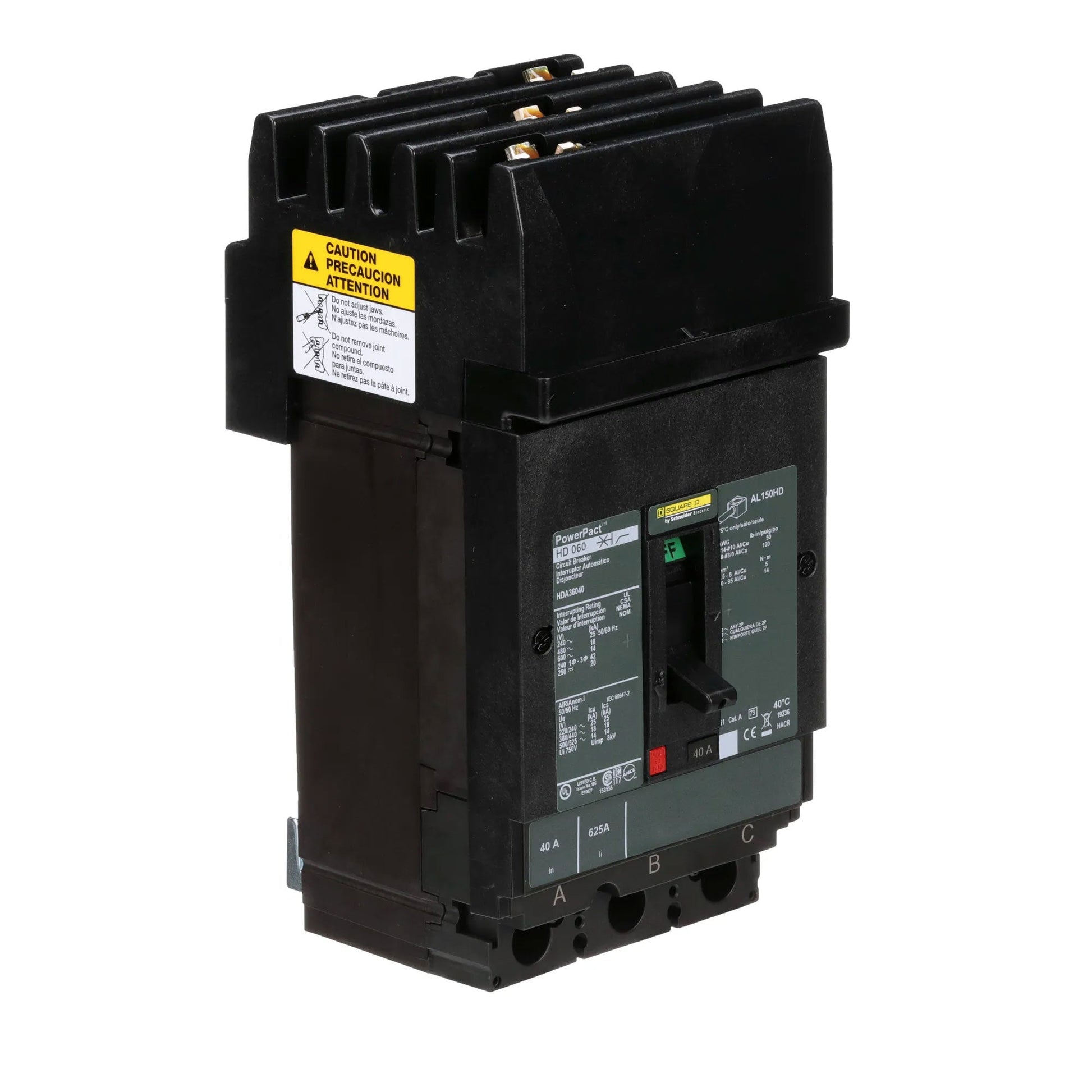

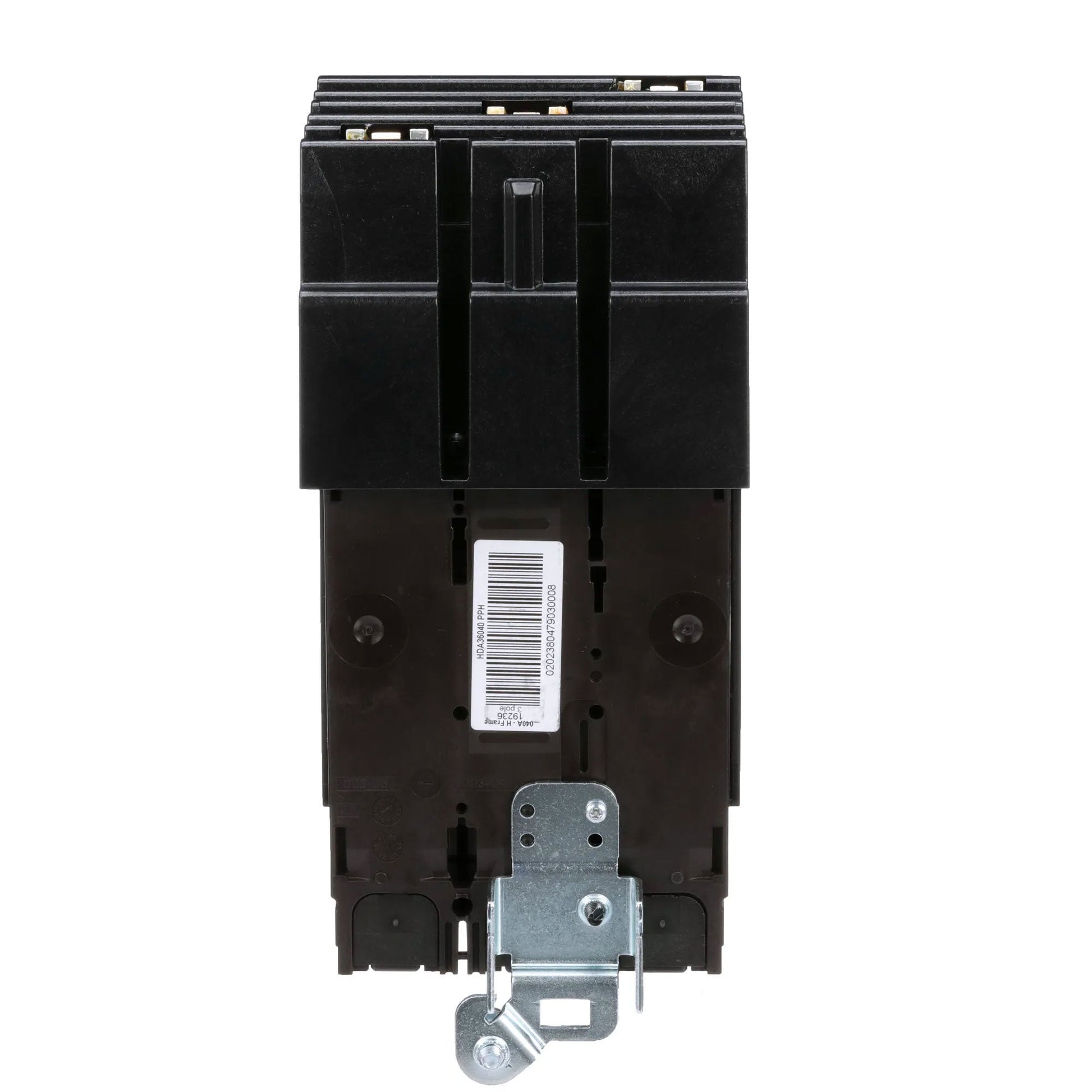

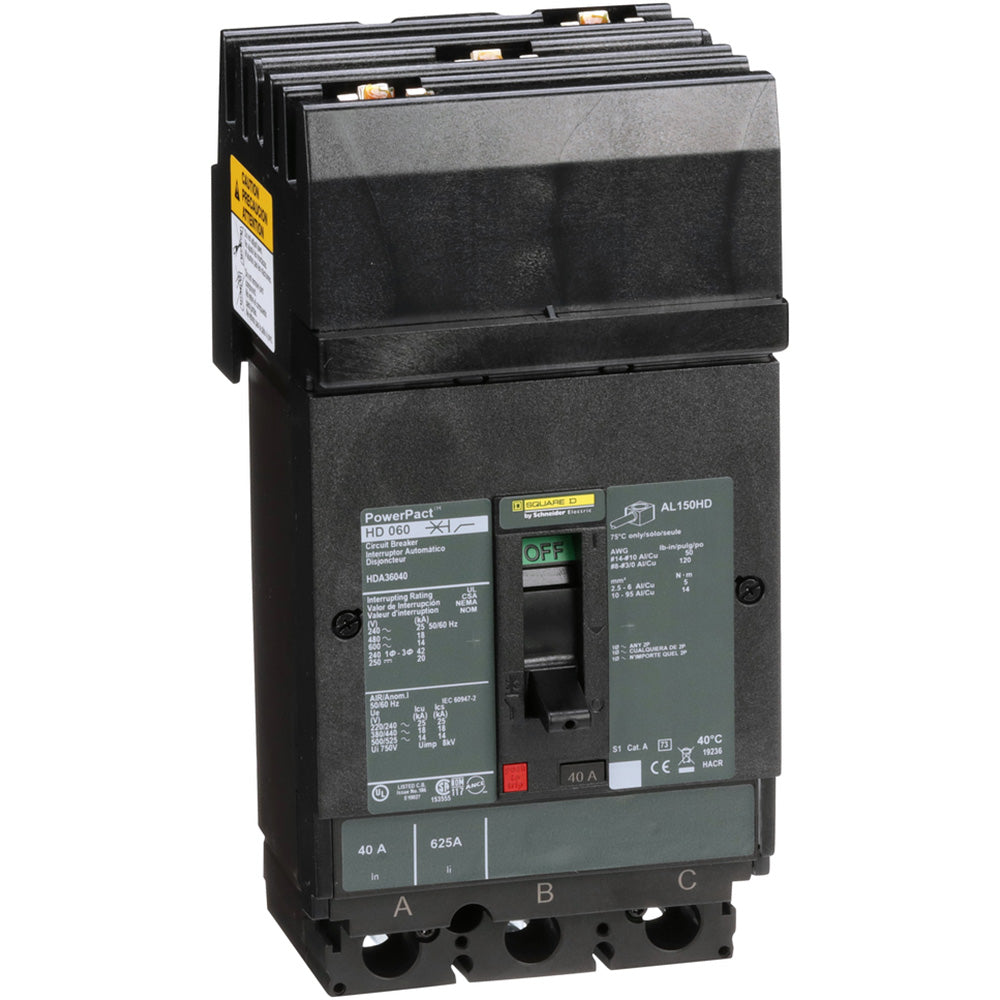

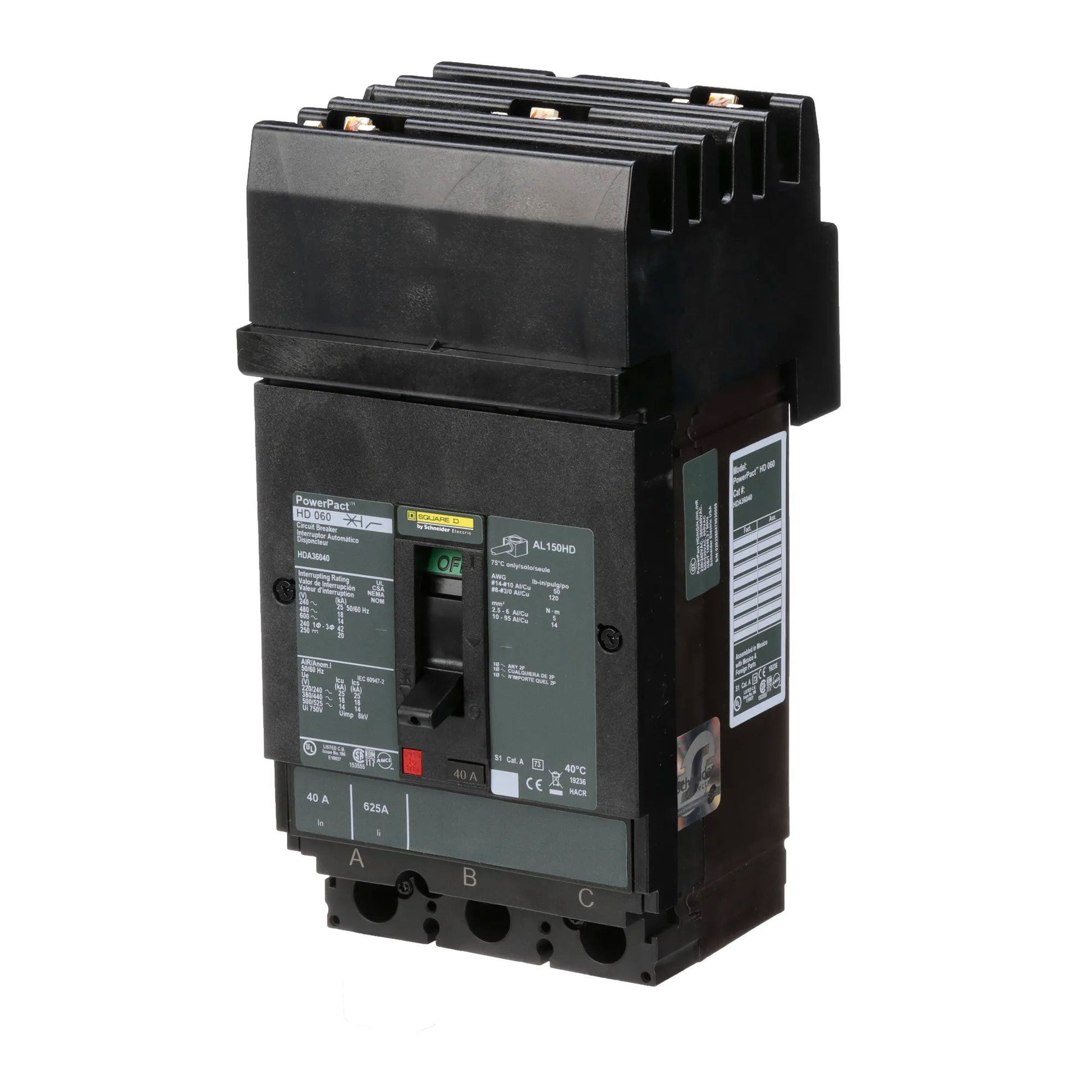

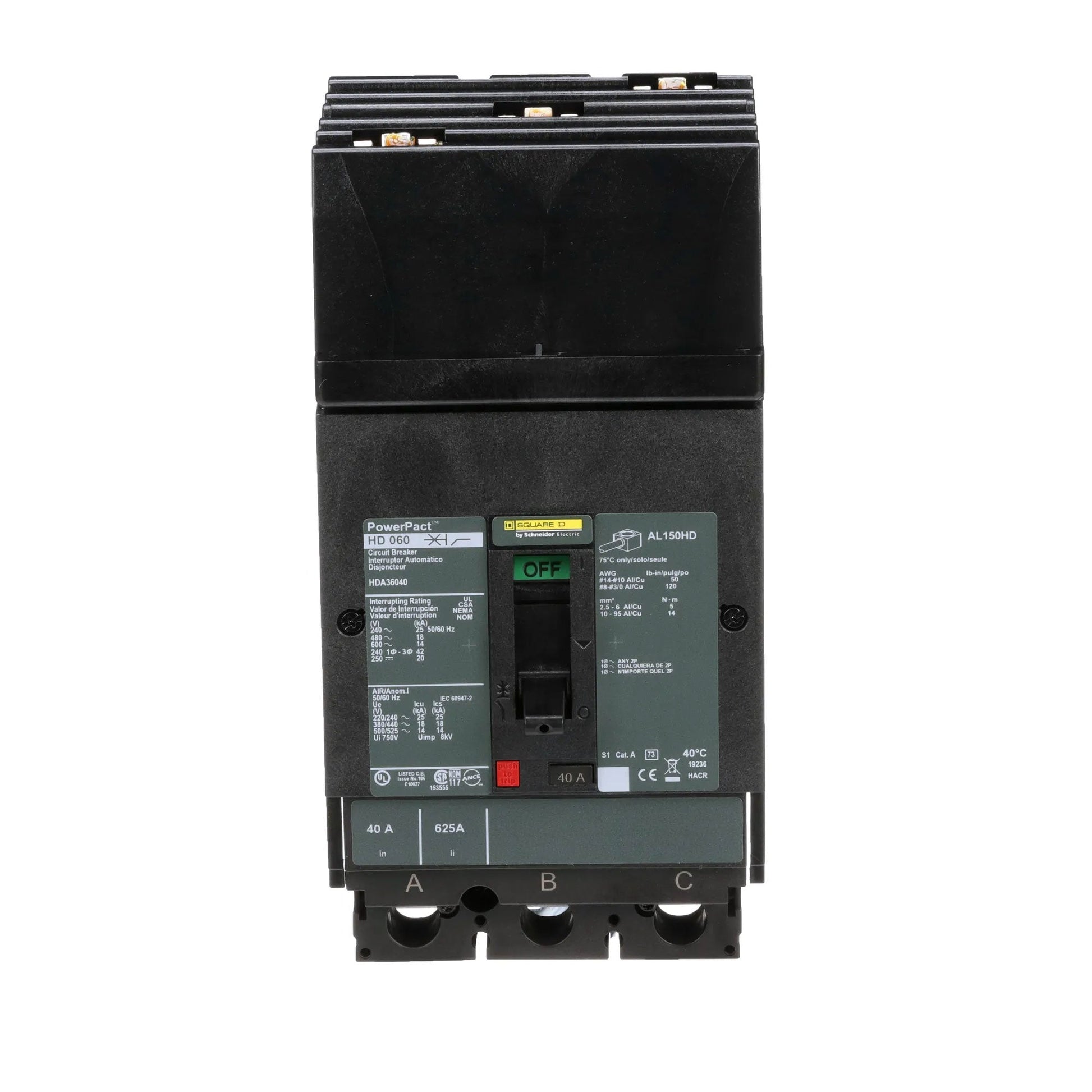

Square D HDA36040 Circuit Breaker | 600V 40A 3P 18kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D HDA36040 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 40A rating and an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: HDA36040
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901419945
✔ GTIN: 00785901419945
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.48
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
