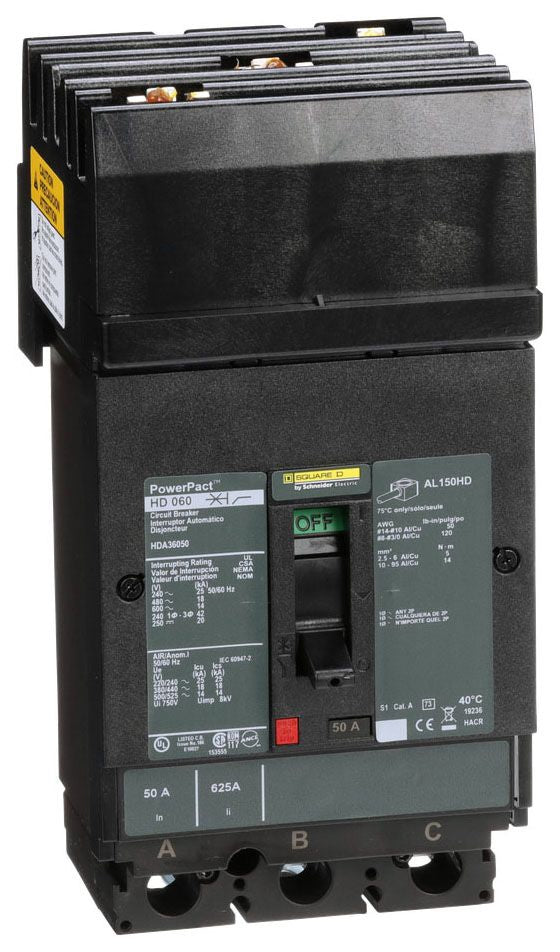

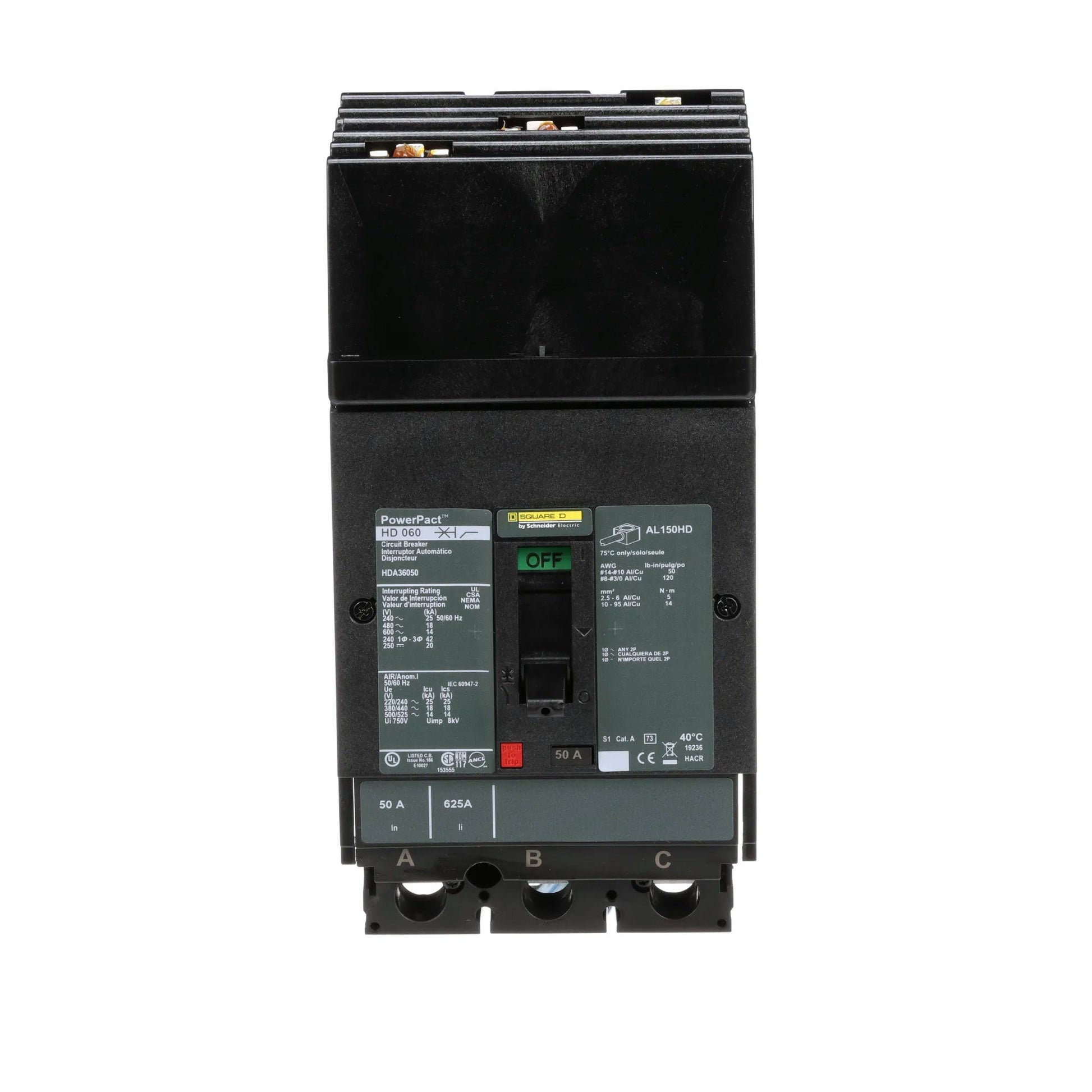

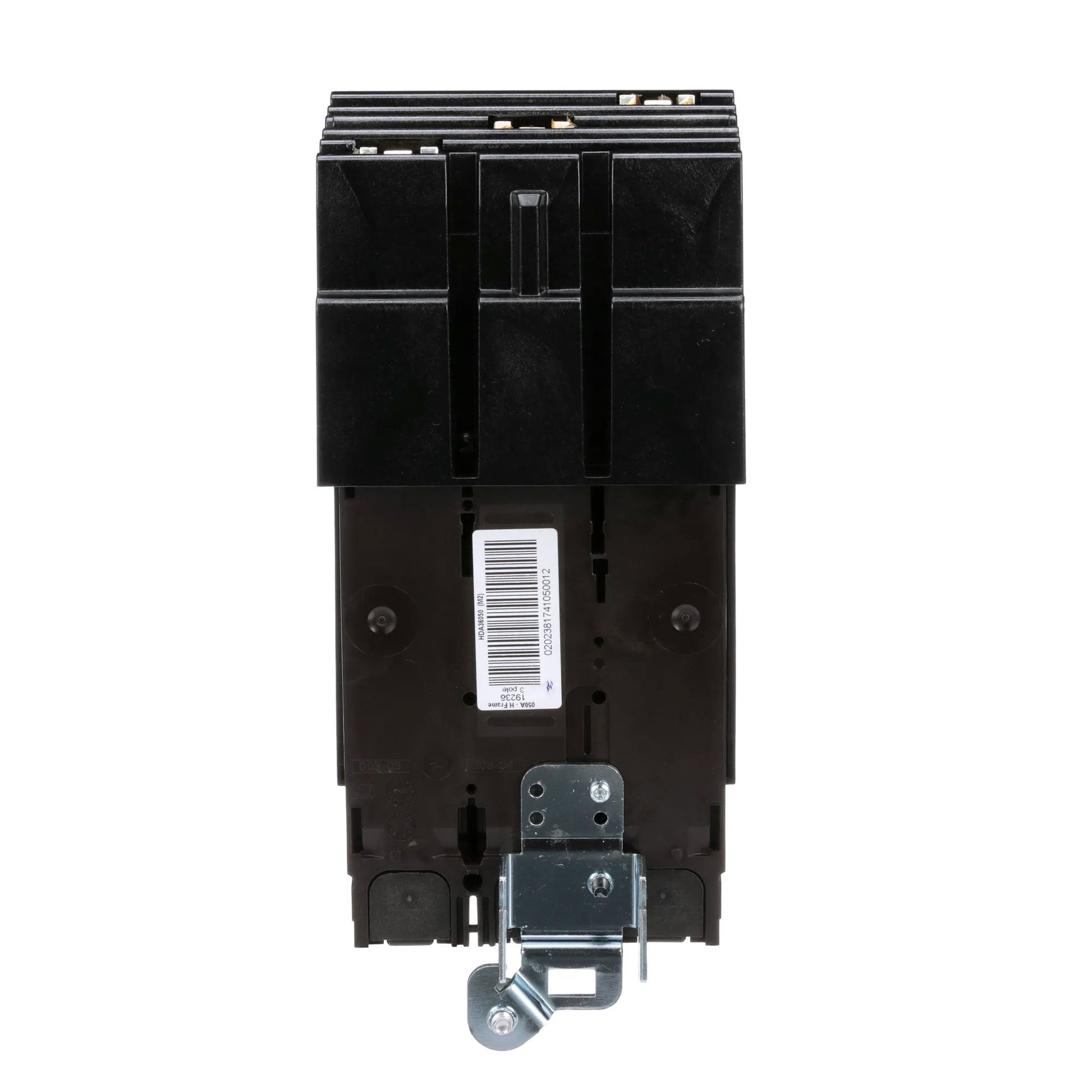

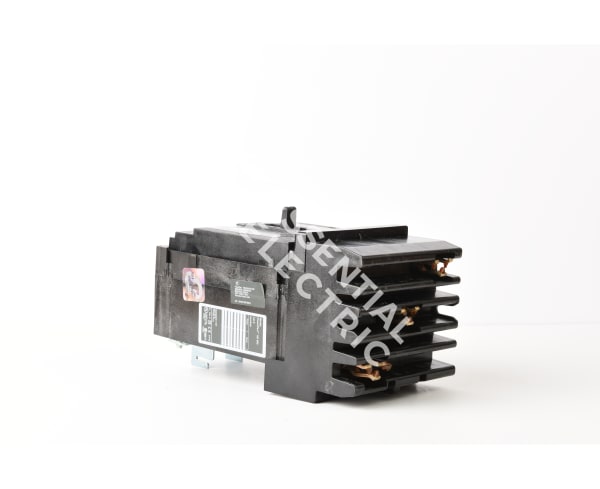

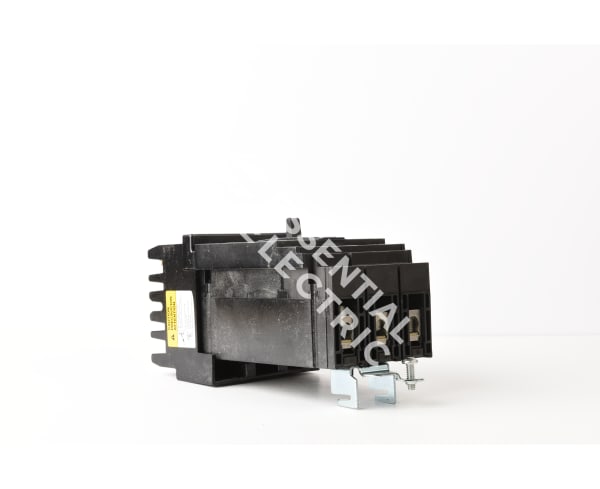

Square D HDA36050 Molded Case Circuit Breaker | 600V 50A 3P 18kA@480V I-Line Plug-In Powerpact HDA

Product Description:
The Square D HDA36050 is a Powerpact family Molded Case Circuit Breaker designed for reliable circuit protection. It is a 3-pole, 50 amp breaker rated for 600 Volts with an 18kA interrupting capacity at 480V. This unit features a convenient I-Line Style Plug-In connection and provides Thermal Magnetic protection for electrical systems.

Key Features:
✔ Part Number: HDA36050
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 50
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG (Cu/Al) Max. 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901539926
✔ GTIN: 00785901539926
✔ Country of Origin: Mexico

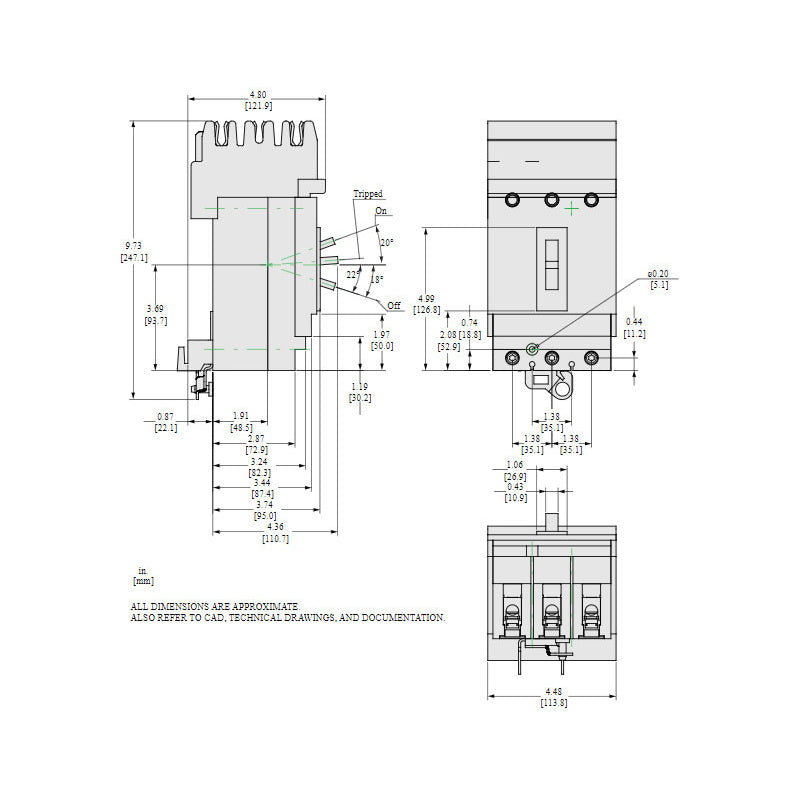

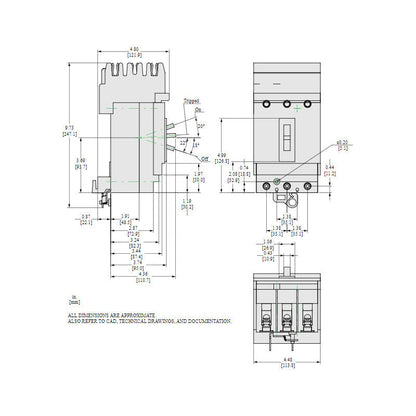

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.48
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
