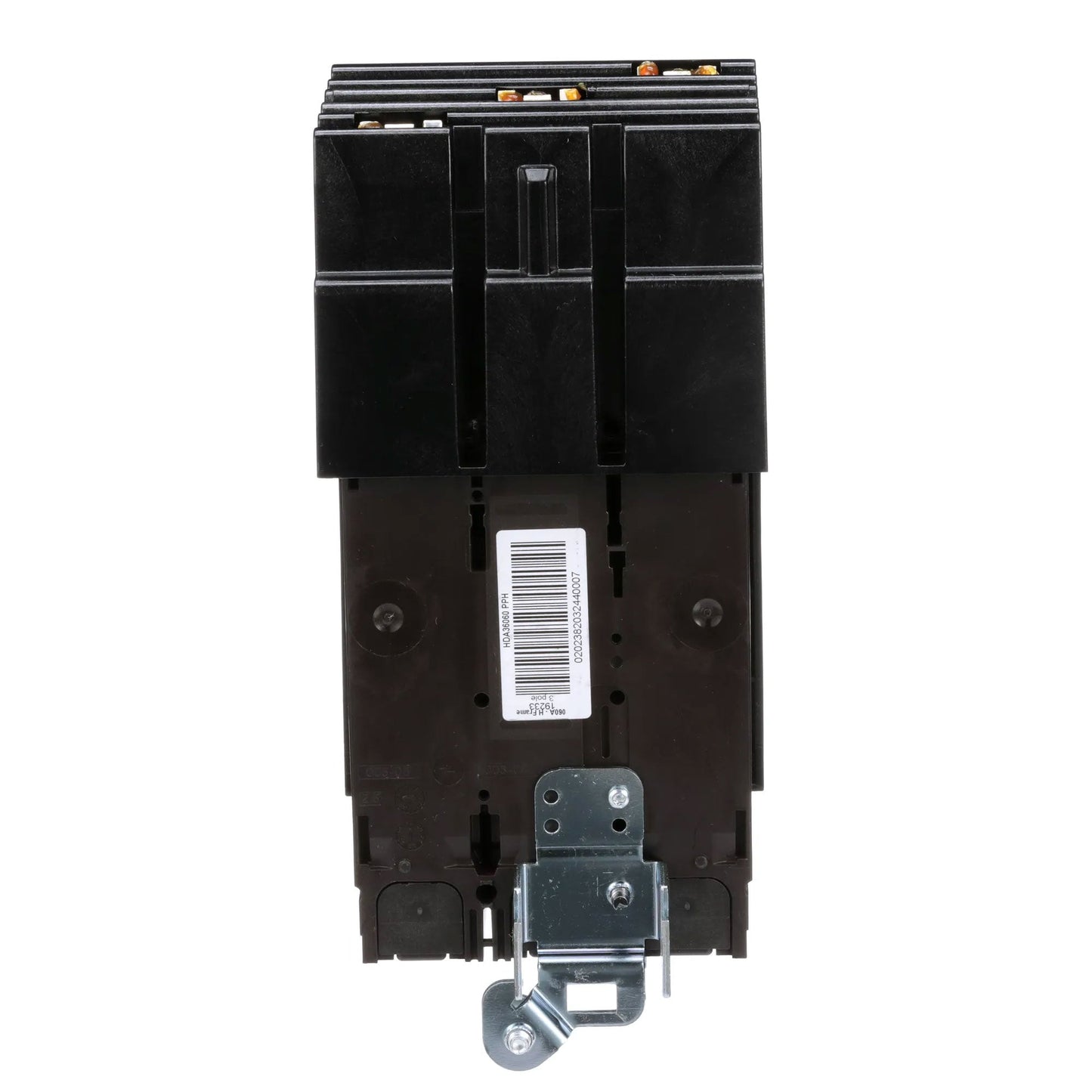

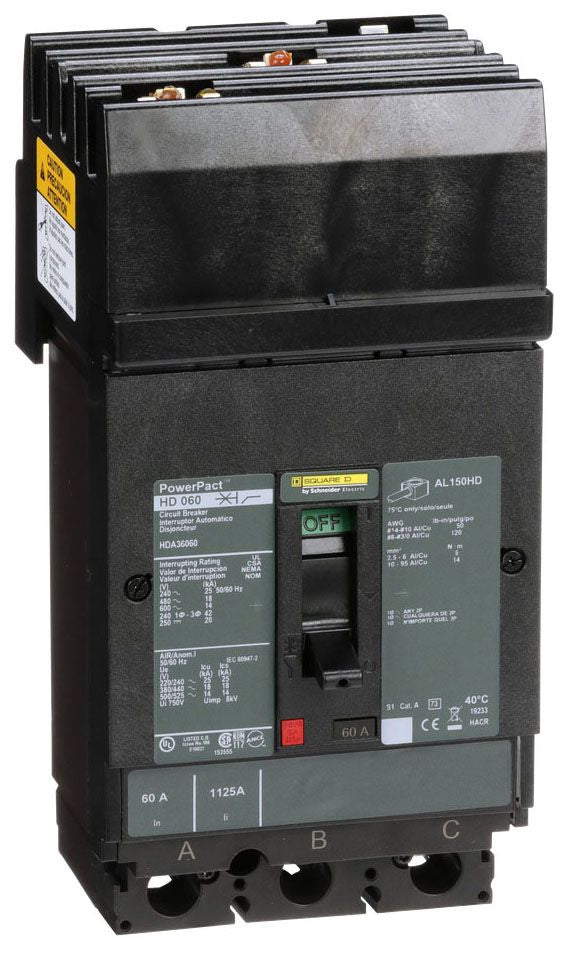

Square D HDA36060 Molded Case Circuit Breaker | 600V 60A 3P 18kA@480V I-Line Plug-In Powerpact HDA

Product Description:
The Square D HDA36060 is a Powerpact family Molded Case Circuit Breaker. It is a 3-pole, 60 amp breaker rated for 600 volts with an 18kA interrupting capacity at 480V. This unit features thermal magnetic protection and uses an I-Line style plug-in connection for easy installation.

Key Features:
✔ Part Number: HDA36060
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901419969
✔ GTIN: 00785901419969
✔ Country of Origin: Mexico

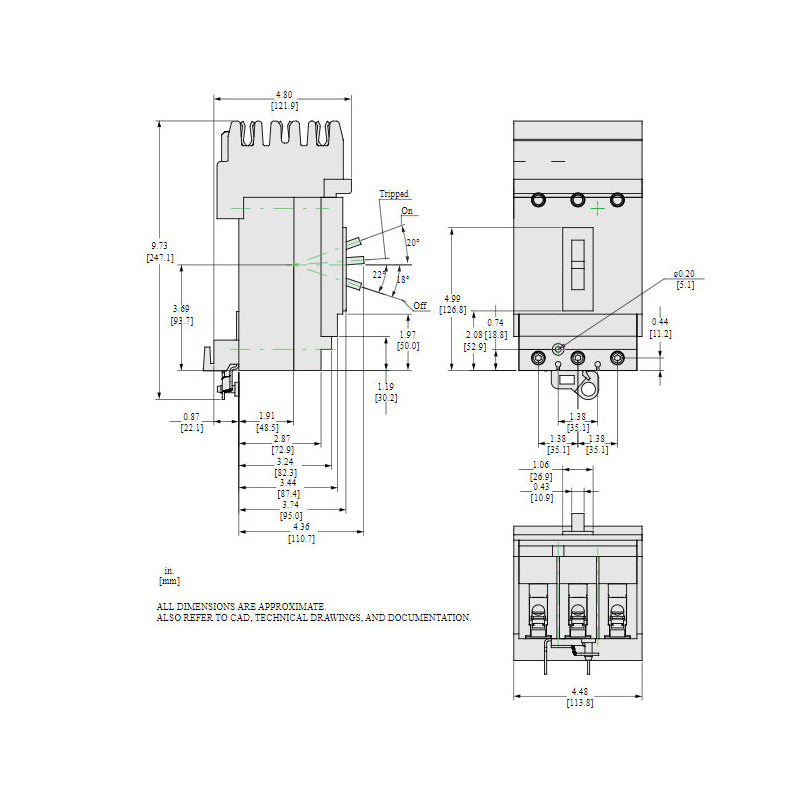

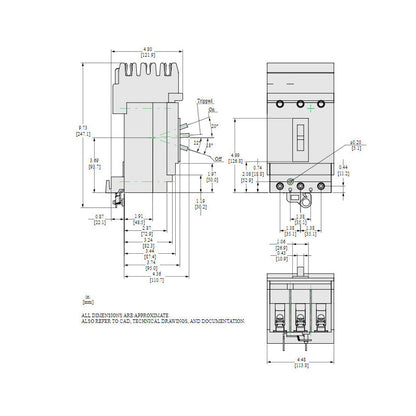

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.48 lb
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
