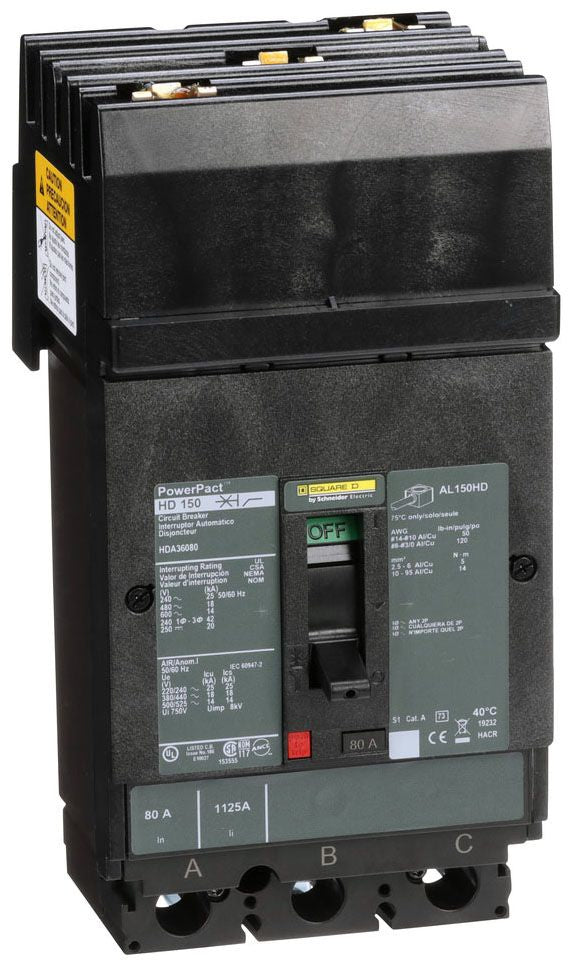

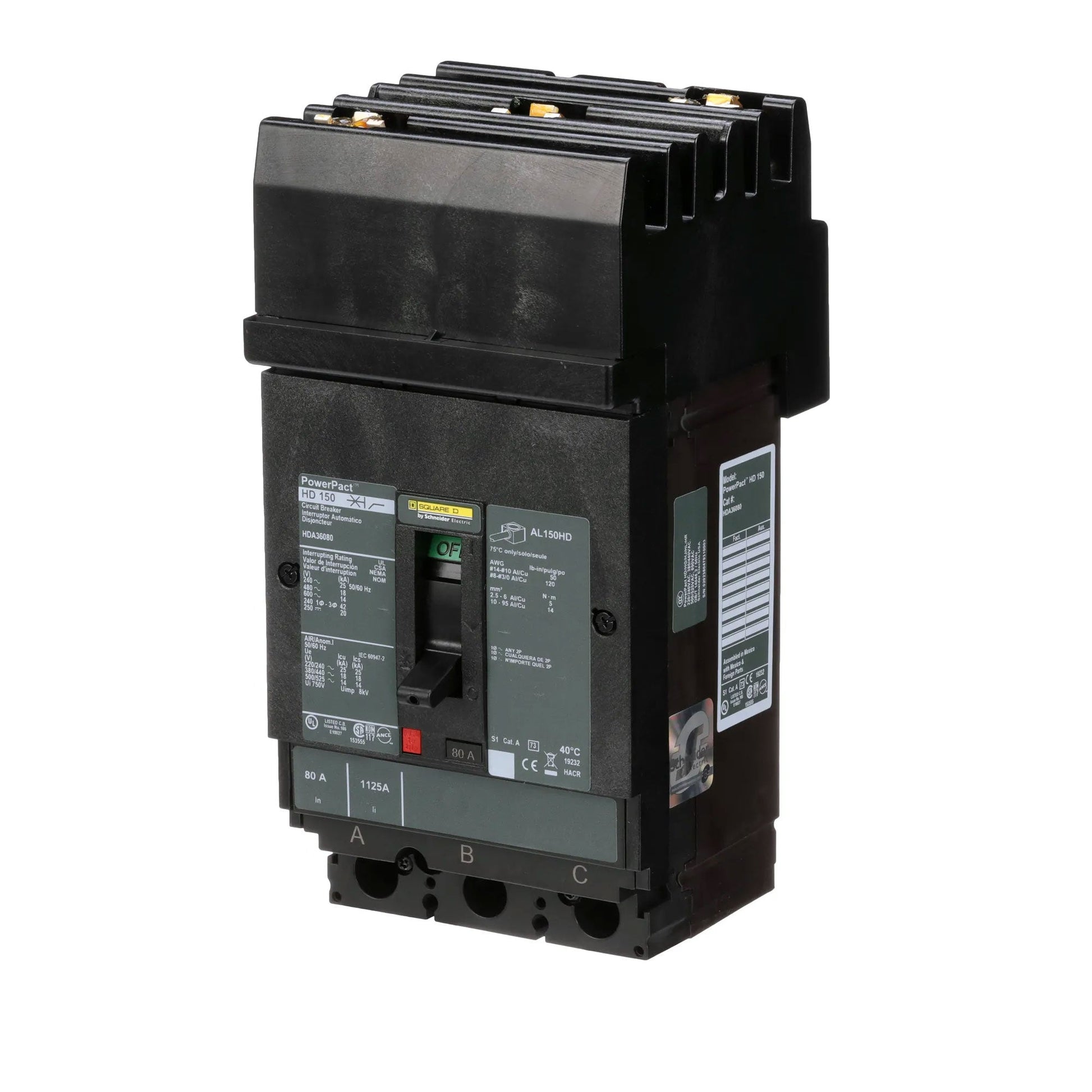

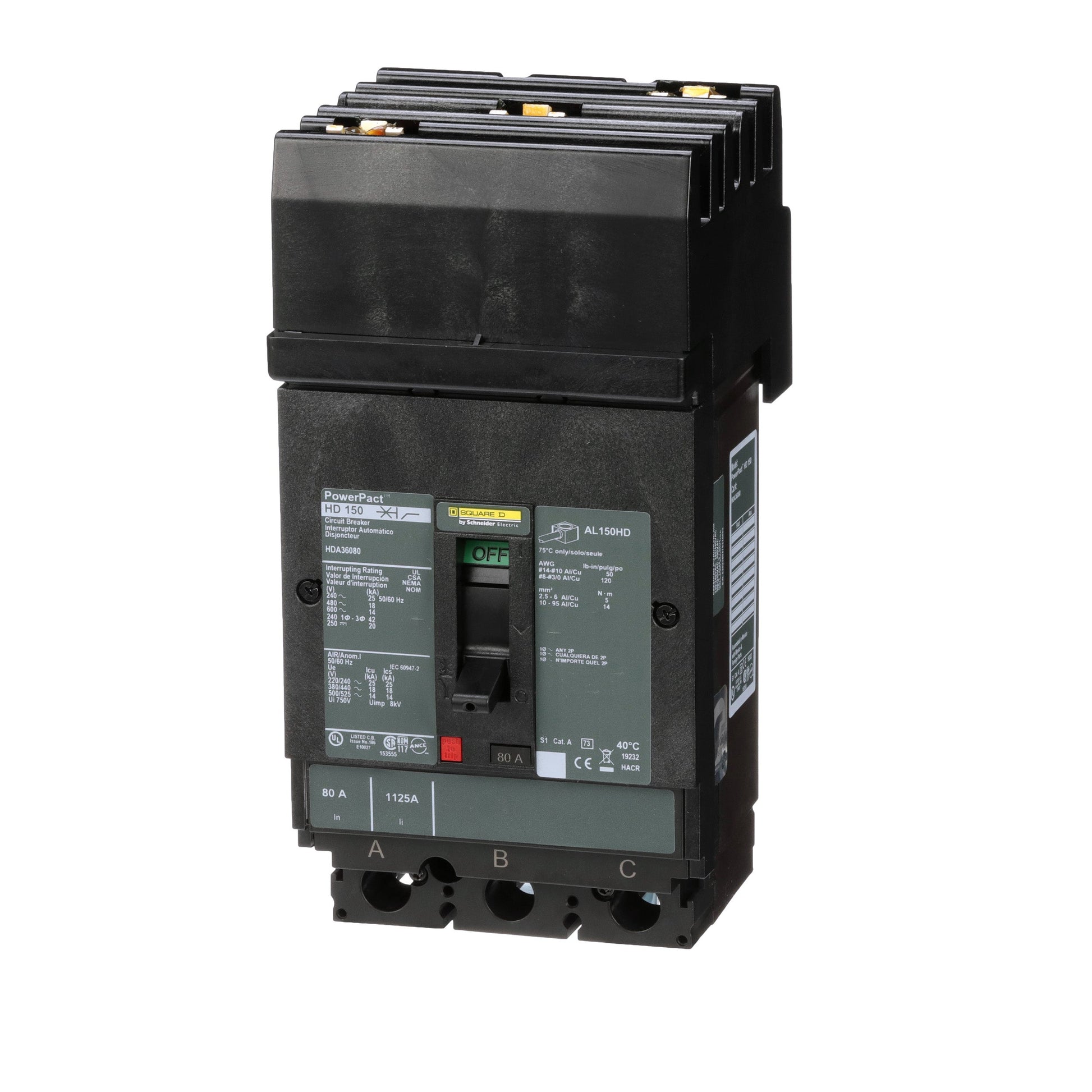

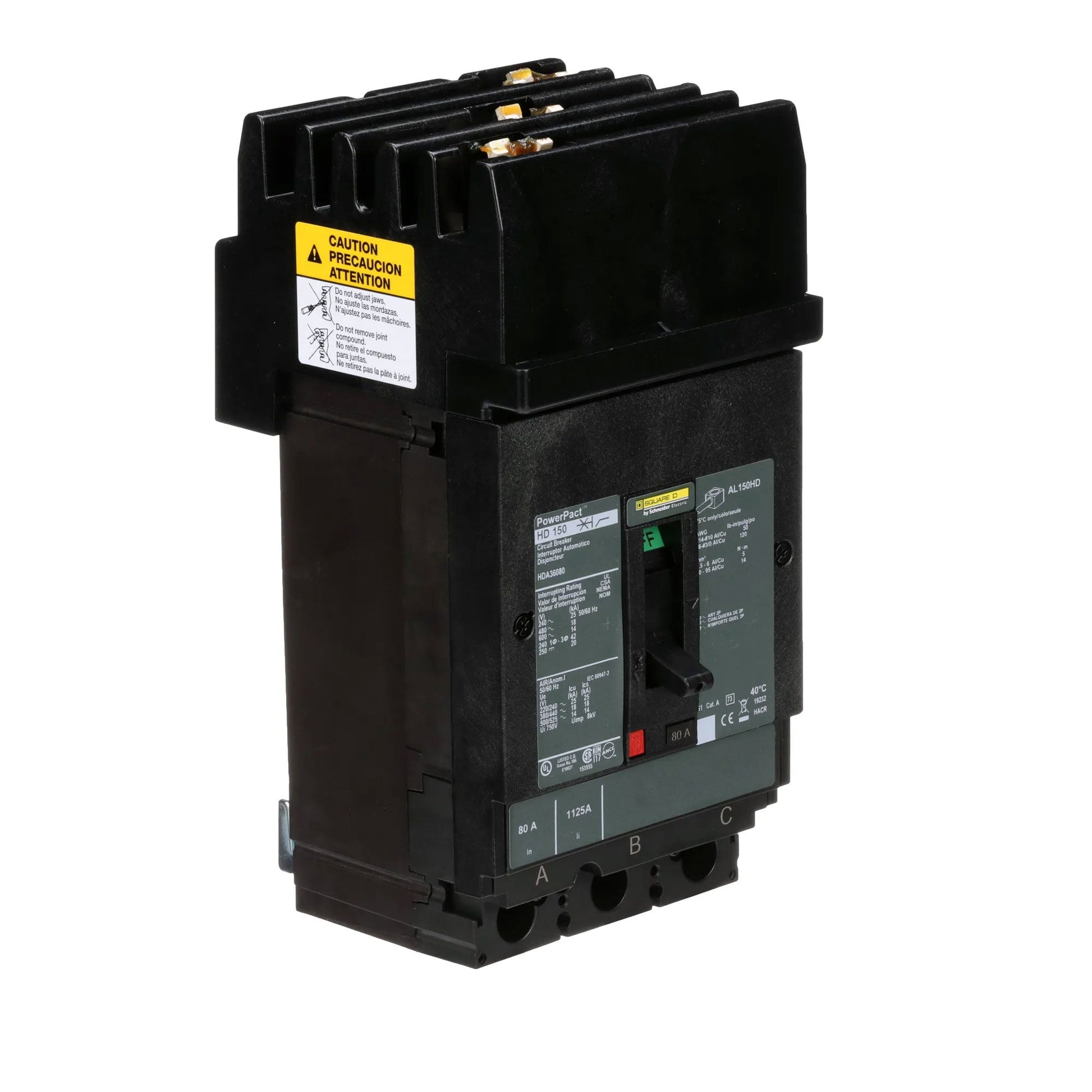

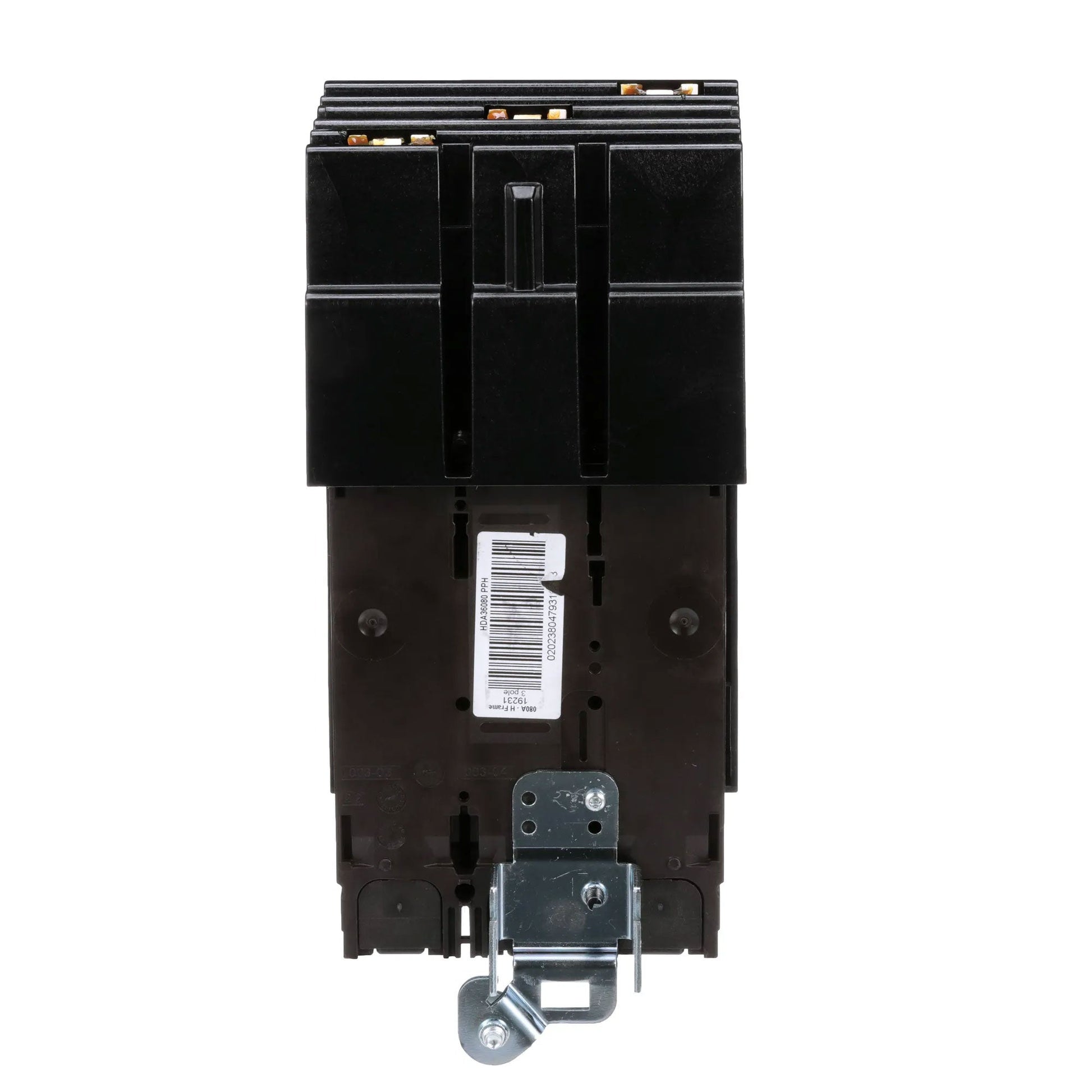

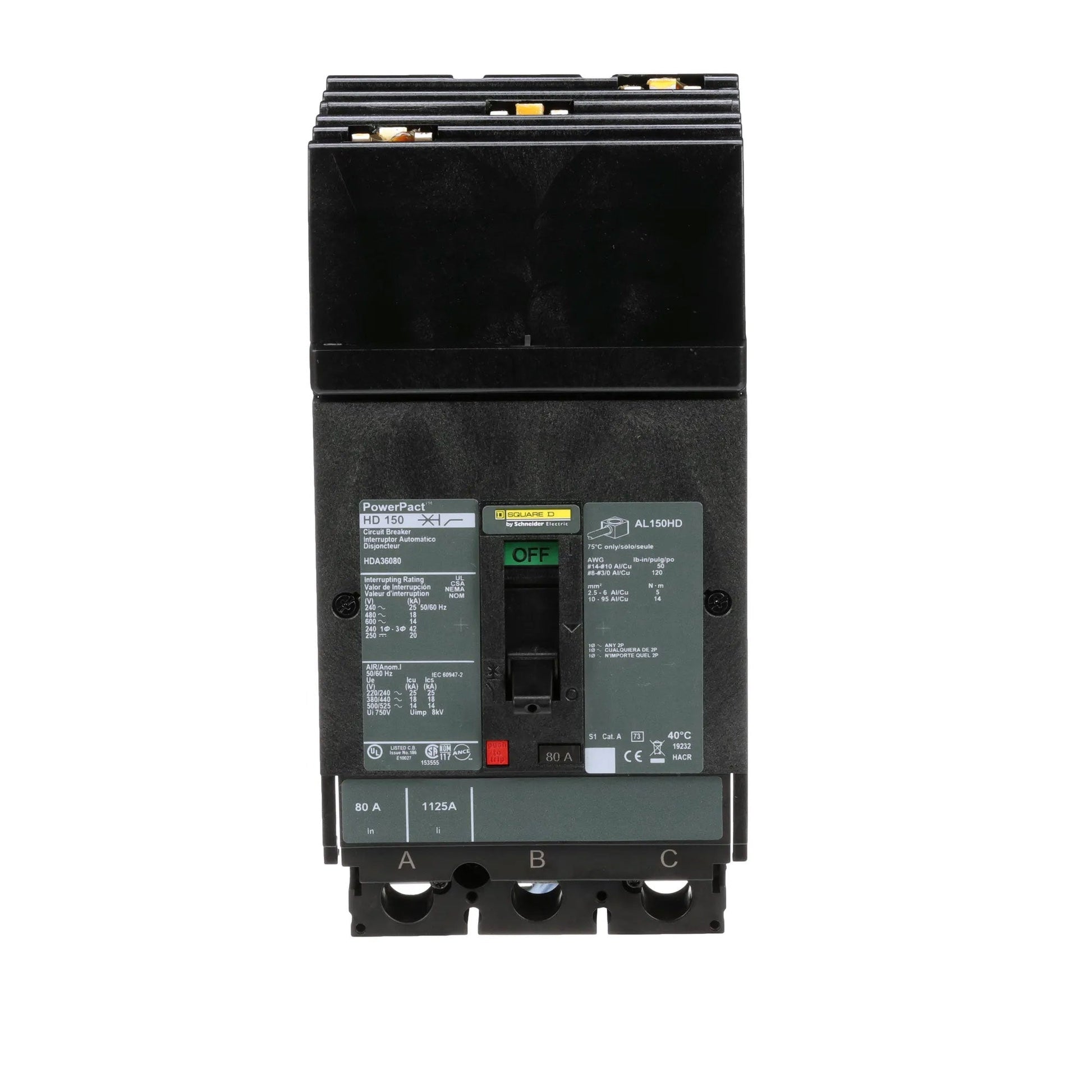

Square D HDA36080 Circuit Breaker | 600V 80A 3P 18kA@480V I-Line Plug-In Powerpact HDA
Square D HDA36080 Circuit Breaker | 600V 80A 3P 18kA@480V I-Line Plug-In Powerpact HDA
Price:
Sale
Sold out
Regular price
$712.84 USD
Regular price
$1,361.00 USD
Sale price
$712.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Square D HDA36080 is a Powerpact HDA Molded Case Circuit Breaker designed for reliable electrical protection. It is a 3-pole, 80 amp breaker rated for 600 volts with an 18kA interrupting capacity at 480V. This unit features an I-Line Style Plug-In connection and provides thermal magnetic protection for safe operation.
Key Features:
✔ Part Number: HDA36080
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 80
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901507277
✔ GTIN: 00785901507277
✔ Country of Origin: Mexico

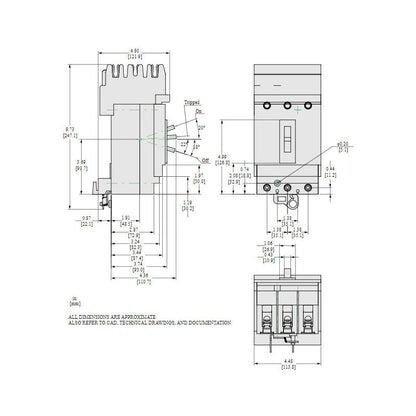

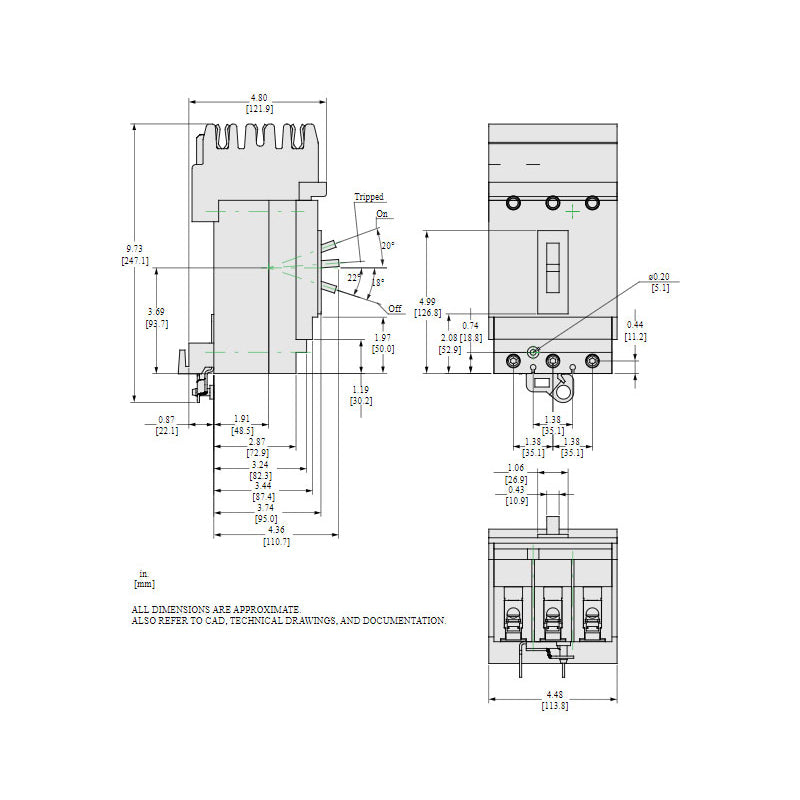

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 6
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
