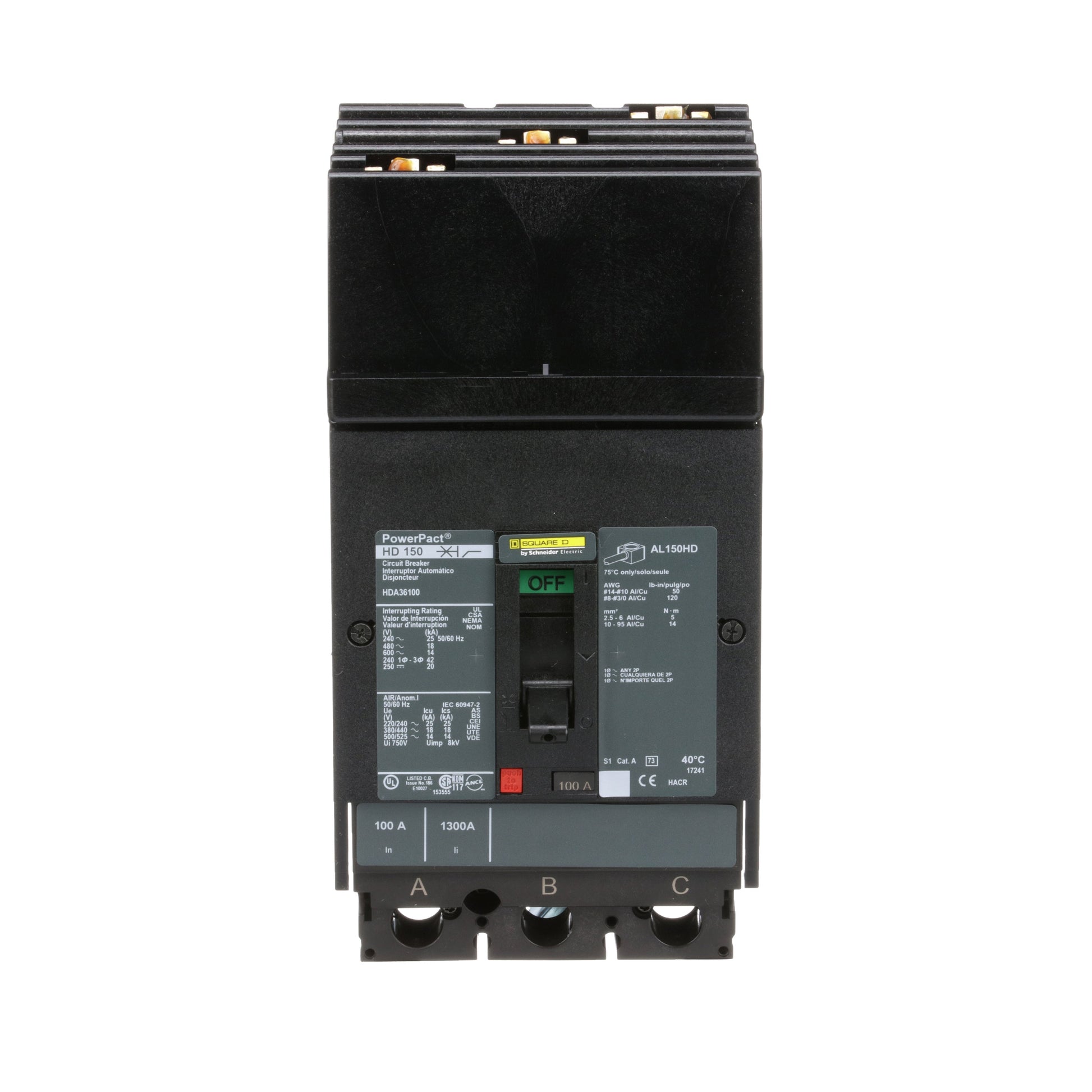

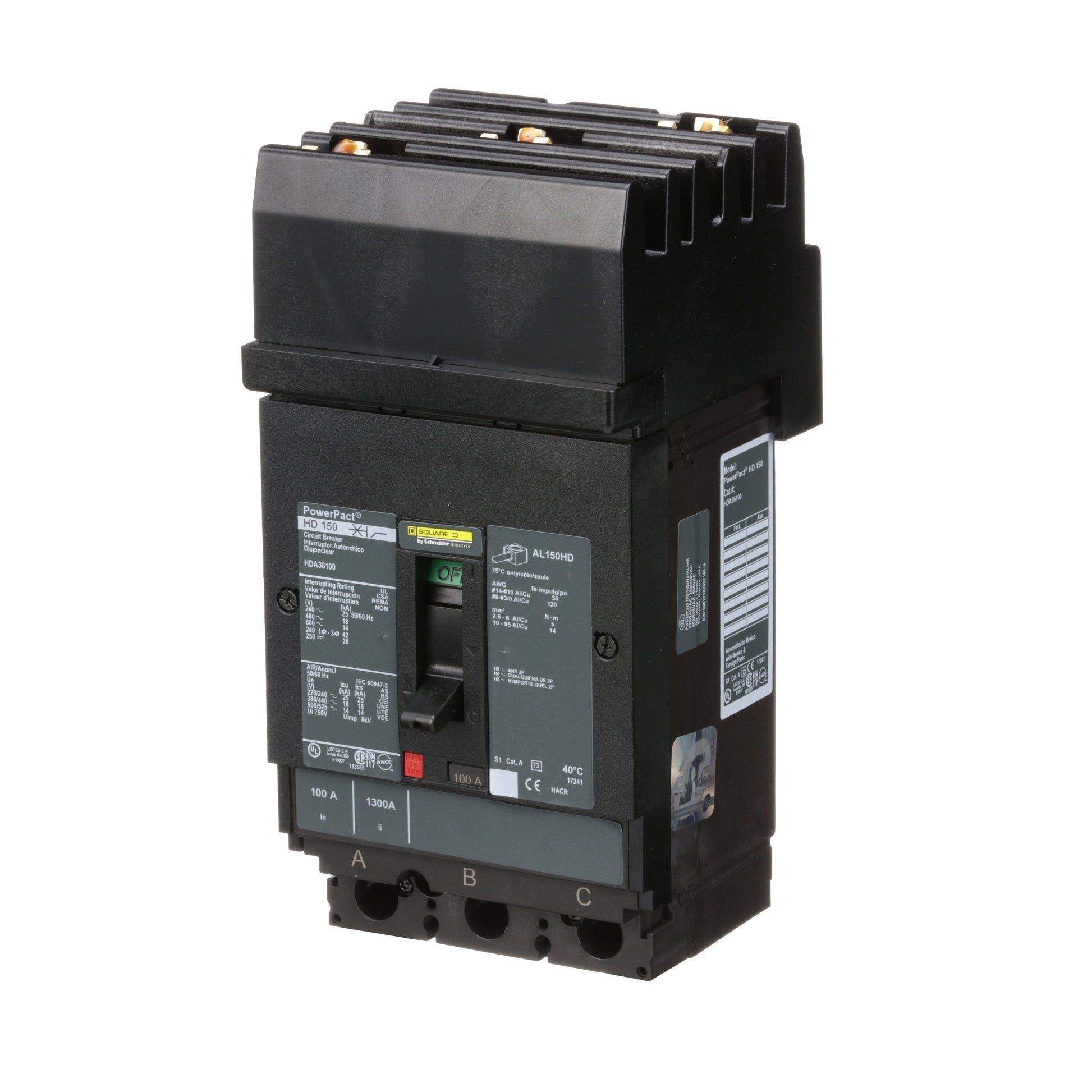

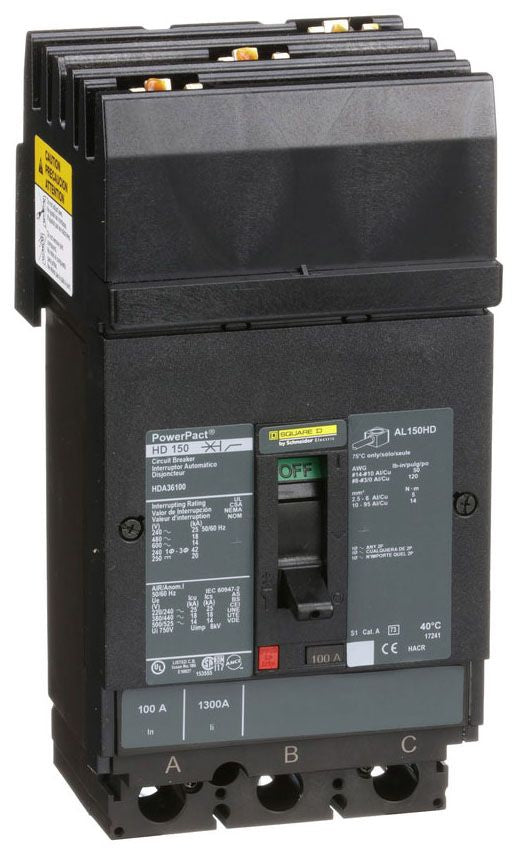

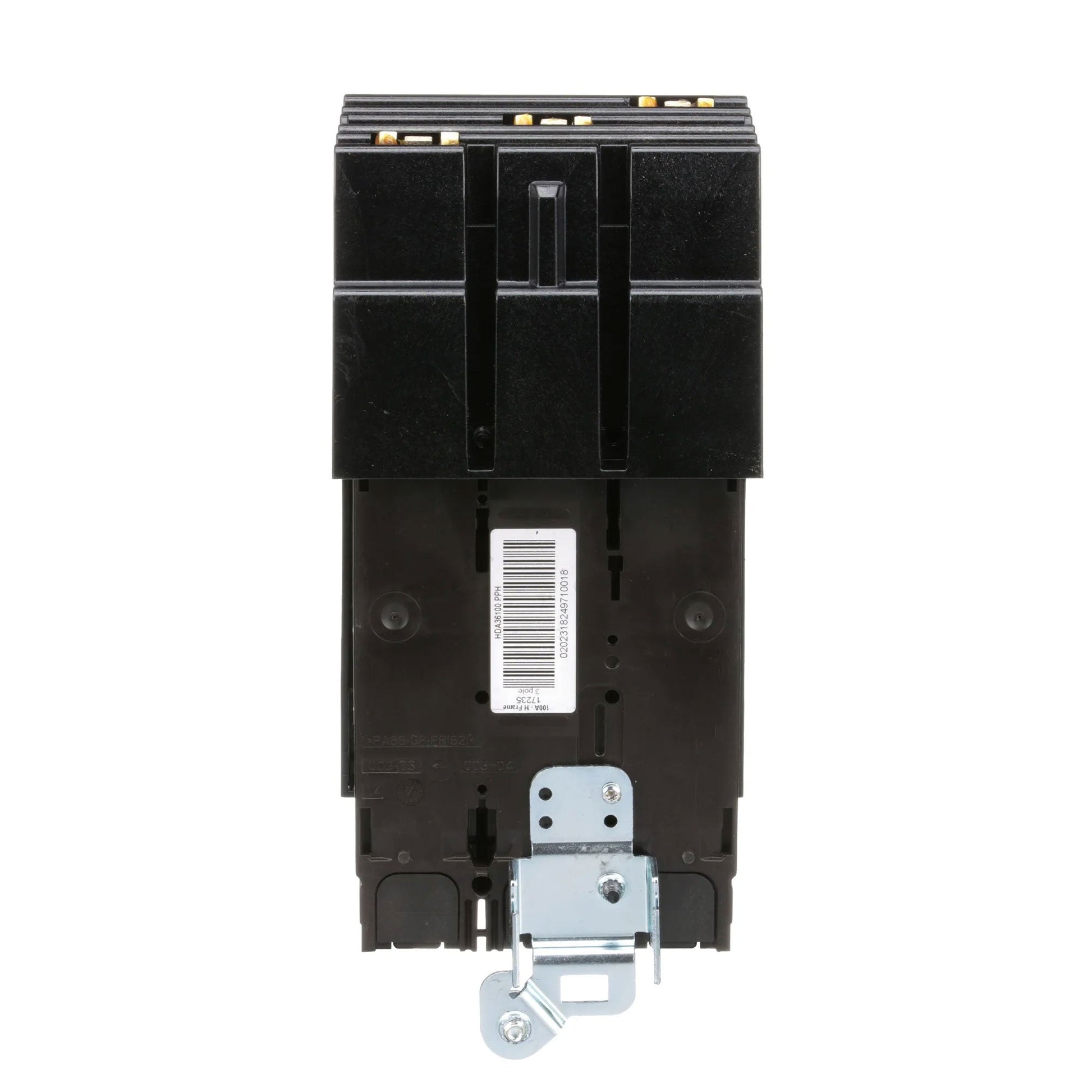

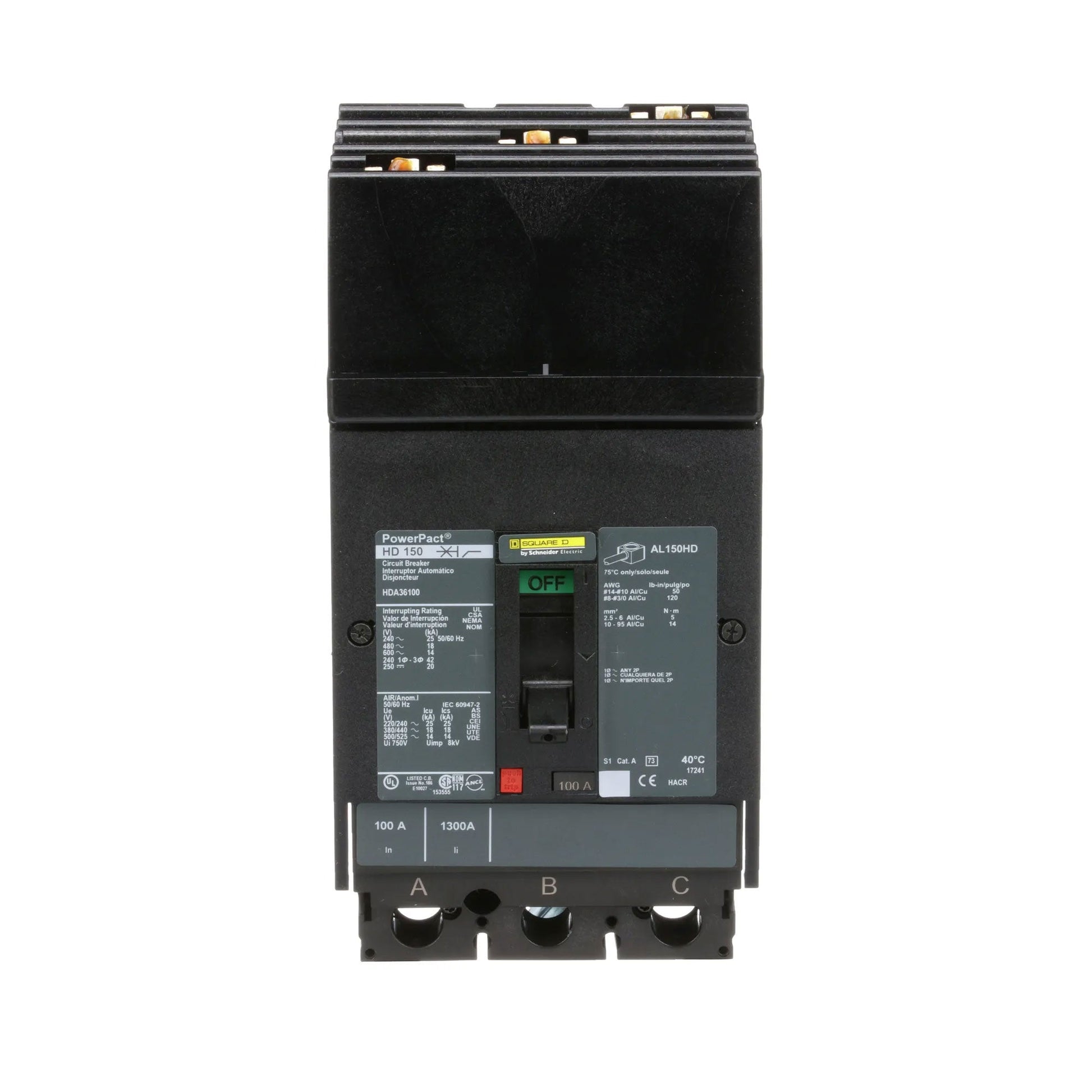

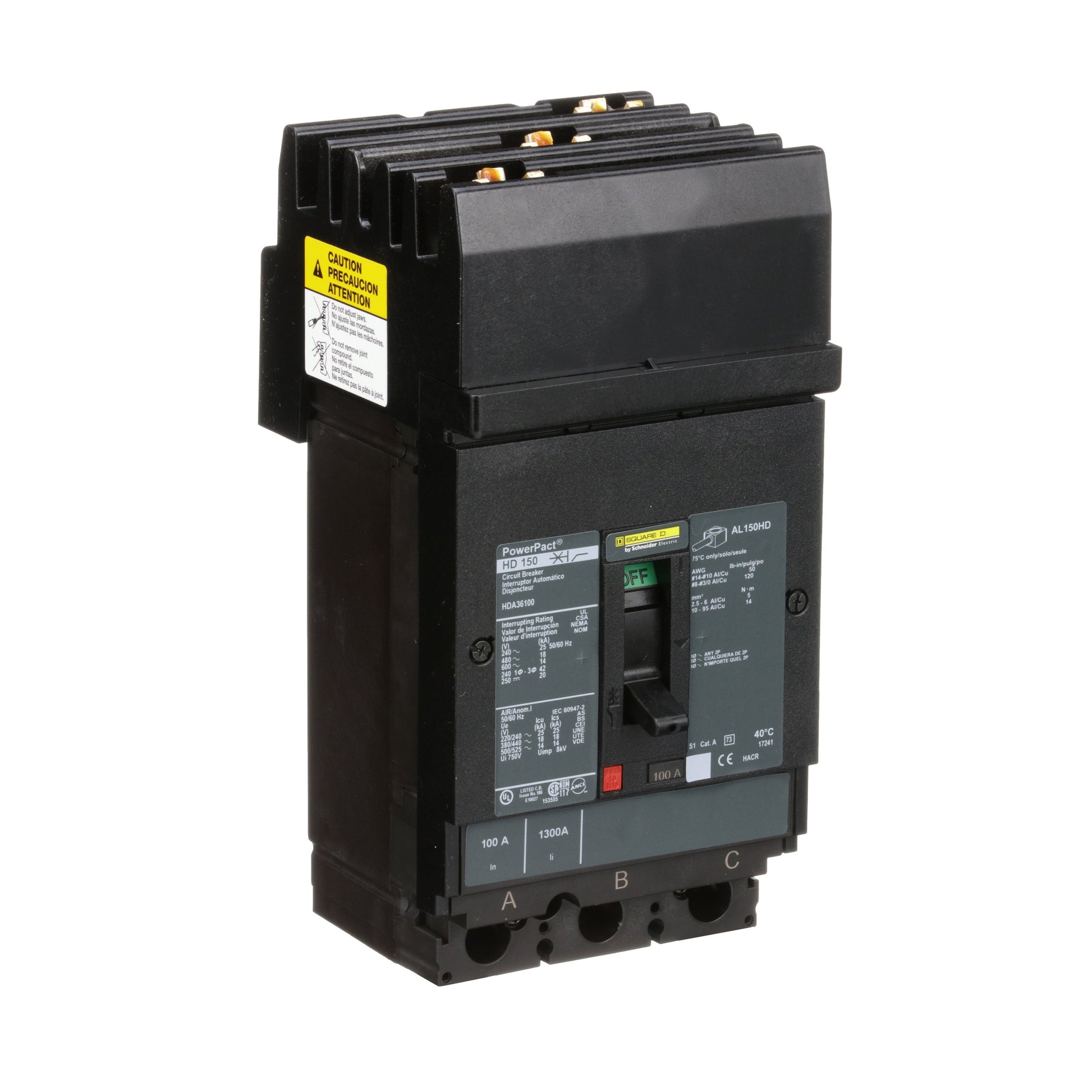

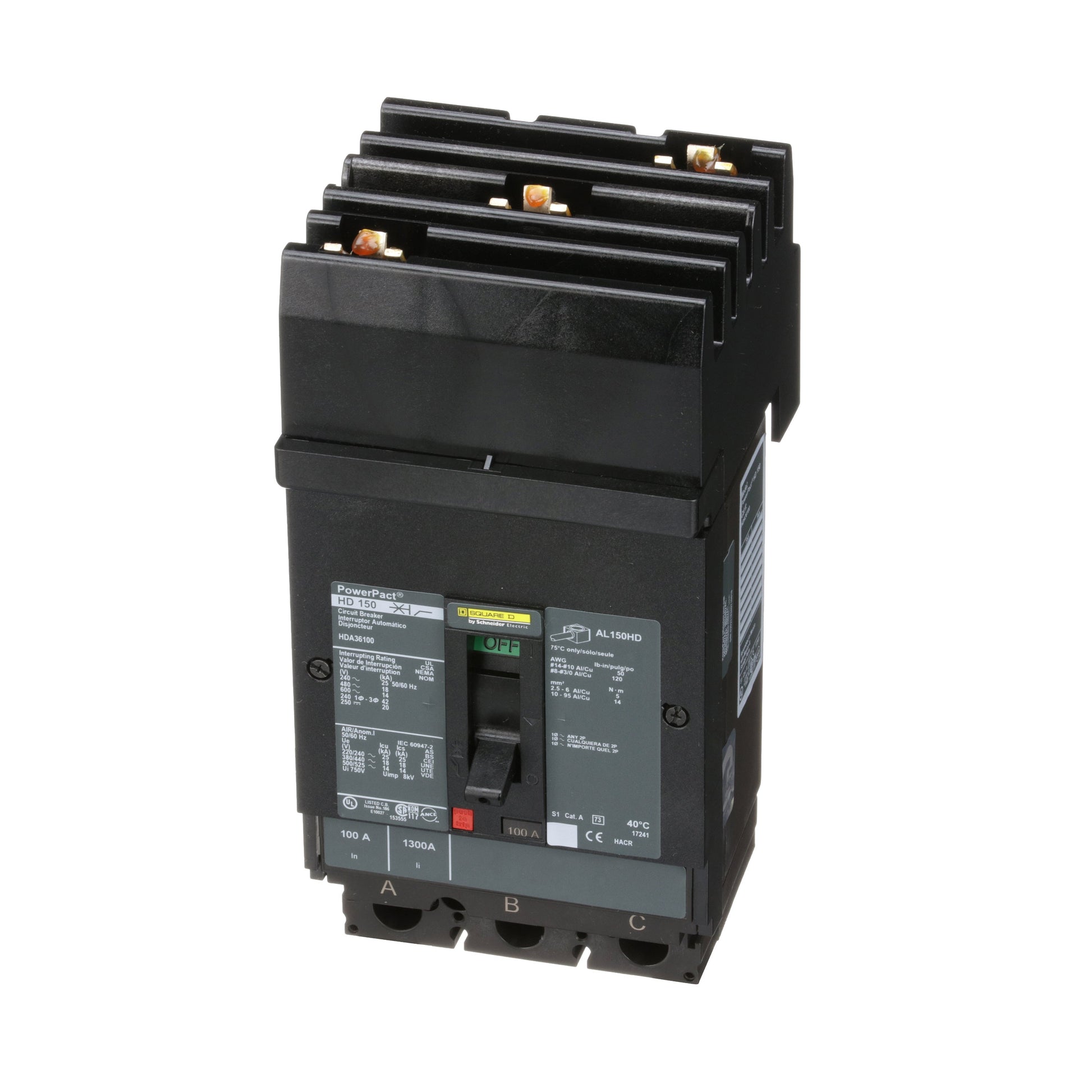

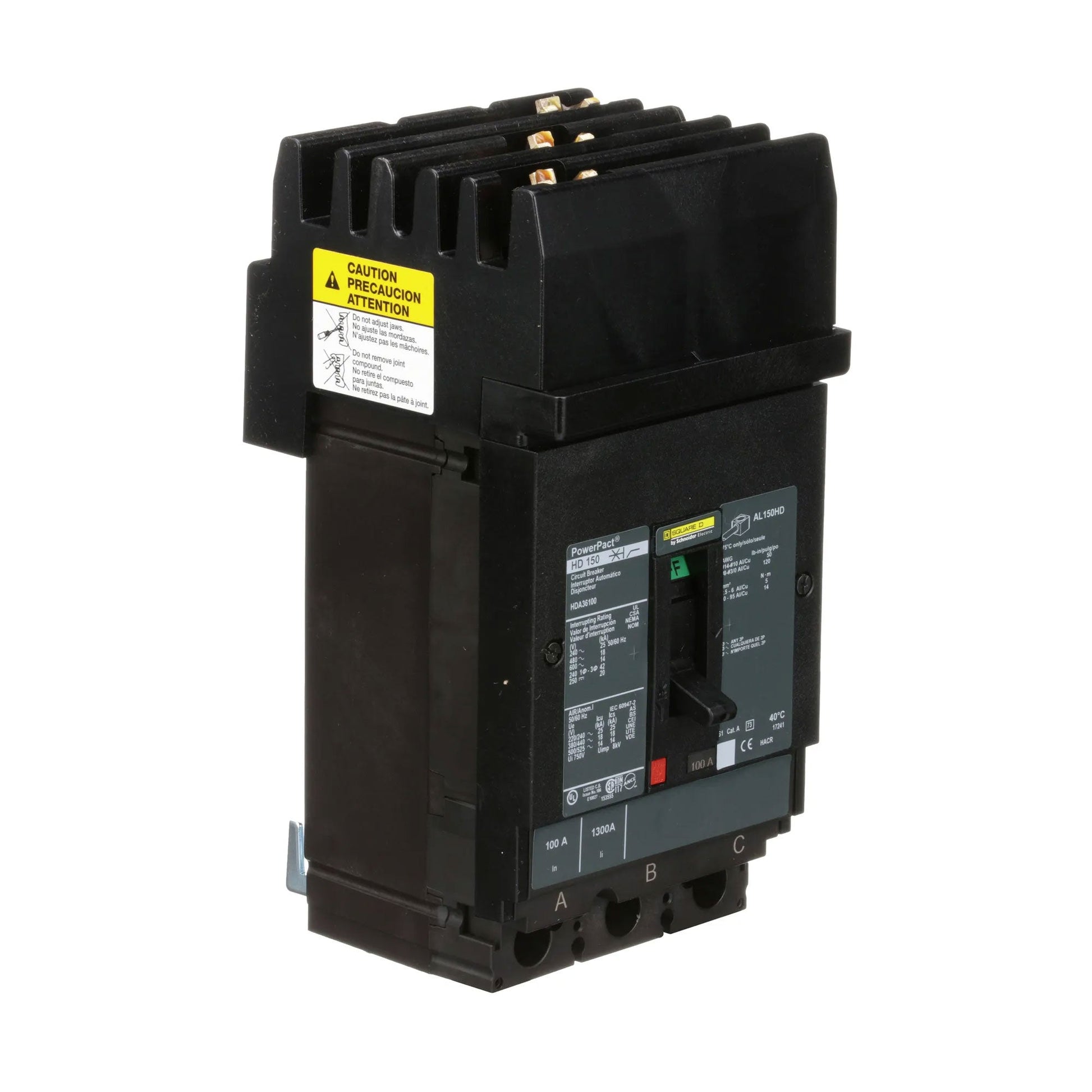

Square D HDA36100 Circuit Breaker | 600V 100A 3P 18kA@480V I-Line Style Plug-In Powerpact
Square D HDA36100 Circuit Breaker | 600V 100A 3P 18kA@480V I-Line Style Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$545.84 USD
Regular price
$1,361.00 USD
Sale price
$545.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Square D HDA36100 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 100A rating and an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection. It is ideal for industrial and commercial electrical systems.
Key Features:
✔ Part Number: HDA36100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG (Cu/Al), Max. 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901419983
✔ GTIN: 00785901419983
✔ Country of Origin: Mexico

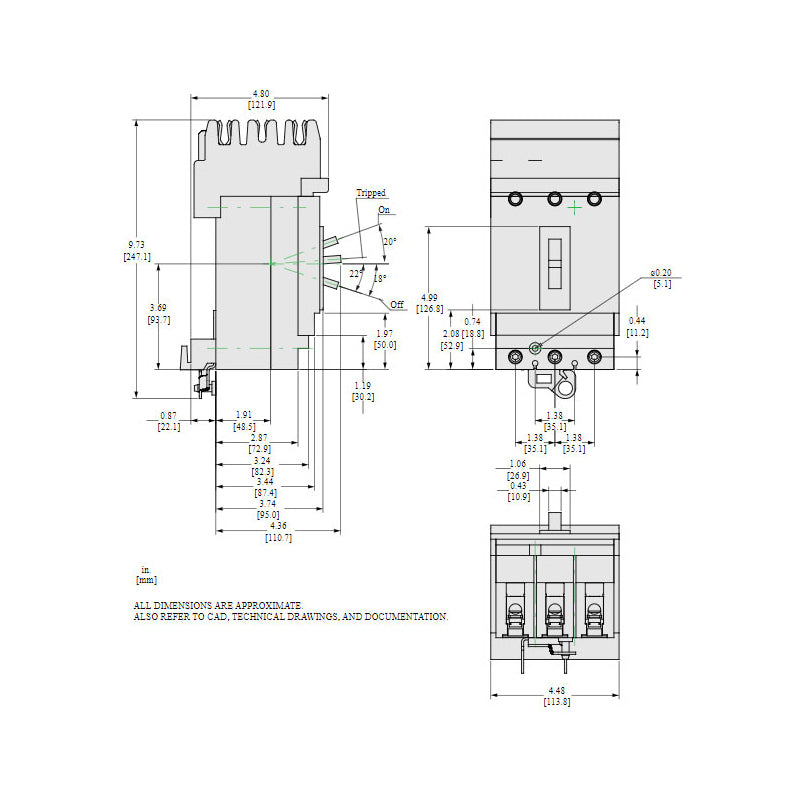

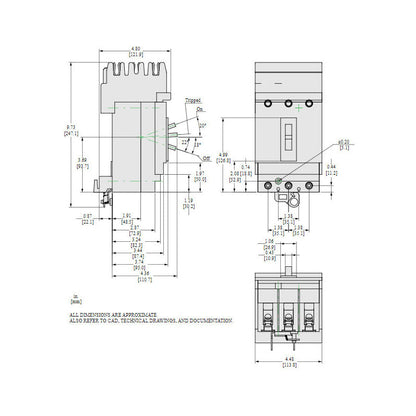

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.47
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
