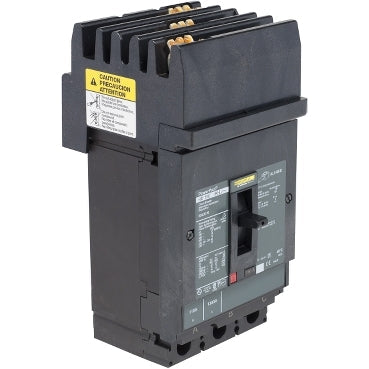

Square D HDA36150U33X Circuit Breaker | 600V 150A 3P 18kA@480V I-Line Style Plug-In Powerpact
Square D HDA36150U33X Circuit Breaker | 600V 150A 3P 18kA@480V I-Line Style Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$1,711.85 USD
Regular price
$3,107.00 USD
Sale price
$1,711.85 USD
Unit price
per
Shipping calculated at checkout.
Stock:
2 in stock
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Couldn't load pickup availability
Product Description:
The Square D HDA36150U33X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 150A amperage rating with an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection. It is designed for reliable performance in electrical systems.
Key Features:
✔ Part Number: HDA36150U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ Trip Type: MicroLogic 3.2 S
✔ UPC: 785901944454
✔ GTIN: 00785901944454
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 3.63 lb
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
