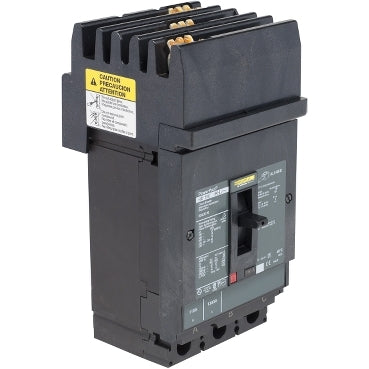

Schneider Electric HDA36150U44X Circuit Breaker | 600V 150A 3P 18kA@480V I-Line Style Plug-In Powerpact
Schneider Electric HDA36150U44X Circuit Breaker | 600V 150A 3P 18kA@480V I-Line Style Plug-In Powerpact
Regular price
$3,177.56 USD
Regular price
$0.00 USD
Sale price
$3,177.56 USD
Unit price
/
per
Shipping calculated at checkout.
Product Description:
The Schneider Electric HDA36150U44X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 150 amp rating with an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection with LSIG functions. It is designed for reliable performance in electrical systems.
Key Features:
✔ Part Number: HDA36150U44X
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG (Cu/Al), Max. 3/0 AWG (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ GTIN: 03606486282397
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 3.63
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
The Schneider Electric HDA36150U44X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 150 amp rating with an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection with LSIG functions. It is designed for reliable performance in electrical systems.
Key Features:
✔ Part Number: HDA36150U44X
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG (Cu/Al), Max. 3/0 AWG (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ GTIN: 03606486282397
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 3.63
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
