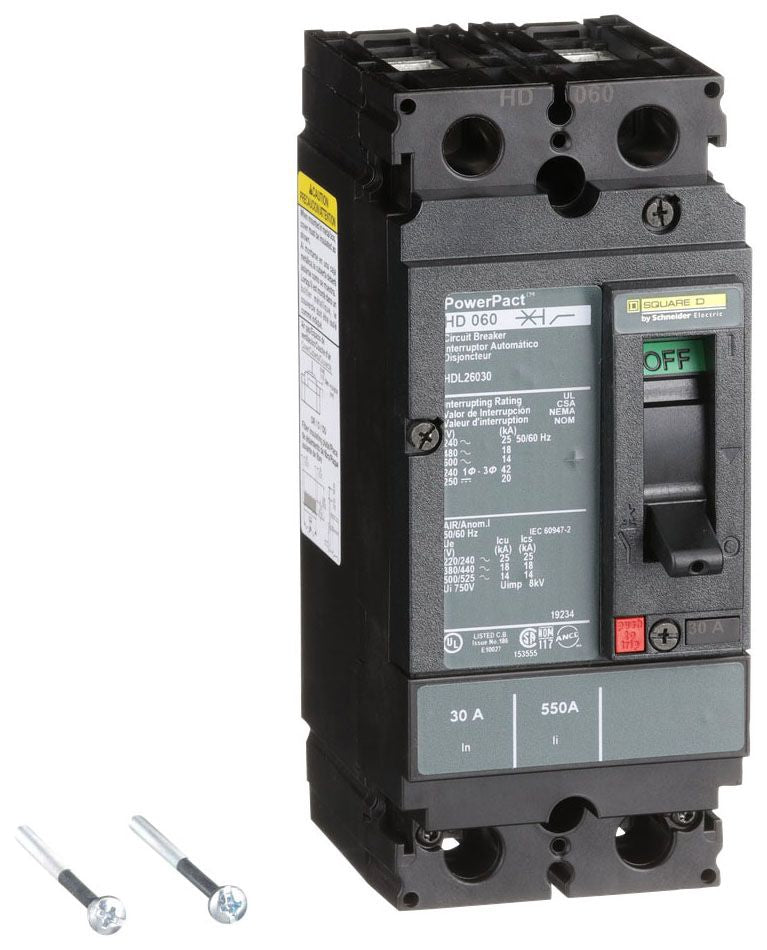

Square D HDL26030 Circuit Breaker | 600V 30A 2P 18kA@480V Bolt-On Powerpact

Product Description:
The Square D HDL26030 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 30 amp breaker rated for 600 Volts with an 18kA@480V AIC rating. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation. It is designed for reliable circuit protection in industrial and commercial applications.

Key Features:
✔ Part Number: HDL26030
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600
✔ Amperage: 30
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/HD
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Not Applicable
✔ UPC: 785901458920
✔ GTIN: 00785901458920
✔ Country of Origin: Mexico
✔ Dimensions: 2.74 in x 6.4 in
✔ Weight: 1.36
✔ Standards: CE, CSA, IEC, UL Listed
✔ Certification: CE, CSA, IEC, UL Listed
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
