Images are for reference only
Square D

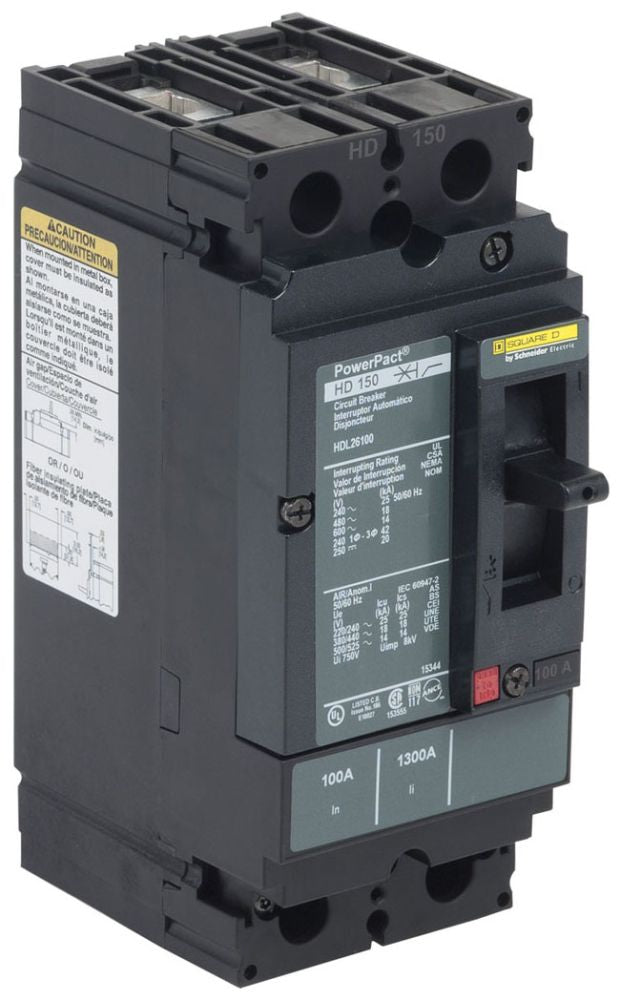

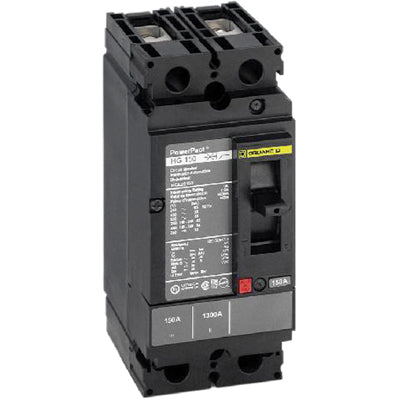

Square D HDL26090 Circuit Breaker | 600V 90A 2P 18kA@480V Bolt-On Powerpact
Square D HDL26090 Circuit Breaker | 600V 90A 2P 18kA@480V Bolt-On Powerpact
Price:
Sale
Sold out
Regular price
$483.57 USD
Regular price
$1,062.00 USD
Sale price
$483.57 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 6 left
Couldn't load pickup availability
Product Description:
The Square D HDL26090 is a Molded Case Circuit Breaker from the Powerpact family. It features 2 poles, 600V voltage, and 90A amperage with an 18kA@480V AIC rating. This thermal magnetic breaker uses a bolt-on connection and is suitable for various electrical applications. It meets UL, CSA, NEMA, NOM, and CE standards.
Key Features:
✔ Part Number: HDL26090
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
✔ Protection: Thermal Magnetic
✔ UPC: 785901625193
✔ GTIN: 00785901625193
✔ Country of Origin: United States
✔ Dimensions: 2.74 in x 6.4 in
✔ Weight: 1.36
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
