Square D HDL36030 Circuit Breaker | 600V 30A 3P 18kA@480V Bolt-On Powerpact
Square D HDL36030 Circuit Breaker | 600V 30A 3P 18kA@480V Bolt-On Powerpact
Price:
Sale
Sold out
Regular price
$405.84 USD
Regular price
$1,088.00 USD
Sale price
$405.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Square D HDL36030 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 30A rating and an 18kA@480V AIC rating. This breaker uses a bolt-on connection and offers thermal magnetic protection for reliable performance. It is suitable for industrial and commercial electrical systems.
Key Features:
✔ Part Number: HDL36030
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/HD
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901706632
✔ GTIN: 00785901706632
✔ Country of Origin: Mexico

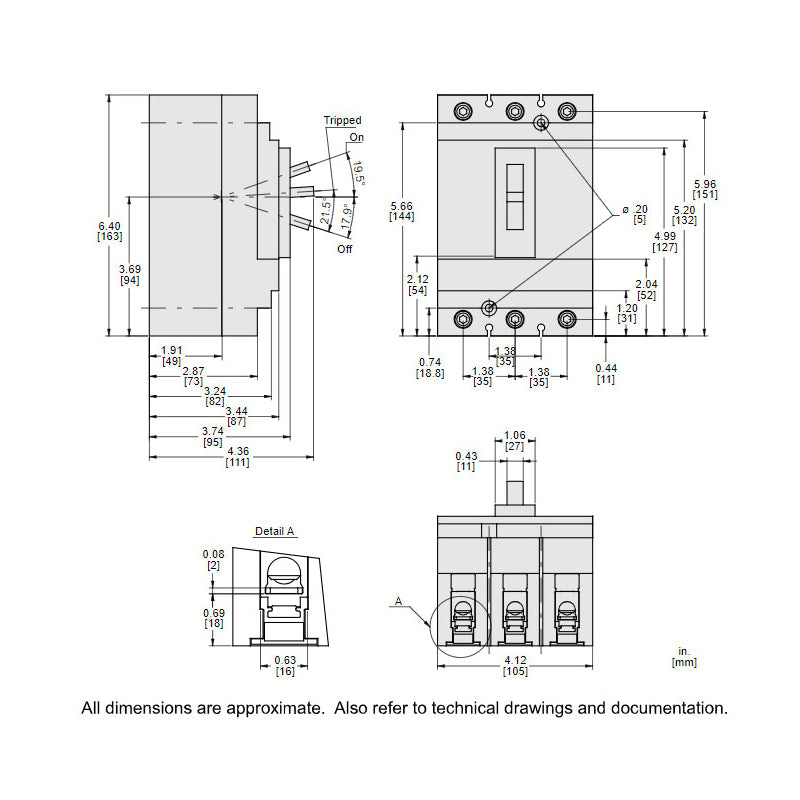

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.87
✔ Standards: CE, CSA, IEC, UL listed
✔ Certification: CE, CSA, IEC, UL listed
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
The Square D HDL36030 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 30A rating and an 18kA@480V AIC rating. This breaker uses a bolt-on connection and offers thermal magnetic protection for reliable performance. It is suitable for industrial and commercial electrical systems.
Key Features:
✔ Part Number: HDL36030
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/HD
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901706632
✔ GTIN: 00785901706632
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.87
✔ Standards: CE, CSA, IEC, UL listed
✔ Certification: CE, CSA, IEC, UL listed
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
