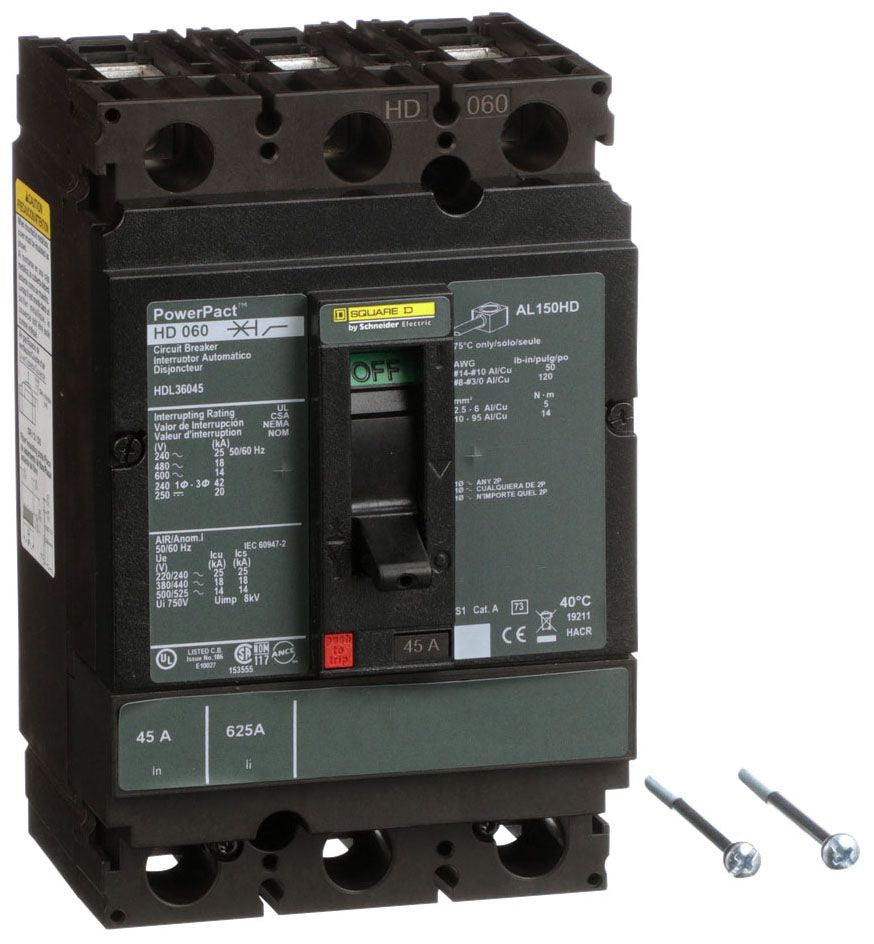

Square D HDL36045 Molded Case Circuit Breaker | 600V 45A 3P 18kA@480V Bolt-On Powerpact HDL
Square D HDL36045 Molded Case Circuit Breaker | 600V 45A 3P 18kA@480V Bolt-On Powerpact HDL
Price:
Sale
Sold out
Regular price
$552.07 USD
Regular price
$1,088.00 USD
Sale price
$552.07 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D HDL36045 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 45 amp breaker rated for 600 volts with an 18kA AIC rating at 480V. This model features Bolt-On connections and provides Thermal Magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: HDL36045
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600
✔ Amperage: 45
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/HD
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901458876
✔ GTIN: 00785901458876
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.85
✔ Standards: CE, CSA, IEC, UL Listed
✔ Certification: CE, CSA, IEC, UL Listed
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
