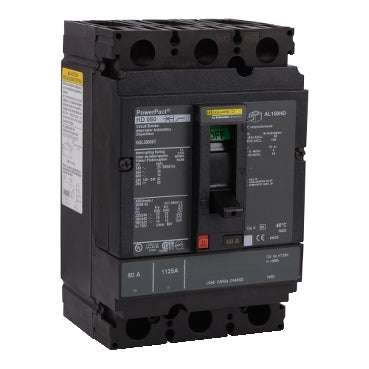

Square D HDL36060U33X Circuit Breaker | Powerpact HDL 600V 60A

Product Description:
The Square D HDL36060U33X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 60A rating and an 18kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection for reliable performance.

Key Features:
✔ Part Number: HDL36060U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600V
✔ Amperage: 60A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI (Long-Time, Short-Time, Instantaneous)
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al), Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Solid State
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ UPC: 785901950264
✔ GTIN: 00785902000000
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.27 lbs
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
