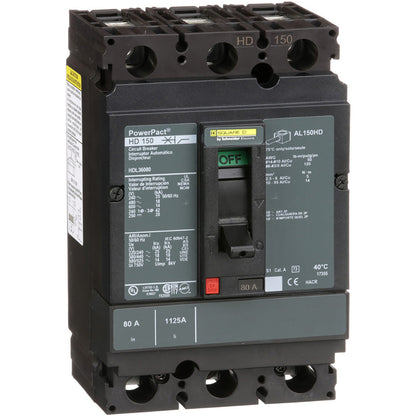

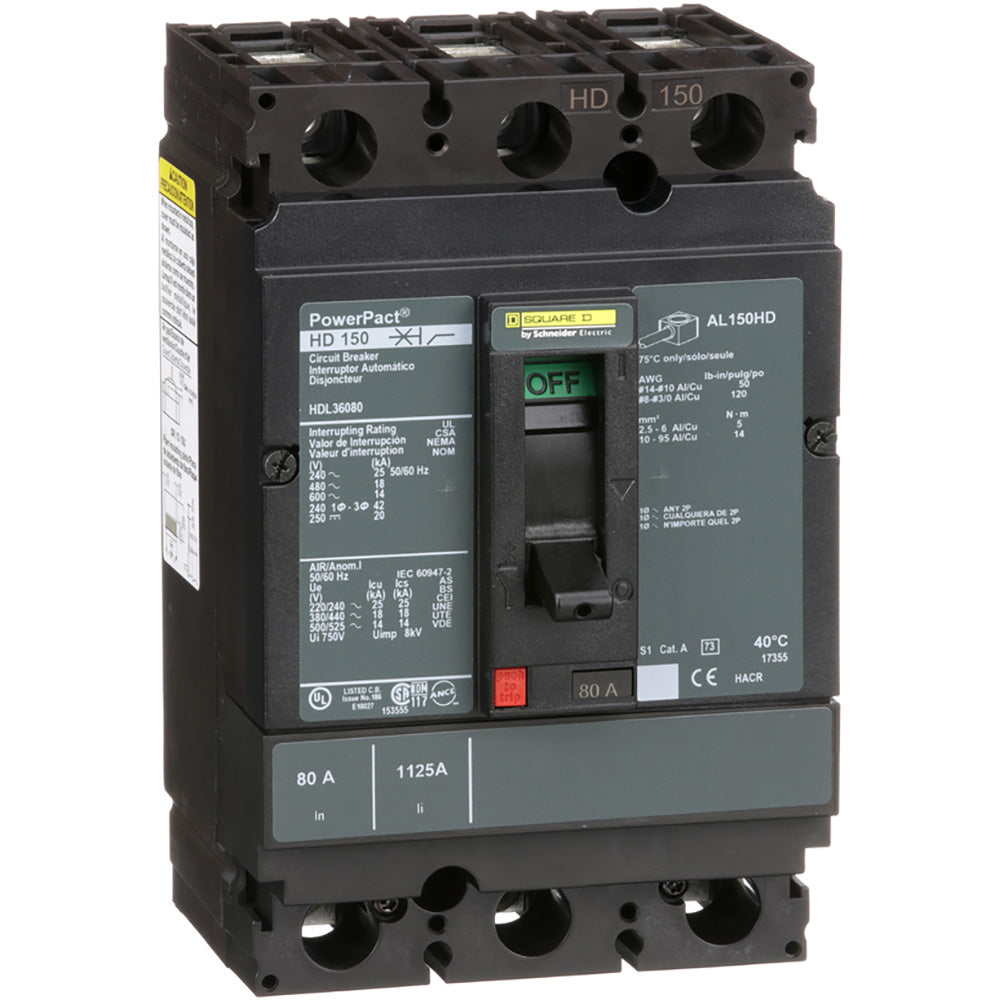

Square D HDL36080 Circuit Breaker | 600V 80A 3P 18kA@480V Bolt-On Powerpact

Product Description:

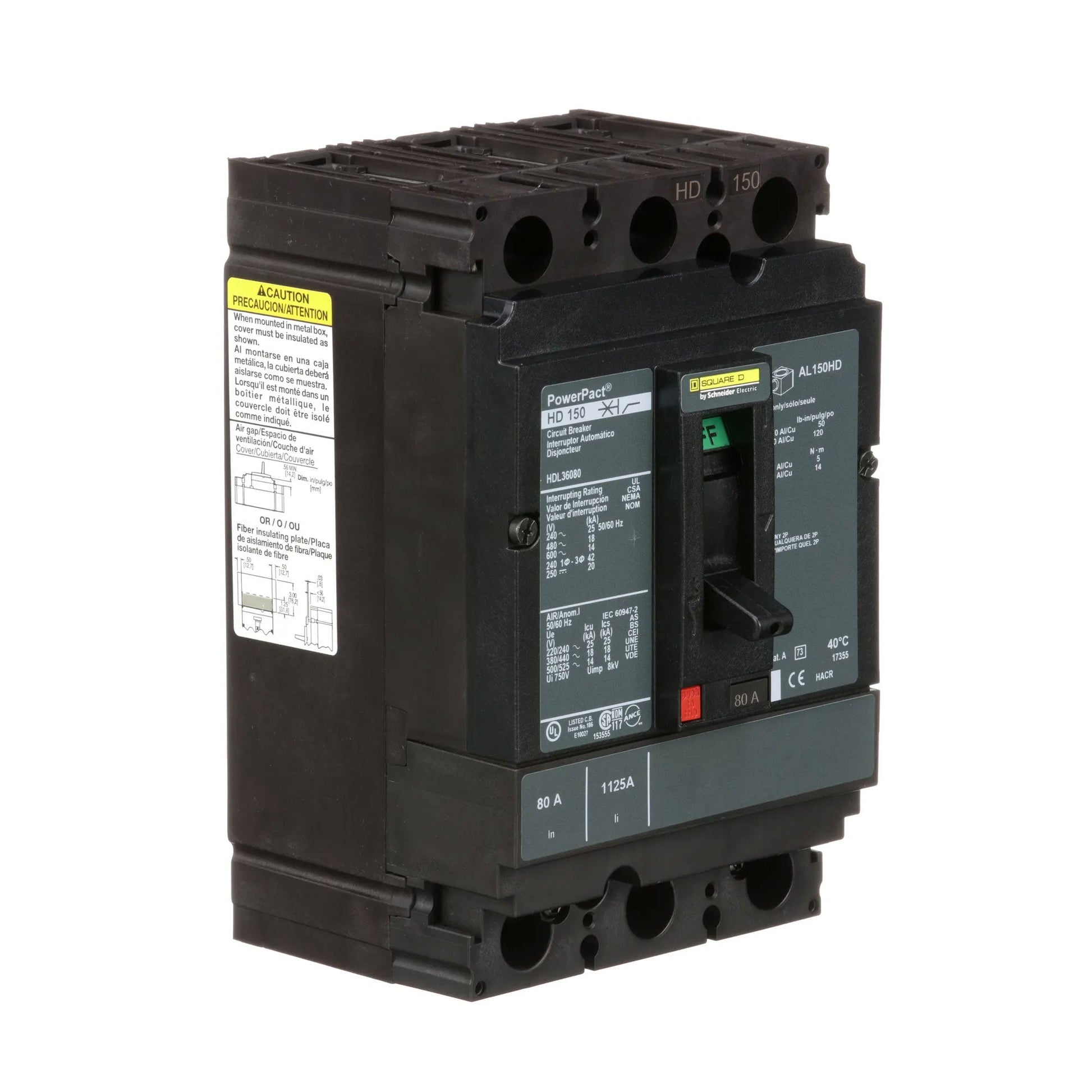

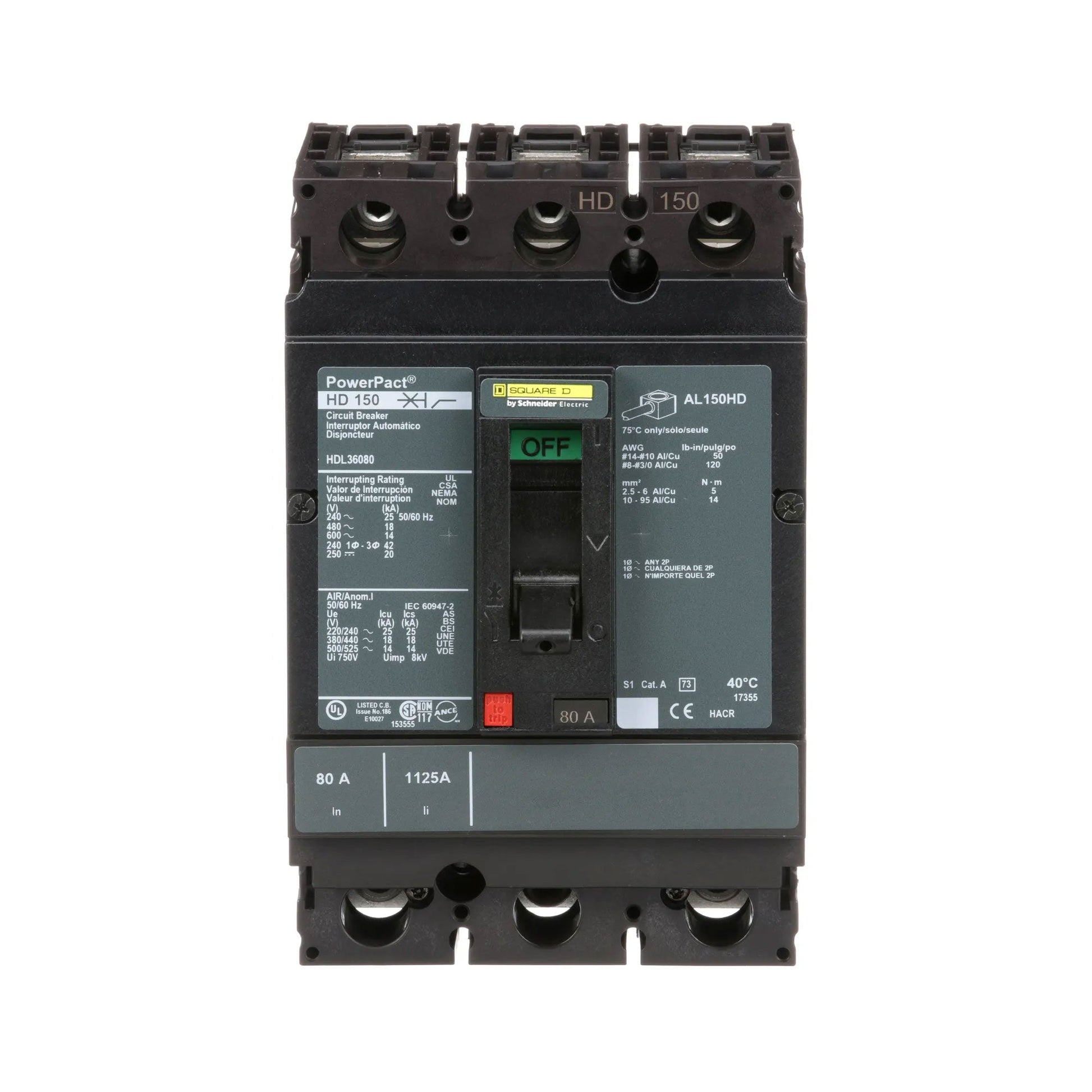

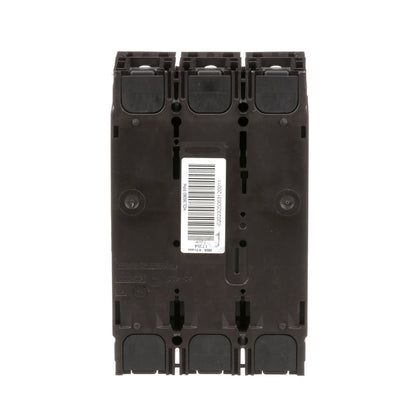

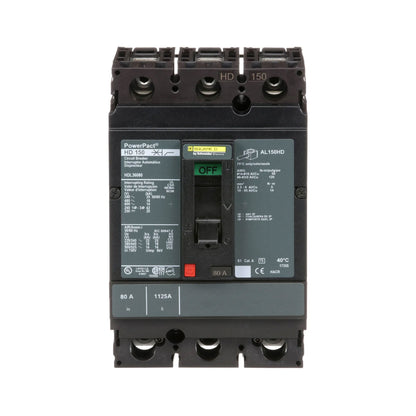

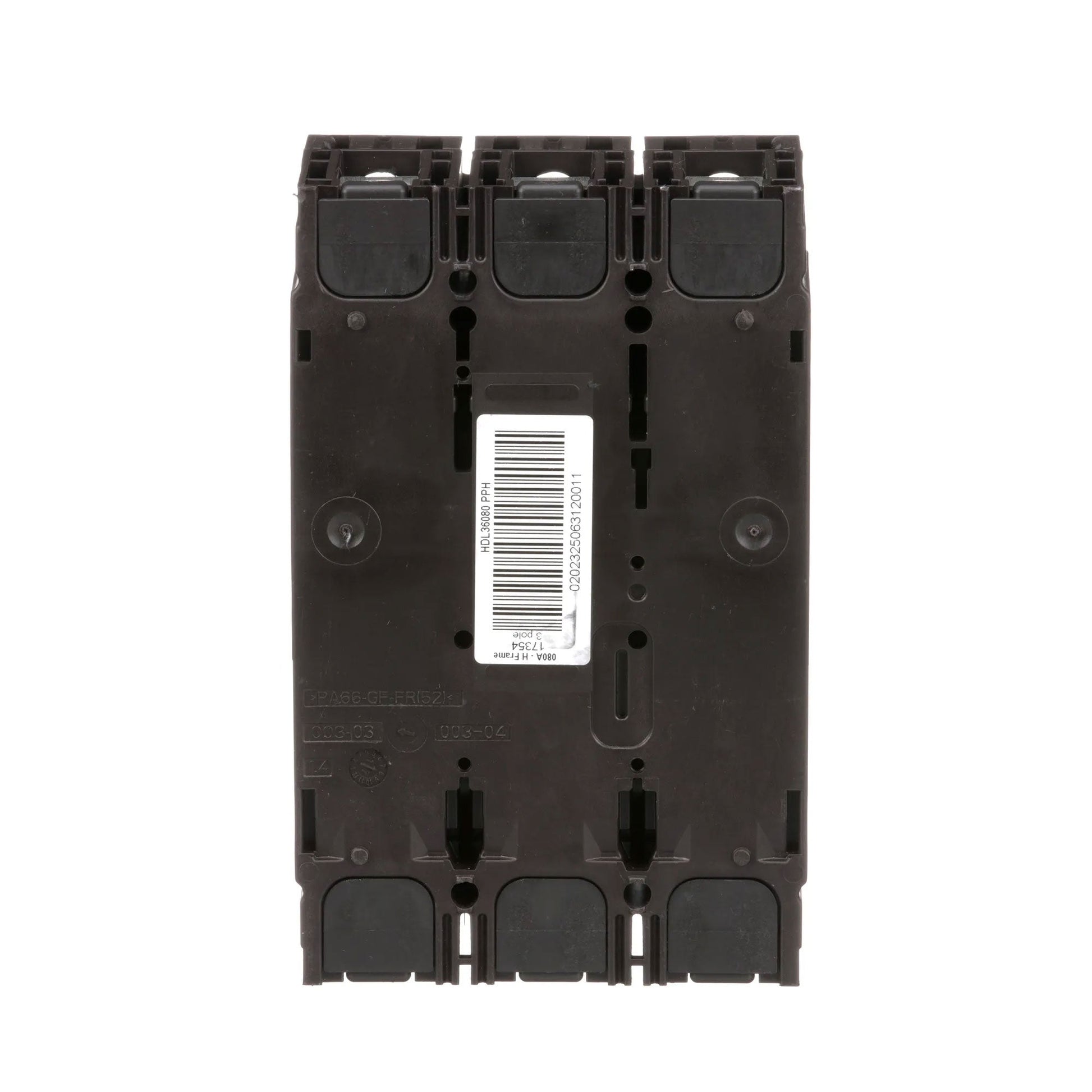

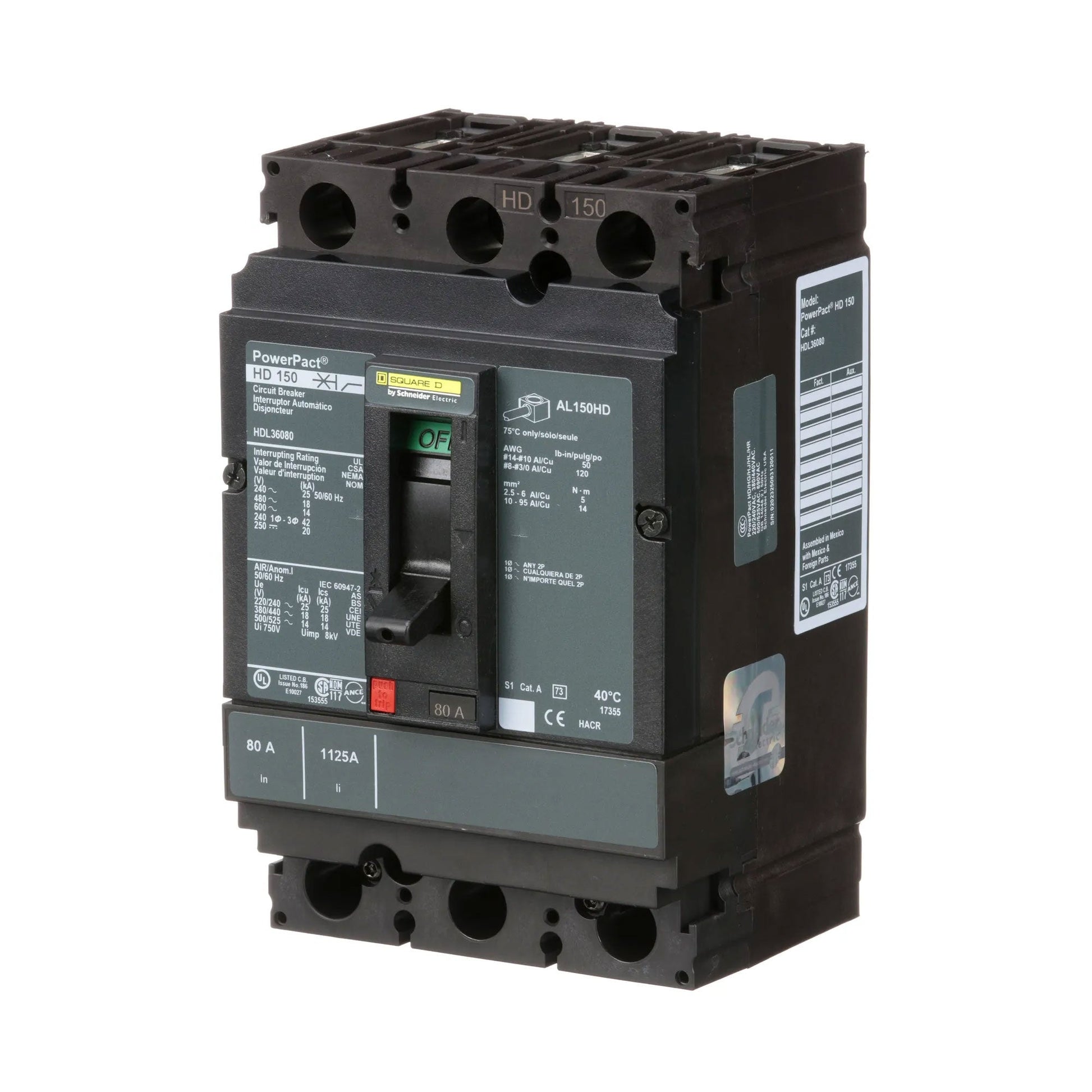

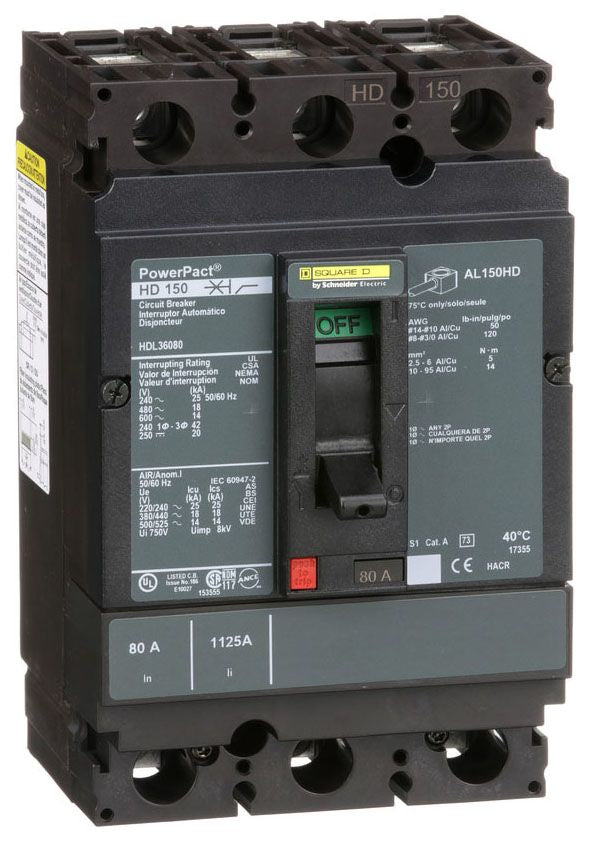

The Square D HDL36080 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 80A rating and an 18kA@480V AIC rating. This breaker uses a bolt-on connection and offers thermal magnetic protection for reliable performance.

Key Features:
✔ Part Number: HDL36080
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600
✔ Amperage: 80
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/HD
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3 AWG
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901623168
✔ GTIN: 00785901623168
✔ Country of Origin: Mexico

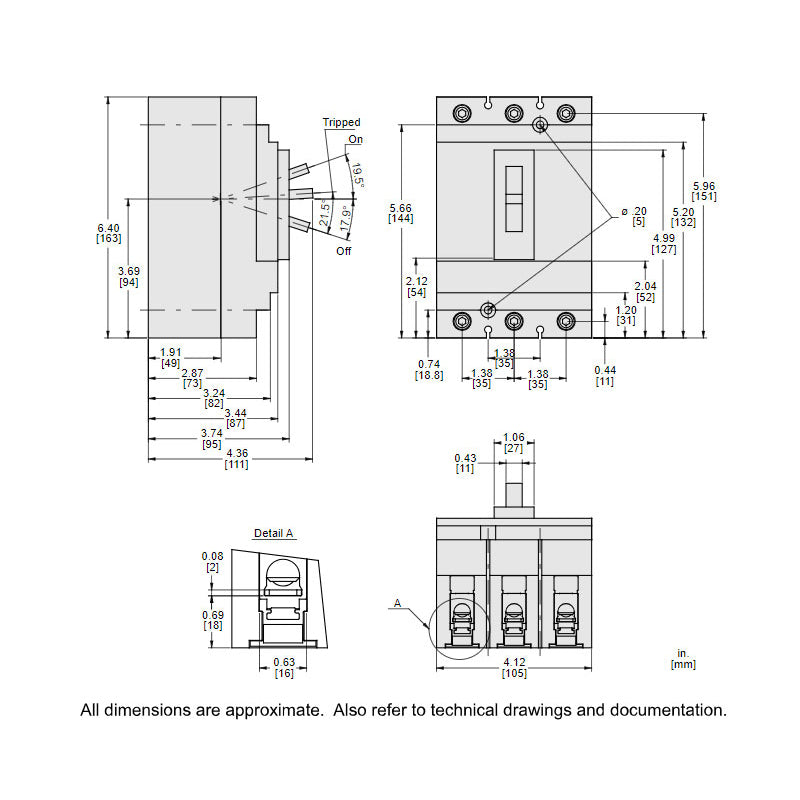

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 5
✔ Standards: CE, CSA, IEC, UL listed
✔ Certification: CE, CSA, IEC, UL listed
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
